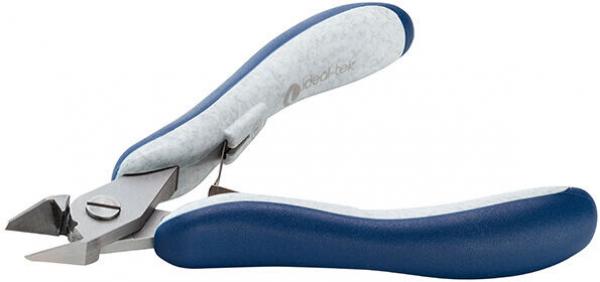

ESD Diagonal cutting pliers Slim 5350
The ESD Side Cutter Slim 5350 from ideal-tek is a precise and robust cutting tool, specifically designed for demanding applications. This model is part of the 535x series of large conical cutting tools, which are supported by their special geometry and head dimensions to enhance cutting and increase efficiency. Equipped with a semi-flush cutting edge, the side cutter is ideal for robust cuts on materials up to a hardness of 67 HRC.The ESD Ergo-Tek Slim handle not only provides a comfortable and secure grip but is also electrostatically dissipative, making it perfect for use in ESD-sensitive environments. With a length of 120 mm and a weight of 85 g, this tool is both handy and lightweight. The mini-bevel, conical head shape, and sandblasted surface further contribute to its high functionality.
The side cutter processes soft, medium, and hard wires with a maximum diameter of 1.63 mm, 1.15 mm, and 0.7 mm respectively, making it a versatile tool for various cutting tasks.
Details
- Bevel Bevel
- mini bevel
- Head type/size Head type/size
- regular
- Max Ø soft Max Ø soft
- 1,63 mm
- Max Ø medium Max Ø medium
- 1.15 mm
- Max Ø hard Max Ø hard
- 0.7 mm
- AWG hard AWG hard
- 48-21
- AWG medium AWG medium
- 38-17
- AWG soft AWG soft
- 29-14

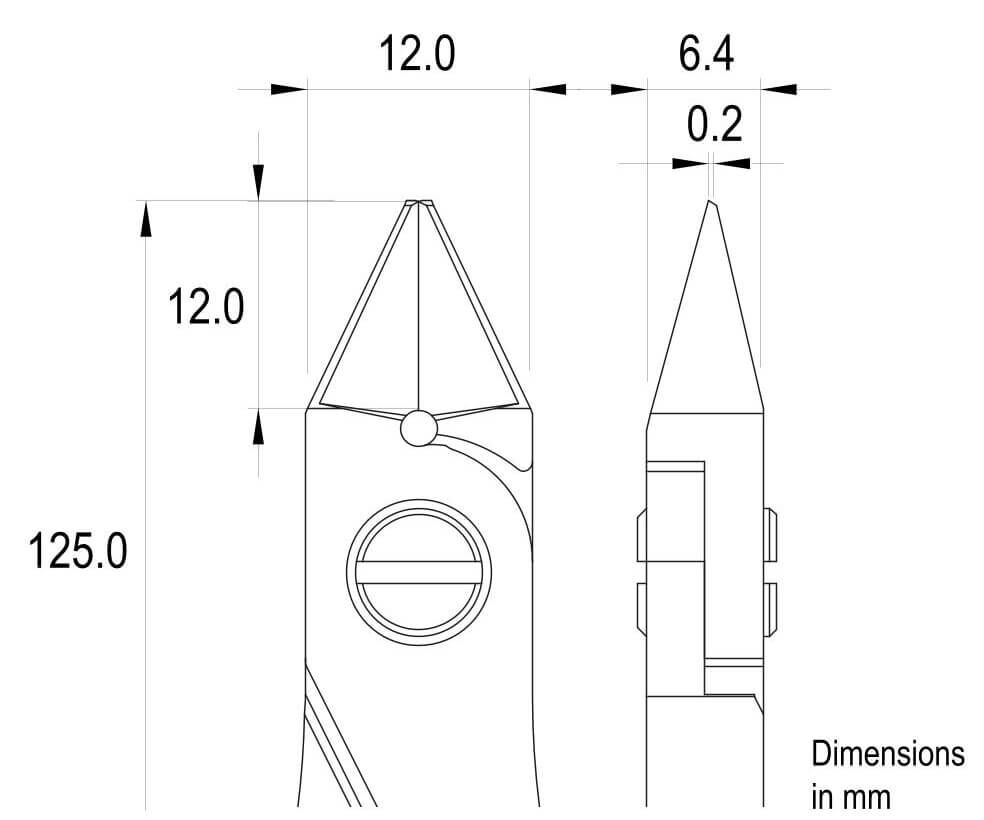

- Head thickness Head thickness
- 6.4 mm
- Length [mm] Length
- 120 mm
- Material Material
- steel
- Stick material Stick material
- PP / TPE
- Surface Surface
- sandblastered
- ESD ESD
- yes

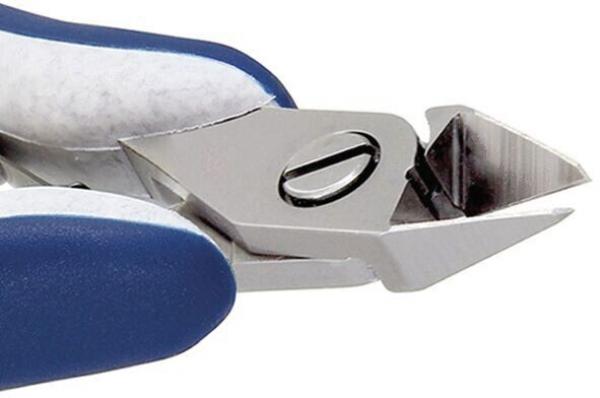

- Head shape Head shape
- tapered
- Head width Head width
- 12 mm
- Jaw length Jaw length
- 12 mm
- Type of pliers Type of pliers
- Diagonal cutting pliers
- Version Version
- with safety spring
- Weight Weight
- 85 g
Special features
- Ergonomic handle
- Slip-resistant surface
- Very lightweight
- Suitable for narrow spaces
ideal-tek pliers stand for quality with the highest requirements of precision, ergonomics and durability.
The cutting shapes and cutting performance:
With bevel (facet)
Normal cut. Suitable for cutting hard and soft steel wires as well as soft materials such as copper wire and cable.
With large bevel (facet)
Suitable for cutting hard and very hard steel wires. Long service life.
Without bevel flush (facet)
Flush cut for soft materials.
ERGO-TEK
The pliers of the ERGO-TEK series have a modified ergonomic handle. This adapts optimally to the hand which has a positive effect on the user especially in case of long, intensive and powerful working processes.

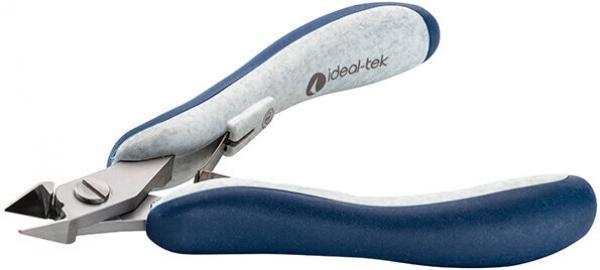

ERGO-TEK SLIM
In consideration of anatomic differences the new, lightweight ERGO-TEK SLIM series has been designed for small hands - providing the same ergonomics, ESD safety and technical advantages that have always characterized ideal-tek
