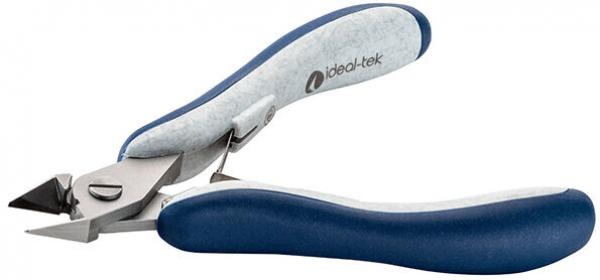

ESD Diagonal cutting pliers Slim 5351

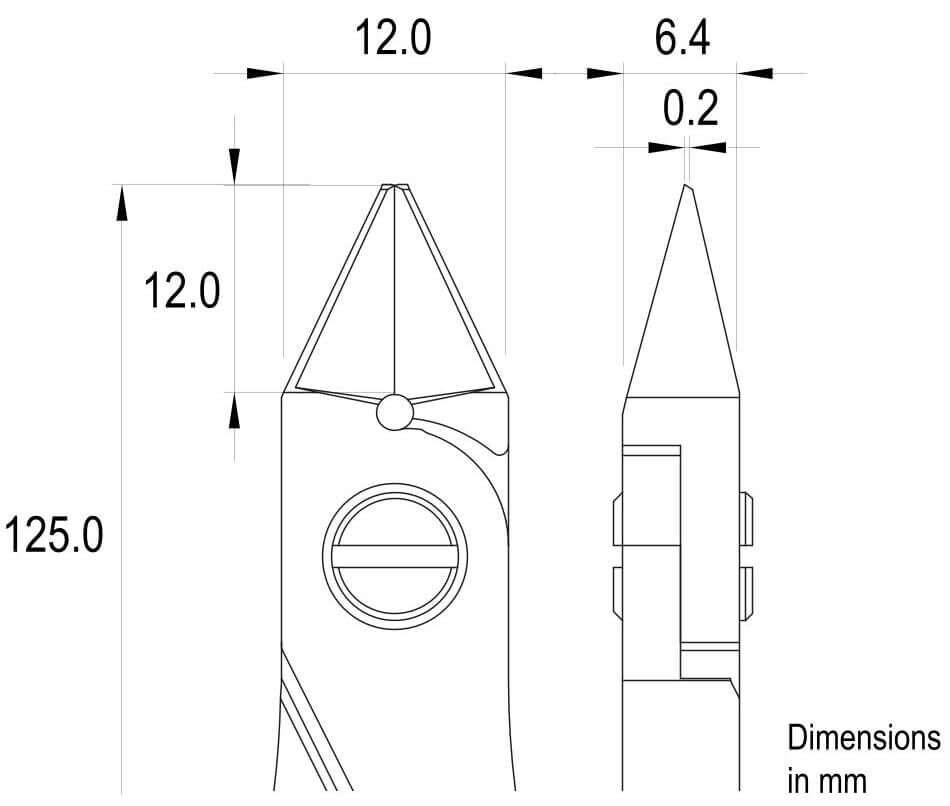

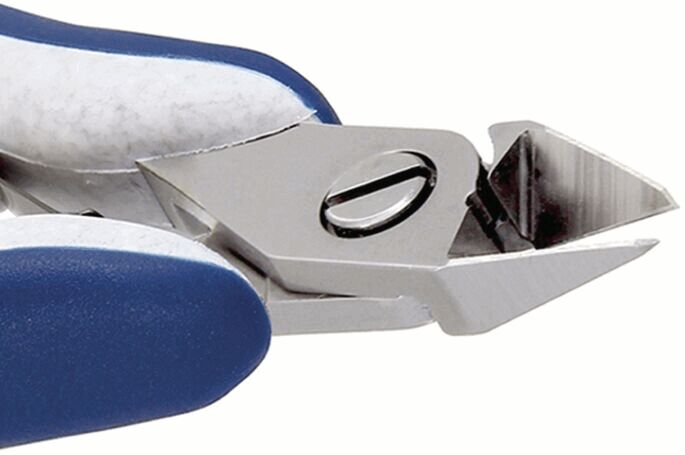

The ESD Side Cutter Slim 5351 from ideal-tek is a high-precision cutting tool characterized by its large, conical head shape, designed for clean cuts with certain tolerances. Equipped with a flush cutting edge, this model is ideal for fine work on sensitive materials. The blades, hardened to a hardness of 67 HRC, ensure durability and lasting sharpness.The ergonomically designed ESD Ergo-Tek Slim handle made of PP and TPE offers not only a comfortable and secure grip but is also electrostatically dissipative, making it particularly suitable for environments where electrostatic discharges pose a risk. The tool has a total length of 120 mm and weighs 85 g, allowing for excellent handling. The sandblasted surface and the conical head shape with a head width and thickness of 12 mm and 6.4 mm respectively enhance the robustness of the side cutter.
This model can cut soft material up to a diameter of 1.63 mm and medium-hard material up to 1.02 mm, with AWG sizes of 32-14 for soft and 38-18 for medium-hard material specified. Ideal for technical professionals in electronics and precision mechanics, the ESD Side Cutter Slim 5351 offers a reliable solution for precise cutting tasks.
Details
- Bevel Bevel
- with bevel
- Head type/size Head type/size
- regular
- Max Ø soft Max Ø soft
- 1,63 mm
- Max Ø medium Max Ø medium
- 1.02 mm
- AWG medium AWG medium
- 38-18
- AWG soft AWG soft
- 32-14
- Head thickness Head thickness
- 6.4 mm
- Length [mm] Length
- 120 mm
- Material Material
- steel
- Stick material Stick material
- PP / TPE
- Surface Surface
- sandblastered
- ESD ESD
- yes
- Head shape Head shape
- tapered
- Head width Head width
- 12 mm
- Jaw length Jaw length
- 12 mm
- Type of pliers Type of pliers
- Diagonal cutting pliers
- Version Version
- with safety spring
- Weight Weight
- 85 g
Special features
- Ergonomic handle
- Slip-resistant surface
- Very lightweight
- Suitable for narrow spaces
ideal-tek pliers stand for quality with the highest requirements of precision, ergonomics and durability.
The cutting shapes and cutting performance:
With bevel (facet)
Normal cut. Suitable for cutting hard and soft steel wires as well as soft materials such as copper wire and cable.
With large bevel (facet)
Suitable for cutting hard and very hard steel wires. Long service life.
Without bevel flush (facet)
Flush cut for soft materials.
ERGO-TEK
The pliers of the ERGO-TEK series have a modified ergonomic handle. This adapts optimally to the hand which has a positive effect on the user especially in case of long, intensive and powerful working processes.
ERGO-TEK SLIM
In consideration of anatomic differences the new, lightweight ERGO-TEK SLIM series has been designed for small hands - providing the same ergonomics, ESD safety and technical advantages that have always characterized ideal-tek
