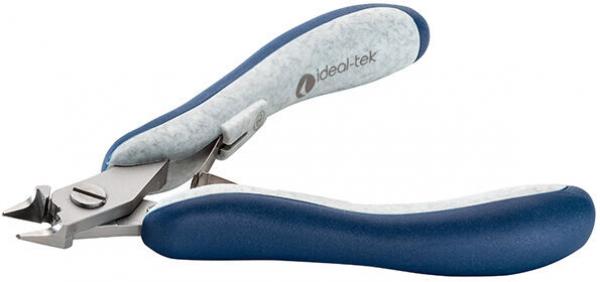

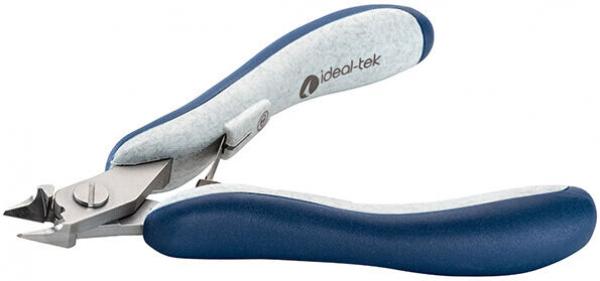

ESD Diagonal cutting pliers Slim 5541

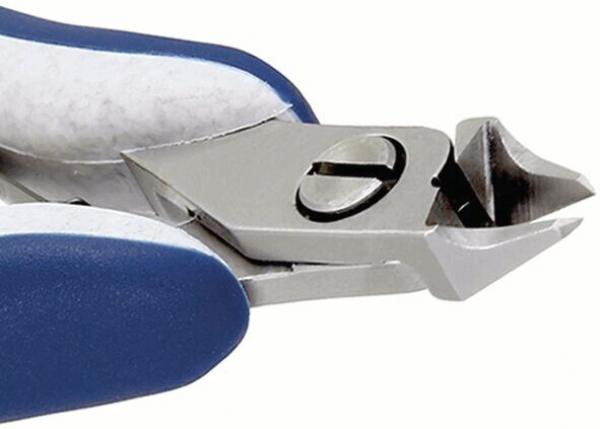

The ESD side cutter Slim 5541 from ideal-tek is a high-precision tool specifically designed for access and manipulation in small, tight areas. This model is part of the 554x series, known for its small, tapered, and relieved head shape, which allows optimal handling in precise applications. Equipped with a flush cutting edge, the cutter is ideal for clean cuts with certain tolerances.The side cutter features an ESD Ergo-Tek Slim handle made of PP/TPE, which is electrostatically dissipative and provides a comfortable and secure grip. The blades of this tool are hardened to a hardness of 67 HRC, ensuring high durability and cutting precision.

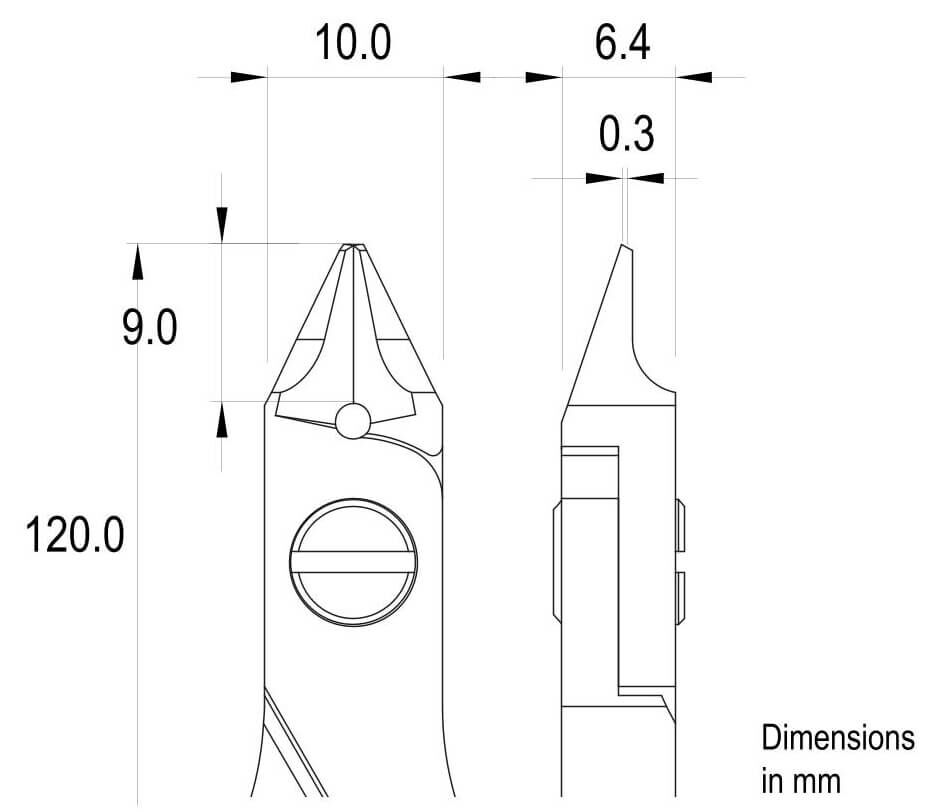

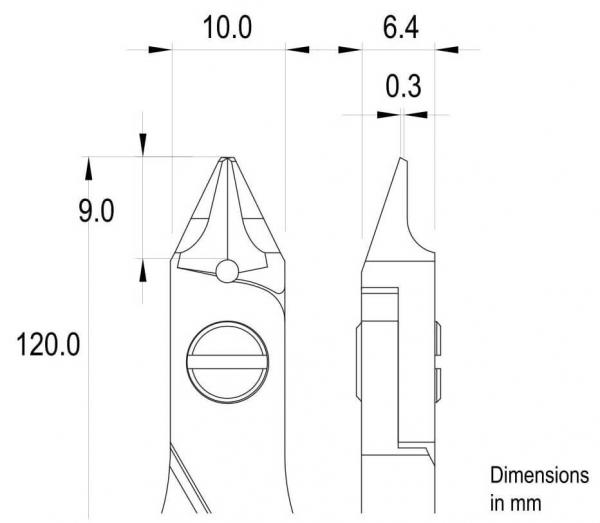

Technical specifications include a length of 120 mm, a weight of 81 g, and a head thickness of 6.4 mm. The cutter can cut soft material up to a diameter of 1.15 mm and medium-hard material up to 0.4 mm. The surface is sandblasted, which increases durability and resistance to wear.
This tool is an excellent choice for professionals working in electrostatically sensitive environments who value precision and ergonomics.
Details
- Bevel Bevel
- with bevel
- Head type/size Head type/size
- extra small
- Max Ø soft Max Ø soft
- 1.15 mm
- Max Ø medium Max Ø medium
- 0.4 mm
- AWG medium AWG medium
- 38-26
- AWG soft AWG soft
- 38-17
- Head thickness Head thickness
- 6.4 mm
- Length [mm] Length
- 120 mm
- Material Material
- steel
- Stick material Stick material
- PP / TPE
- Surface Surface
- sandblastered
- ESD ESD
- yes
- Head shape Head shape
- tapered
- Head width Head width
- 10 mm
- Jaw length Jaw length
- 9 mm
- Type of pliers Type of pliers
- Diagonal cutting pliers
- Version Version
- with safety spring
- Weight Weight
- 81 g
Special features
- Ergonomic handle
- Slip-resistant surface
- Very lightweight
- Suitable for narrow spaces
ideal-tek pliers stand for quality with the highest requirements of precision, ergonomics and durability.
The cutting shapes and cutting performance:
With bevel (facet)
Normal cut. Suitable for cutting hard and soft steel wires as well as soft materials such as copper wire and cable.
With large bevel (facet)
Suitable for cutting hard and very hard steel wires. Long service life.
Without bevel flush (facet)
Flush cut for soft materials.
ERGO-TEK
The pliers of the ERGO-TEK series have a modified ergonomic handle. This adapts optimally to the hand which has a positive effect on the user especially in case of long, intensive and powerful working processes.
ERGO-TEK SLIM
In consideration of anatomic differences the new, lightweight ERGO-TEK SLIM series has been designed for small hands - providing the same ergonomics, ESD safety and technical advantages that have always characterized ideal-tek
