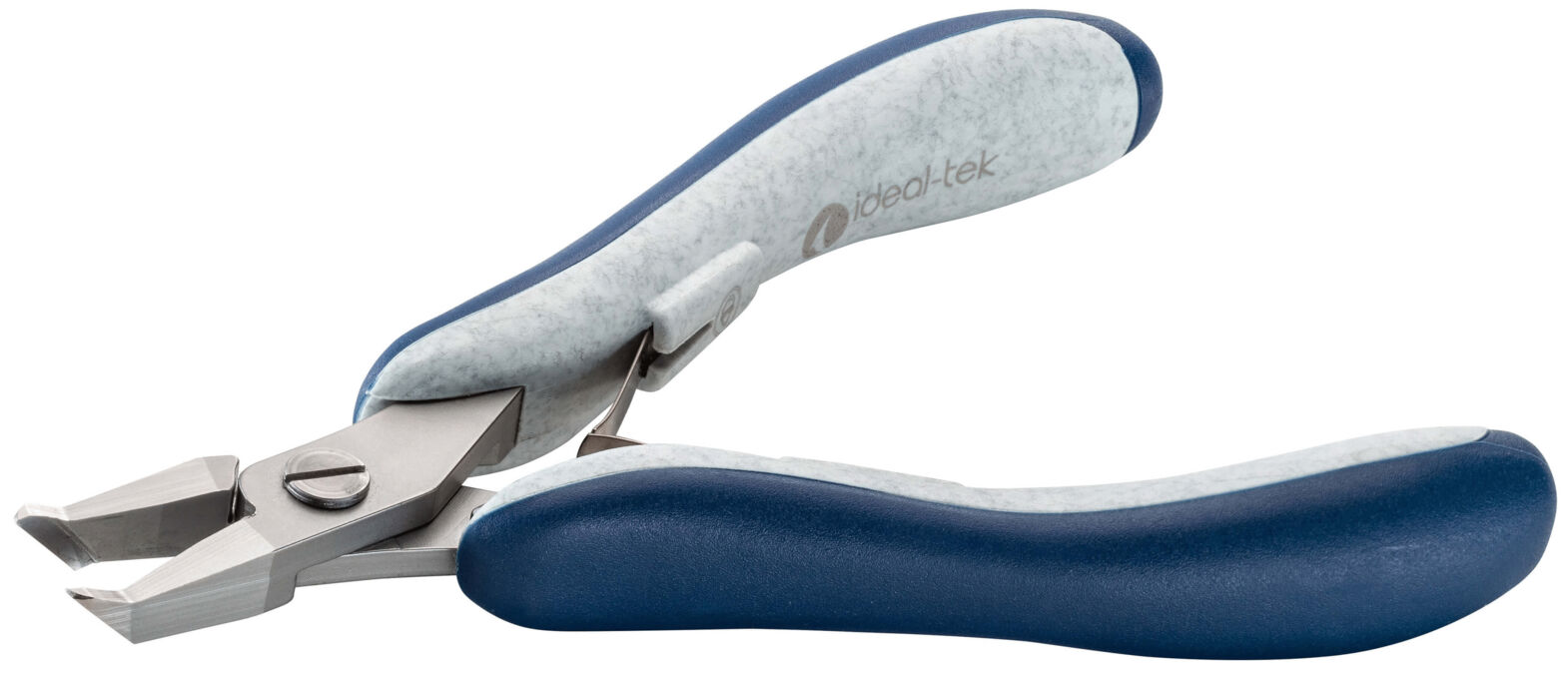

ESD Diagonal cutting pliers Slim 5547

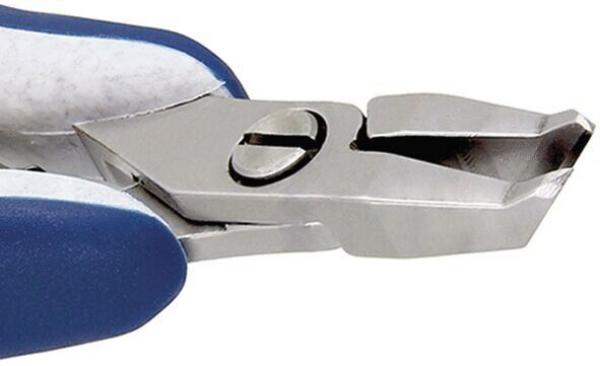

The ESD diagonal cutter Slim 5247 from ideal-tek is a high-precision tool from the family of oblique-head cutters, specifically developed for cutting wires, cables, and thin metal pieces. This model is characterized by its angled blade geometry, which not only improves ergonomics during use but also features a full-flush cutting edge that enables extremely clean cuts on small materials.The ergonomically designed ESD Ergo-tek Slim handle provides a secure grip and is ideal for use in ESD-sensitive environments. The blades of this diagonal cutter are hardened to a hardness of 67HRC, ensuring a long lifespan and consistent cutting performance.
In addition to its excellent cutting properties, this tool features a head shape that is extra large, with a head width of 10 mm and a jaw length of 18 mm. With an overall length of 125 mm and a weight of 86 g, the diagonal cutter is compact and handy. The surface is sandblasted, providing additional protection against corrosion.
The material made of steel and the handle made of PP/TPE ensure durability and comfort during use. Ideal for precise work in electronics manufacturing and assembly.
Details
- Bevel Bevel
- without bevel (flush cut)
- Head type/size Head type/size
- extra large
- Max Ø soft Max Ø soft
- 1.15 mm
- Max Ø medium Max Ø medium
- 0.57
- AWG medium AWG medium
- 38-23
- AWG soft AWG soft
- 38-17
- Head thickness Head thickness
- 6.4 mm
- Height [mm] Height
- 18
- Length [mm] Length
- 125 mm
- Width [mm] Width
- 60
- Material Material
- steel
- Stick material Stick material
- PP / TPE
- Surface Surface
- sandblastered
- ESD ESD
- yes
- Head shape Head shape
- angled

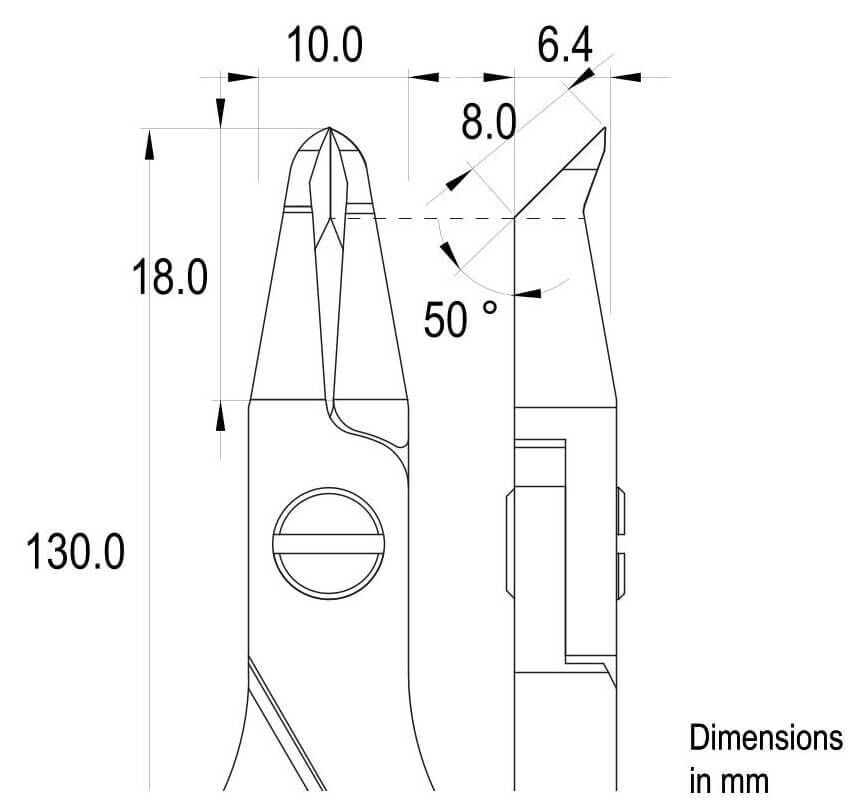

- Head width Head width
- 10 mm
- Jaw length Jaw length
- 18 mm
- Type of pliers Type of pliers
- end cutting pliers
- Version Version
- with safety spring
- Degree of bending Degree of bending
- 50 °
- Weight Weight
- 86 g
Special features
- Ergonomic handle
- Slip-resistant surface
- Very lightweight
- Suitable for narrow spaces
ideal-tek pliers stand for quality with the highest requirements of precision, ergonomics and durability.
The cutting shapes and cutting performance:
With bevel (facet)
Normal cut. Suitable for cutting hard and soft steel wires as well as soft materials such as copper wire and cable.
With large bevel (facet)
Suitable for cutting hard and very hard steel wires. Long service life.
Without bevel flush (facet)
Flush cut for soft materials.
ERGO-TEK
The pliers of the ERGO-TEK series have a modified ergonomic handle. This adapts optimally to the hand which has a positive effect on the user especially in case of long, intensive and powerful working processes.
ERGO-TEK SLIM
In consideration of anatomic differences the new, lightweight ERGO-TEK SLIM series has been designed for small hands - providing the same ergonomics, ESD safety and technical advantages that have always characterized ideal-tek
