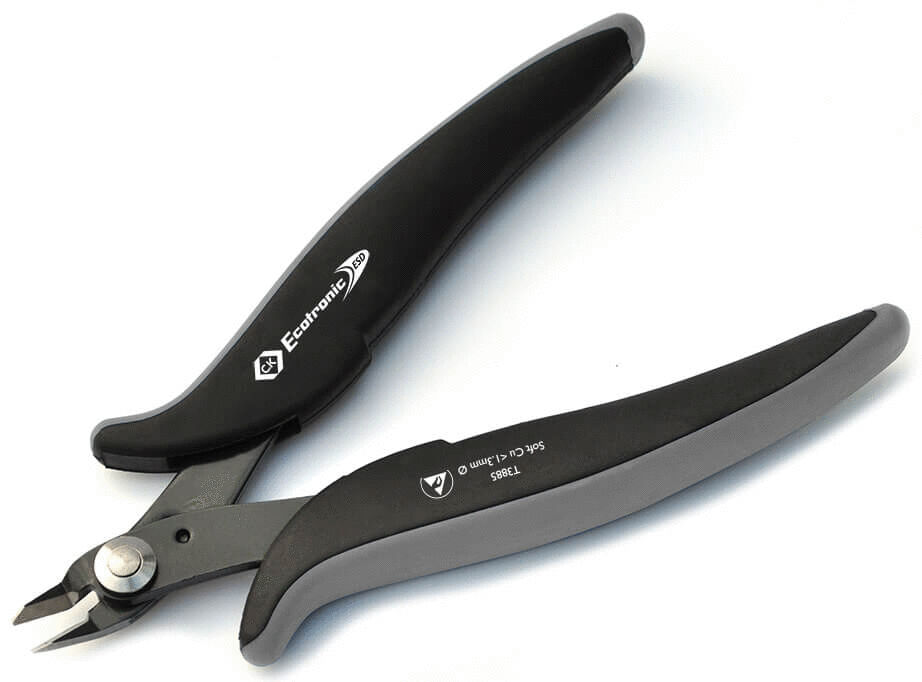

ESD diagonal cutting pliers 3885
ESD Side Cutter 3885
The ESD Side Cutter 3885 by CK Ecotronic is a high-precision tool specifically developed for fine cutting tasks. This side cutter is ideal for cutting soft copper wires up to a diameter of 1.3 mm or 16AWG. The design includes a slim, tapered head that facilitates access in tight spaces, as well as sharp, precision-ground cutting edges for a flush cut. The blade made of hardened special tool steel guarantees lasting cutting performance.
The electrostatically discharging handles are conductive and, combined with the contoured two-component design, provide high comfort during work. Additionally, the tool features a black oxidized surface for corrosion resistance and reduced glare, as well as a gently acting return spring that increases comfort during repetitive tasks. The connection is secured by a durable stainless steel rivet.

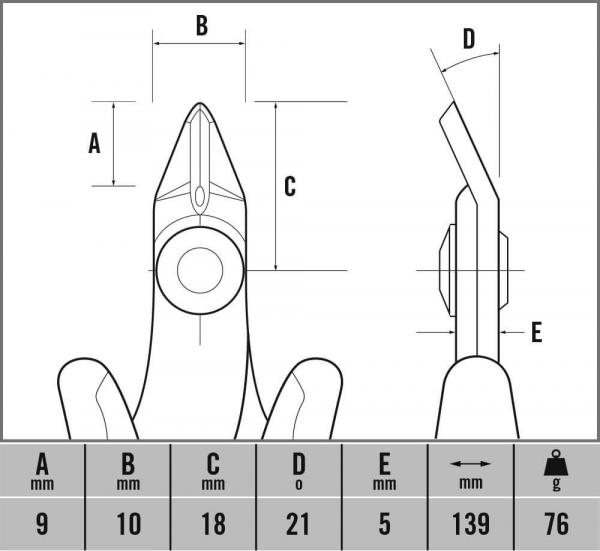

Technical Specifications: Total length: 139 mm, Blade length: 9 mm, Cutting angle: 21°, Head height: 18 mm, Head width: 10 mm, Steel thickness: 2.5 mm, Cutting capacity (copper only): 1.3 mm / 16 AWG.
Item number: 3885.ESD
The ESD Side Cutter 3885 by CK Ecotronic is a high-precision tool specifically developed for fine cutting tasks. This side cutter is ideal for cutting soft copper wires up to a diameter of 1.3 mm or 16AWG. The design includes a slim, tapered head that facilitates access in tight spaces, as well as sharp, precision-ground cutting edges for a flush cut. The blade made of hardened special tool steel guarantees lasting cutting performance.
The electrostatically discharging handles are conductive and, combined with the contoured two-component design, provide high comfort during work. Additionally, the tool features a black oxidized surface for corrosion resistance and reduced glare, as well as a gently acting return spring that increases comfort during repetitive tasks. The connection is secured by a durable stainless steel rivet.
Technical Specifications: Total length: 139 mm, Blade length: 9 mm, Cutting angle: 21°, Head height: 18 mm, Head width: 10 mm, Steel thickness: 2.5 mm, Cutting capacity (copper only): 1.3 mm / 16 AWG.
Item number: 3885.ESD
Details
- Type of pliers Type of pliers
- Diagonal cutting pliers
- Bevel Bevel
- without bevel
- Length [mm] Length [mm]
- 139 mm
- AWG soft AWG soft
- 16
- Max Ø soft Max Ø soft
- 1.3 mm
- Head thickness Head thickness
- 5 mm
- Blade length Blade length
- 9 mm
- Material Material
- steel
- Surface Surface
- oxidised
- ESD ESD
- yes
- Head shape Head shape
- oblique / 21 degree
- Head width Head width
- 10 mm
- Jaw length Jaw length
- 18 mm
Concave bevel
Specially shaped cutting edge that is curved inwards, i.e. has a concave shape. Flush cut. Only for soft materials such as fine wires.
