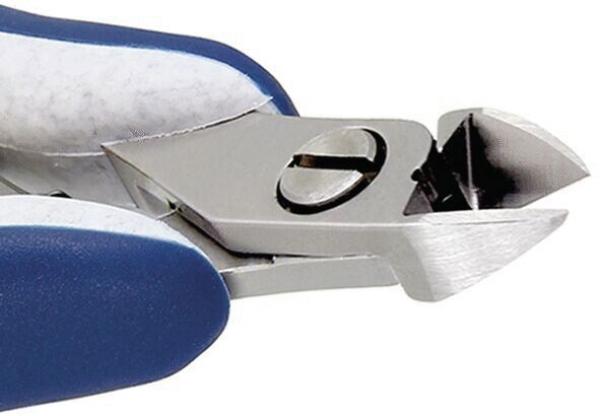

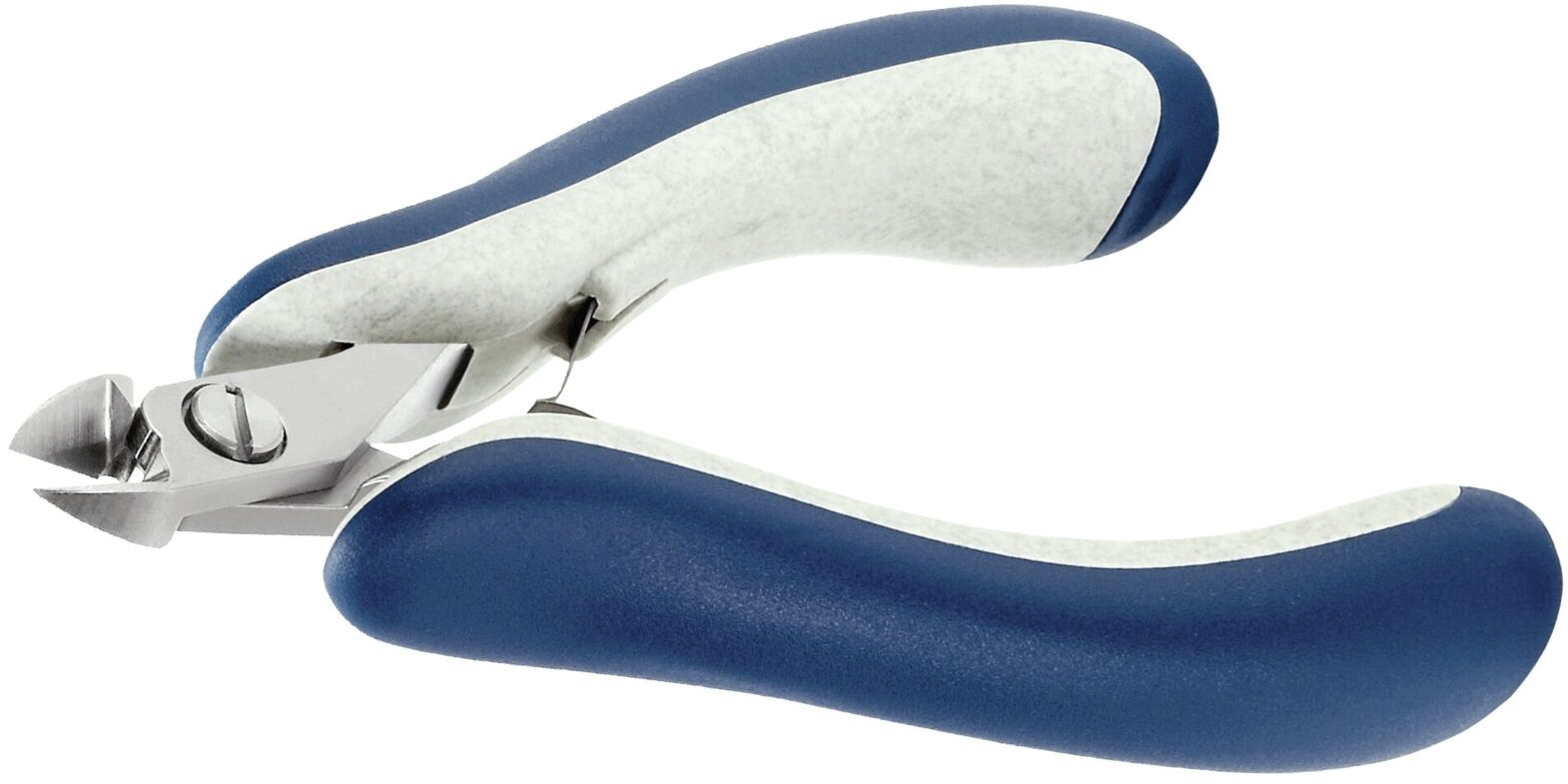

The ESD Side Cutter 5142 from ideal-tek represents a high-quality solution for precise cutting tasks in sensitive electronic environments. This model features an oval head shape and a full-edge cutting blade, which allows for effective and clean cuts in small areas. Made from chrome-vanadium ball bearing steel, the side cutter offers excellent resistance and a hardness of 67HRC. The ergonomically designed ESD Ergo-tek handles ensure a secure grip and are specially designed for work in ESD-sensitive environments. Technical Specifications: - Type: Side cutter, without bevel, flush cut
- Overall length: 125 mm
- Head width: 10 mm
- Head thickness: 6.4 mm
- Jaw length: 9 mm
- Handle material: PP / TPE
- Material: Steel, sandblasted
- Weight: 82 g
- Cutting capacity Cu-wire: 0.1 - 1.0 mm
- AWG medium: 38-20, AWG soft: 38-18
- Maximum diameter medium: 0.10-0.80 mm, soft: 0.10-1.00 mm
- ESD: yes
This side cutter is ideal for professionals in electronics and precision mechanics who value precision and safety.
Item number: I-E5142.ESD
Details
- Type of pliers Type of pliers
- Diagonal cutting pliers
- Bevel Bevel
- without bevel, flush cut
- A [mm] A [mm]
- 125
- C [mm] C [mm]
- 10
- B [mm] B [mm]
- 9
- D [mm] D [mm]
- 6.4
- Cu wire [mm] Cu wire [mm]
- 0.1 -1.0
- AWG medium AWG medium
- 38-20
- AWG soft AWG soft
- 38-18
- Max Ø medium Max Ø medium
- 0.10-0.80
- Max Ø soft Max Ø soft
- 0.10-1.00 mm
- Head thickness Head thickness
- 6.4 mm
- Head width Head width
- 10 mm
- Height [mm] Height [mm]
- 21
- Width [mm] Width [mm]
- 60
- F [mm] F [mm]
- 0.25
- Material Material
- steel
- Stick material Stick material
- PP / TPE
- Surface Surface
- sandblastered
- ESD ESD
- yes
- Head shape Head shape
- oval
- Head type/size Head type/size
- small
- Jaw length Jaw length
- 9 mm
- Weight Weight
- 82 g
The ideal-tek ERGO-TEK diagonal cutting pliers series stands for highest requirements for precision and performance. The tools have precision ground, sharp cutting edges for the use e.g. in electronics and fine mechanics. Versions with normal bevel, small bevel or without bevel for precise cuts on sensitive electronic components. A friction-less double spring ensures a smooth and soft opening. The two-component handles are ergonomically shaped and offer best gripping and comfortable working. The diagonal cutting pliers are forged of a high-quality chrome-vanadium ball bearing steel.
All versions are electrically dissipative
ideal-tek pliers stand for quality with the highest requirements of precision, ergonomics and durability.
The cutting shapes and cutting performance:
With bevel (facet)
Normal cut. Suitable for cutting hard and soft steel wires as well as soft materials such as copper wire and cable.
With large bevel (facet)
Suitable for cutting hard and very hard steel wires. Long service life.
Without bevel flush (facet)
Flush cut for soft materials.
ERGO-TEK
The pliers of the ERGO-TEK series have a modified ergonomic handle. This adapts optimally to the hand which has a positive effect on the user especially in case of long, intensive and powerful working processes.
ERGO-TEK SLIM
In consideration of anatomic differences the new, lightweight ERGO-TEK SLIM series has been designed for small hands - providing the same ergonomics, ESD safety and technical advantages that have always characterized ideal-tek
Downloads
- Please log in to download datasheets! :
- There are several datasheets for this product. Please log in!
Catalogues
Product Family
| Article image | Article description | Type of pliers | Bevel | A [mm] | C [mm] | B [mm] | D [mm] | Cu wire [mm] | Price | Compare |
|---|---|---|---|---|---|---|---|---|---|---|
|
I-E5141.ESD ESD diagonal cutting pliers 5141 | Diagonal cutting pliers | large bevel | 125 | 10 | 9 | 6.4 | 0.1 -1.2 | 58.10 CHF | |
|
I-E5142.ESD ESD diagonal cutting pliers 5142 | Diagonal cutting pliers | without bevel, flush cut | 125 | 10 | 9 | 6.4 | 0.1 -1.0 | 58.10 CHF | |
|
I-E5140.ESD ESD diagonal cutting pliers 5140 | Diagonal cutting pliers | small bevel | 125 | 10 | 9 | 6.4 | 0.2 -1.2 | 58.10 CHF | |
