ESD diagonal cutting pliers 5250

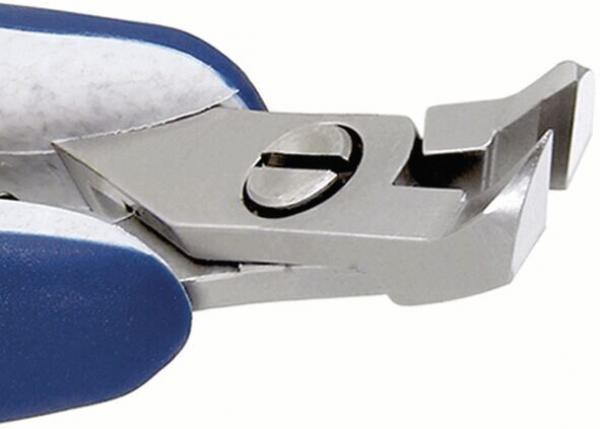

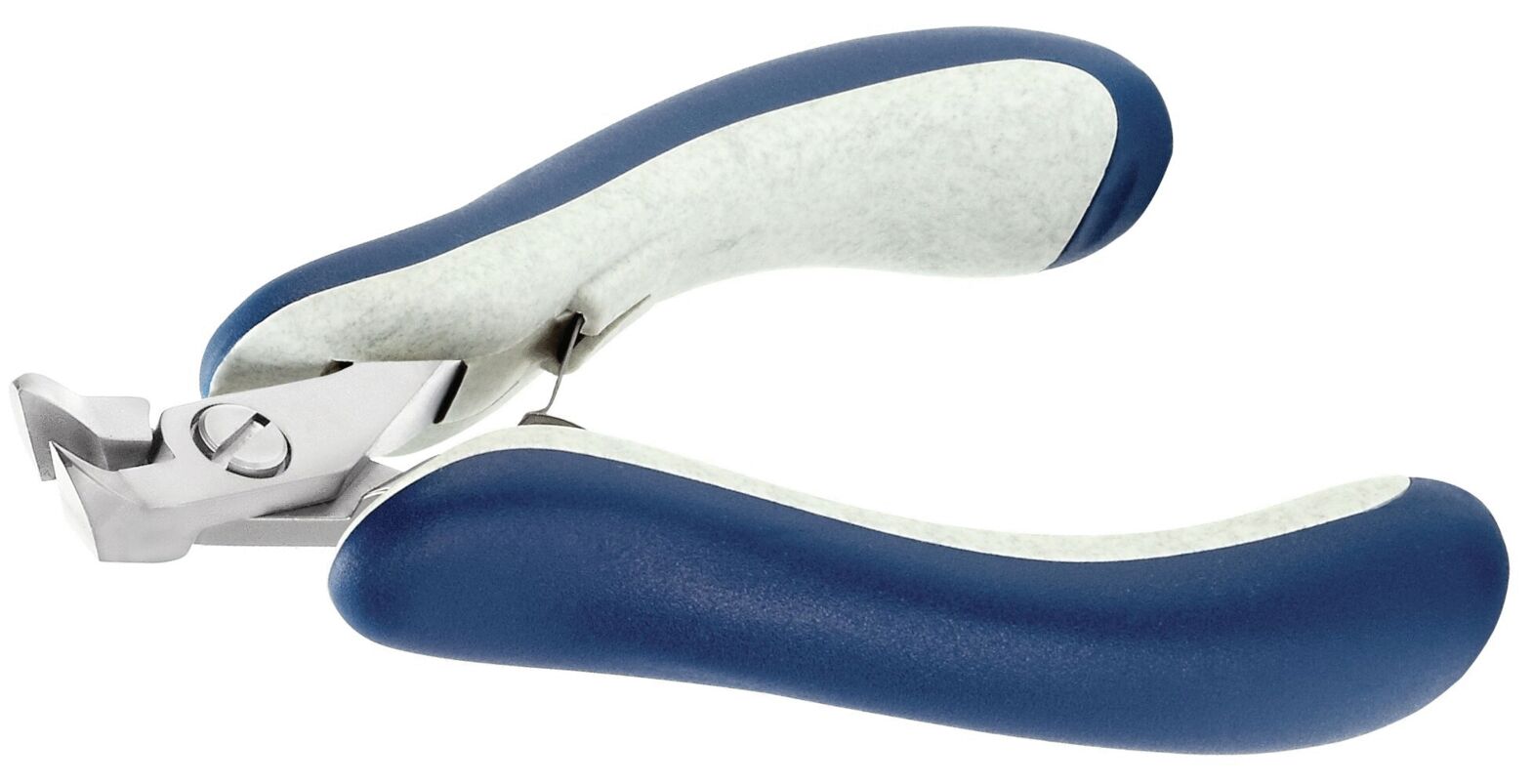

The ESD diagonal cutter 5250 from ideal-tek is distinguished by its precise cutting performance and robust construction. This tool belongs to the family of oblique head cutters and offers optimal ergonomic support during work thanks to its angled blade geometry. With a completely flush cutting edge, the cutter enables very clean cuts in small material, ideal for precise applications.The diagonal cutter is equipped with an ESD Ergo-tek handle, which not only provides excellent grip but is also ideal for use in ESD-sensitive environments. The blades of this high-quality tool are hardened to a hardness of 67HRC, ensuring long life and sustained cutting performance.
Technical specifications include a flush head shape without a bevel, a head width of 10 mm, and a jaw length of 14.5 mm. The diagonal cutter has a maximum cutting capacity of 1.15 mm for soft and 1.02 mm for medium-hard materials. With a width of 60 mm, a height of 21 mm, and a weight of 83 g, this tool is compact and handy. The handle material is made from a combination of PP and TPE, while the steel body is sandblasted to ensure a resistant surface.
Ideal for technical professionals in electronic manufacturing environments, the ESD diagonal cutter 5250 from ideal-tek provides a reliable and ergonomic solution for precise cutting tasks.
Details
- Bevel Bevel
- without bevel (flush cut)
- Head type/size Head type/size
- regular
- Max Ø soft Max Ø soft
- 1.15 mm
- Max Ø medium Max Ø medium
- 1.02 mm
- AWG medium AWG medium
- 38-18
- AWG soft AWG soft
- 32-17
- Head thickness Head thickness
- 6.4 mm
- Height [mm] Height
- 21
- Width [mm] Width
- 60
- Material Material
- steel
- Stick material Stick material
- PP / TPE
- Surface Surface
- sandblastered
- ESD ESD
- yes
- Head shape Head shape
- angled
- Head width Head width
- 10 mm
- Jaw length Jaw length
- 14.5 mm
- Type of pliers Type of pliers
- Diagonal cutting pliers
- Version Version
- with safety spring
- Degree of bending Degree of bending
- 45 °
- Weight Weight
- 83 g
The ideal-tek ERGO-TEK diagonal cutting pliers series stands for highest requirements for precision and performance. The tools have precision ground, sharp cutting edges for the use e.g. in electronics and fine mechanics. Versions with normal bevel, small bevel or without bevel for precise cuts on sensitive electronic components. A friction-less double spring ensures a smooth and soft opening. The two-component handles are ergonomically shaped and offer best gripping and comfortable working. The diagonal cutting pliers are forged of a high-quality chrome-vanadium ball bearing steel.
All versions are electrically dissipative
ideal-tek pliers stand for quality with the highest requirements of precision, ergonomics and durability.
The cutting shapes and cutting performance:
With bevel (facet)
Normal cut. Suitable for cutting hard and soft steel wires as well as soft materials such as copper wire and cable.
With large bevel (facet)
Suitable for cutting hard and very hard steel wires. Long service life.
Without bevel flush (facet)
Flush cut for soft materials.
ERGO-TEK
The pliers of the ERGO-TEK series have a modified ergonomic handle. This adapts optimally to the hand which has a positive effect on the user especially in case of long, intensive and powerful working processes.
ERGO-TEK SLIM
In consideration of anatomic differences the new, lightweight ERGO-TEK SLIM series has been designed for small hands - providing the same ergonomics, ESD safety and technical advantages that have always characterized ideal-tek
