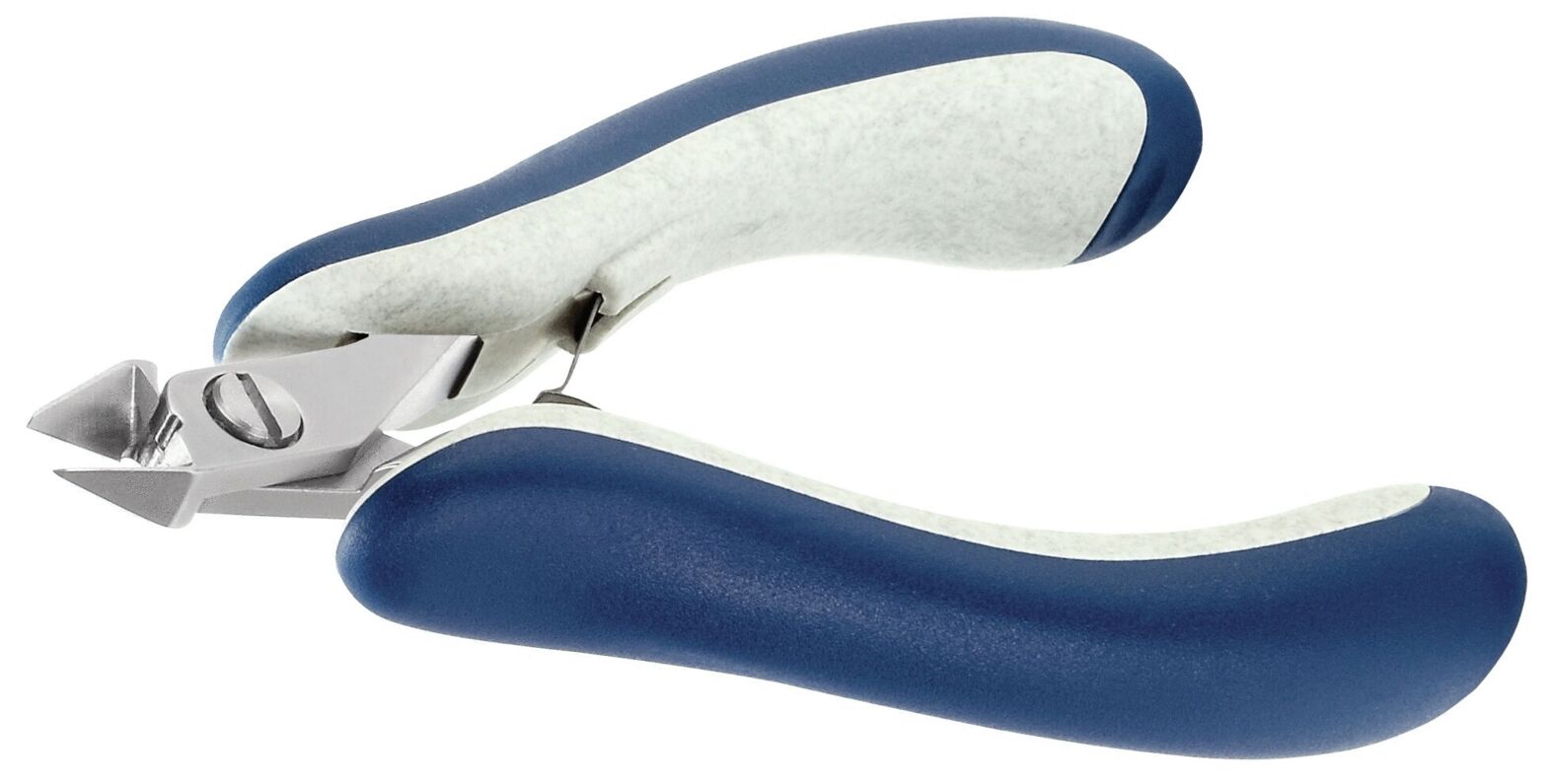

ESD diagonal cutting pliers 5341
The ESD side cutter 5341 from ideal-tek is a precise tool specifically designed for use in electronically sensitive environments. This model is part of the 534x series of small conical pliers, designed for access to tight areas. The flush cutting edge of the 5341 allows for very clean cuts with minimal tolerances, ideal for fine cutting work on small materials.Equipped with an ESD Ergo-Tek handle, the side cutter provides a secure grip and protects against electrostatic discharges, making it particularly suitable for precise work in electrostatically endangered areas.

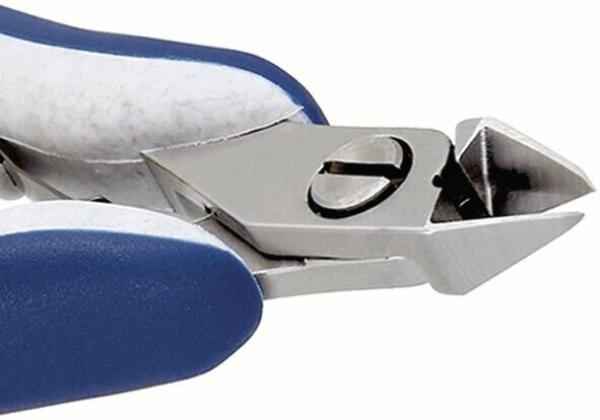

The side cutter has a total length of 125 mm and weighs 81 g. The blades are made of hard steel and hardened to a hardness of 67 HRC, ensuring long-lasting sharpness and robustness. The head dimensions are extra small with a head width of 10 mm and a head thickness of 6.4 mm, facilitating access to hard-to-reach places.
Additional technical specifications include a maximum cutting capacity of 1.15 mm for soft and 1.02 mm for medium-hard material. The handle is made from a combination of PP and TPE, while the surface is sandblasted to offer higher resistance to wear.
Ideal for technical professionals working in electronics manufacturing or repair, this side cutter combines functionality and utmost precision in a compact format.
Details
- Bevel Bevel
- with bevel
- Head type/size Head type/size
- extra small
- Max Ø soft Max Ø soft
- 1.15 mm
- Max Ø medium Max Ø medium
- 1.02 mm
- AWG medium AWG medium
- 38-18
- AWG soft AWG soft
- 38-17
- Head thickness Head thickness
- 6.4 mm
- Length [mm] Length
- 125 mm
- Material Material
- steel
- Stick material Stick material
- PP / TPE
- Surface Surface
- sandblastered
- ESD ESD
- yes
- Head shape Head shape
- tapered
- Head width Head width
- 10 mm
- Jaw length Jaw length
- 9 mm
- Type of pliers Type of pliers
- Diagonal cutting pliers
- Version Version
- with safety spring
- Weight Weight
- 81 g
The ideal-tek ERGO-TEK diagonal cutting pliers series stands for highest requirements for precision and performance. The tools have precision ground, sharp cutting edges for the use e.g. in electronics and fine mechanics. Versions with normal bevel, small bevel or without bevel for precise cuts on sensitive electronic components. A friction-less double spring ensures a smooth and soft opening. The two-component handles are ergonomically shaped and offer best gripping and comfortable working. The diagonal cutting pliers are forged of a high-quality chrome-vanadium ball bearing steel.
All versions are electrically dissipative
ideal-tek pliers stand for quality with the highest requirements of precision, ergonomics and durability.
The cutting shapes and cutting performance:
With bevel (facet)
Normal cut. Suitable for cutting hard and soft steel wires as well as soft materials such as copper wire and cable.
With large bevel (facet)
Suitable for cutting hard and very hard steel wires. Long service life.
Without bevel flush (facet)
Flush cut for soft materials.
ERGO-TEK
The pliers of the ERGO-TEK series have a modified ergonomic handle. This adapts optimally to the hand which has a positive effect on the user especially in case of long, intensive and powerful working processes.
ERGO-TEK SLIM
In consideration of anatomic differences the new, lightweight ERGO-TEK SLIM series has been designed for small hands - providing the same ergonomics, ESD safety and technical advantages that have always characterized ideal-tek
