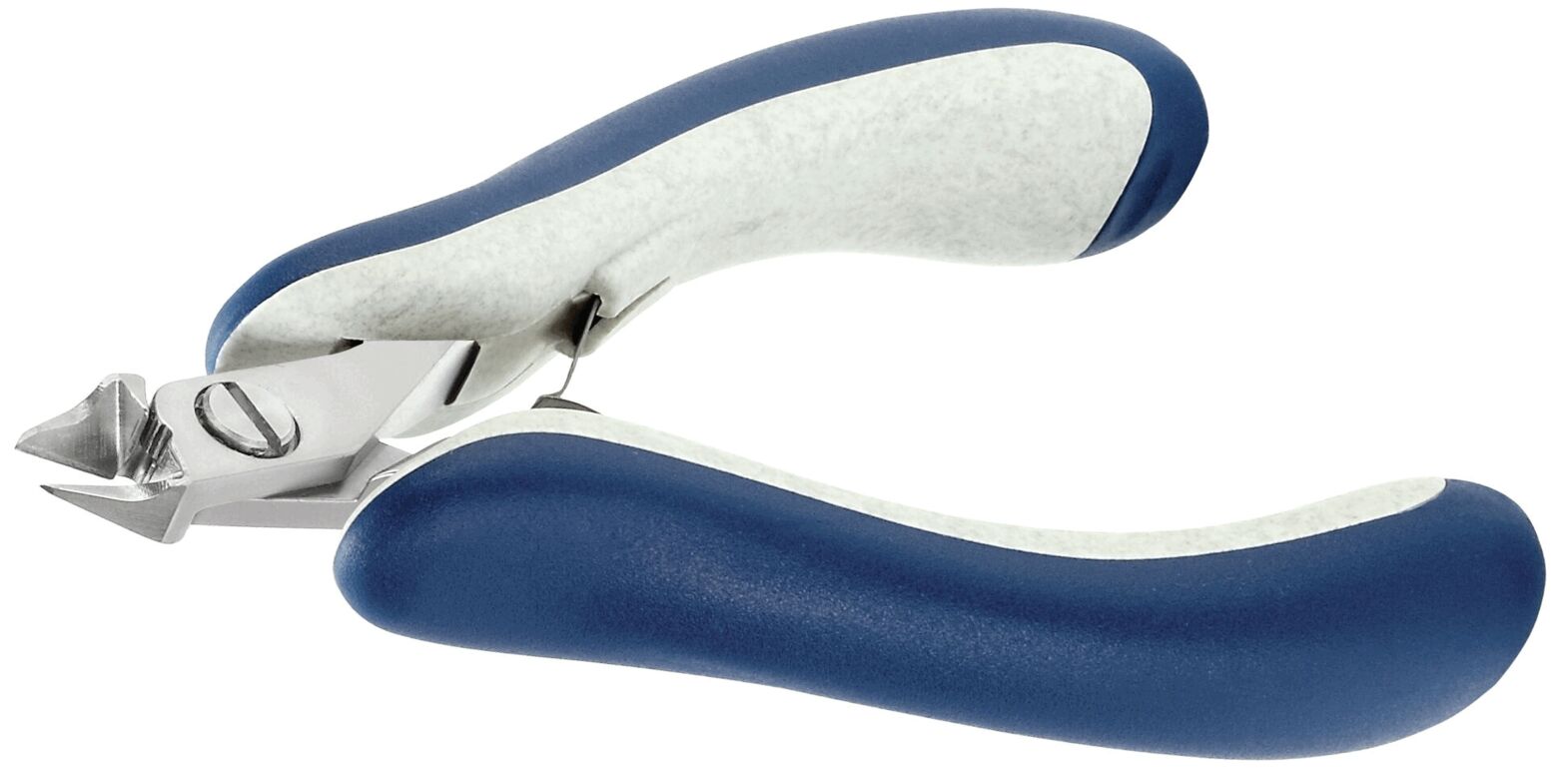

ESD diagonal cutting pliers 5541

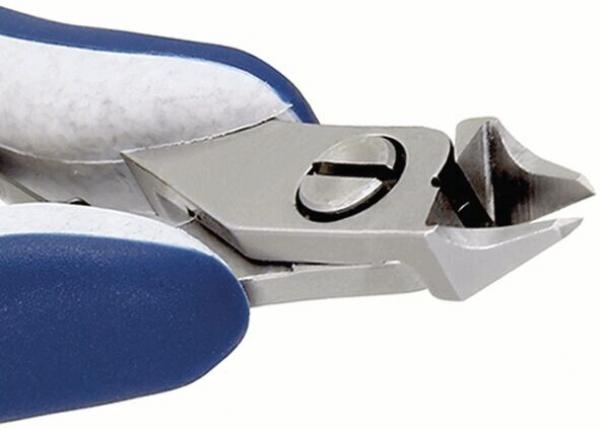

The ESD diagonal cutter 5541 from ideal-tek is a high-precision tool from the series of small, beveled, and relieved cutting tools, specifically designed for use in tight and electrostatically sensitive areas. With a flush cutting edge, this diagonal cutter enables clean cuts with minimal tolerances, ideal for fine materials. The ergonomic ESD Ergo-Tek Slim handle ensures a secure grip and protects against electrostatic discharges, making it particularly suitable for precise work in hazardous environments.The cutting edges are hardened to a hardness of 67 HRC, which ensures lasting sharpness and robustness. The extra small head shape of the 5541 is conical with a head width of 10 mm and a jaw length of 9 mm, enabling precise work even in hard-to-reach areas. The total length is 125 mm, with a weight of 81 g. The diagonal cutter can cut soft materials up to a diameter of 1.15 mm and medium-hard materials up to 0.4 mm. The handle material is made from a combination of PP and TPE, while the surface is sandblasted to offer higher resistance to abrasion.
This tool represents an ideal solution for professionals working in electronics manufacturing or other areas where precise and clean cuts are essential.
Details
- Bevel Bevel
- with bevel
- Head type/size Head type/size
- extra small
- Max Ø soft Max Ø soft
- 1.15 mm
- Max Ø medium Max Ø medium
- 0.4 mm
- AWG medium AWG medium
- 38-26
- AWG soft AWG soft
- 38-17
- Head thickness Head thickness
- 6.4 mm
- Length [mm] Length
- 125 mm
- Material Material
- steel
- Stick material Stick material
- PP / TPE
- Surface Surface
- sandblastered
- ESD ESD
- yes
- Head shape Head shape
- tapered
- Head width Head width
- 10 mm
- Jaw length Jaw length
- 9 mm
- Type of pliers Type of pliers
- Diagonal cutting pliers
- Version Version
- with safety spring
- Weight Weight
- 81 g
The ideal-tek ERGO-TEK diagonal cutting pliers series stands for highest requirements for precision and performance. The tools have precision ground, sharp cutting edges for the use e.g. in electronics and fine mechanics. Versions with normal bevel, small bevel or without bevel for precise cuts on sensitive electronic components. A friction-less double spring ensures a smooth and soft opening. The two-component handles are ergonomically shaped and offer best gripping and comfortable working. The diagonal cutting pliers are forged of a high-quality chrome-vanadium ball bearing steel.
All versions are electrically dissipative
ideal-tek pliers stand for quality with the highest requirements of precision, ergonomics and durability.
The cutting shapes and cutting performance:
With bevel (facet)
Normal cut. Suitable for cutting hard and soft steel wires as well as soft materials such as copper wire and cable.
With large bevel (facet)
Suitable for cutting hard and very hard steel wires. Long service life.
Without bevel flush (facet)
Flush cut for soft materials.
ERGO-TEK
The pliers of the ERGO-TEK series have a modified ergonomic handle. This adapts optimally to the hand which has a positive effect on the user especially in case of long, intensive and powerful working processes.
ERGO-TEK SLIM
In consideration of anatomic differences the new, lightweight ERGO-TEK SLIM series has been designed for small hands - providing the same ergonomics, ESD safety and technical advantages that have always characterized ideal-tek
