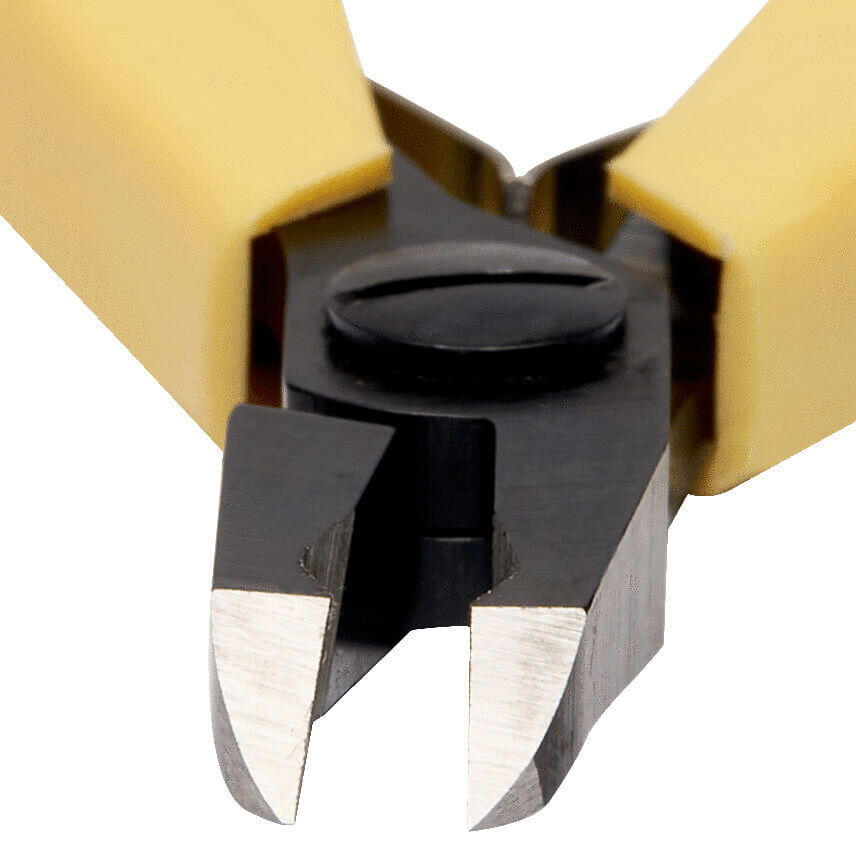

The image shows a yellow pliers with flat, ergonomic handles and a narrow, pointed cutting edge. It is suitable for precise cutting or gripping of small objects.
The image shows a yellow pliers. The handle is ergonomically shaped and the pliers have a sharp, black cutting edge. It is suitable for cutting wires or fine materials.

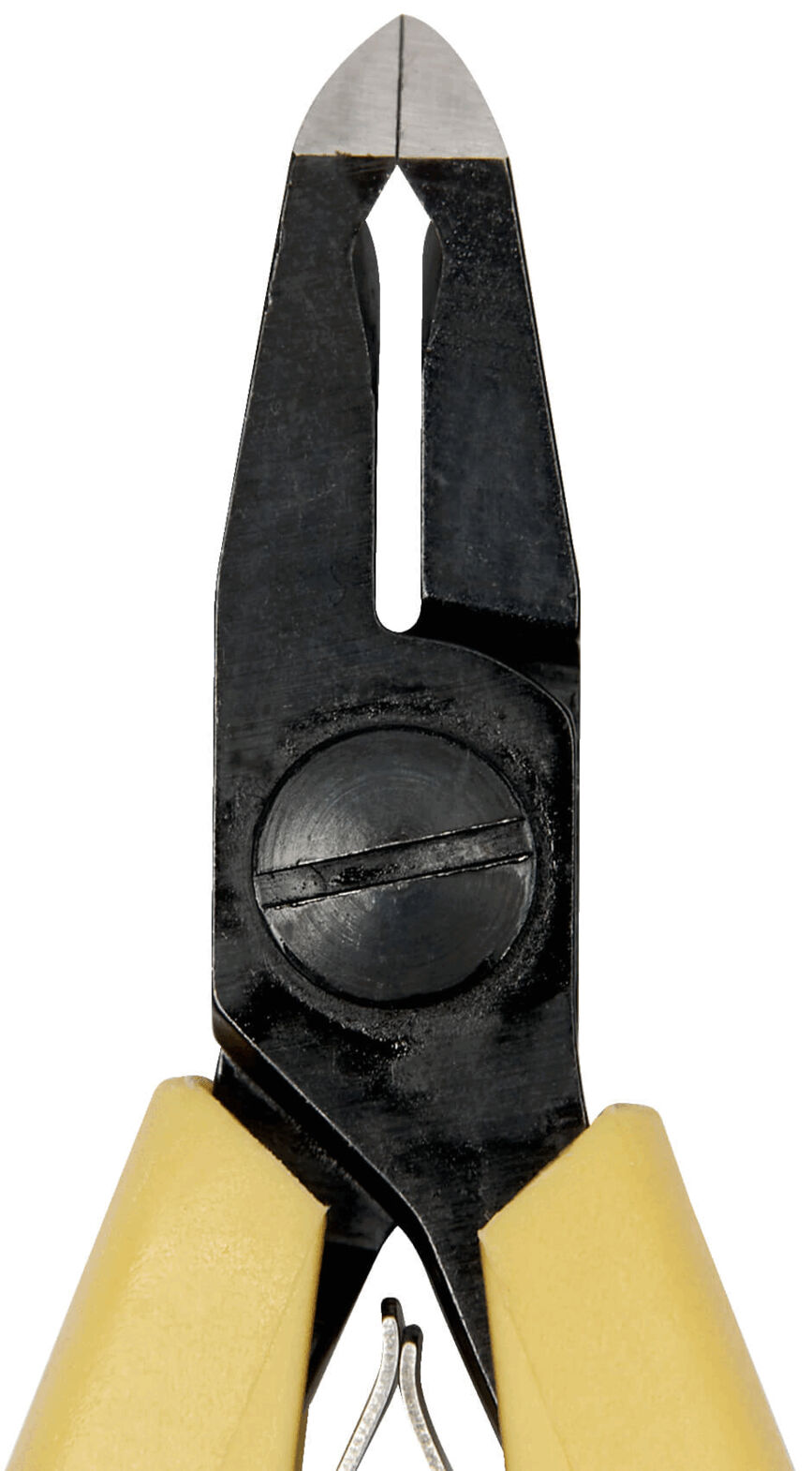

The image shows a pair of pliers with pointed, narrow tips. The handle is yellow and the pliers have a black, smooth surface. The cutting edge is sharp and straight.
The image shows a pair of pliers with yellow handles. The head of the pliers is made of black metal and has sharp, straight edges, ideal for cutting wires or smaller objects.
Preview: The image shows a yellow pliers with flat, ergonomic handles and a narrow, pointed cutting edge. It is suitable for precise cutting or gripping of small objects.
Preview: The image shows a yellow pliers. The handle is ergonomically shaped and the pliers have a sharp, black cutting edge. It is suitable for cutting wires or fine materials.
Preview: The image shows a pair of pliers with pointed, narrow tips. The handle is yellow and the pliers have a black, smooth surface. The cutting edge is sharp and straight.
Preview: The image shows a pair of pliers with yellow handles. The head of the pliers is made of black metal and has sharp, straight edges, ideal for cutting wires or smaller objects.
ESD oblique end cutting pliers 8247 CO
(Product No.: 8247-CO)
The image shows a yellow pliers with flat, ergonomic handles and a narrow, pointed cutting edge. It is suitable for precise cutting or gripping of small objects.
The image shows a yellow pliers. The handle is ergonomically shaped and the pliers have a sharp, black cutting edge. It is suitable for cutting wires or fine materials.
The image shows a pair of pliers with pointed, narrow tips. The handle is yellow and the pliers have a black, smooth surface. The cutting edge is sharp and straight.
The image shows a pair of pliers with yellow handles. The head of the pliers is made of black metal and has sharp, straight edges, ideal for cutting wires or smaller objects.
Mobile Preview: The image shows a yellow pliers with flat, ergonomic handles and a narrow, pointed cutting edge. It is suitable for precise cutting or gripping of small objects.
Mobile Preview: The image shows a yellow pliers. The handle is ergonomically shaped and the pliers have a sharp, black cutting edge. It is suitable for cutting wires or fine materials.
Mobile Preview: The image shows a pair of pliers with pointed, narrow tips. The handle is yellow and the pliers have a black, smooth surface. The cutting edge is sharp and straight.
Mobile Preview: The image shows a pair of pliers with yellow handles. The head of the pliers is made of black metal and has sharp, straight edges, ideal for cutting wires or smaller objects.
Notice

ESD oblique end cutting pliers 8247 CO

ESD oblique end cutting pliers 8247 CO

dpvlink:
28620
Bevel:
mini bevel
Head type/size:
small
Max Ø soft:
1.02 mm
Properties:
Further product information

138.50 CHF

excl. 8.1% tax

1 PCE
Compare Compare
Notice
Product Info

ESD oblique end cutting pliers 8247 CO

The Lindström ESD Diagonal Cutter with Mini-Bevel represents a top solution for precise work in electronics manufacturing and repair. This highly specialized tool is ideal for cutting copper wire and is characterized by its long, 45° angled jaws, which enable precise cutting guidance. The cutting edges are induction-hardened and achieve a hardness of 63-65 HrC, which, together with the numerically controlled machine grinding technology, ensures excellent cutting angle accuracy and contact.
The handles of the diagonal cutter are made of synthetic material and are ESD-safe, equipped with an opening spring for increased handling safety. The tool features a burnished surface and a friction-reducing screw connection, which enhances the lifespan and resilience of the cutter. Weighing only 51 g and with a total length of 117.5 mm, it offers excellent balance and is particularly suitable for assembly and rework.
The Mini-Bevel and the small head size of the tool also enable a very fine and clean flush cut, ideal for precise applications in electronics assembly.
Bevel
Bevel
mini bevel
Head type/size
Head type/size
small
Max Ø soft
Max Ø soft
1.02 mm
AWG soft
AWG soft
18
Head thickness
Head thickness
6 mm
Blade length
Blade length
6.7 mm
Length
Length
117.5 mm
Conductivity
Conductivity
conductive
Material
Material
steel
Stick material
Stick material
PP
Surface
Surface
brilliant
ESD
ESD
yes
Head shape
Head shape
angled
Head width
Head width
10 mm
Jaw length
Jaw length
18 mm
Type of pliers
Type of pliers
Oblique end cutting pliers
Version
Version
with opening spring
Degree of bending
Degree of bending
45 °
Weight
Weight
51 g
Pictograms
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.
Mini bevel
Almost flush cut with fine cutting edges. Slightly shock-reduced cut, the cut leaves only a very small point at the end of the wire. Can be used for soft steel wires and copper wires.
