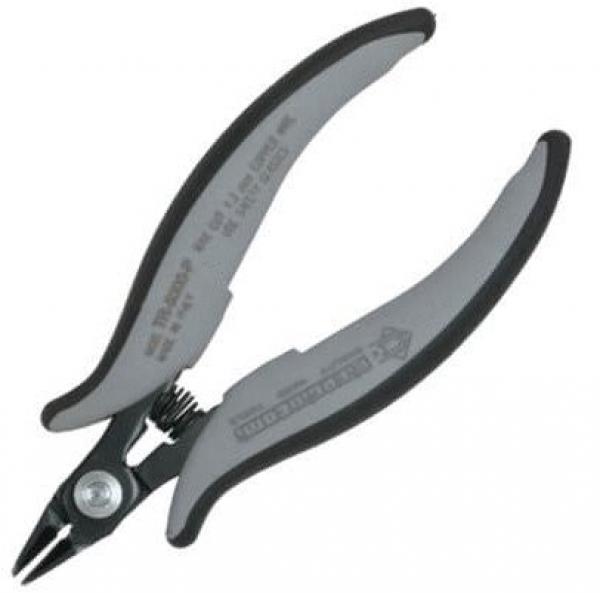

The image shows a pair of pliers with narrow, pointed jaws. It has gray rubber grips and a small silver screw closure in the middle that connects the joints.

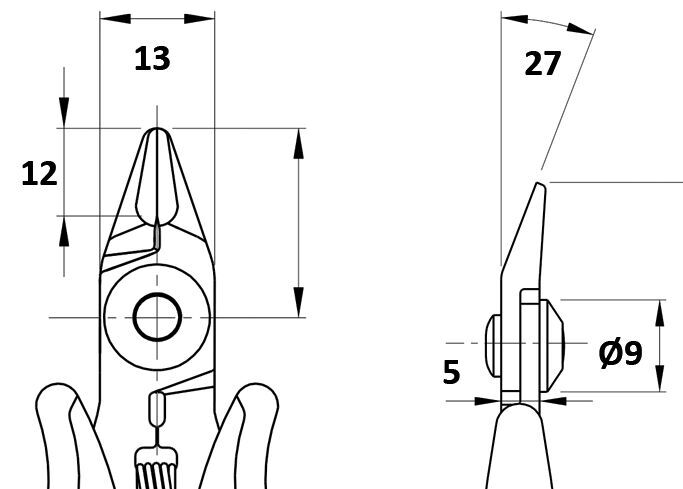

The image displays technical drawings of a pair of pliers, including dimensions. The pliers feature pointed blades and a central handle, with both vertical and horizontal measurements provided.
Preview: The image displays a type of pliers with ergonomic handles. The handles are black and gray, slightly curved. The pliers have sharp blades suitable for precise work. They appear handy and sturdy.
Preview: The image shows a pair of pliers with narrow, pointed jaws. It has gray rubber grips and a small silver screw closure in the middle that connects the joints.
Preview: The image displays technical drawings of a pair of pliers, including dimensions. The pliers feature pointed blades and a central handle, with both vertical and horizontal measurements provided.
High-leverage diagonal cutting pliers TR-5000-P A.D
(Product No.: TR-5000-P-A.D)
The image displays a type of pliers with ergonomic handles. The handles are black and gray, slightly curved. The pliers have sharp blades suitable for precise work. They appear handy and sturdy.
The image shows a pair of pliers with narrow, pointed jaws. It has gray rubber grips and a small silver screw closure in the middle that connects the joints.
The image displays technical drawings of a pair of pliers, including dimensions. The pliers feature pointed blades and a central handle, with both vertical and horizontal measurements provided.
Mobile Preview: The image displays a type of pliers with ergonomic handles. The handles are black and gray, slightly curved. The pliers have sharp blades suitable for precise work. They appear handy and sturdy.
Mobile Preview: The image shows a pair of pliers with narrow, pointed jaws. It has gray rubber grips and a small silver screw closure in the middle that connects the joints.
Mobile Preview: The image displays technical drawings of a pair of pliers, including dimensions. The pliers feature pointed blades and a central handle, with both vertical and horizontal measurements provided.
Notice

High-leverage diagonal cutting pliers TR-5000-P A.D

High-leverage diagonal cutting pliers TR-5000-P A.D

dpvlink:
1880
Bevel:
mini bevel
Head type/size:
regular
Max Ø soft:
1.29 mm
Head shape:
angled
Degree of bending:
27 °
Properties:
Further product information

20.30 CHF

excl. 8.1% tax

1 PCE
Compare Compare
Notice
Product Info

High-leverage diagonal cutting pliers TR-5000-P A.D

The TR-5000-P-A.D power side cutter from Piergiacomi is a high-quality tool for precise cutting tasks. With a total length of 138 mm and a weight of just 90 g, this side cutter is ideal for detailed and fine work. The mini-bevel head shape allows for a clean cut in copper wires up to a diameter of 1.30 mm or 16 AWG.
The cutting force of 8 kg and the head width of 13 mm ensure efficient and effortless cuts. A special feature of this model is the ESD safety, which allows it to be used in sensitive electronic working environments. The blade of the side cutter measures 12 mm and the bending angle of 27° increases accessibility in hard-to-reach areas. The design with safety spring promises increased durability and safety during use.
Thanks to the robust steel material and precise manufacturing, the TR-5000-P-A.D power side cutter offers high reliability and is an excellent choice for technical professionals in procurement.
Bevel
Bevel
mini bevel
Head type/size
Head type/size
regular
Max Ø soft
Max Ø soft
1.29 mm
Head shape
Head shape
angled
Degree of bending
Degree of bending
27 °
AWG soft
AWG soft
16
Head thickness
Head thickness
5 mm
Blade length
Blade length
12 mm
Length
Length
138 mm
Material
Material
steel
ESD
ESD
yes
Cutting force
Cutting force
8 kg
Head width
Head width
13 mm
Type of pliers
Type of pliers
High-leverage diagonal cutting pliers
Version
Version
with opening spring
Weight
Weight
90 g
Pictograms
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.
Mini bevel
Almost flush cut with fine cutting edges. Slightly shock-reduced cut, the cut leaves only a very small point at the end of the wire. Can be used for soft steel wires and copper wires.

Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 458
Complete Catalog 2023 - 2024
