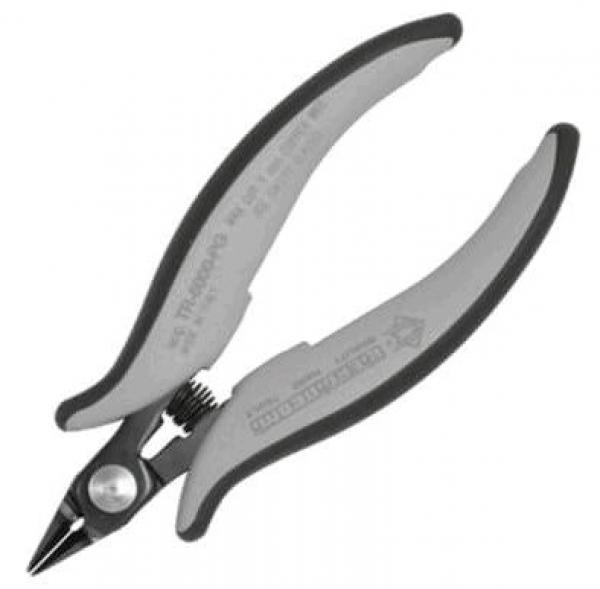

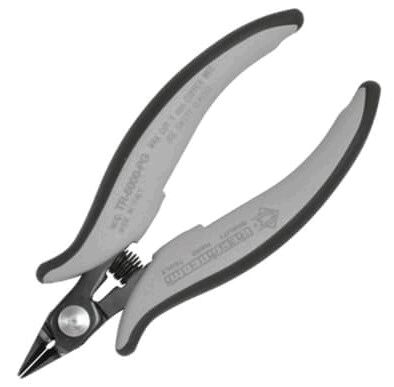

High-leverage diagonal cutting pliers TR-5000-PG.D
The Piergiacomi TR-5000-PG.D power side cutter is a high-precision tool, specifically designed for use in the plastics sector. With a length of 138 mm and a small bevel, this side cutter offers optimal handling and precision. The blades are curved, giving the cut parts a finished appearance, ideal for fine finishing.

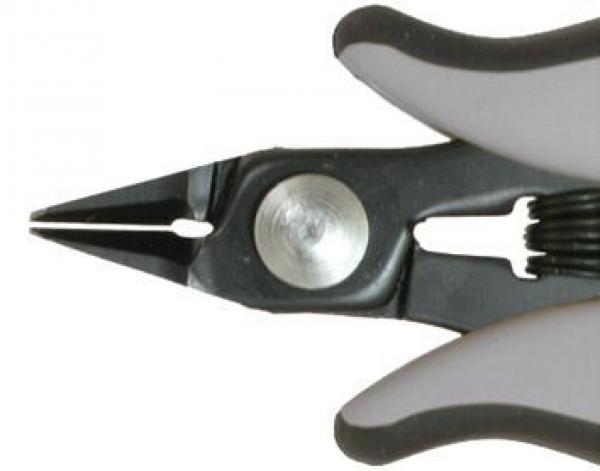

Equipped with a head shape that is slightly angled, and a head width of 13 mm, this model allows for efficient work even in hard-to-reach areas. The maximum cutting capacity for soft materials such as copper is at a diameter of 1.02 mm (18 AWG).

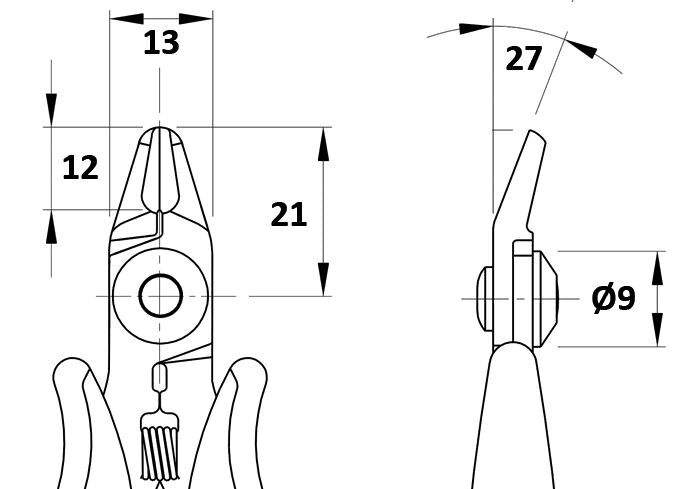

Other technical features include a blade length of 12 mm, a head thickness of 6 mm, and a bending angle of 27°. The pliers weigh 90 g and are equipped with ESD protection, making them safe for electrostatically sensitive applications. The material of the tool is steel, which ensures high durability and robustness. The cutting force is an effective 5 kg, making the TR-5000-PG.D power side cutter an indispensable tool in any technical operation.
Equipped with a head shape that is slightly angled, and a head width of 13 mm, this model allows for efficient work even in hard-to-reach areas. The maximum cutting capacity for soft materials such as copper is at a diameter of 1.02 mm (18 AWG).
Other technical features include a blade length of 12 mm, a head thickness of 6 mm, and a bending angle of 27°. The pliers weigh 90 g and are equipped with ESD protection, making them safe for electrostatically sensitive applications. The material of the tool is steel, which ensures high durability and robustness. The cutting force is an effective 5 kg, making the TR-5000-PG.D power side cutter an indispensable tool in any technical operation.
Details
- Bevel Bevel
- small bevel
- Head type/size Head type/size
- regular
- Max Ø soft Max Ø soft
- 1.02 mm
- Head thickness Head thickness
- 6 mm
- Blade length Blade length
- 12 mm
- Length [mm] Length [mm]
- 138 mm
- Material Material
- steel
- ESD ESD
- yes
- Cutting force Cutting force
- 5 kg
- Head shape Head shape
- angled
- Head width Head width
- 13 mm
- Type of pliers Type of pliers
- High-leverage diagonal cutting pliers
- Degree of bending Degree of bending
- 27 °
- Weight Weight
- 90 g
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.
Small bevel
Standard bevel. Almost smooth, flush cut. Applicable for soft and medium-hard steel wires and copper wires.
