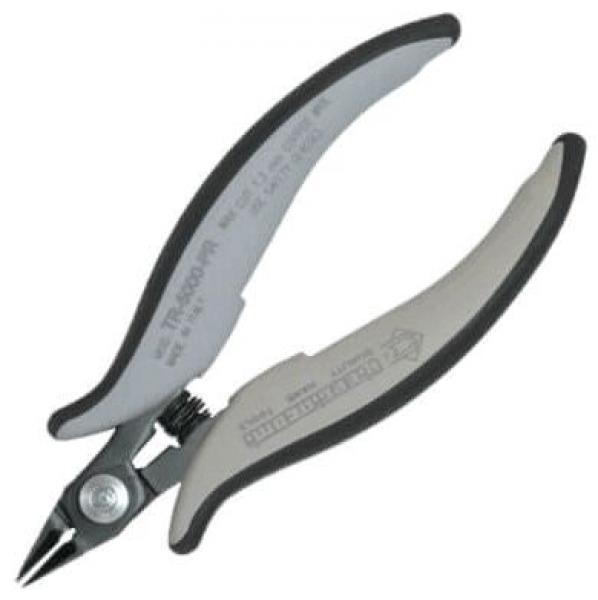

The image shows a small pair of scissors with gray, ergonomic handles and a sharp, pointed blade. The mechanism for opening and closing is visible.

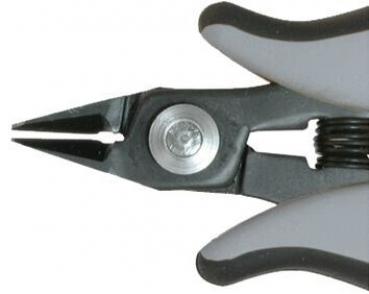

The image shows a pair of pliers with narrow, pointed jaws. It has gray rubber grips and a small silver screw closure in the middle that connects the joints.

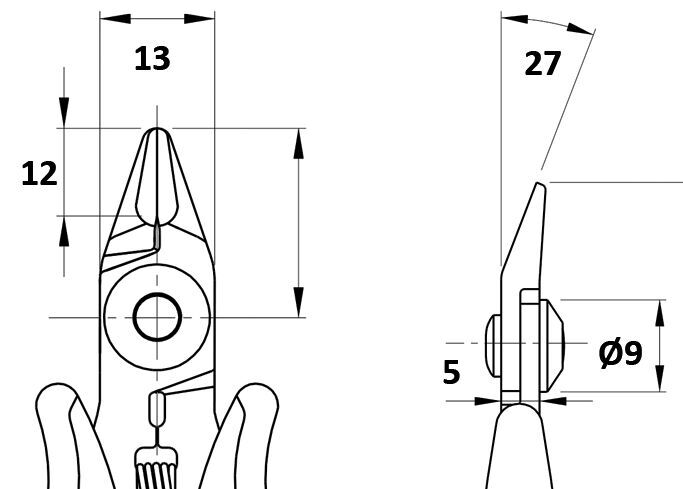

The drawing depicts a pair of pliers in a technical style. From the front, the dimensions are given as 12 mm in height and 13 mm in width. From the side, a length of 27 mm and a diameter of 9 mm are visible.
Preview: The image shows a small pair of scissors with gray, ergonomic handles and a sharp, pointed blade. The mechanism for opening and closing is visible.
Preview: The image shows a pair of pliers with narrow, pointed jaws. It has gray rubber grips and a small silver screw closure in the middle that connects the joints.
Preview: The drawing depicts a pair of pliers in a technical style. From the front, the dimensions are given as 12 mm in height and 13 mm in width. From the side, a length of 27 mm and a diameter of 9 mm are visible.
High-leverage diagonal cutting pliers TR-5000-PR-A.D
(Product No.: TR-5000-PR-A.D)
The image shows a small pair of scissors with gray, ergonomic handles and a sharp, pointed blade. The mechanism for opening and closing is visible.
The image shows a pair of pliers with narrow, pointed jaws. It has gray rubber grips and a small silver screw closure in the middle that connects the joints.
The drawing depicts a pair of pliers in a technical style. From the front, the dimensions are given as 12 mm in height and 13 mm in width. From the side, a length of 27 mm and a diameter of 9 mm are visible.
Mobile Preview: The image shows a small pair of scissors with gray, ergonomic handles and a sharp, pointed blade. The mechanism for opening and closing is visible.
Mobile Preview: The image shows a pair of pliers with narrow, pointed jaws. It has gray rubber grips and a small silver screw closure in the middle that connects the joints.
Mobile Preview: The drawing depicts a pair of pliers in a technical style. From the front, the dimensions are given as 12 mm in height and 13 mm in width. From the side, a length of 27 mm and a diameter of 9 mm are visible.
Notice

High-leverage diagonal cutting pliers TR-5000-PR-A.D

High-leverage diagonal cutting pliers TR-5000-PR-A.D

dpvlink:
1880
Bevel:
without bevel
Head type/size:
regular
Max Ø soft:
1.29 mm
Head shape:
angled
Degree of bending:
27 °
Properties:
Further product information

22.80 CHF

excl. 8.1% tax

1 PCE
Compare Compare
Notice
Product Info

High-leverage diagonal cutting pliers TR-5000-PR-A.D

The Piergiacomi TR-5000-PR-A.D power side cutter is a high-quality tool for precise cutting tasks. With a total length of 138 mm and a weight of just 90 g, this side cutter is particularly handy. It features a small bevel and an angled head shape, which facilitates working in confined conditions. The maximum cutting capacity for soft material is 1.29 mm (equivalent to AWG 16), making it ideal for fine and demanding cutting tasks.
The blade length is 12 mm and the head thickness is 5 mm, while the head width measures 13 mm. The material made of high-quality steel guarantees durability and resistance. Thanks to ESD safety, the side cutter is also suitable for electrostatically sensitive applications. An integrated safety spring facilitates handling and supports precise cuts, while a bending angle of 27° provides additional flexibility. With a cutting force of 5 kg, this tool enables effortless cutting of copper and similar materials.
Bevel
Bevel
without bevel
Head type/size
Head type/size
regular
Max Ø soft
Max Ø soft
1.29 mm
Head shape
Head shape
angled
Degree of bending
Degree of bending
27 °
AWG soft
AWG soft
16
Head thickness
Head thickness
5 mm
Blade length
Blade length
12 mm
Length
Length
138 mm
Material
Material
steel
ESD
ESD
yes
Cutting force
Cutting force
5 kg
Head width
Head width
13 mm
Type of pliers
Type of pliers
High-leverage diagonal cutting pliers
Version
Version
with opening spring
Weight
Weight
90 g
Pictograms
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.
Without bevel
Specially shaped cutting edge that is curved inwards. Flush cut. Only for soft materials such as fine wires.

Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 458
Complete Catalog 2023 - 2024
