Oblique cutting pliers 3778
Oblique cutting pliers 3778

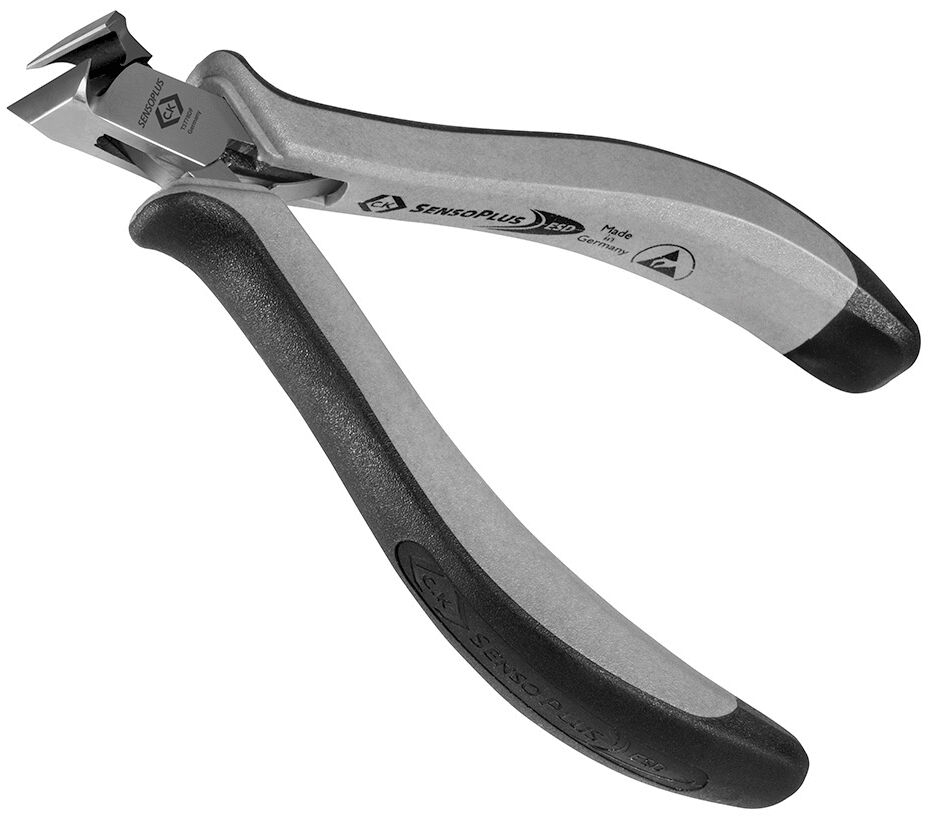

The diagonal cutter 3778 from CK combines advanced technology with ergonomic design for professional requirements. Made from special alloyed steel that is drop-forged, hardened, and tempered, this tool offers exceptional strength and durability. The induction-hardened jaws ensure long-lasting performance, while the high-gloss polished surface provides optimal corrosion protection and eliminates the risk of chrome detachment.A precise riveted joint construction ensures permanent, maintenance-free alignment of the jaws. The ergonomically shaped dual-component handles increase comfort and control during handling. Additionally, the diagonal cutter is fully ESD compliant and meets the standards IEC 61340 5.1 and 5.7, making it ideal for working on sensitive electronic components.
The pliers measure a total length of 125 mm with a jaw length of 9 mm and a head width of 11 mm. It is specifically designed for cutting soft materials such as copper wire and cables, but can also be used on medium and hard materials. The maximum cutting capacity is 1.63 mm for soft, 1.29 mm for medium, and 0.32 mm for hard materials. The tool also features a spring opening for improved handling and efficiency with repeated cuts.
Details
- Bevel Bevel
- without bevel
- Head type/size Head type/size
- small
- Head shape Head shape
- oblique
- Max Ø soft Max Ø soft
- 1,63 mm
- Max Ø medium Max Ø medium
- 1.29 mm
- Max Ø hard Max Ø hard
- 0.32 mm
- AWG hard AWG hard
- 28
- AWG medium AWG medium
- 16
- AWG soft AWG soft
- 14
- Head thickness Head thickness
- 7.5 mm
- Blade length Blade length
- 18 mm
- Length Length
- 125 mm
- Material Material
- steel
- Surface Surface
- polished
- ESD ESD
- yes
- Head width Head width
- 11 mm
- Jaw length Jaw length
- 9 mm
- Type of pliers Type of pliers
- oblique cutting pliers
- Version Version
- with opening spring
The current composition of shape and technology, completely convincing.
A flowing line adapted to the natural form of the hand in the right proportions.
The guarantee for a fatigue-free, controlled, safe and fast working in a level of quality that has been unknown up to now.
Ergonomics in an optimum design.
- Two-component handle with flush, soft thermoplastic material, slip-resistant and comfortable.
- Slip protection for a controlled and concentrated work.
- Captive, welded double leaf spring: guarantees an optimal function for the whole service life.
- Precise box joint: accurate guiding of the jaws without readjustment in case of a long service life.
- Mirror polish: optimal protection against corrosion without chrome, easy to clean.
- Inductive hardening of cutting edges: high hardness for a long durability.
The shapes of cutting edges and cutting performance
With small bevel (facet)
Normal cut. Suitable for cutting hard and soft steel wires as well as soft materials such as copper wire and cable.
With large bevel (facet)
Suitable for cutting hard and very hard steel wires. Long service life.
Without bevel (facet)
Flush cut. Extremely sharp cutting edges. Only suitable for soft steel wires, copper wire and cable.
Made in Germany
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.
Without bevel
Specially shaped cutting edge that is curved inwards. Flush cut. Only for soft materials such as fine wires.
