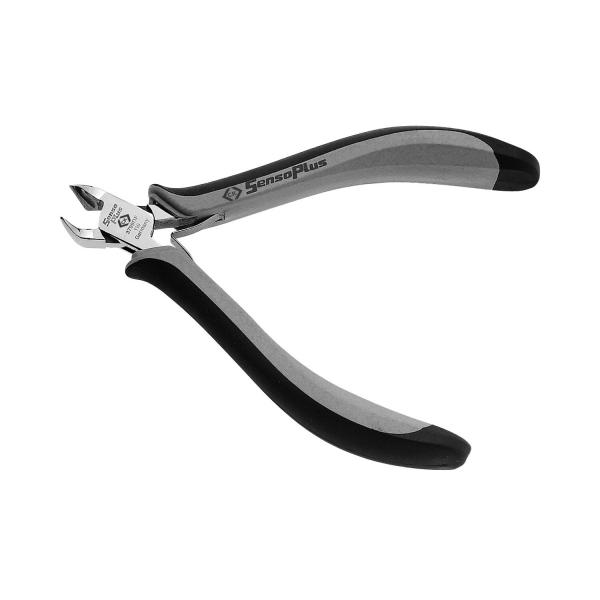

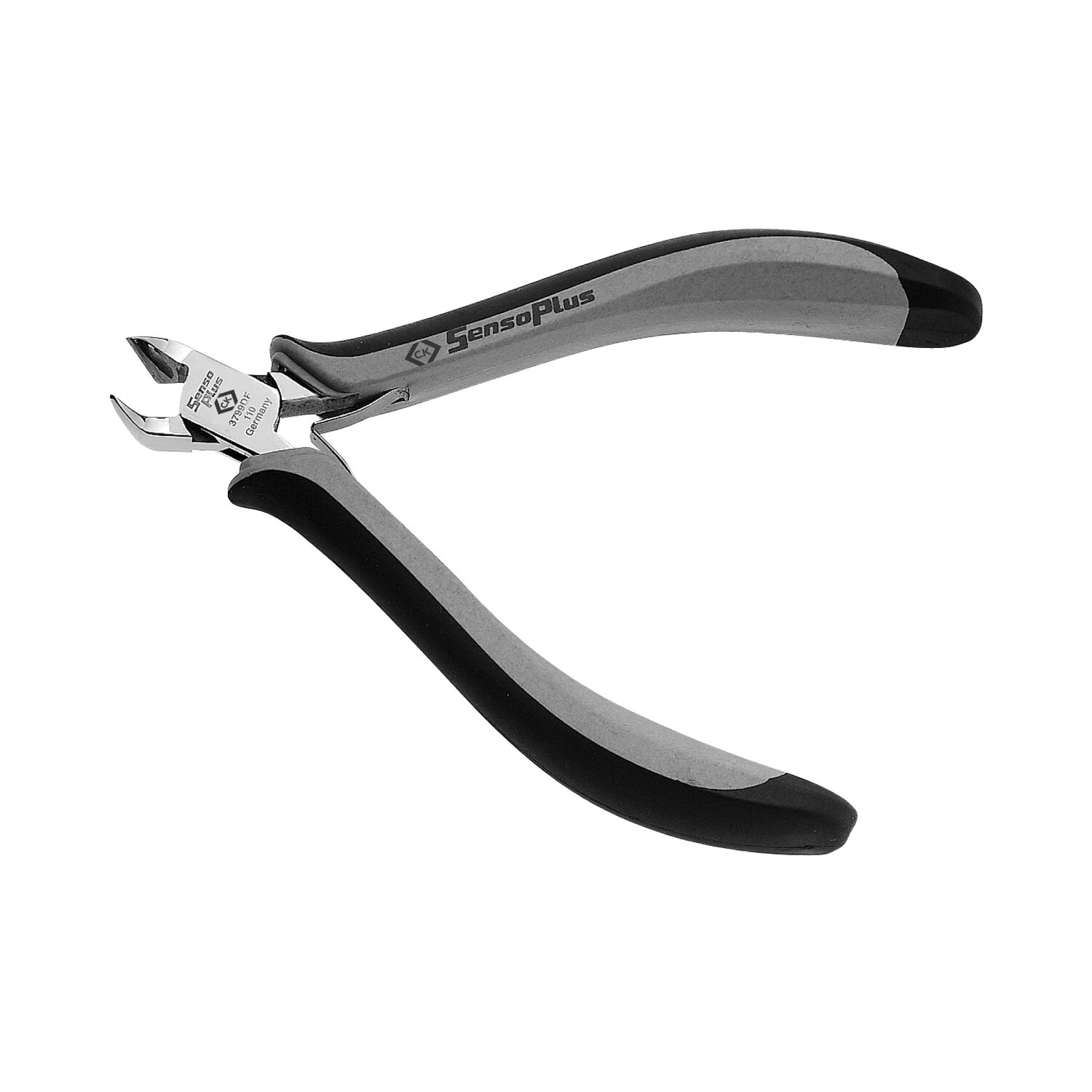

Oblique cutting pliers 3799DEF
The diagonal cutter 3799DEF by CK is a high-quality tool specifically designed for precise and safe cutting tasks in electronics and fine mechanics. Made from special alloyed steel, which has been drop-forged, hardened, and tempered, this tool offers exceptional strength and durability. The induction-hardened jaws and the precisely inserted joint design ensure a permanent, adjustment-free jaw alignment and provide excellent long-term performance.
The high-gloss polished surface of the diagonal cutter protects against corrosion and prevents the flaking of chrome, while the ergonomically shaped two-component handles ensure high comfort and excellent control during work. The spot-welded double leaf springs allow for even and repeatable cutting movements, delivering precise and reliable results.
The tapered head of the tool enables access to tight and difficult-to-reach areas. With a length of 120 mm and a head width of 10 mm, the diagonal cutter is ideal for work on sensitive electronic components, as it is fully ESD-compliant according to IEC 61340-5.1 and 5.2. The diagonal cutter is suitable for soft steel wires up to a diameter of 1.02 mm and for medium-hard wires up to 0.81 mm.
The high-gloss polished surface of the diagonal cutter protects against corrosion and prevents the flaking of chrome, while the ergonomically shaped two-component handles ensure high comfort and excellent control during work. The spot-welded double leaf springs allow for even and repeatable cutting movements, delivering precise and reliable results.
The tapered head of the tool enables access to tight and difficult-to-reach areas. With a length of 120 mm and a head width of 10 mm, the diagonal cutter is ideal for work on sensitive electronic components, as it is fully ESD-compliant according to IEC 61340-5.1 and 5.2. The diagonal cutter is suitable for soft steel wires up to a diameter of 1.02 mm and for medium-hard wires up to 0.81 mm.
Details
- Bevel Bevel
- without bevel (flush cut)
- Head type/size Head type/size
- small
- Max Ø soft Max Ø soft
- 1.02 mm
- Max Ø medium Max Ø medium
- 0.81 mm
- AWG medium AWG medium
- 20
- AWG soft AWG soft
- 18
- Head thickness Head thickness
- 6.5 mm
- Length [mm] Length [mm]
- 120 mm
- Material Material
- steel
- Surface Surface
- polished
- ESD ESD
- yes
- Head shape Head shape
- tapered
- Head width Head width
- 10 mm
- Jaw length Jaw length
- 10 mm
- Type of pliers Type of pliers
- Oblique end cutting pliers
The current composition of shape and technology, completely convincing.
A flowing line adapted to the natural form of the hand in the right proportions.
The guarantee for a fatigue-free, controlled, safe and fast working in a level of quality that has been unknown up to now.
Ergonomics in an optimum design.
- Two-component handle with flush, soft thermoplastic material, slip-resistant and comfortable.
- Slip protection for a controlled and concentrated work.
- Captive, welded double leaf spring: guarantees an optimal function for the whole service life.
- Precise box joint: accurate guiding of the jaws without readjustment in case of a long service life.
- Mirror polish: optimal protection against corrosion without chrome, easy to clean.
- Inductive hardening of cutting edges: high hardness for a long durability.
The shapes of cutting edges and cutting performance
With small bevel (facet)
Normal cut. Suitable for cutting hard and soft steel wires as well as soft materials such as copper wire and cable.
With large bevel (facet)
Suitable for cutting hard and very hard steel wires. Long service life.
Without bevel (facet)
Flush cut. Extremely sharp cutting edges. Only suitable for soft steel wires, copper wire and cable.
Made in Germany
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.
Without bevel flush cut
Flush cut. Only suitable for soft materials (copper and plastic).
