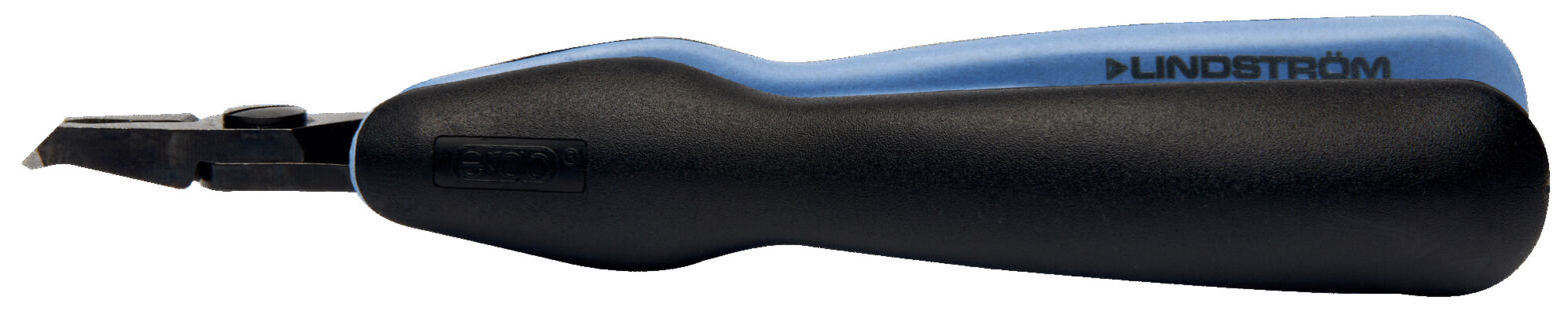

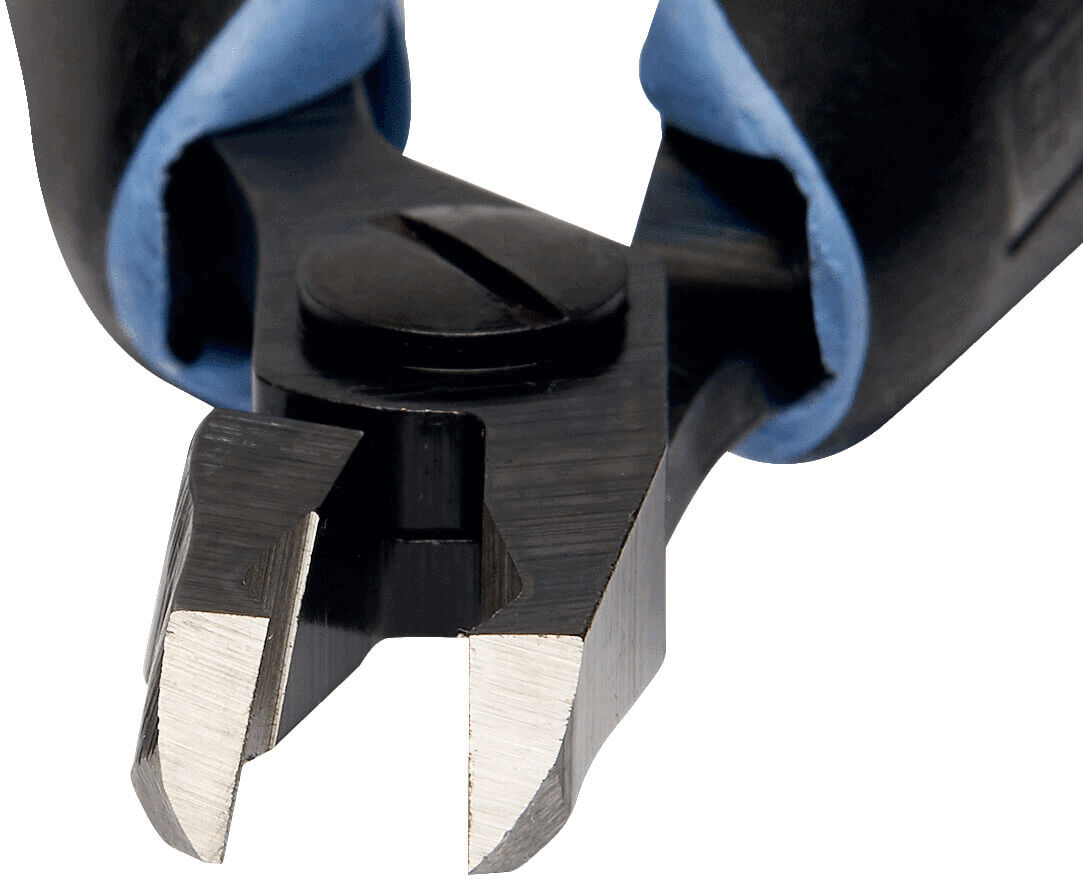

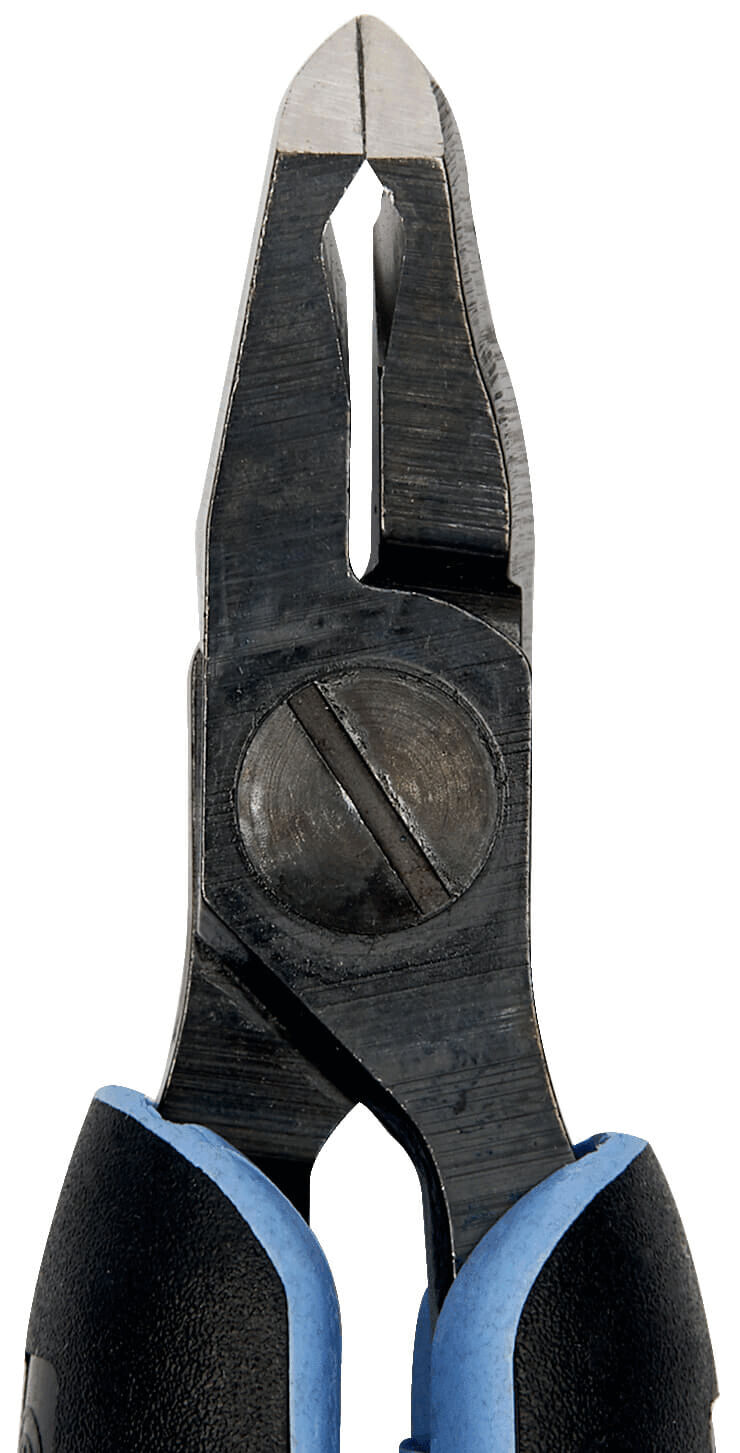

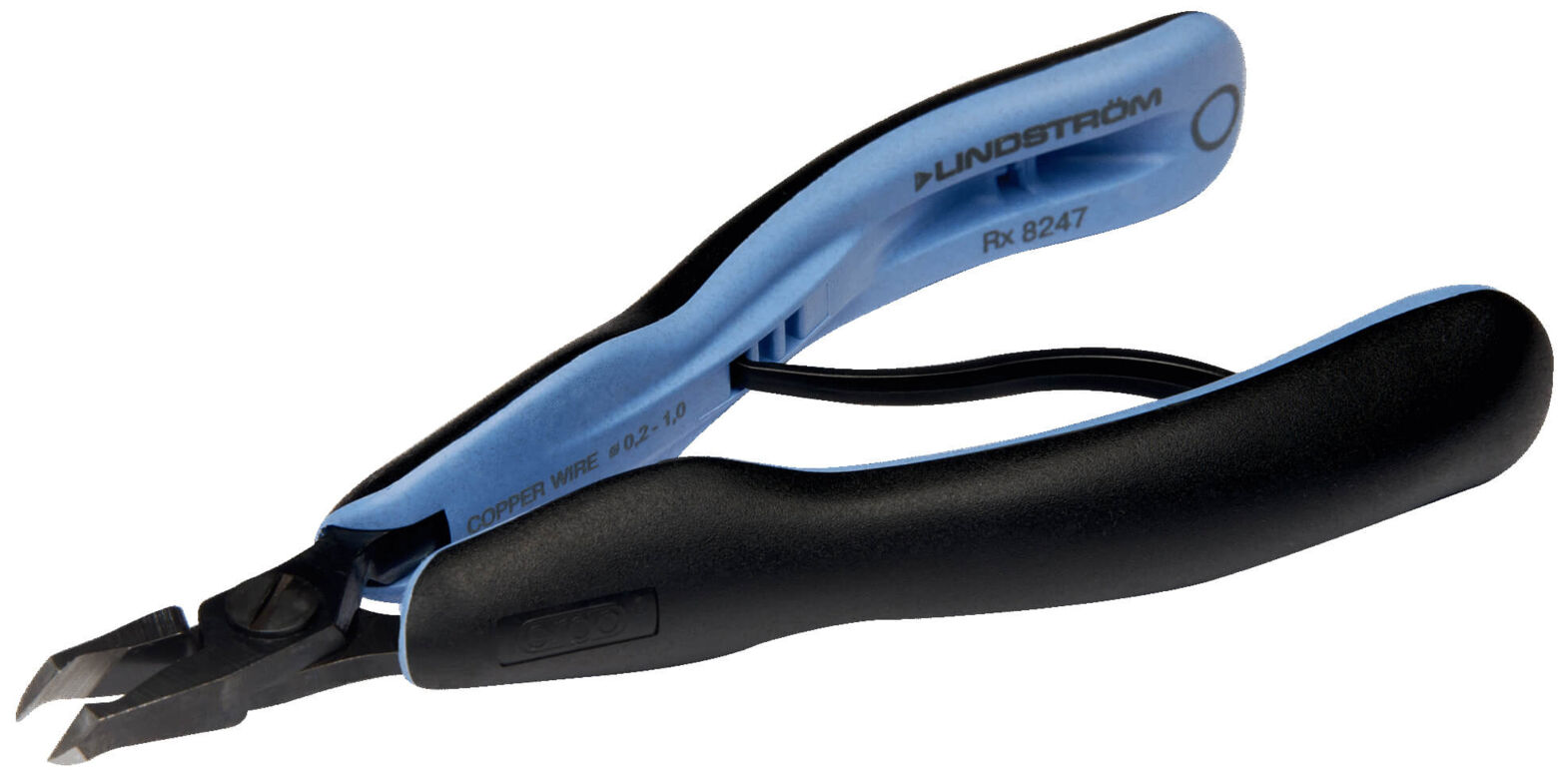

Oblique end cutting pliers RX8247, long jaws 45° bent
An oblique end cutting pliers, also known as a diagonal cutting pliers or flat cutting pliers, is a special type of pliers with diagonally tapered cutting jaws that allow wires and cables to be cut with great precision and without protruding edges. The diagonal cutting pliers are particularly suitable for cutting thin wires, cables and components. Thanks to the short jaws and small bevels (cutting shape that the tool produces on cables, wires or similar), they are also ideal for confined working areas.
Details
- Bevel Bevel
- mini bevel
- Head type/size Head type/size
- small
- Max Ø medium Max Ø medium
- 1.02 mm
- Head thickness Head thickness
- 6 mm
- Length [mm] Length [mm]
- 143 mm
- Material Material
- steel
- Stick material Stick material
- PP
- Surface Surface
- phosphated
- ESD ESD
- yes
- Head shape Head shape
- angled
- Head width Head width
- 10 mm
- Jaw length Jaw length
- 18 mm
- Type of pliers Type of pliers
- Oblique end cutting pliers
- Version Version
- with safety spring
- Degree of bending Degree of bending
- 45
- Weight Weight
- 72 g
Show accessories
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.
Mini bevel
Almost flush cut with fine cutting edges. Slightly shock-reduced cut, the cut leaves only a very small point at the end of the wire. Can be used for soft steel wires and copper wires.
