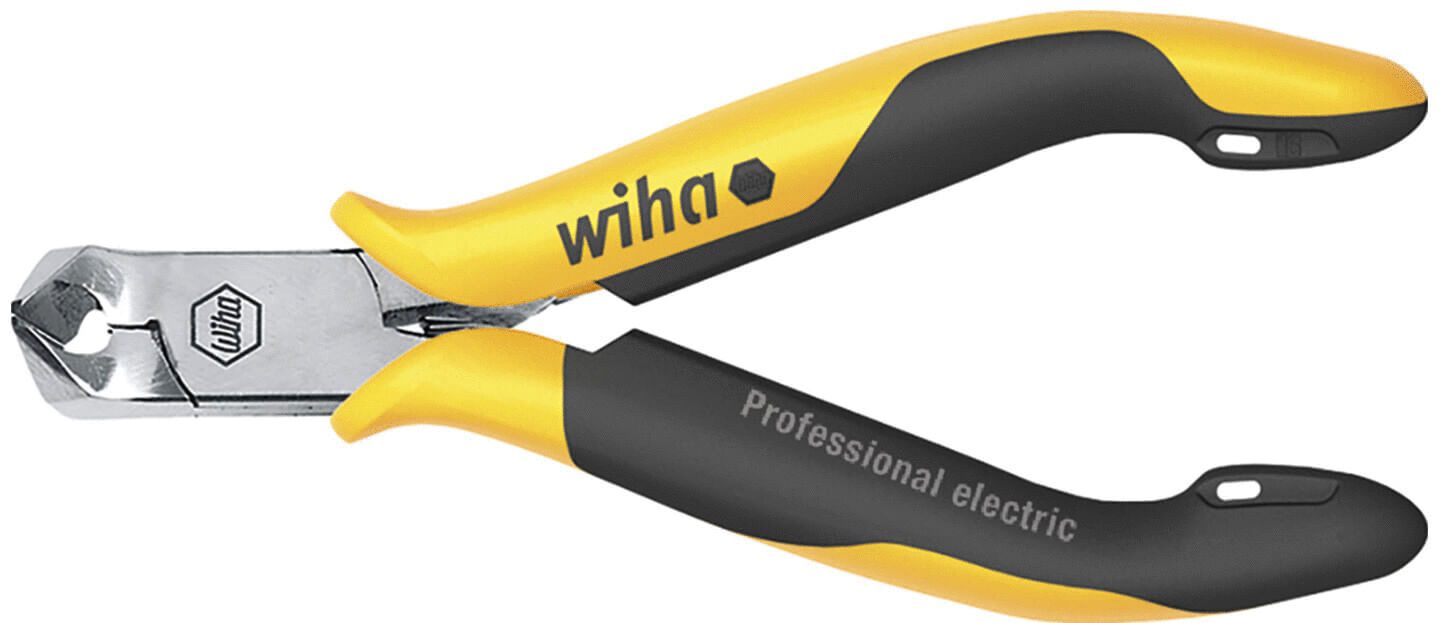

Oblique end cutting pliers Z 46 1 115 04, 29° angled
Oblique end cutting pliers Z 46 1 115 04, 29° angled

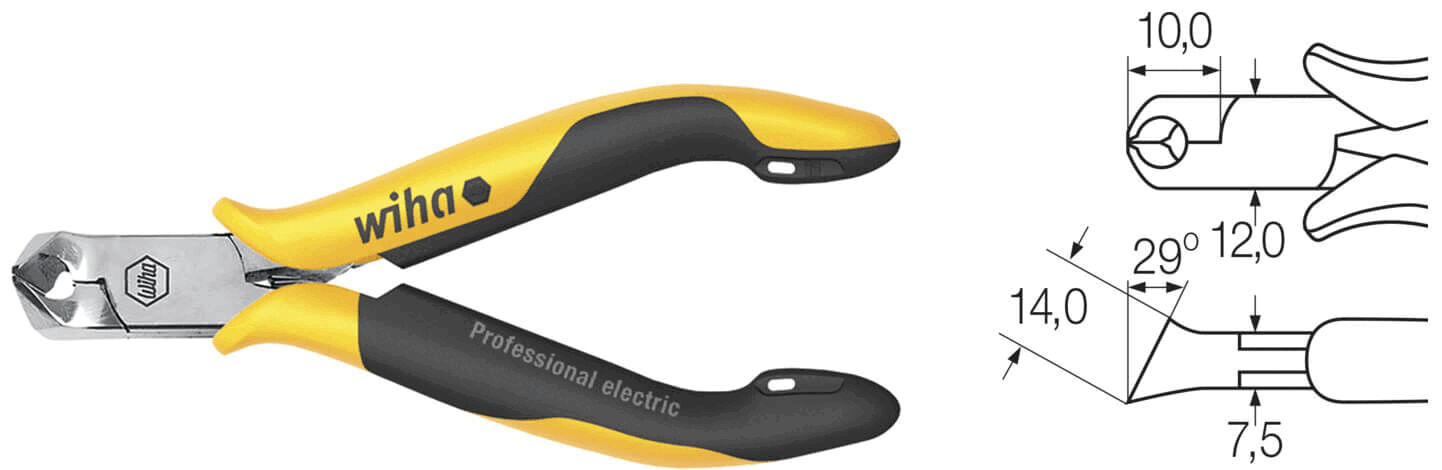

The angled cutter Z 46 1 115 04 from Wiha, featuring a head angle of 29°, offers a precise and robust solution for professional electronic work. This model is distinguished by a mini-bevel and a large head, making it particularly suitable for flush cutting without protruding edges. With an overall length of 115 mm and a head width of 12 mm, the angled cutter allows precise work even in confined spaces. The blades are made of high-quality steel, individually tempered and additionally induction-hardened to about 64 HRC, ensuring exceptional sharpness and durability.The ergonomic design of the handle with hard and soft zones distributed ensures fatigue-free working. The angled cutter is ESD-safe and complies with the standards of IEC 61340-5-1, making it ideal for use at ESD workstations. The surface resistance is between 10^6 - 10^9 Ohm. The through-joint of the angled cutter is secure against twisting, which ensures additional precision and reliability in work.
The attractive design with a finely polished head completes the professional appearance. Weighing only 87 g, this tool is a lightweight yet powerful partner for demanding cutting tasks.
Details
- Bevel Bevel
- mini bevel
- Head type/size Head type/size
- large
- Max Ø soft Max Ø soft
- 1.15 mm
- Type of pliers Type of pliers
- oblique cutting pliers
- Head shape Head shape
- oblique
- AWG soft AWG soft
- 17
- Head thickness Head thickness
- 7.5 mm
- Blade length Blade length
- 14 mm
- Length Length
- 115 mm
- Material Material
- steel
- ESD ESD
- yes
- Cutting force Cutting force
- 2 kg
- Head width Head width
- 12 mm
- Jaw length Jaw length
- 10 mm
- Weight Weight
- 87 g
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.
Mini bevel
Almost flush cut with fine cutting edges. Slightly shock-reduced cut, the cut leaves only a very small point at the end of the wire. Can be used for soft steel wires and copper wires.
Downloads
- Please log in to download datasheets! :
- There are several datasheets for this product. Please log in!
Catalogues
Product Family
Article image
Article description
Bevel
Head type/size
Max Ø soft
Max Ø medium
Max Ø hard
Type of pliers
Head shape
Price
Compare
with bevel
small
1.02 mm
0.57 mm
0.32 mm
Diagonal cutting pliers
snipe nose
without bevel (flush cut)
small
1.02 mm
Diagonal cutting pliers
snipe nose
mini bevel
small
1.02 mm
Diagonal cutting pliers
snipe nose
with bevel
regular
1.45 mm
1.02 mm
0.4 mm
Diagonal cutting pliers
snipe nose
without bevel (flush cut)
regular
1.02 mm
Diagonal cutting pliers
snipe nose
mini bevel
small
1.15 mm
Diagonal cutting pliers
round nose
with bevel
regular
1.45 mm
1.02 mm
0.4 mm
Diagonal cutting pliers
round nose
mini bevel
large
1.15 mm
oblique cutting pliers
oblique
