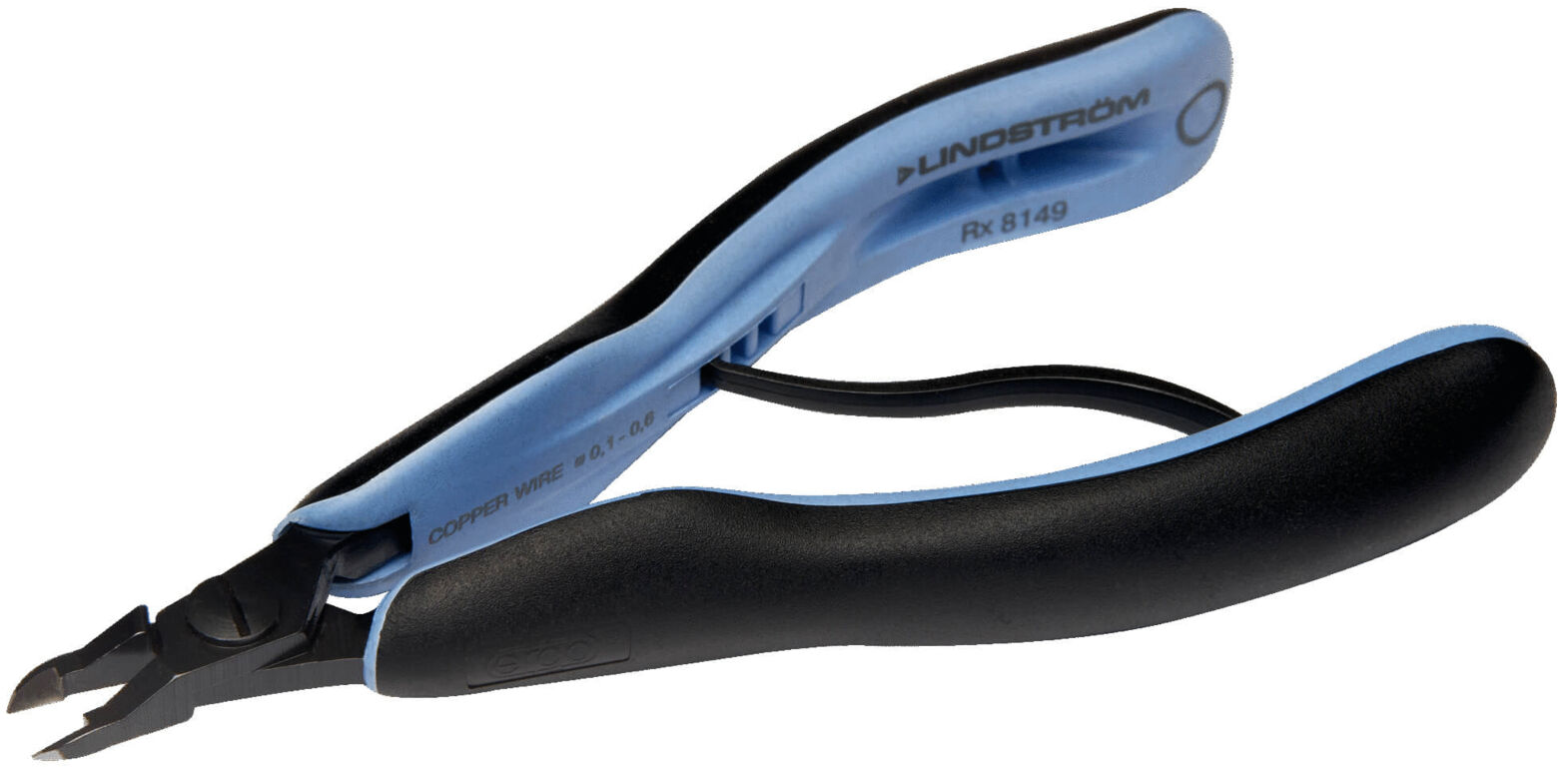

The image shows a pair of pliers with a blue and black handle. The pliers have a sharp, guillotine-like blade for cutting, which comes to a point at the tip.

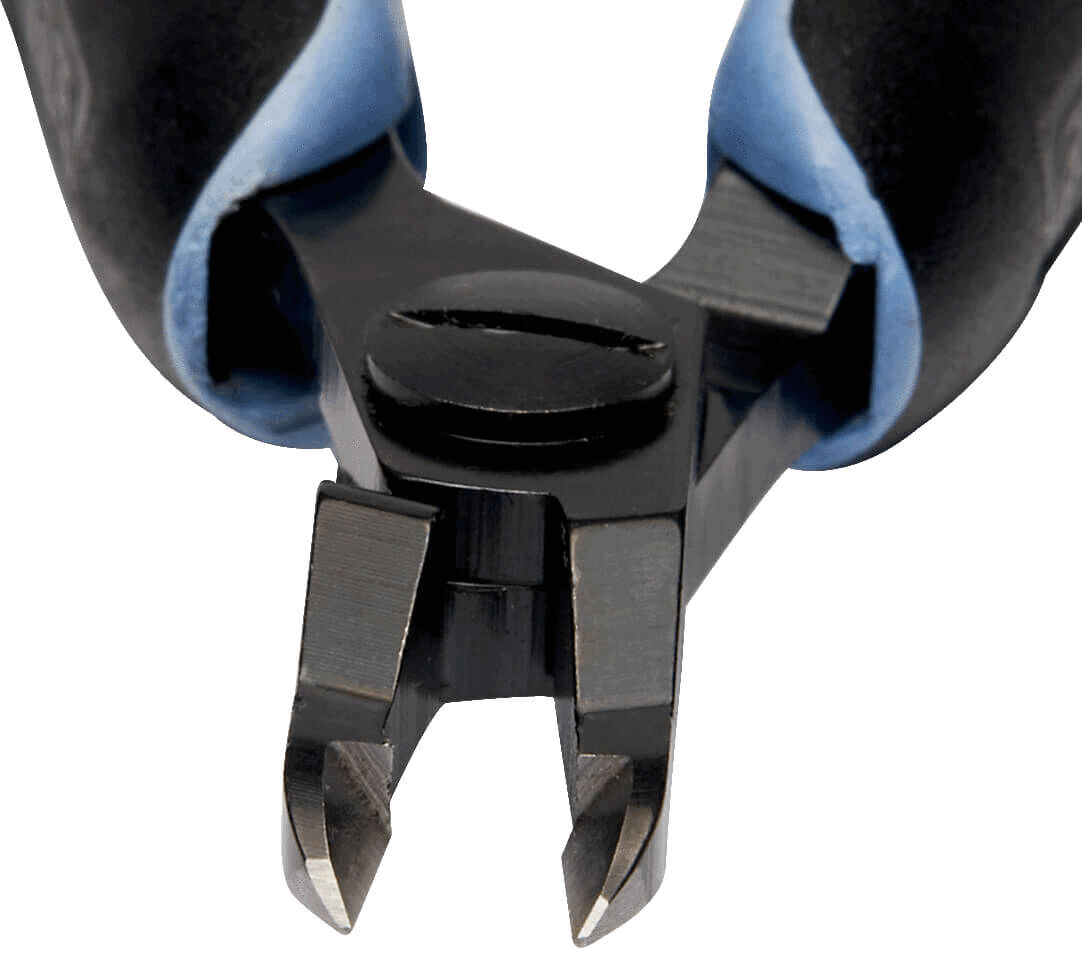

The image shows a handy tool with a black, ergonomic handle and a blue element. At one end, there is a sharp blade for precise cuts.

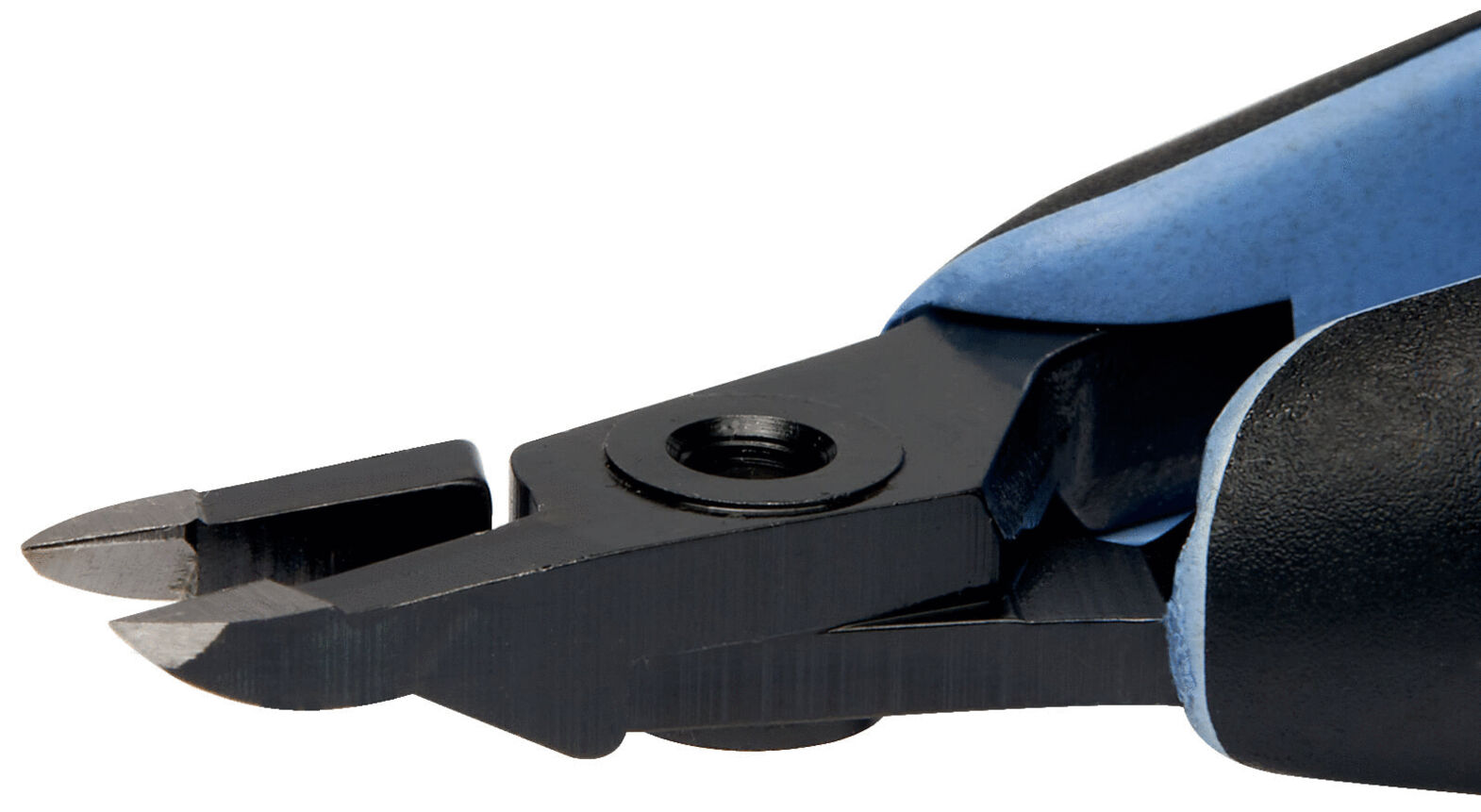

The image shows the tips of a side cutter. The blades are sharp and v-shaped, with a round swivel mechanism in the center. The handle is black with blue elements.

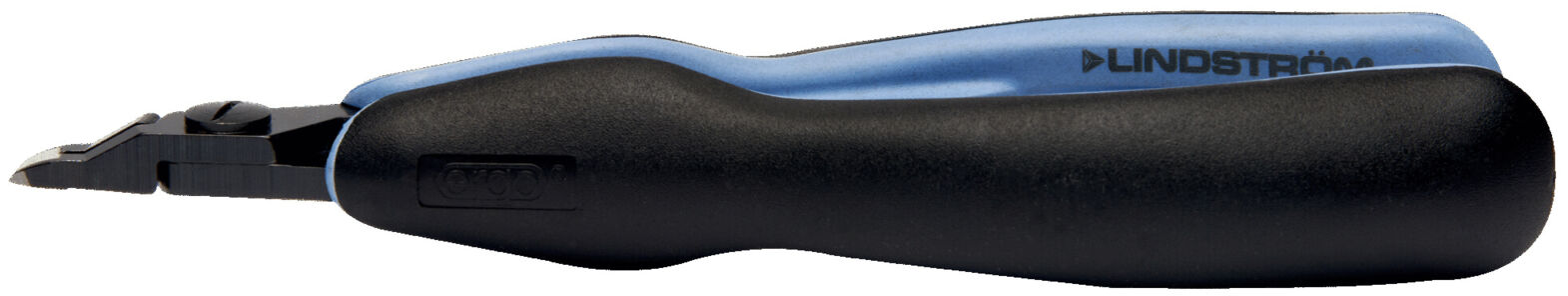

The image shows a pair of pliers with black cooling handles and a blue rubber coating. The cutting edges are sharp and taper to a point, ideal for cutting wires.
Preview: The image shows a pair of pliers with a blue and black handle. The pliers have a sharp, guillotine-like blade for cutting, which comes to a point at the tip.
Preview: The image shows a handy tool with a black, ergonomic handle and a blue element. At one end, there is a sharp blade for precise cuts.
Preview: The image shows the tips of a side cutter. The blades are sharp and v-shaped, with a round swivel mechanism in the center. The handle is black with blue elements.
Preview: The image shows a pair of pliers with black cooling handles and a blue rubber coating. The cutting edges are sharp and taper to a point, ideal for cutting wires.
Precision diagonal cutting pliers RX8149
(Product No.: RX8149)
The image shows a pair of pliers with a blue and black handle. The pliers have a sharp, guillotine-like blade for cutting, which comes to a point at the tip.
The image shows a handy tool with a black, ergonomic handle and a blue element. At one end, there is a sharp blade for precise cuts.
The image shows the tips of a side cutter. The blades are sharp and v-shaped, with a round swivel mechanism in the center. The handle is black with blue elements.
The image shows a pair of pliers with black cooling handles and a blue rubber coating. The cutting edges are sharp and taper to a point, ideal for cutting wires.
Mobile Preview: The image shows a pair of pliers with a blue and black handle. The pliers have a sharp, guillotine-like blade for cutting, which comes to a point at the tip.
Mobile Preview: The image shows a handy tool with a black, ergonomic handle and a blue element. At one end, there is a sharp blade for precise cuts.
Mobile Preview: The image shows the tips of a side cutter. The blades are sharp and v-shaped, with a round swivel mechanism in the center. The handle is black with blue elements.
Mobile Preview: The image shows a pair of pliers with black cooling handles and a blue rubber coating. The cutting edges are sharp and taper to a point, ideal for cutting wires.
Notice

Precision diagonal cutting pliers RX8149

Precision diagonal cutting pliers RX8149

dpvlink:
9627
Type of pliers:
Diagonal cutting pliers
Bevel:
mini bevel
Head type/size:
small
Head shape:
snipe nose
Max Ø soft:
0.64 mm
Properties:
Further product information

193.45 CHF

excl. 8.1% tax

1 PCE
Compare Compare
Notice
Product Info

Precision diagonal cutting pliers RX8149

The Lindström RX8149 diagonal cutter is characterized by its robust construction and reinforced cutting edge, specifically designed for precise cutting of hard materials such as wire, nails, or thin metal rods. This high-performance tool is ideal for use in electronics manufacturing, craftsmanship, and metal processing.
Made from a high-performance steel alloy, the RX8149 offers maximum cutting capacity for copper wire and features induction-hardened precision cutting edges that are exceptionally durable and resilient. The cutting edges have a hardness of 58-60 HrC, and the tool is coated with a phosphate surface to minimize friction and maximize lifespan.
The ergonomically designed ERGO™ handles with a thermoplastic surface ensure optimal grip and are made from a durable two-component material. The handles are ESD-safe and feature an opening spring that is adjustable in three positions to regulate tension during use.
With an overall length of 139 mm and a weight of 70 g, the RX8149 is compact and handy. The head shape is pointed, and the jaw length is 14 mm, which, along with the small head size and a mini-bevel, ensures precise cuts.
Type of pliers
Type of pliers
Diagonal cutting pliers
Bevel
Bevel
mini bevel
Head type/size
Head type/size
small
Head shape
Head shape
snipe nose
Max Ø soft
Max Ø soft
0.64 mm
AWG soft
AWG soft
22
Head thickness
Head thickness
6 mm
Blade length
Blade length
5 mm
Length
Length
139 mm
Material
Material
steel
Stick material
Stick material
PP
Surface
Surface
phosphated
ESD
ESD
yes
Head width
Head width
10 mm
Jaw length
Jaw length
14 mm
Version
Version
with opening spring
Weight
Weight
70 g
Show accessories
Pictograms
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.
Mini bevel
Almost flush cut with fine cutting edges. Slightly shock-reduced cut, the cut leaves only a very small point at the end of the wire. Can be used for soft steel wires and copper wires.

Accessories

Accessories

The image shows a curved, black metal clip or holder. It has small notches at both ends and is overall slim and light. Its shape resembles a boomerang.
Return spring for RX series
RX 01 opening spring series RX
PU = 5 pieces
++ LINDSTROM RX-series ESD ++
dpvlink
28635

7.40 CHF
Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 481
Complete Catalog 2023 - 2024

Product Family

Article image
Article description
Type of pliers
Bevel
Head type/size
Head shape
Max Ø soft
Max Ø medium
Max Ø hard
Degree of bending
Price
Compare
RX8130 - Diagonal cutting pliers RX8130
RX8130
Diagonal cutting pliers RX8130
Diagonal cutting pliers
with bevel
extra small
oval
2.05 mm
1.02 mm


94.30 CHF
RX8131 - Diagonal cutting pliers RX8131
RX8131
Diagonal cutting pliers RX8131
Diagonal cutting pliers
with bevel
extra small
oval
2.05 mm
1.02 mm


96.45 CHF
RX8132 - Diagonal cutting pliers RX8132
RX8132
Diagonal cutting pliers RX8132
Diagonal cutting pliers
without bevel (flush cut)
extra small
oval
2.05 mm
0.81 mm


106.40 CHF
RX8140 - Diagonal cutting pliers RX8140
RX8140
Diagonal cutting pliers RX8140
Diagonal cutting pliers
with bevel
small
oval
2.05 mm
1.29 mm
0.51 mm

89.70 CHF
RX8141 - Diagonal cutting pliers RX8141
RX8141
Diagonal cutting pliers RX8141
Diagonal cutting pliers
mini bevel
small
oval
2.05 mm
1.29 mm
0.51 mm

91.85 CHF
RX8142 - Diagonal cutting pliers RX8142
RX8142
Diagonal cutting pliers RX8142
Diagonal cutting pliers
without bevel (flush cut)
small
oval
2.05 mm
1.02 mm


102.45 CHF
RX8143 - Diagonal cutting pliers RX8143
RX8143
Diagonal cutting pliers RX8143
Diagonal cutting pliers
with bevel
small
snipe nose
1.29 mm
0.81 mm


92.25 CHF
RX8144 - Diagonal cutting pliers RX8144
RX8144
Diagonal cutting pliers RX8144
Diagonal cutting pliers
mini bevel
small
snipe nose
1.29 mm
0.81 mm


94.30 CHF
RX8145 - Diagonal cutting pliers RX8145
RX8145
Diagonal cutting pliers RX8145
Diagonal cutting pliers
without bevel (flush cut)
small
snipe nose
1.02 mm
0.81 mm


103.70 CHF
RX8146 - Diagonal cutting pliers RX8146
RX8146
Diagonal cutting pliers RX8146
Diagonal cutting pliers
with bevel
small
snipe nose / tapered
1.02 mm
0.81 mm


96.45 CHF
RX8147 - Diagonal cutting pliers RX8147
RX8147
Diagonal cutting pliers RX8147
Diagonal cutting pliers
mini bevel
small
snipe nose / tapered
1.02 mm
0.81 mm


97.25 CHF
RX8148 - Diagonal cutting pliers RX8148
RX8148
Diagonal cutting pliers RX8148
Diagonal cutting pliers
without bevel (flush cut)
small
snipe nose / tapered
1.02 mm
0.81 mm


99.50 CHF
RX8150 - Diagonal cutting pliers RX8150
RX8150
Diagonal cutting pliers RX8150
Diagonal cutting pliers
with bevel
regular
oval
2.05 mm
1.63 mm
0.81 mm

92.65 CHF
RX8151 - Diagonal cutting pliers RX8151
RX8151
Diagonal cutting pliers RX8151
Diagonal cutting pliers
mini bevel
regular
oval
2.05 mm
1.63 mm
0.81 mm

97.65 CHF
RX8152 - Diagonal cutting pliers RX8152
RX8152
Diagonal cutting pliers RX8152
Diagonal cutting pliers
without bevel (flush cut)
regular
oval
2.05 mm
1.29 mm


110.30 CHF
RX8160 - Diagonal cutting pliers RX8160
RX8160
Diagonal cutting pliers RX8160
Diagonal cutting pliers
with bevel
large
oval
2.05 mm

0.81 mm

96.85 CHF
RX8161 - Diagonal cutting pliers RX8161
RX8161
Diagonal cutting pliers RX8161
Diagonal cutting pliers
mini bevel
large
oval
2.05 mm

0.81 mm

110.30 CHF
RX8162 - Diagonal cutting pliers RX8162
RX8162
Diagonal cutting pliers RX8162
Diagonal cutting pliers
without bevel (flush cut)
large
oval
2.05 mm
1.63 mm


127.40 CHF
RX8149 - Precision diagonal cutting pliers RX8149
RX8149
Precision diagonal cutting pliers RX8149
Diagonal cutting pliers
mini bevel
small
snipe nose
0.64 mm



193.45 CHF
RX8233A - Micro diagonal cutting pliers RX8233A, long jaws, 10° bent
RX8233A
Micro diagonal cutting pliers RX8233A, long jaws, 10° bent
end cutting pliers
mini bevel
small
rounded
0.64 mm



214.90 CHF
RX8237 - Micro diagonal cutting pliers RX8237A, long jaws, 50° bent
RX8237
Micro diagonal cutting pliers RX8237A, long jaws, 50° bent
Oblique end cutting pliers
mini bevel
extra small
angled
0.64 mm


50 °
271.20 CHF
RX8234 - Micro diagonal cutting pliers RX8234A, short jaws, 10° bent
RX8234
Micro diagonal cutting pliers RX8234A, short jaws, 10° bent
Diagonal cutting pliers
mini bevel
extra small
angled / short
0,4 mm


10 °
319.40 CHF
RX8211 - Oblique end cutting pliers RX8211, short jaws, 20° bent
RX8211
Oblique end cutting pliers RX8211, short jaws, 20° bent
oblique cutting pliers
mini bevel
small
angled
1.15 mm


20 °
151.05 CHF
RX8247 - Oblique end cutting pliers RX8247, long jaws 45° bent
RX8247
Oblique end cutting pliers RX8247, long jaws 45° bent
Oblique end cutting pliers
mini bevel
small
angled
1.02 mm


45 °
165.30 CHF
RX8248 - Oblique end cutting pliers RX8248, long tapered jaws, 45° bent
RX8248
Oblique end cutting pliers RX8248, long tapered jaws, 45° bent
Oblique end cutting pliers
mini bevel
small
angled / tapered
0.81 mm


45 °
177.25 CHF
