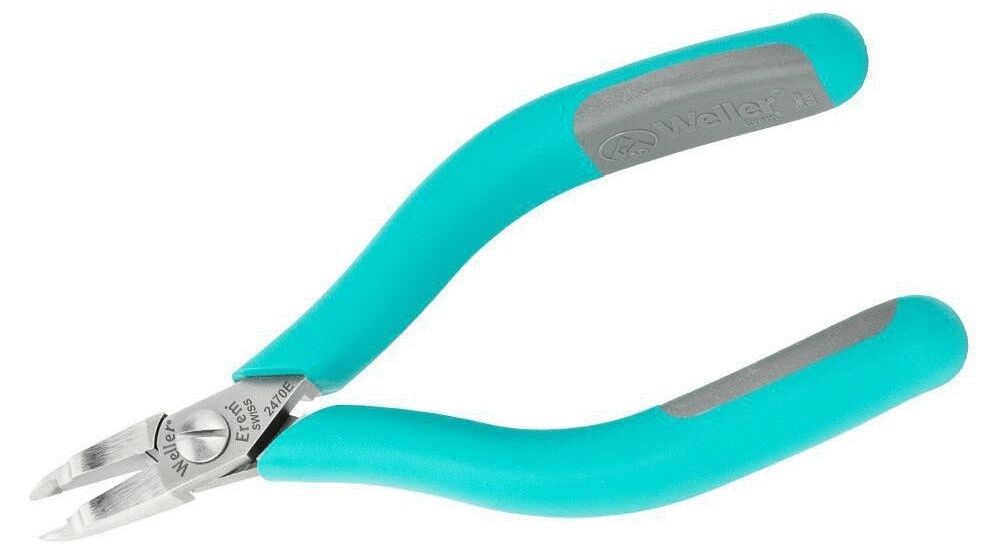

The image shows a small pair of pliers with ergonomic, turquoise handles and sharp, metallic blades. It has a practical, slim look, ideal for precise work.

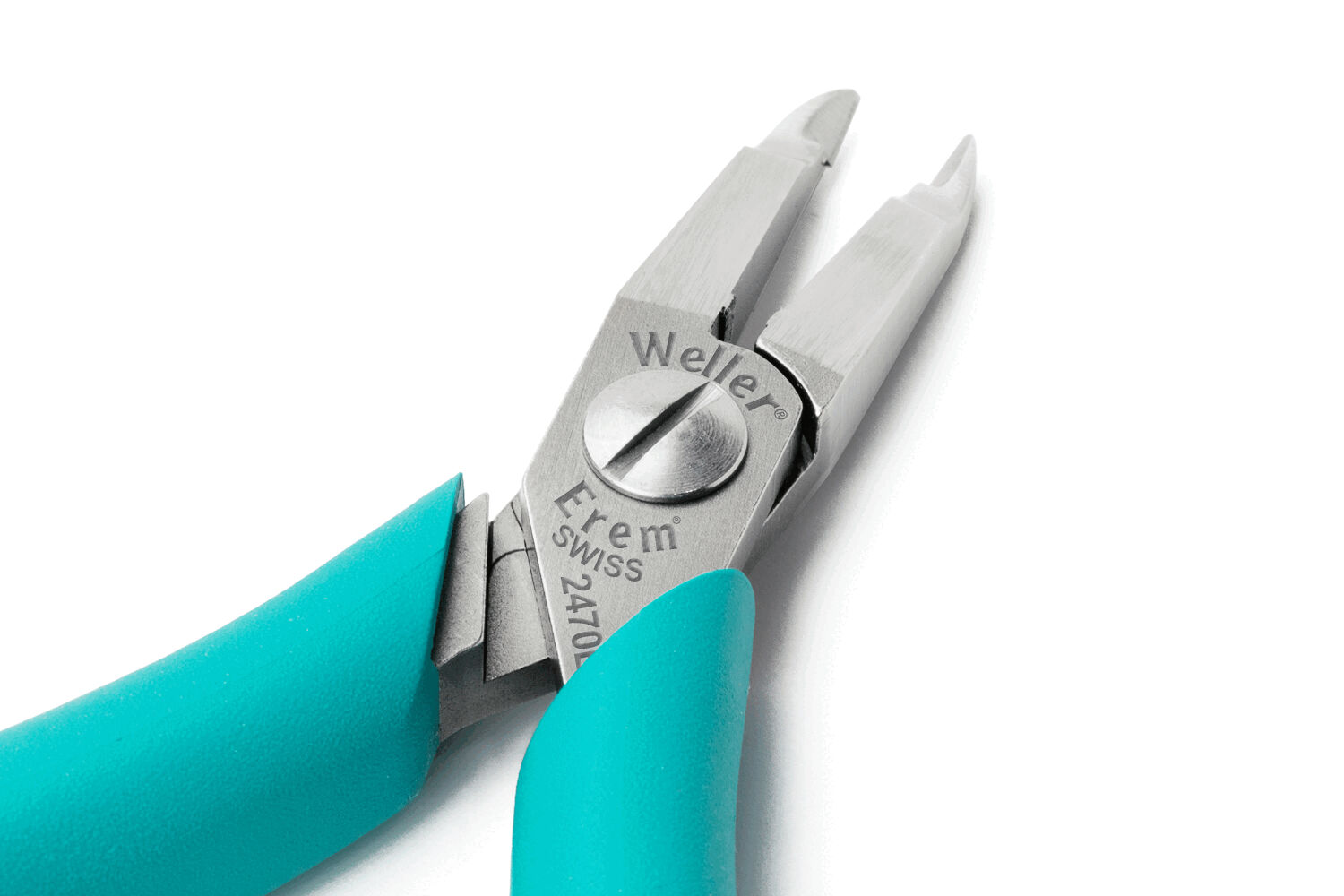

The image shows a pair of pliers with gray tips and turquoise handles. The pliers are open, the two blades are slim and agile, ideal for precision work.

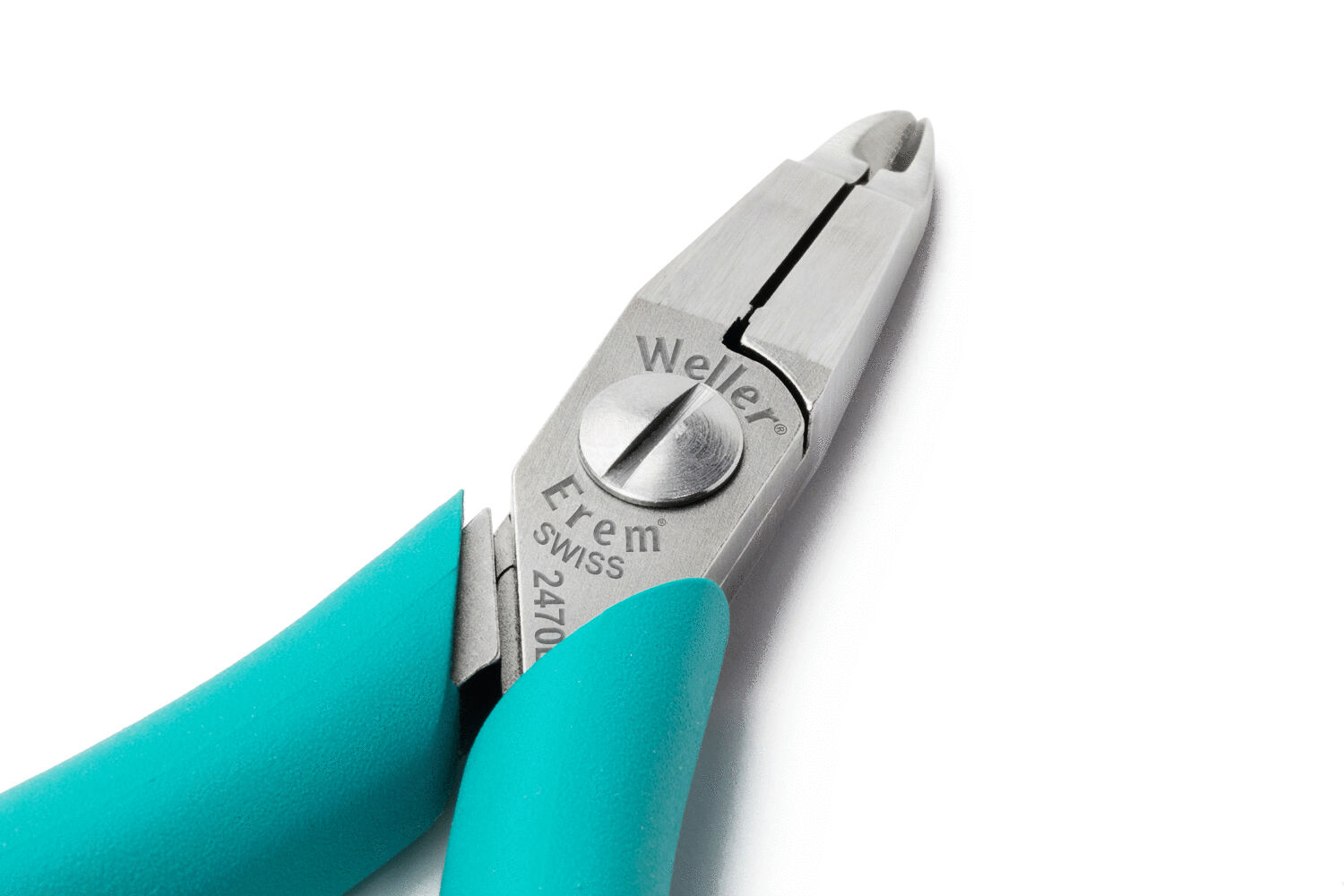

The image shows a pair of pliers with a silver metal tip and turquoise handles. The pliers have a closed cheek that tapers slightly to a point at the tip.
Preview: The image shows a small pair of pliers with ergonomic, turquoise handles and sharp, metallic blades. It has a practical, slim look, ideal for precise work.
Preview: The image shows a pair of pliers with gray tips and turquoise handles. The pliers are open, the two blades are slim and agile, ideal for precision work.
Preview: The image shows a pair of pliers with a silver metal tip and turquoise handles. The pliers have a closed cheek that tapers slightly to a point at the tip.
Tip cutting pliers 2470E
(Product No.: 2470E)
The image shows a small pair of pliers with ergonomic, turquoise handles and sharp, metallic blades. It has a practical, slim look, ideal for precise work.
The image shows a pair of pliers with gray tips and turquoise handles. The pliers are open, the two blades are slim and agile, ideal for precision work.
The image shows a pair of pliers with a silver metal tip and turquoise handles. The pliers have a closed cheek that tapers slightly to a point at the tip.
Mobile Preview: The image shows a small pair of pliers with ergonomic, turquoise handles and sharp, metallic blades. It has a practical, slim look, ideal for precise work.
Mobile Preview: The image shows a pair of pliers with gray tips and turquoise handles. The pliers are open, the two blades are slim and agile, ideal for precision work.
Mobile Preview: The image shows a pair of pliers with a silver metal tip and turquoise handles. The pliers have a closed cheek that tapers slightly to a point at the tip.
Notice

Tip cutting pliers 2470E

Tip cutting pliers 2470E

dpvlink:
8725
Type of pliers:
Diagonal cutting pliers
Bevel:
without bevel
Head type/size:
large
Head shape:
straight / long
Max Ø soft:
0.58 mm
Max Ø medium:
0.4 mm
Properties:
Further product information

96.85 CHF

excl. 8.1% tax

1 PCE
Compare Compare
Notice
Product Info

Tip cutting pliers 2470E

The Weller Erem 2470E tip cutter from the 2400 MagicSense series combines robustness with excellent handling and precision for use in hard-to-reach areas. This model features a straight, long, and recessed head, specifically designed for cutting at extreme tips and is ideal for both horizontal and vertical work. The long tips of the cutter enable precise cutting tasks, even in densely populated areas.
The cutting capacity includes soft wires up to a diameter of 0.58 mm and medium-hard wires up to 0.4 mm. The cutting edges are made of special tool steel, induction-hardened, and achieve a hardness of over 60 HRc, ensuring an extremely long service life. Additionally, the cutter is ESD-safe and has a non-reflective surface.
The ergonomic handles provide high operating comfort and minimize hand fatigue. With an overall length of 140 mm and a blade length of 2.54 mm, the tip cutter offers an optimal balance between size and accessibility. The jaw length is 20 mm and the head width is 11 mm, which, together with the head shape—straight and beveled—supports precise handling.
Type of pliers
Type of pliers
Diagonal cutting pliers
Bevel
Bevel
without bevel
Head type/size
Head type/size
large
Head shape
Head shape
straight / long
Max Ø soft
Max Ø soft
0.58 mm
Max Ø medium
Max Ø medium
0.4 mm
AWG medium
AWG medium
26
AWG soft
AWG soft
23
Head thickness
Head thickness
6 mm
Blade length
Blade length
2.54 mm
Length
Length
140 mm
Material
Material
Tool steel
ESD
ESD
yes
Head width
Head width
11 mm
Jaw length
Jaw length
20 mm
Pictograms
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.
Without bevel
Specially shaped cutting edge that is curved inwards. Flush cut. Only for soft materials such as fine wires.

Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 485
Complete Catalog 2023 - 2024

Product Family

Article image
Article description
Type of pliers
Bevel
Head type/size
Head shape
Max Ø soft
Max Ø medium
Max Ø hard
Max Ø Piano
Degree of bending
Price
Compare
2412E - Diagonal cutting pliers 2412E
2412E
Diagonal cutting pliers 2412E
Diagonal cutting pliers
without bevel
regular
oval
1.57 mm
1.02 mm
0.48 mm


89.50 CHF
2422E - Diagonal cutting pliers 2422E
2422E
Diagonal cutting pliers 2422E
Diagonal cutting pliers
without bevel
regular
oval
1.57 mm
1.02 mm



83.15 CHF
2432E - Diagonal cutting pliers 2432E
2432E
Diagonal cutting pliers 2432E
Diagonal cutting pliers
without bevel (flush cut)
regular
oval
1.57 mm
0.78 mm



87.40 CHF
2477E - Diagonal cutting pliers beveled 2477E
2477E
Diagonal cutting pliers beveled 2477E
Diagonal cutting pliers
without bevel
large
oblique / snipe nose
1.29 mm
1.02 mm



91.60 CHF
2476TX1 - Diagonal cutting pliers beveled 2476TX1
2476TX1
Diagonal cutting pliers beveled 2476TX1
Diagonal cutting pliers
without bevel
small
oblique
1.02 mm
0.51 mm
0.4 mm
0.32 mm

250.60 CHF
2470E - Tip cutting pliers 2470E
2470E
Tip cutting pliers 2470E
Diagonal cutting pliers
without bevel
large
straight / long
0.58 mm
0.4 mm



96.85 CHF
2403E - Tip cutting pliers 30° angled 2403E
2403E
Tip cutting pliers 30° angled 2403E
oblique cutting pliers
without bevel
extra small
angled
1.57 mm
1.02 mm


30 °
102.15 CHF
2404E - Tip cutting pliers 30° angled 2404E
2404E
Tip cutting pliers 30° angled 2404E
oblique cutting pliers
without bevel
small
angled
1.29 mm
0.78 mm


30 °
112.65 CHF
2482E - Tip cutting pliers 45° angled 2482E
2482E
Tip cutting pliers 45° angled 2482E
Oblique end cutting pliers
without bevel
large
angled
1.15 mm
0.57 mm


45 °
96.85 CHF
2475E - Tip cutting pliers 45° angled 2475E
2475E
Tip cutting pliers 45° angled 2475E
Oblique end cutting pliers
without bevel
regular
angled
0.58 mm
0.38 mm


45 °
105.25 CHF
