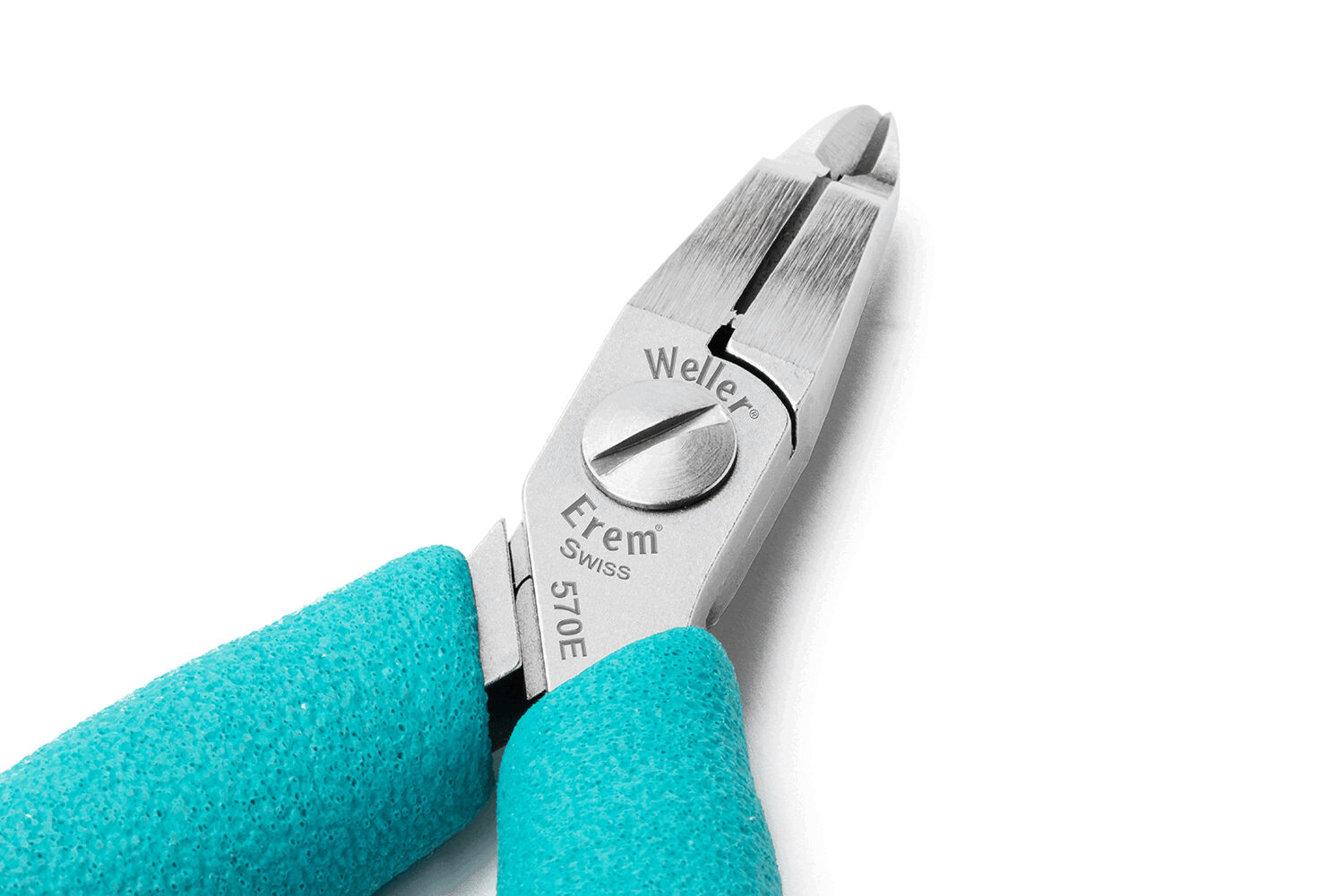

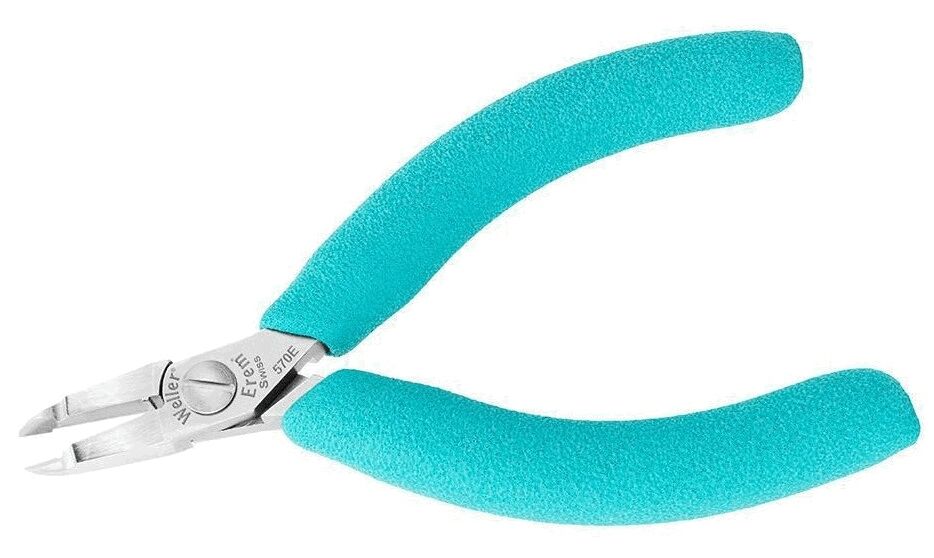

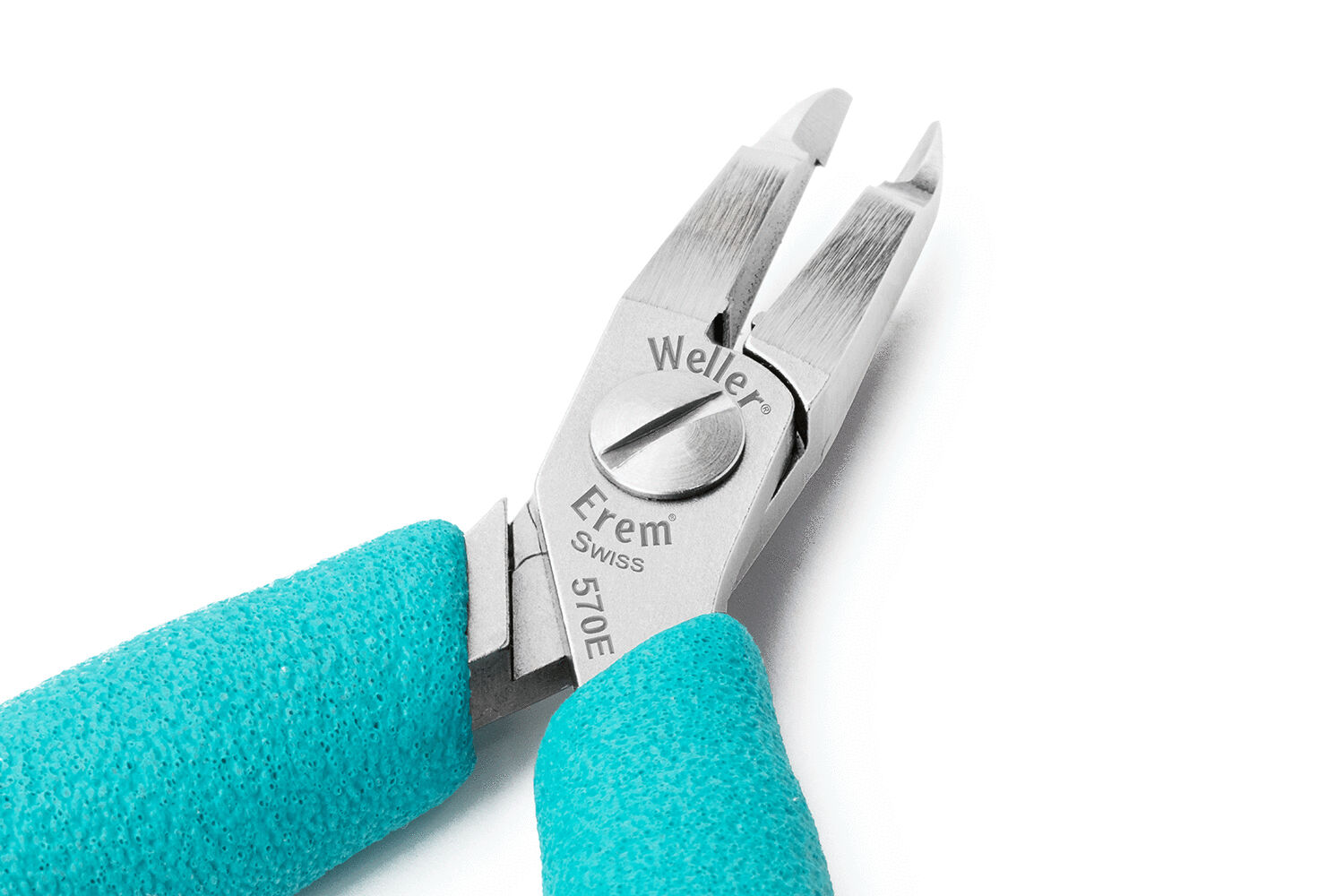

Tip cutting pliers 570E
(Product No.: 570E)
Mobile Preview: Image
Mobile Preview: Image
Mobile Preview: Image
Notice

Tip cutting pliers 570E

dpvlink:
2417
Type of pliers:
Long-nose pliers
Bevel:
large bevel
Length [mm]:
120
A [mm]:
22.0
C [mm]:
6.0
Max Cu:
0.6 mm
Properties:
Further product information

87.83 CHF

1 PCE
Compare Compare
Notice
Product Info
Precision Cutter 570E The Precision Cutter 570E from the Weller Erem Series 500 Micro offers robust precision performance for microelectronic applications. This medium-sized cutter is made from high-quality tool steel and features hardened cutting edges with a Rockwell hardness of 63-65 HRc. The non-reflective surface and ESD safety ensure additional reliability and durability. The model is characterized by a double self-locking screw joint that minimizes wear, as well as a patented spring opening system that eliminates the risk of injury and ensures interchangeability. The handle's transition resistance ranges from 10^5 to 10^9 Ohm, in accordance with MIL standards. The Stop! limit system protects the cutting edges from crossing over and damage. An optional wire holder is available, which prevents eye injuries and damage to assemblies. Technical Specifications: - Type of pliers: Needle-nose pliers - Edge: Large bevel - Length: 120 mm - A: 22.0 mm - C: 6.0 mm - Max Cu: 0.6 mm - B: 11.0 mm - D: 29.5 mm - E: 5.0 mm Ideal for precise cutting work in hard-to-reach areas and versatile for use on hard and very hard steel wires as well as soft materials such as copper wire and cables.
Type of pliers
Type of pliers
Long-nose pliers
Bevel
Bevel
large bevel
Length [mm]
Length [mm]
120
A [mm]
A [mm]
22.0
C [mm]
C [mm]
6.0
Max Cu
Max Cu
0.6 mm
B [mm]
B [mm]
11.0
D [mm]
D [mm]
29.5
E (mm]
E (mm]
5.0
Common


High-precision joints
The double self-locking screw joint with an extremely large movement area minimizes wear and tear.



Patented opening system
For the invisible integration of the springs. The result has proved: no risk of injury, long-lasting, exchangeable.



Antistatic standard handles
Contact resistance between 105 and 109 ohm according to MIL standards.



Stop! Stop system
Avoids the crossing (and thus the damaging) of the cutting edges.



Wire holder (option)
Prevents injuries of the eyes and the destruction of devices by uncontrollably separated cutting waste.



The cutting shapes and cutting performance:



With small bevel (facet)
Normal cut. Suitable for cutting hard and soft steel wires as well as soft materials such as copper wire and cable.



With large bevel (facet)
Suitable for cutting hard and very hard steel wires. Long service life.



Without bevel (facet)
Flush cut. Extremely sharp cutting edges. Only suitable for soft steel wires, copper wire and cable.



Without bevel flush (facet)
Flush cut for soft materials.


Pictograms
Large bevel
Thick, robust, resistant. Enables cutting of hard and very hard steel wires, cables or metal parts
