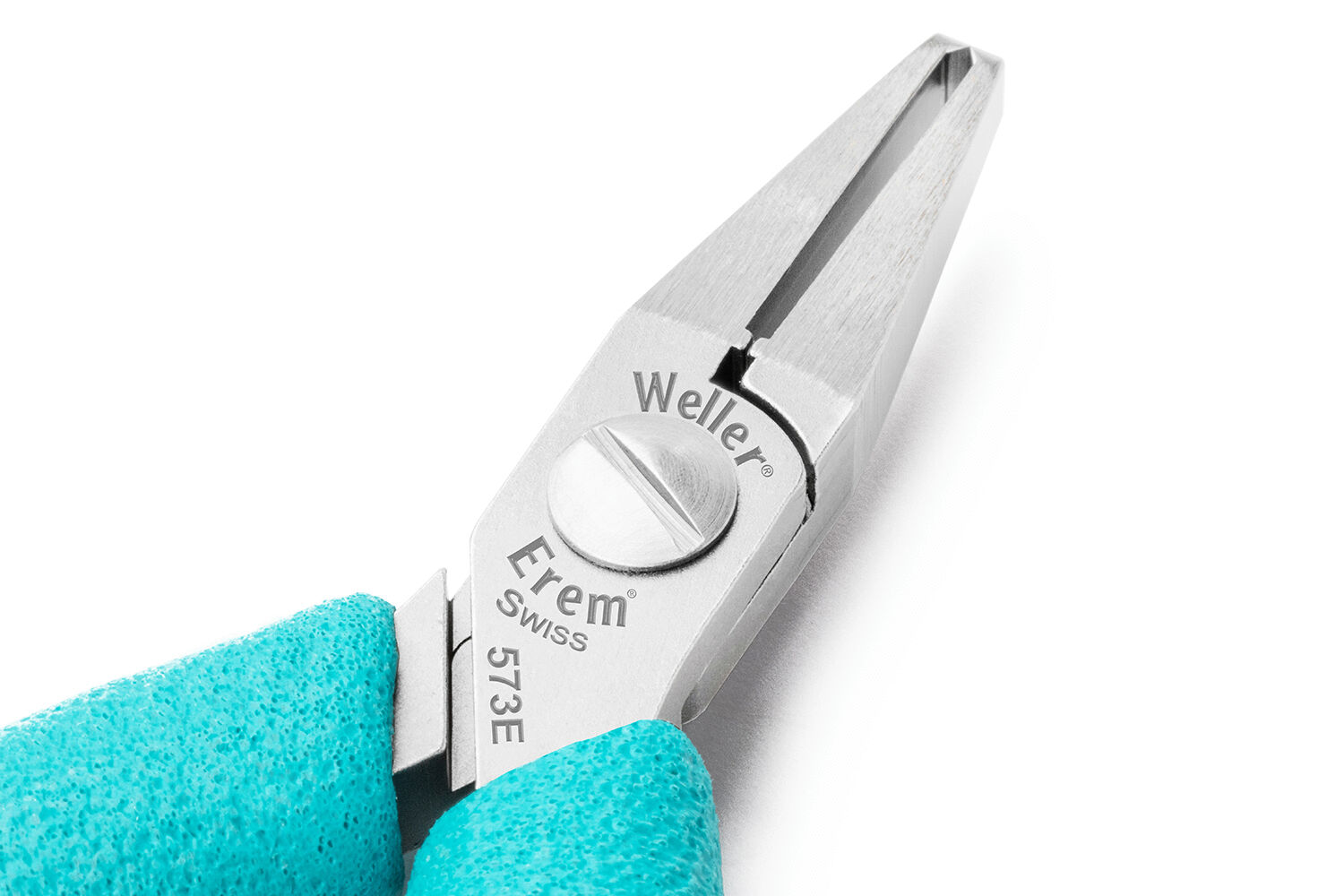

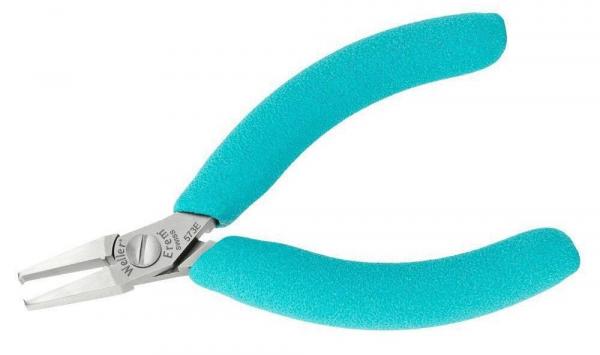

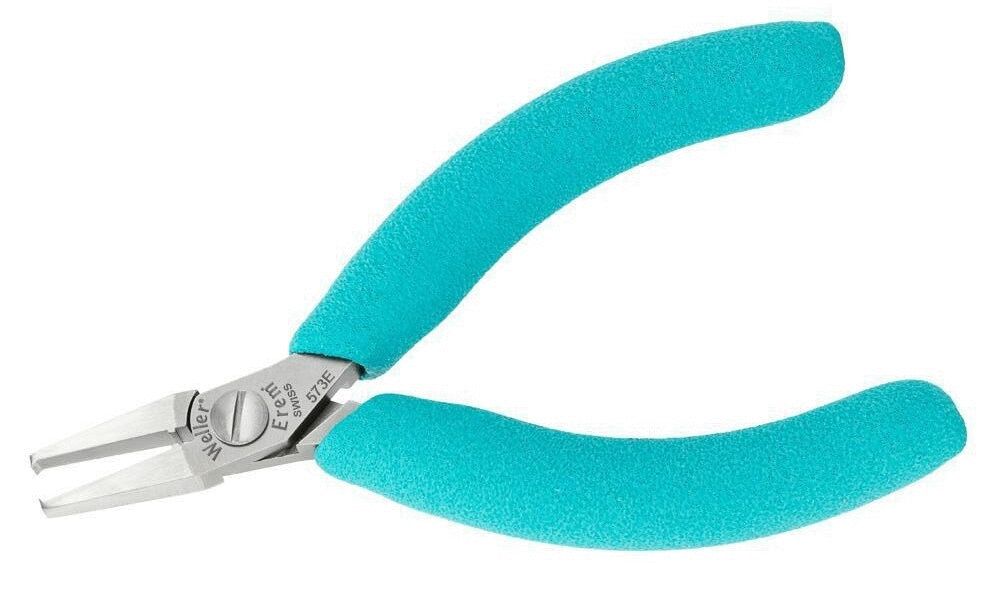

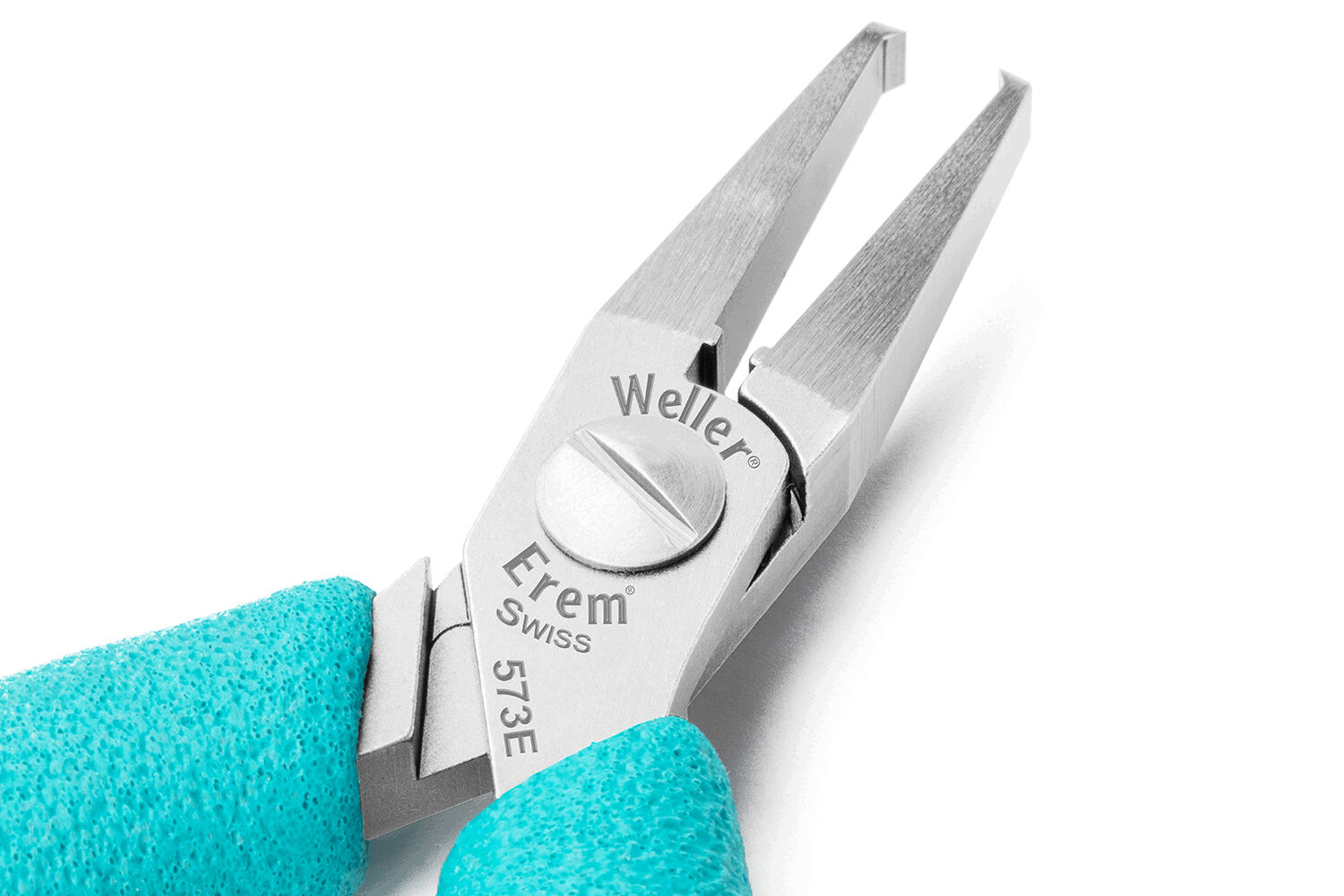

Tip cutting pliers 573E
Tip cutting pliers 573E
The Weller Erem 573E precision cutter is a highly precise tool specifically designed for use in microelectronics. With its extra small, angled head shape and a head width and thickness of 11 mm and 6 mm respectively, this model allows for precise work in hard-to-reach areas. The blade length is 2.54 mm and the total length of the precision cutter is 125 mm, making it particularly handy.The ESD-safe design ensures a transition resistance between 10^5 and 10^9 Ohm according to MIL-standard, making the precision cutter also suitable for sensitive electronic components. The patented opening system with invisibly integrated springs ensures durability and safety by minimizing the risk of injury. Moreover, the innovative Stop! limit system prevents the blades from crossing and thus damaging the cutting edges.
For additional safety, the optional wire holder protects against injuries to the eyes and destruction of assemblies by uncontrollably detached cutting residues. The precision cutter is designed for a normal cut without burr and is suitable for soft materials such as copper wire and cables, but also offers the ability to effectively process hard and very hard steel wires.
Details
- Head shape Head shape
- angled
- Bevel Bevel
- without bevel
- Head type/size Head type/size
- extra small
- Type of pliers Type of pliers
- end cutting pliers
- Max Ø soft Max Ø soft
- 0.78 mm
- AWG soft AWG soft
- 20
- Head thickness Head thickness
- 6 mm
- Blade length Blade length
- 2.54 mm
- Length Length
- 125 mm
- Material Material
- Tool steel
- ESD ESD
- yes
- Head width Head width
- 11 mm
- Jaw length Jaw length
- 11 mm
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.
Without bevel
Specially shaped cutting edge that is curved inwards. Flush cut. Only for soft materials such as fine wires.
Downloads
- Please log in to download datasheets! :
- There are several datasheets for this product. Please log in!
Catalogues
Product Family
Article image
Article description
Bevel
Head type/size
Type of pliers
Max Ø soft
Max Ø medium
Max Ø hard
Head shape
Degree of bending
Price
Compare
with bevel
regular
Diagonal cutting pliers
1.57 mm
1.02 mm
0.51 mm
without bevel
regular
Diagonal cutting pliers
1.57 mm
1.02 mm
with bevel
regular
Diagonal cutting pliers
1.57 mm
1.02 mm
without bevel
regular
Diagonal cutting pliers
1.57 mm
1.02 mm
without bevel (flush cut)
regular
Diagonal cutting pliers
1.57 mm
0.78 mm
without bevel
extra small
Diagonal cutting pliers
0.64 mm
0.4 mm
angled
without bevel
small
oblique cutting pliers
1.57 mm
1.02 mm
angled
without bevel
small
Oblique end cutting pliers
1.29 mm
0.57 mm
angled
45 °
without bevel
small
Oblique end cutting pliers
1.02 mm
0.4 mm
angled
30 °
