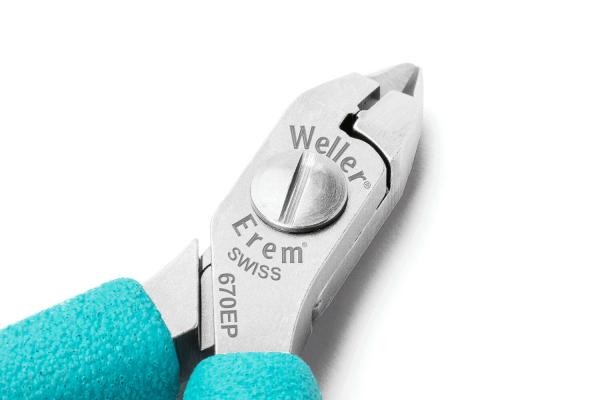

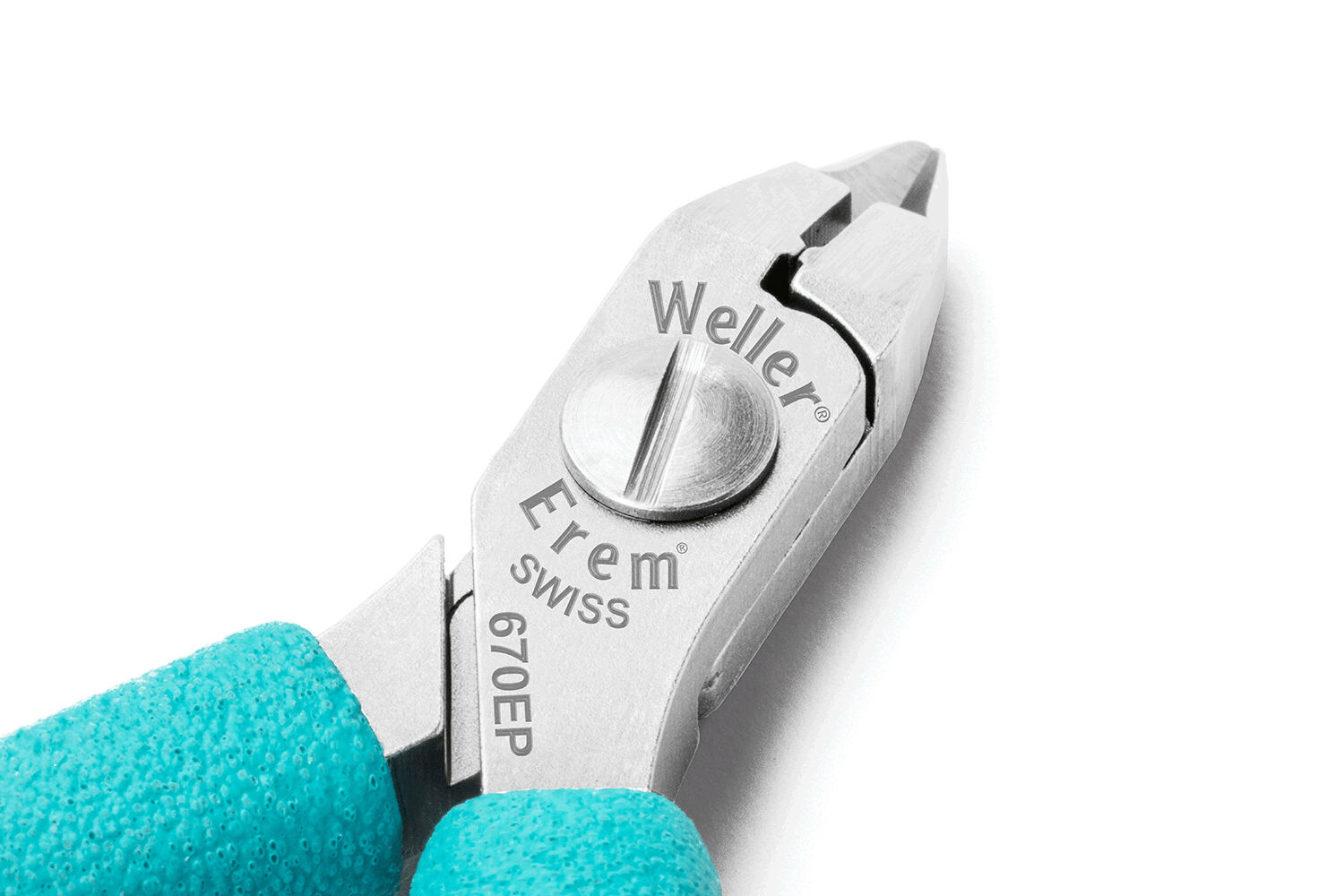

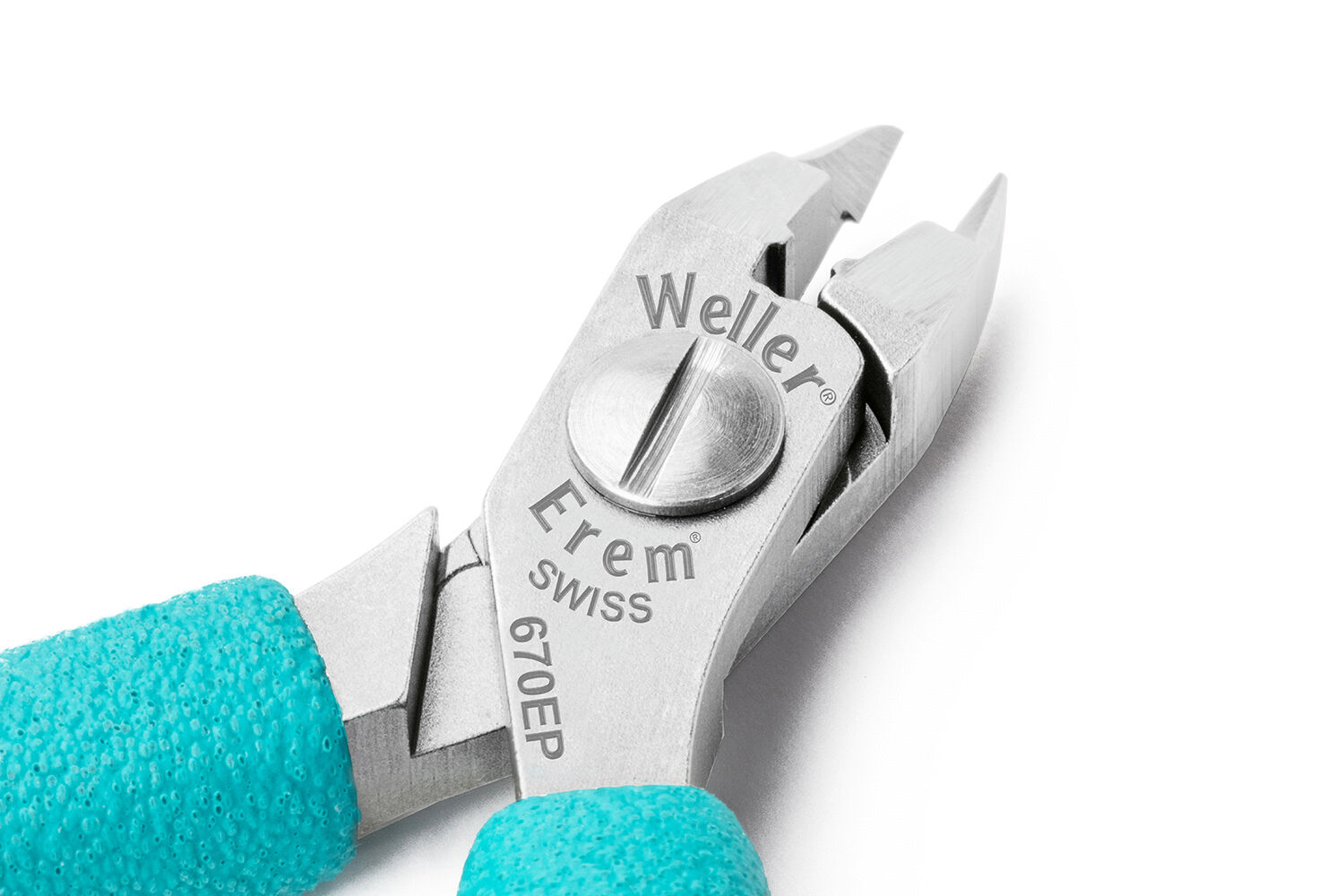

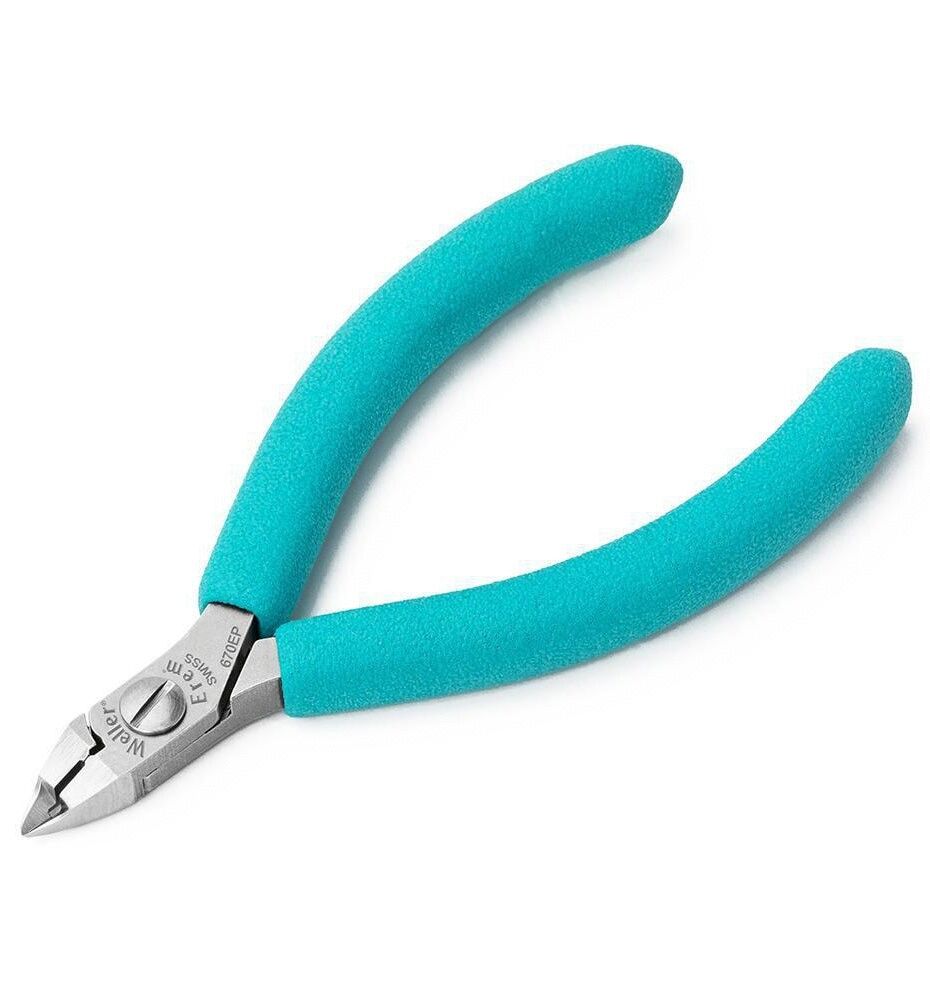

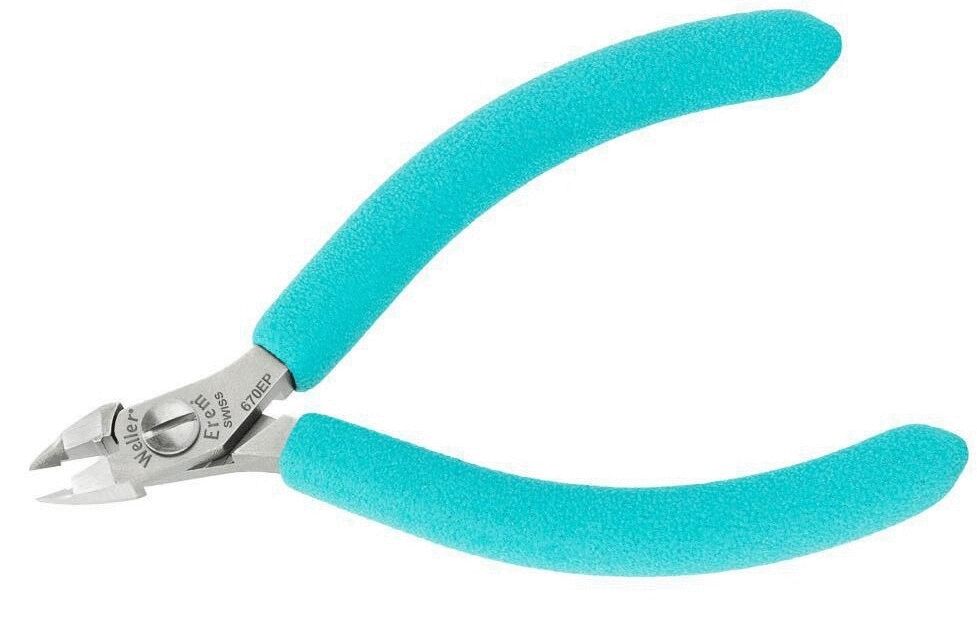

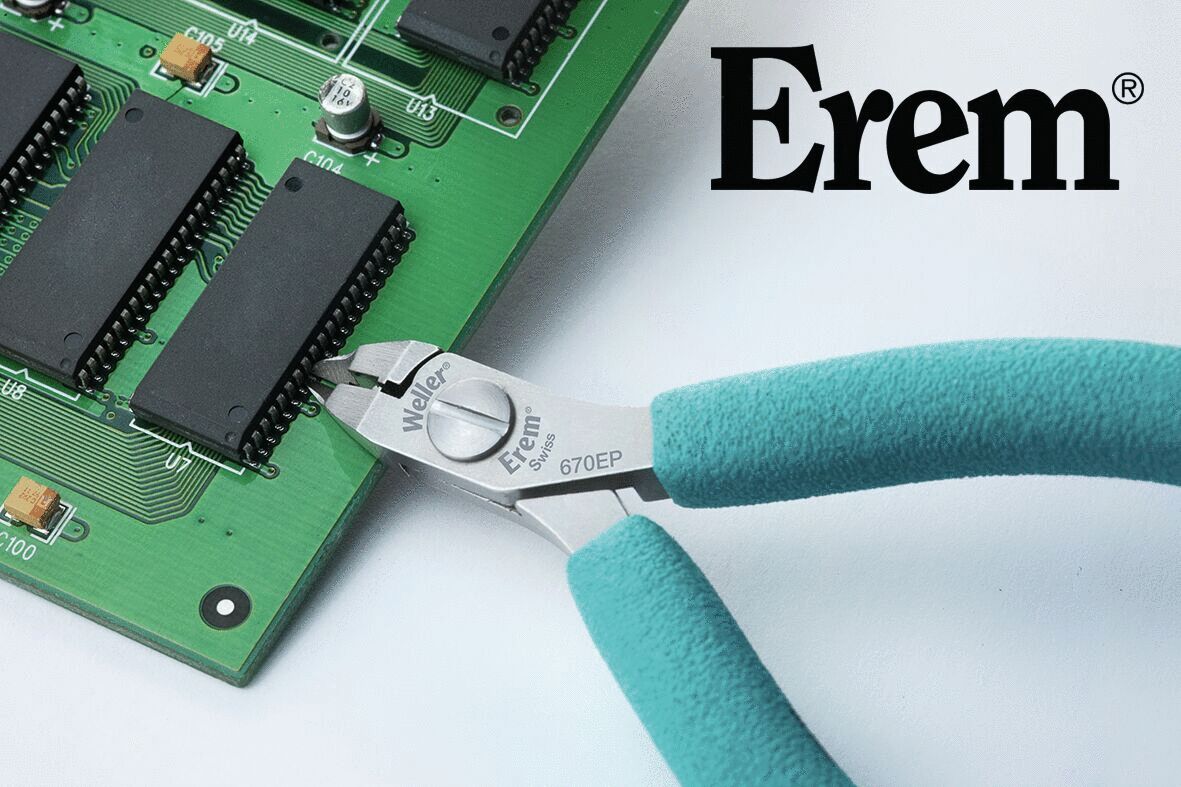

The Spitzschneider 670EP from the Weller Erem Series 600 Micro is specifically designed for use in microelectronics and is excellent for cutting SMD and micro-case contacts as well as wires. This precision tool is made of high-quality tool steel and features cutting edges that are hardened to over 60 HRc. The non-reflective surface and ESD safety ensure safe handling in sensitive electronic environments. Additionally, the cutter is re-sharpenable, which increases its longevity.
Technical Specifications: - Type of pliers: Needle-nose pliers - Edge: Small bevel - Length: 110 mm - ESD: Yes - Maximum diameter for medium-hard materials: 0.48 mm - Maximum diameter for soft materials: 0.58 mm - Material: Tool steel - Head thickness: 6 mm - Jaw length: 10 mm - Head width: 9 mm - Head shape: Beveled - Head type/size: Standard
Integrated features such as the patented opening system, the double self-locking screw joint, and the Stop! limit system optimize functionality and increase safety during use.
Product type: Spare parts
Details
- Type of pliers Type of pliers
- Long-nose pliers
- Bevel Bevel
- small bevel
- Length [mm] Length [mm]
- 110
- Max Ø medium Max Ø medium
- 0.48
- Max Ø soft Max Ø soft
- 0.58
- Head thickness Head thickness
- 6
- Material Material
- Tool steel
- ESD ESD
- yes
- Head shape Head shape
- oblique
- Head type/size Head type/size
- regular
- Head width Head width
- 9
- Jaw length Jaw length
- 10
High-precision joints
The double self-locking screw joint with an extremely large movement area minimizes wear and tear.
Patented opening system
For the invisible integration of the springs. The result has proved: no risk of injury, long-lasting, exchangeable.
Antistatic standard handles
Contact resistance between 105 and 109 ohm according to MIL standards.
Stop! Stop system
Avoids the crossing (and thus the damaging) of the cutting edges.
Wire holder (option)
Prevents injuries of the eyes and the destruction of devices by uncontrollably separated cutting waste.
The cutting shapes and cutting performance:
With small bevel (facet)
Normal cut. Suitable for cutting hard and soft steel wires as well as soft materials such as copper wire and cable.
With large bevel (facet)
Suitable for cutting hard and very hard steel wires. Long service life.
Without bevel (facet)
Flush cut. Extremely sharp cutting edges. Only suitable for soft steel wires, copper wire and cable.
Without bevel flush (facet)
Flush cut for soft materials.
