Wire clamp / safety spring

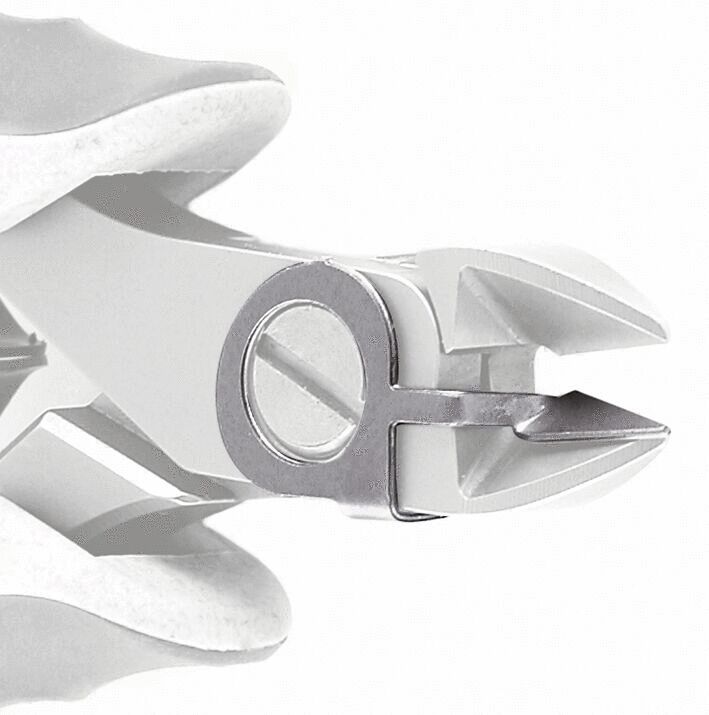

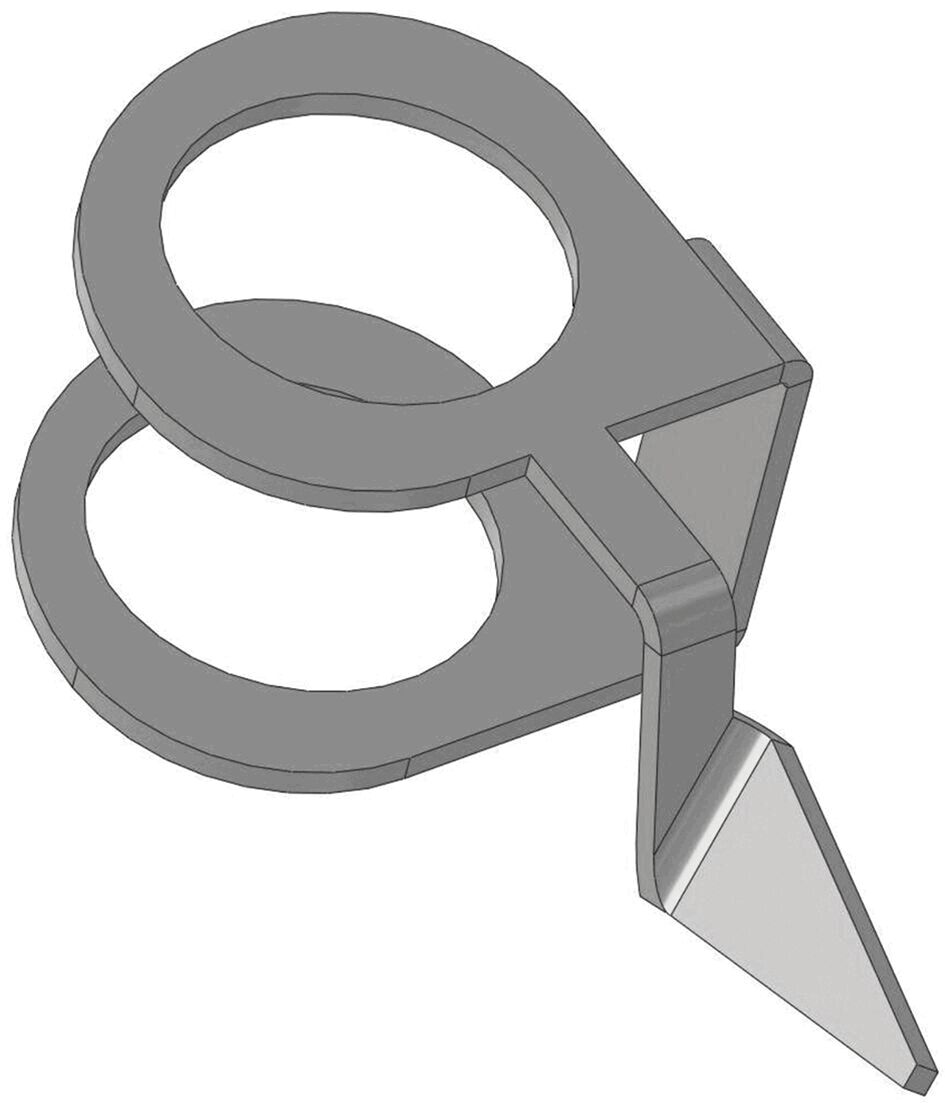

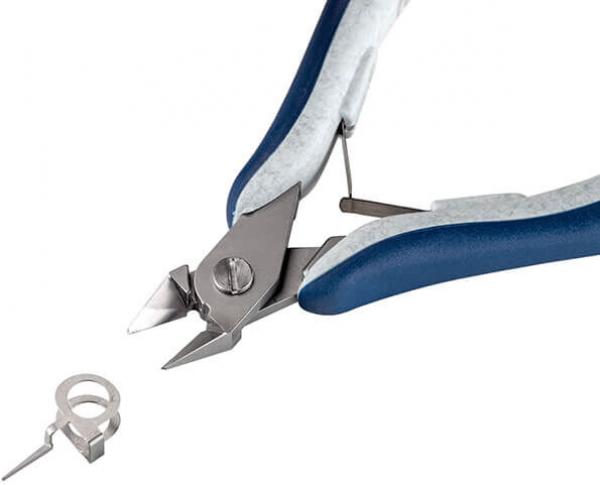

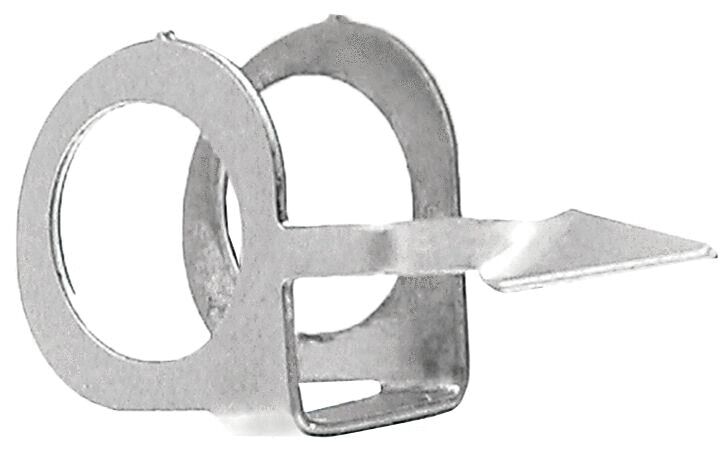

The wire clamp / safety spring from ideal-tek is a high-quality solution for securely catching cut wires and preventing them from falling onto sensitive components. This clamp, specifically designed for side cutter models type 5150, 5151, 5152, as well as 5350, 5351, and 5352, fits perfectly onto high-precision cutters with a box dimension of either 10 mm or 12.5 mm.Made from robust AISI 304 stainless steel and featuring a sandblasted surface, this product offers durability and reliability in use. The clamp measures 12.3 mm in width and 7.5 mm in height, with a weight of just 1 gram. Despite its compact size and light weight, it is an effective solution in the technical field, although it is not ESD-safe.
The packaging unit (VPE) includes 5 pieces, which simplifies purchasing and storage.
Details
- Height [mm] Height
- 7.5
- Width [mm] Width
- 12.3
- Material Material
- steel
- Surface Surface
- sandblastered
- ESD ESD
- no
- Head type/size Head type/size
- regular
- Weight Weight
- 1 g
The ideal-tek ERGO-TEK diagonal cutting pliers series stands for highest requirements for precision and performance. The tools have precision ground, sharp cutting edges for the use e.g. in electronics and fine mechanics. Versions with normal bevel, small bevel or without bevel for precise cuts on sensitive electronic components. A friction-less double spring ensures a smooth and soft opening. The two-component handles are ergonomically shaped and offer best gripping and comfortable working. The diagonal cutting pliers are forged of a high-quality chrome-vanadium ball bearing steel.
All versions are electrically dissipative
ideal-tek pliers stand for quality with the highest requirements of precision, ergonomics and durability.
The cutting shapes and cutting performance:
With bevel (facet)
Normal cut. Suitable for cutting hard and soft steel wires as well as soft materials such as copper wire and cable.
With large bevel (facet)
Suitable for cutting hard and very hard steel wires. Long service life.
Without bevel flush (facet)
Flush cut for soft materials.
ERGO-TEK
The pliers of the ERGO-TEK series have a modified ergonomic handle. This adapts optimally to the hand which has a positive effect on the user especially in case of long, intensive and powerful working processes.
ERGO-TEK SLIM
In consideration of anatomic differences the new, lightweight ERGO-TEK SLIM series has been designed for small hands - providing the same ergonomics, ESD safety and technical advantages that have always characterized ideal-tek
