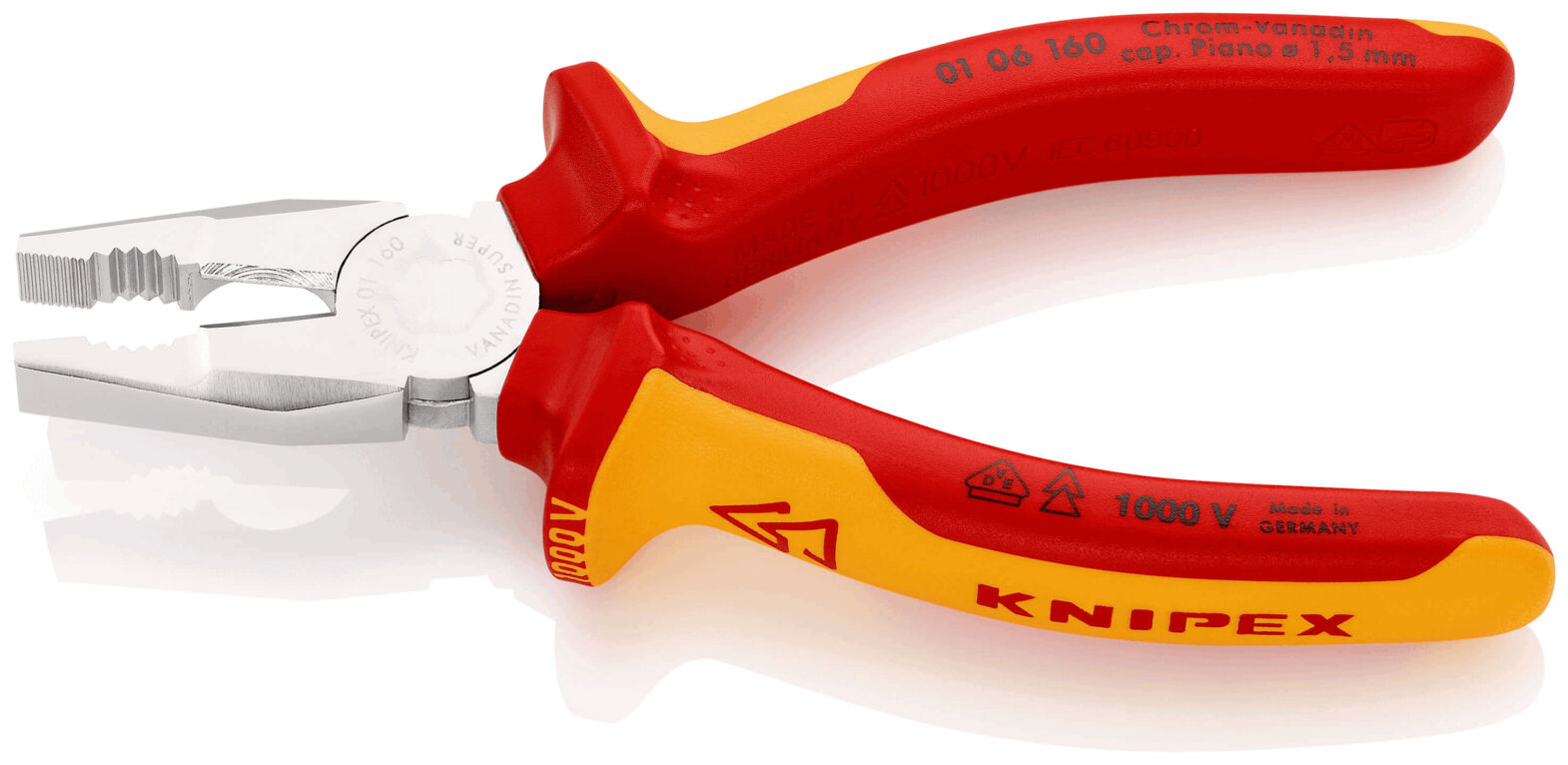

The image shows a pair of pliers with red and yellow handles. The pliers have a shiny, metallic working surface with various grips and are suitable for electrical work.
It is a pair of pliers with metallic jaws and red and yellow, non-slip grips. It is suitable for precise work and has insulation for electrical safety.
Preview: The image shows a pair of pliers with red and yellow handles. The pliers have a shiny, metallic working surface with various grips and are suitable for electrical work.
Preview: It is a pair of pliers with metallic jaws and red and yellow, non-slip grips. It is suitable for precise work and has insulation for electrical safety.
Combination pliers ISO 1000V 160 mm
(Product No.: K-0106.160)

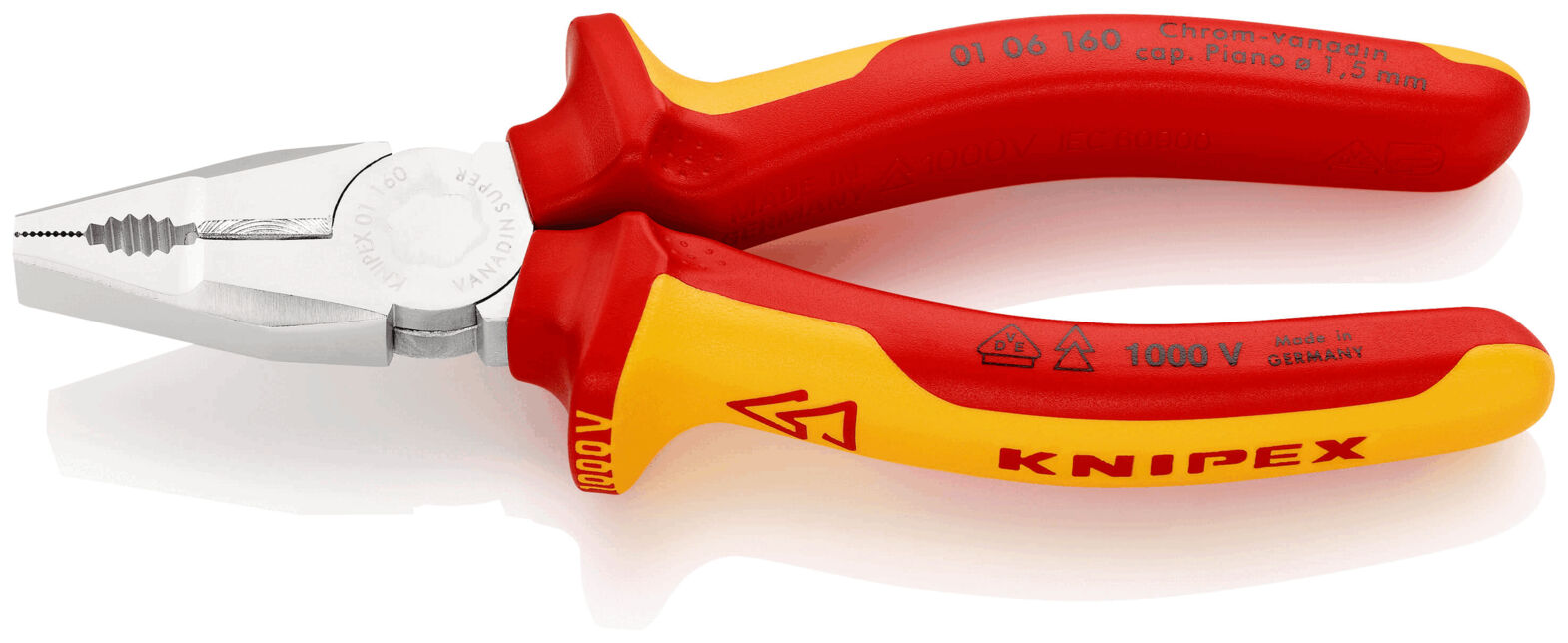

The image shows a pair of pliers with red and yellow handles. The pliers have a shiny, metallic working surface with various grips and are suitable for electrical work.
It is a pair of pliers with metallic jaws and red and yellow, non-slip grips. It is suitable for precise work and has insulation for electrical safety.
Mobile Preview: The image shows a pair of pliers with red and yellow handles. The pliers have a shiny, metallic working surface with various grips and are suitable for electrical work.
Mobile Preview: It is a pair of pliers with metallic jaws and red and yellow, non-slip grips. It is suitable for precise work and has insulation for electrical safety.
Notice / Inquire

Combination pliers ISO 1000V 160 mm

Combination pliers ISO 1000V 160 mm

dpvlink:
8894
Tags:
Bevel:
large bevel
Max Ø hard:
2.0 mm
Max Ø Piano:
1.5 mm
ESD :
no
tested according to VDE standard:
yes
Properties:
Further product information

43.05 CHF

excl. 8.1% tax

1 PCE
Compare Compare
Notice / Inquire
Product Info

Combination pliers ISO 1000V 160 mm

This high-quality combination pliers from KNIPEX, made from chrome vanadium electric steel, is specifically designed for professional use and meets strict VDE standards. With a length of 160 mm and a chrome-plated surface, the tool offers a robust and durable solution for various applications. The pliers feature wear-resistant gripping jaws with a hardness of approximately 53 HRC and blades that are additionally induction hardened to achieve a blade hardness of about 64 HRC. This allows for cutting soft and hard wire as well as piano wire up to a diameter of 1.5 mm for piano and 2.0 mm for hard wire.
The insulated handles provide additional safety when working under voltage up to 1000V and comply with standards DIN EN 60900 and IEC 60900. The combination pliers are not only suitable for flat and round materials but are also ideal for thicker cables, thanks to their long and wide head shape. The combination pliers are an indispensable addition to any technical equipment that demands the highest standards of precision and durability.
Bevel
Bevel
large bevel
Max Ø hard
Max Ø hard
2.0 mm
Max Ø Piano
Max Ø Piano
1.5 mm
ESD
ESD
no
tested according to VDE standard
tested according to VDE standard
yes
Length
Length
160 mm
Gripping surface
Gripping surface
serrated
Material
Material
chrome-vanadium steel
Surface
Surface
chromed
Head shape
Head shape
long / wide
Type of pliers
Type of pliers
Combination pliers
Version
Version
with cutting edge
Handle property
Handle property
insulated
Pictograms
VDE
The VDE mark indicates that electrical products comply with the requirements of IEC 60900. It ensures the highest safety and quality standards for devices designed for use at voltages up to 1000 V AC (alternating current) and 1500 V DC (direct current).
Large bevel
Thick, robust, resistant. Enables cutting of hard and very hard steel wires, cables or metal parts
Flat-nose pliers
Both jaws of flat-nose pliers are flat and usually parallel to each other. They therefore offer a high degree of stability when holding flat or angular materials.
Serrated gripping surface
Serrated gripping surfaces have parallel grooves that provide a better grip and prevent slipping. They are therefore suitable for gripping workpieces that slip easily.

Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 478
Complete Catalog 2023 - 2024

Product Family

Combination pliers ISO 1000V

The VDE-tested pliers from KNIPEX made of chrome vanadium electric steel are equipped with gripping zones for flat and round material and are suitable for the toughest demands thanks to their wear-resistant gripping jaws. The cutting edges make it possible to cut soft and hard wire as well as piano wire and thicker cables.

  • For the toughest demands thanks to wear-resistant gripping jaws
  • With gripping zones for flat and round material for versatile use
  • Cutting edges additionally induction-hardened, cutting edge hardness approx. 64 HRC
  • Particularly wear-resistant gripping jaws, hardness of the gripping jaws approx. 53 HRC
  • In compliance with DIN EN 60900

Article image
Article description
Bevel
Max Ø hard
Max Ø Piano
ESD
tested according to VDE standard
Price
Compare
K-0106.160 - Combination pliers ISO 1000V 160 mm
K-0106.160
Combination pliers ISO 1000V 160 mm
large bevel
2.0 mm
1.5 mm
no
yes
43.05 CHF
K-0106.190 - Combination pliers ISO 1000V 190 mm
K-0106.190
Combination pliers ISO 1000V 190 mm
large bevel
2.5 mm
2.0 mm
no
yes
47.80 CHF
