Combination pliers ISO 1000V 190 mm

Name: Combination pliers ISO 1000V 190 mm
SKU: K-0106.190
Price: 47.80 CHF
Availability: InStock

ArticleNo: K-0106.190

Combination pliers ISO 1000V 190 mm

dpvlink:

8894

Tags:

Bevel:

large bevel

Max Ø hard:

2.5 mm

Max Ø Piano:

2.0 mm

ESD :

tested according to VDE standard:

yes

Properties:

Further product information

47.80 CHF

excl. 8.1% tax

1 PCE

Compare

Notice

Product Info

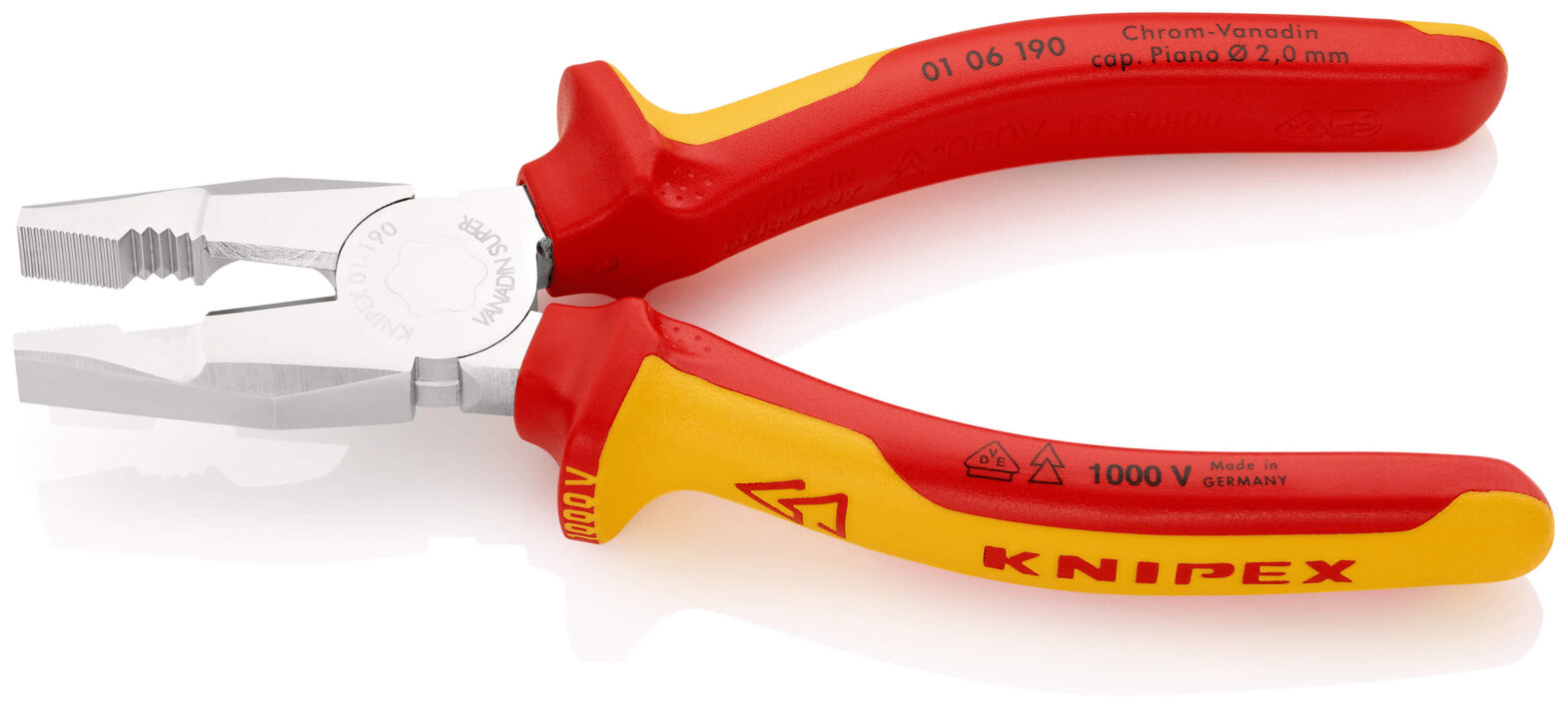

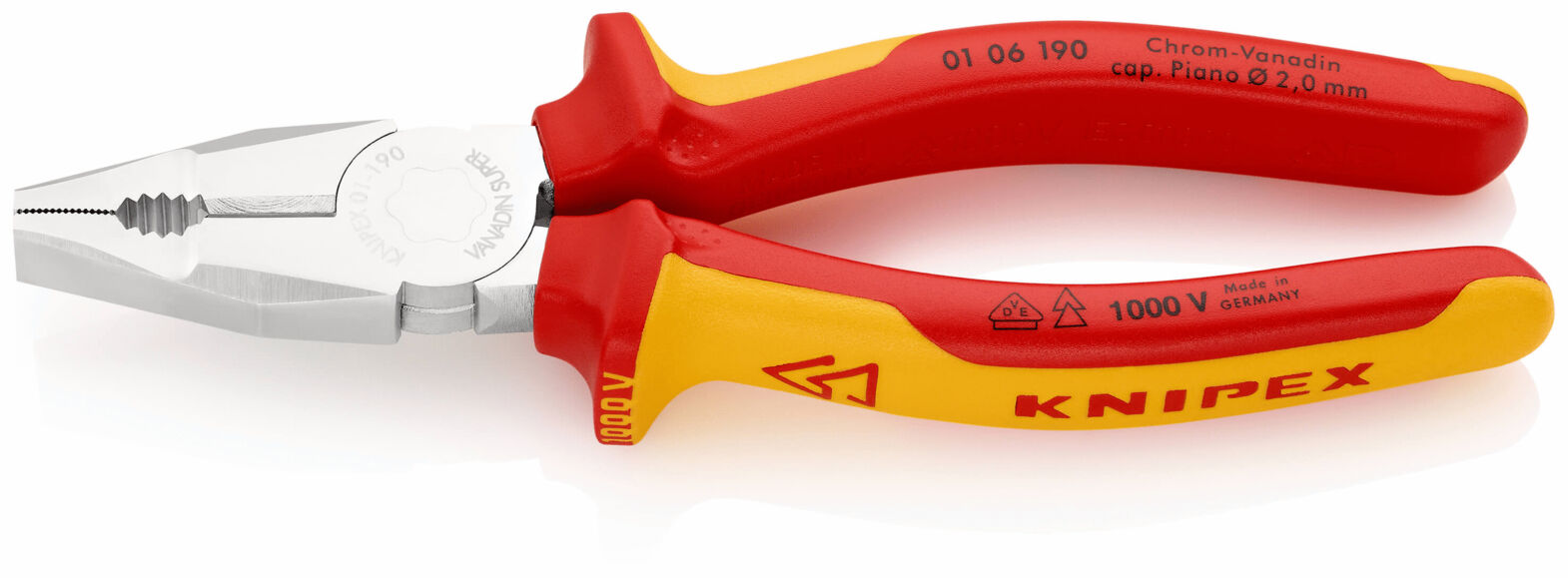

Combination pliers ISO 1000V 190 mm

The KNIPEX 1000V 190 mm combination pliers are a high-quality tool designed for professional use. Made from chrome-vanadium electric steel, this tool offers exceptional durability and resistance. The pliers are VDE-tested and comply with the standards DIN EN 60900 and IEC 60900, making them suitable for working under voltage up to 1000V.
The pliers feature special gripping zones for both flat and round material, making them highly versatile. The cutting edges are designed for cutting soft, hard, and piano wire and are additionally induction-hardened, achieving a cutting hardness of approximately 64 HRC. The gripping jaws are also particularly wear-resistant with a hardness of about 53 HRC.
With a length of 190 mm and a large fulcrum, the pliers provide efficient handling of various materials up to a diameter of 2.5 mm for hard wire and 2.0 mm for piano wire. The chrome-plated surface and insulated handles enhance both safety and comfort during use. This precisely manufactured tool is an indispensable component for technical professionals in many industrial sectors.

Details

Bevel Bevel: large bevel
Max Ø hard Max Ø hard: 2.5 mm
Max Ø Piano Max Ø Piano: 2.0 mm
ESD ESD: no
tested according to VDE standard tested according to VDE standard: yes
Length [mm] Length: 190 mm
Gripping surface Gripping surface: serrated
Material Material: chrome-vanadium steel
Surface Surface: chromed
Head shape Head shape: long
Type of pliers Type of pliers: Combination pliers
Version Version: with cutting edge
Handle property Handle property: insulated

Pictograms

VDE

The VDE mark indicates that electrical products comply with the requirements of IEC 60900. It ensures the highest safety and quality standards for devices designed for use at voltages up to 1000 V AC (alternating current) and 1500 V DC (direct current).

Large bevel

Thick, robust, resistant. Enables cutting of hard and very hard steel wires, cables or metal parts

Flat-nose pliers

Both jaws of flat-nose pliers are flat and usually parallel to each other. They therefore offer a high degree of stability when holding flat or angular materials.

Serrated gripping surface

Serrated gripping surfaces have parallel grooves that provide a better grip and prevent slipping. They are therefore suitable for gripping workpieces that slip easily.
