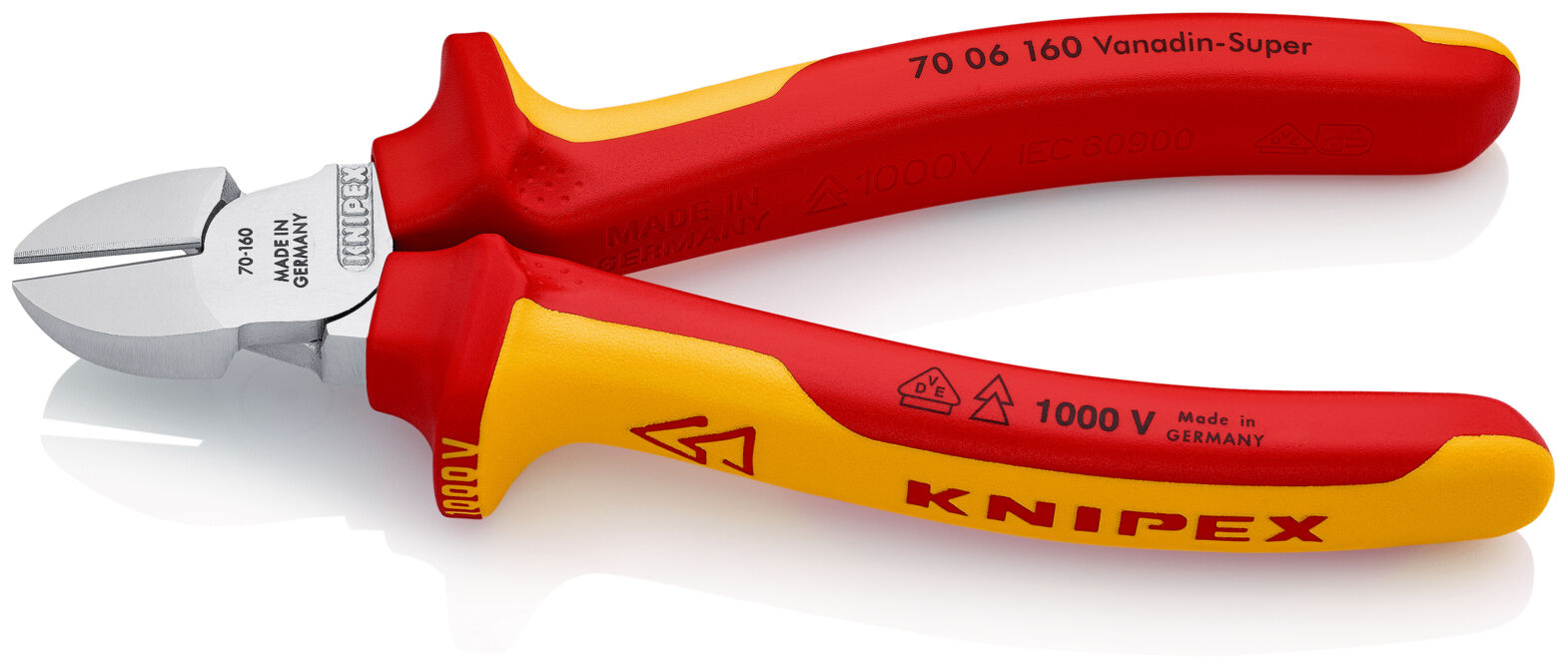

The image shows a pair of pliers with red and yellow handles. The pliers have a sharp, light blade and are designed for precise cutting. The handle reads "KNIPEX".

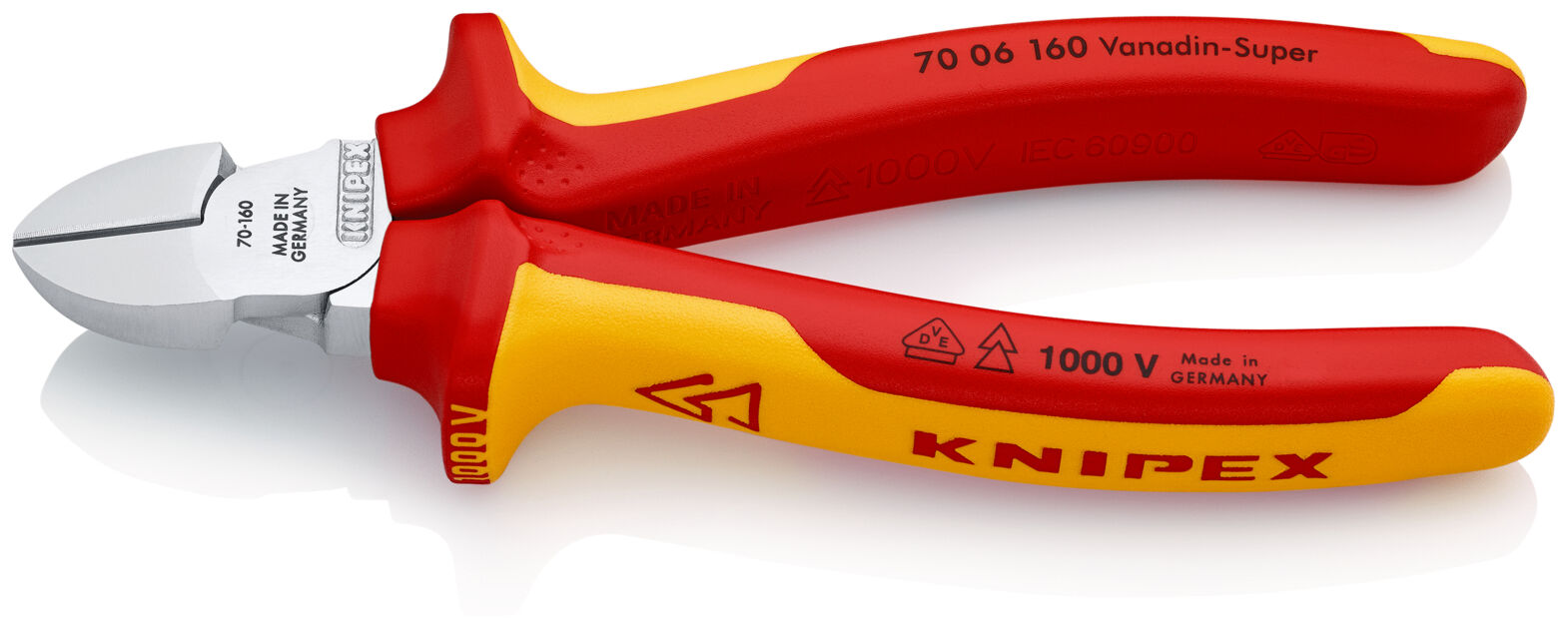

The image shows a two-sided pliers with red handles and yellow accents. The cutting edge is metallic and has a slightly curved shape, suitable for cutting wires.

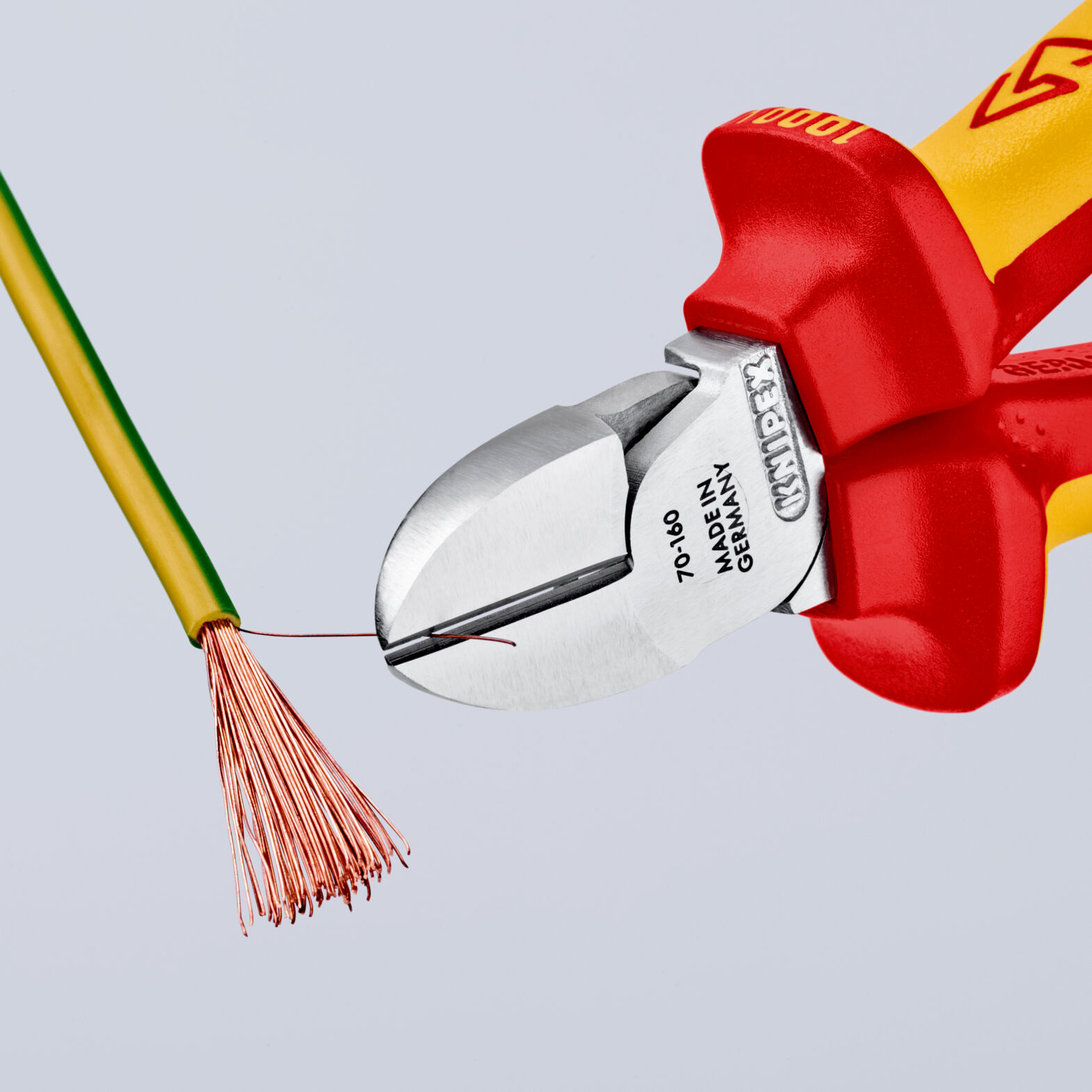

The image shows a pair of pliers with red and yellow grip areas, cutting a green wire. The blade is made of metal and is tightly applied to the wire.

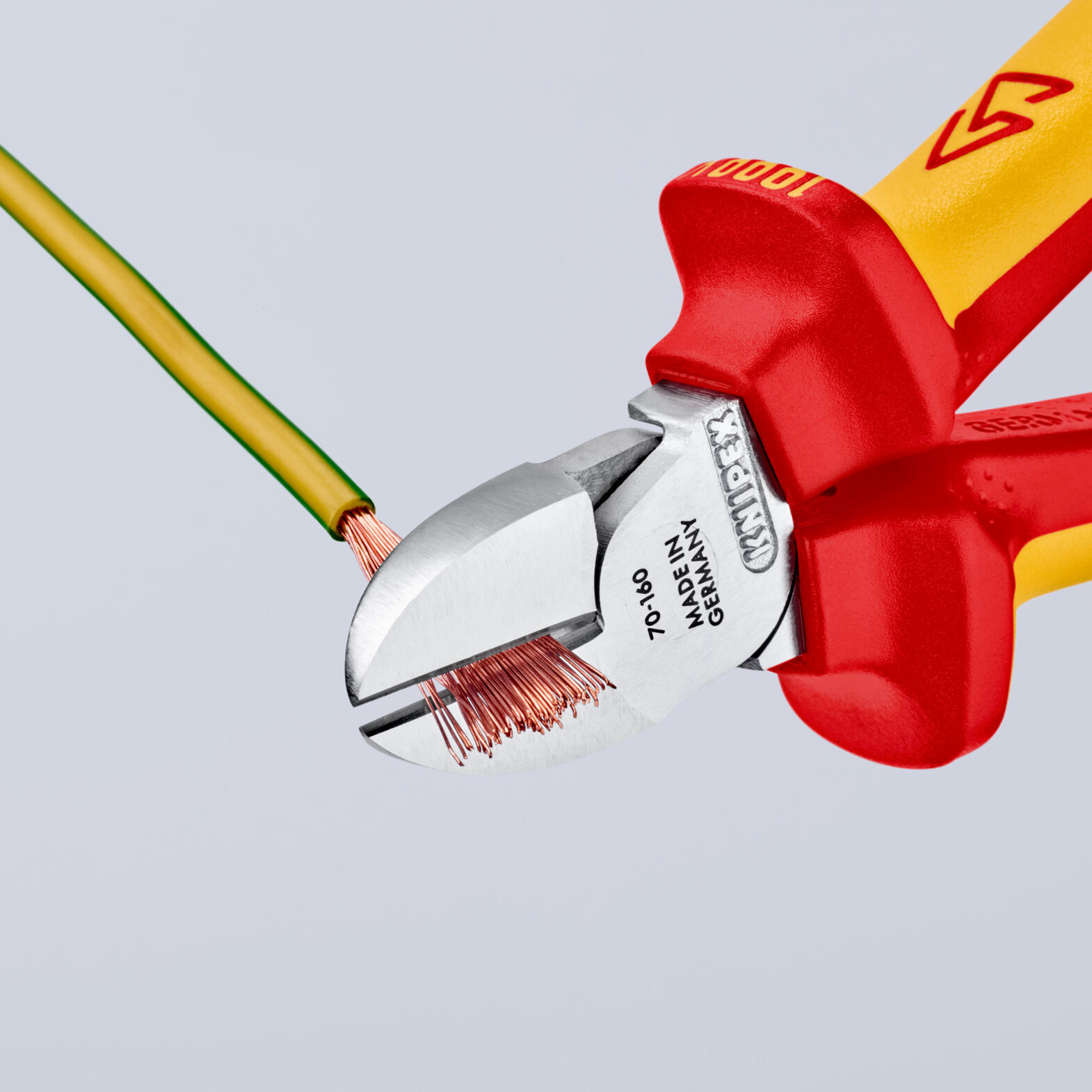

An isolated green wire is being worked on with pliers. The pliers have a red and yellow handle. Individual copper wires are visible at the end of the wire.

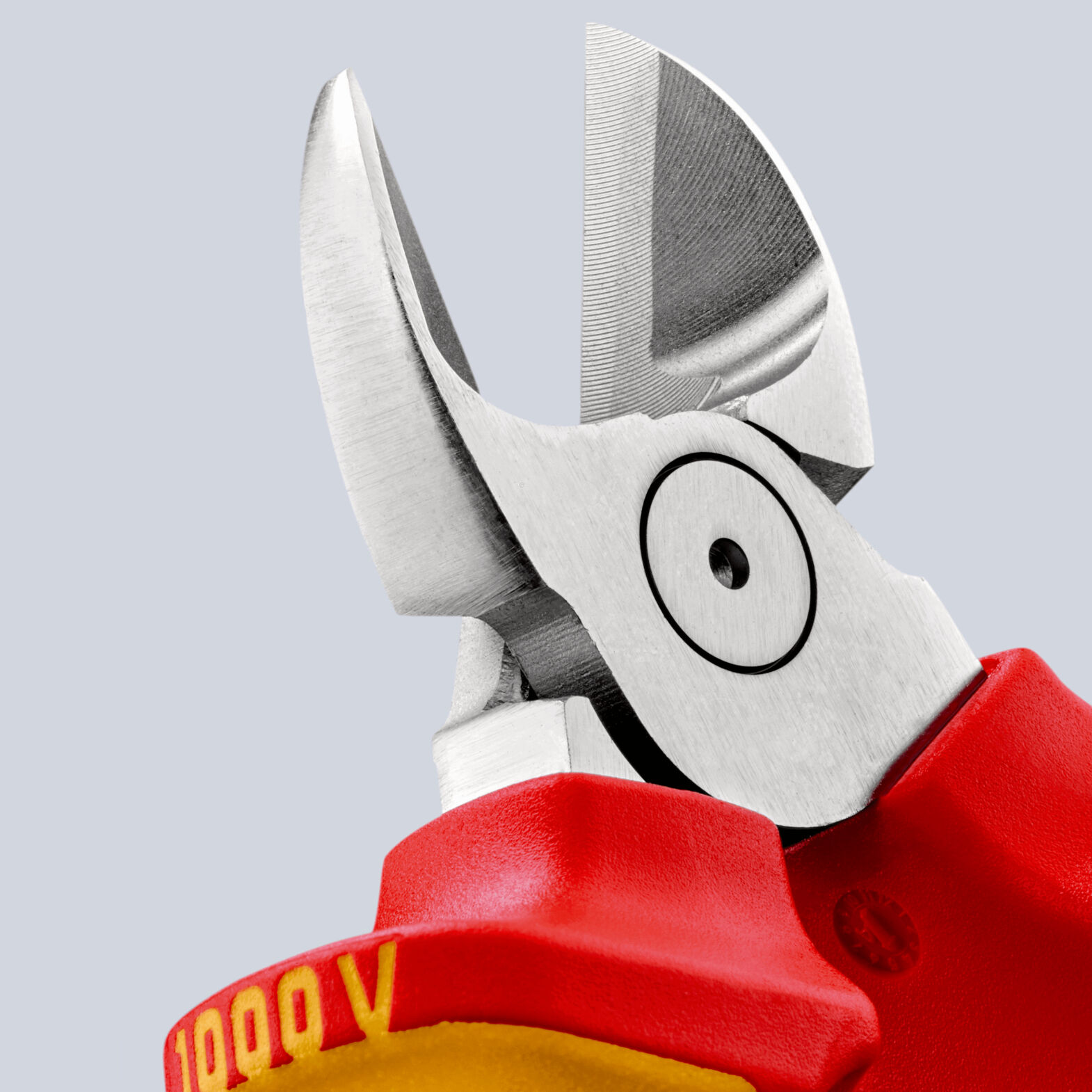

The image shows the cutting edge of an insulated pair of pliers. The blades are sharp and metallic, with a red handle that provides insulation for safety.

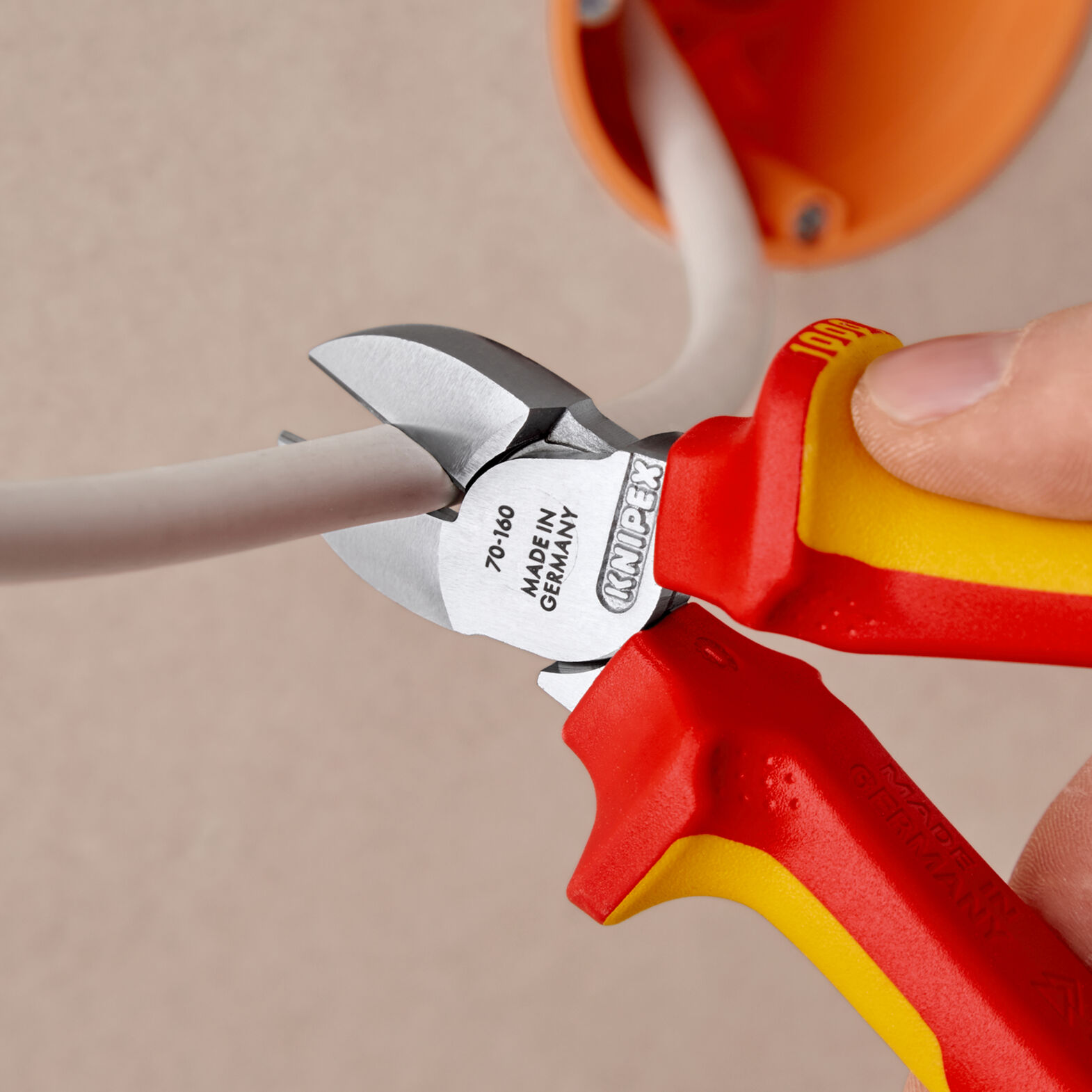

The image shows a hand holding a red and yellow pair of pliers. The pliers are cutting a gray cable attached to an orange outlet.

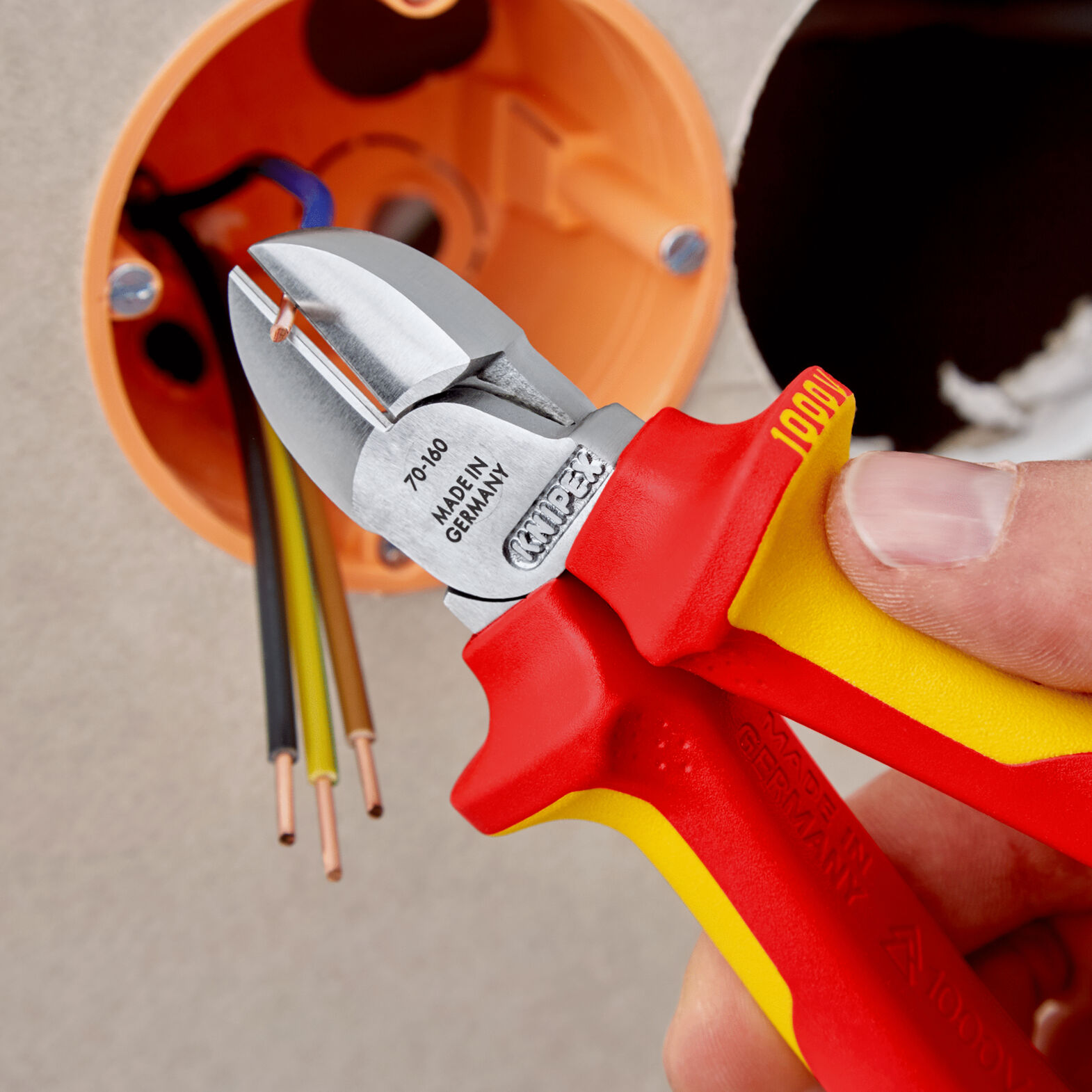

The image shows a hand holding a red and yellow pliers. The pliers are used for cutting wires near an electrical junction box with multiple cables.
Preview: The image shows a pair of pliers with red and yellow handles. The pliers have a sharp, light blade and are designed for precise cutting. The handle reads "KNIPEX".
Preview: The image shows a two-sided pliers with red handles and yellow accents. The cutting edge is metallic and has a slightly curved shape, suitable for cutting wires.
Preview: The image shows a pair of pliers with red and yellow grip areas, cutting a green wire. The blade is made of metal and is tightly applied to the wire.
Preview: An isolated green wire is being worked on with pliers. The pliers have a red and yellow handle. Individual copper wires are visible at the end of the wire.
Preview: The image shows the cutting edge of an insulated pair of pliers. The blades are sharp and metallic, with a red handle that provides insulation for safety.
Preview: The image shows a hand holding a red and yellow pair of pliers. The pliers are cutting a gray cable attached to an orange outlet.
Preview: The image shows a hand holding a red and yellow pliers. The pliers are used for cutting wires near an electrical junction box with multiple cables.
Diagonal cutting pliers ISO 1000V 160 mm
(Product No.: K-7006.160)
The image shows a pair of pliers with red and yellow handles. The pliers have a sharp, light blade and are designed for precise cutting. The handle reads "KNIPEX".
The image shows a two-sided pliers with red handles and yellow accents. The cutting edge is metallic and has a slightly curved shape, suitable for cutting wires.
The image shows a pair of pliers with red and yellow grip areas, cutting a green wire. The blade is made of metal and is tightly applied to the wire.
An isolated green wire is being worked on with pliers. The pliers have a red and yellow handle. Individual copper wires are visible at the end of the wire.
The image shows the cutting edge of an insulated pair of pliers. The blades are sharp and metallic, with a red handle that provides insulation for safety.
The image shows a hand holding a red and yellow pair of pliers. The pliers are cutting a gray cable attached to an orange outlet.
The image shows a hand holding a red and yellow pliers. The pliers are used for cutting wires near an electrical junction box with multiple cables.
Mobile Preview: The image shows a pair of pliers with red and yellow handles. The pliers have a sharp, light blade and are designed for precise cutting. The handle reads "KNIPEX".
Mobile Preview: The image shows a two-sided pliers with red handles and yellow accents. The cutting edge is metallic and has a slightly curved shape, suitable for cutting wires.
Mobile Preview: The image shows a pair of pliers with red and yellow grip areas, cutting a green wire. The blade is made of metal and is tightly applied to the wire.
Mobile Preview: An isolated green wire is being worked on with pliers. The pliers have a red and yellow handle. Individual copper wires are visible at the end of the wire.
Mobile Preview: The image shows the cutting edge of an insulated pair of pliers. The blades are sharp and metallic, with a red handle that provides insulation for safety.
Mobile Preview: The image shows a hand holding a red and yellow pair of pliers. The pliers are cutting a gray cable attached to an orange outlet.
Mobile Preview: The image shows a hand holding a red and yellow pliers. The pliers are used for cutting wires near an electrical junction box with multiple cables.
Notice

Diagonal cutting pliers ISO 1000V 160 mm

Diagonal cutting pliers ISO 1000V 160 mm

dpvlink:
8905
Tags:
Bevel:
large bevel
Max Ø soft:
4.0 mm
Max Ø medium:
3.0 mm
Max Ø hard:
2.0 mm
tested according to VDE standard:
yes
Properties:
Further product information

36.90 CHF

excl. 8.1% tax

1 PCE
Compare Compare
Notice
Product Info

Diagonal cutting pliers ISO 1000V 160 mm

The KNIPEX side cutter ISO 1000V 160 mm combines high functionality with safety and quality. This VDE-tested tool is specifically designed for use in hard-to-reach areas, thanks to its slim head shape. The precision cutting edges allow for a clean cut in both soft and hard wire and are particularly effective on thin copper wires.
The cutting edges of this side cutter are additionally induction-hardened, ensuring a blade hardness of about 62 HRC and increasing the tool's durability. The overall length is 160 mm and the material is made of high-quality chrome-vanadium steel with a chrome-plated surface, which additionally contributes to its robustness.
The maximum cutting diameter varies depending on the hardness of the material: 4.0 mm for soft, 3.0 mm for medium-hard, and 2.0 mm for hard materials. This tool is tested according to VDE standards and guarantees safety up to 1000 volts, making it an essential component for professional electrical installations and other technical applications.
Bevel
Bevel
large bevel
Max Ø soft
Max Ø soft
4.0 mm
Max Ø medium
Max Ø medium
3.0 mm
Max Ø hard
Max Ø hard
2.0 mm
tested according to VDE standard
tested according to VDE standard
yes
Length [mm]
Length
160 mm
Material
Material
chrome-vanadium steel
Surface
Surface
chromed
ESD
ESD
no
Head shape
Head shape
narrow
Type of pliers
Type of pliers
Diagonal cutting pliers
Pictograms
VDE
The VDE mark indicates that electrical products comply with the requirements of IEC 60900. It ensures the highest safety and quality standards for devices designed for use at voltages up to 1000 V AC (alternating current) and 1500 V DC (direct current).
Large bevel
Thick, robust, resistant. Enables cutting of hard and very hard steel wires, cables or metal parts

Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 480
Complete Catalog 2023 - 2024

Product Family

Article image
Article description
Bevel
Max Ø soft
Max Ø hard
tested according to VDE standard
Max Ø medium
Price
Compare
K-7006.125 - Diagonal cutting pliers ISO 1000V 125 mm
K-7006.125
Diagonal cutting pliers ISO 1000V 125 mm
large bevel
3.0 mm
1.5 mm
yes

33.95 CHF
K-7006.140 - Diagonal cutting pliers ISO 1000V 140 mm
K-7006.140
Diagonal cutting pliers ISO 1000V 140 mm
large bevel
4.0
1.8
yes
2.5
34.20 CHF
K-7006.160 - Diagonal cutting pliers ISO 1000V 160 mm
K-7006.160
Diagonal cutting pliers ISO 1000V 160 mm
large bevel
4.0 mm
2.0 mm
yes
3.0 mm
36.90 CHF
K-7006.180 - Diagonal cutting pliers ISO 1000V 180 mm
K-7006.180
Diagonal cutting pliers ISO 1000V 180 mm
large bevel
4.0 mm
2.5 mm
yes
3.0 mm
39.50 CHF
K-7026.160 - Diagonal cutting pliers ISO 1000V 160 mm
K-7026.160
Diagonal cutting pliers ISO 1000V 160 mm
with bevel
4.0 mm

yes

37.05 CHF
