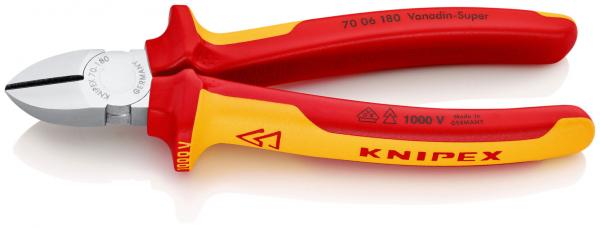

The image shows a red and yellow pliers with a narrow, sharpened cutting edge. The brand name "KNIPEX" is clearly visible on the handle. The pliers appear sturdy and ergonomically designed.

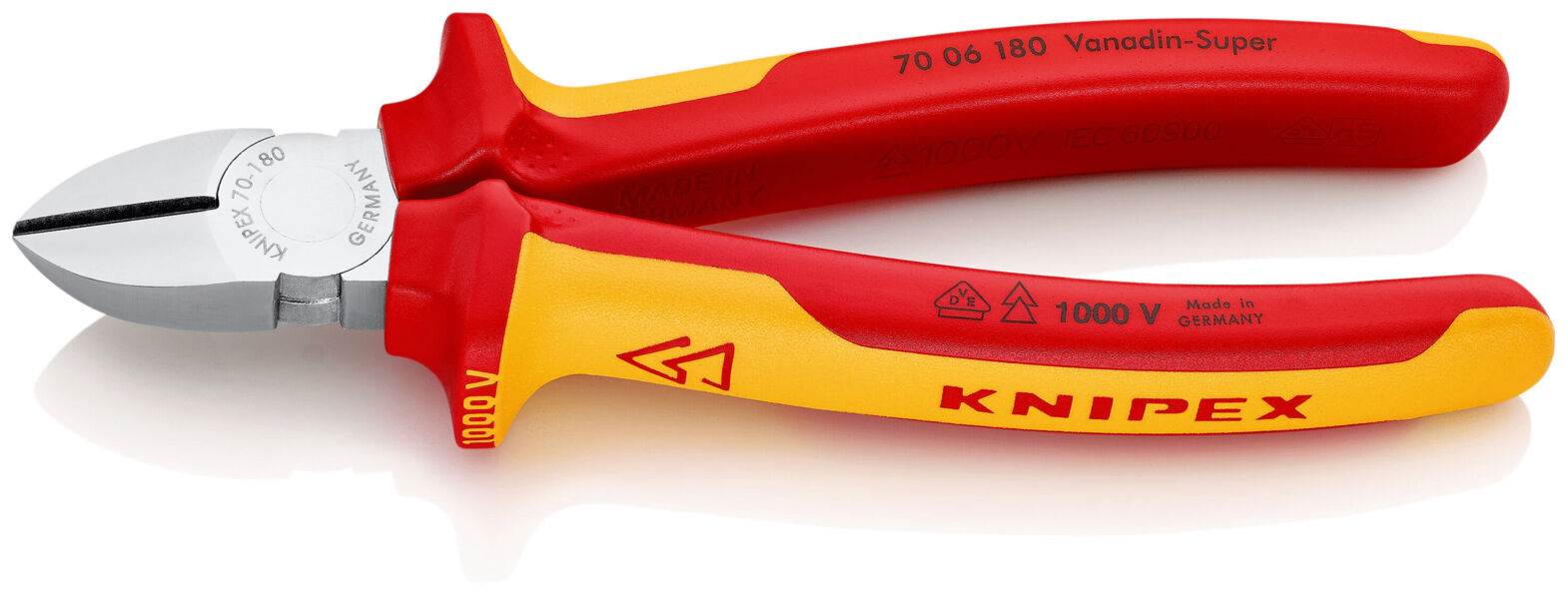

The image shows a red and yellow pliers with a narrow, flat tip. The handles are ergonomically shaped and are insulated for electrical protection. The brand "Knipex" is visible on the handles.

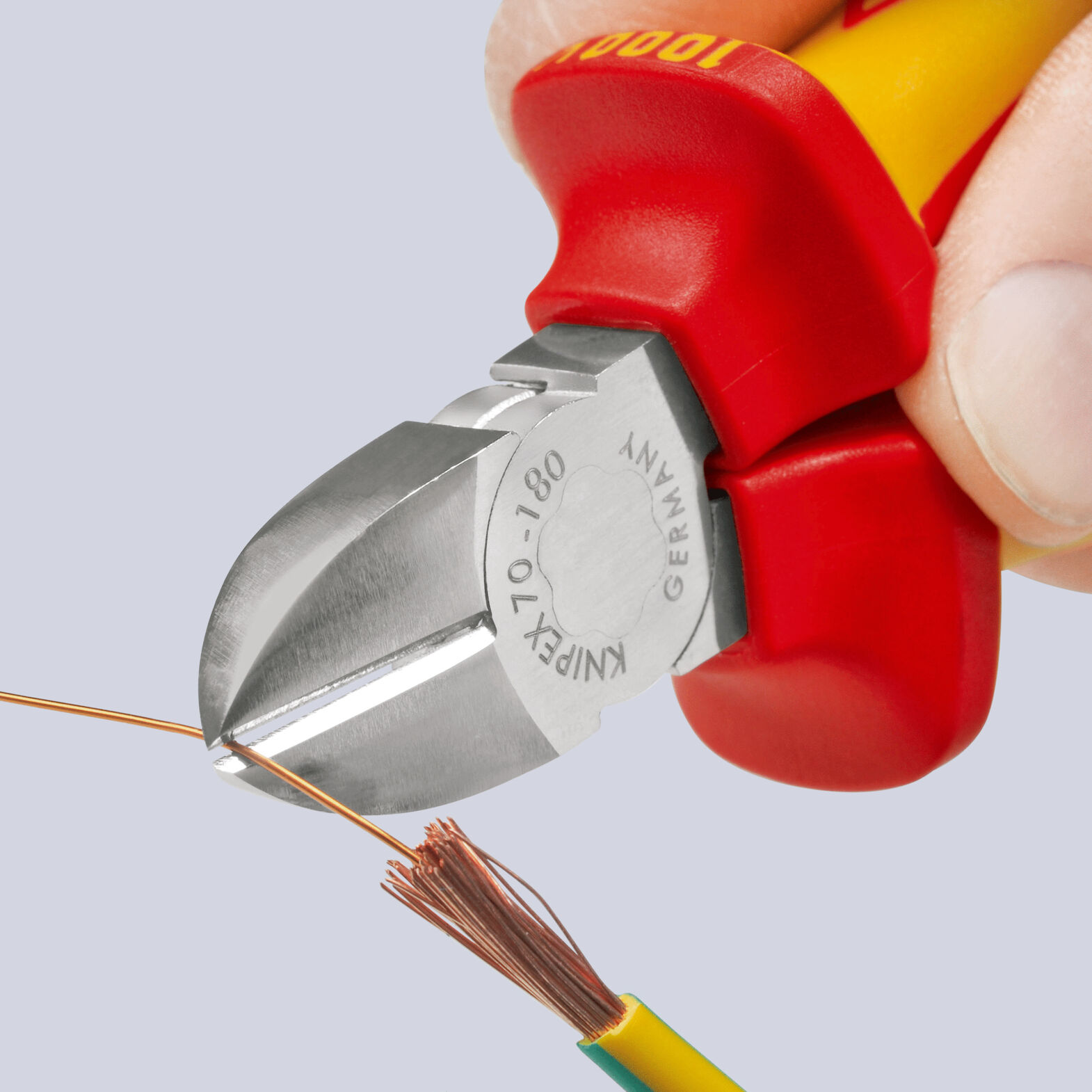

The image shows a hand holding a pair of side cutters. The blades are cutting through a thin copper wire connected to an insulated green and yellow cable.
Preview: The image shows a red and yellow pliers with a narrow, sharpened cutting edge. The brand name "KNIPEX" is clearly visible on the handle. The pliers appear sturdy and ergonomically designed.
Preview: The image shows a red and yellow pliers with a narrow, flat tip. The handles are ergonomically shaped and are insulated for electrical protection. The brand "Knipex" is visible on the handles.
Preview: The image shows a hand holding a pair of side cutters. The blades are cutting through a thin copper wire connected to an insulated green and yellow cable.
Diagonal cutting pliers ISO 1000V 180 mm
(Product No.: K-7006.180)
The image shows a red and yellow pliers with a narrow, sharpened cutting edge. The brand name "KNIPEX" is clearly visible on the handle. The pliers appear sturdy and ergonomically designed.
The image shows a red and yellow pliers with a narrow, flat tip. The handles are ergonomically shaped and are insulated for electrical protection. The brand "Knipex" is visible on the handles.
The image shows a hand holding a pair of side cutters. The blades are cutting through a thin copper wire connected to an insulated green and yellow cable.
Mobile Preview: The image shows a red and yellow pliers with a narrow, sharpened cutting edge. The brand name "KNIPEX" is clearly visible on the handle. The pliers appear sturdy and ergonomically designed.
Mobile Preview: The image shows a red and yellow pliers with a narrow, flat tip. The handles are ergonomically shaped and are insulated for electrical protection. The brand "Knipex" is visible on the handles.
Mobile Preview: The image shows a hand holding a pair of side cutters. The blades are cutting through a thin copper wire connected to an insulated green and yellow cable.
Notice

Diagonal cutting pliers ISO 1000V 180 mm

Diagonal cutting pliers ISO 1000V 180 mm

dpvlink:
8905
Tags:
Bevel:
large bevel
Max Ø soft:
4.0 mm
Max Ø medium:
3.0 mm
Max Ø hard:
2.5 mm
tested according to VDE standard:
yes
Properties:
Further product information

39.50 CHF

excl. 8.1% tax

1 PCE
Compare Compare
Notice
Product Info

Diagonal cutting pliers ISO 1000V 180 mm

The KNIPEX 180 mm ISO 1000V diagonal cutter is a VDE-tested, versatile diagonal cutter, ideal for use in hard-to-reach work areas. This tool is characterized by its slim head shape and precise craftsmanship from high-quality chrome-vanadium steel, which ensures a long service life. The cutting edges are designed for soft and hard wire and enable a clean cut in thin Cu wires, even at the tips. They are additionally induction hardened and achieve a cutting hardness of about 62 HRC.
The pliers feature an integrated insulated attachment loop that allows for the attachment of a fall arrester. With a length of 180 mm and a surface made of chrome-plated steel, the diagonal cutter offers robust performance for professional applications. The maximum cutting capacity is 4.0 mm for soft, 3.0 mm for medium, and 2.5 mm for hard materials. This tool complies with VDE standards, underscoring its safety and reliability. Ideal for professionals who value quality and safety.
Bevel
Bevel
large bevel
Max Ø soft
Max Ø soft
4.0 mm
Max Ø medium
Max Ø medium
3.0 mm
Max Ø hard
Max Ø hard
2.5 mm
tested according to VDE standard
tested according to VDE standard
yes
Length [mm]
Length
180 mm
Material
Material
chrome-vanadium steel
Surface
Surface
chromed
ESD
ESD
no
Head shape
Head shape
narrow
Type of pliers
Type of pliers
Diagonal cutting pliers
Pictograms
VDE
The VDE mark indicates that electrical products comply with the requirements of IEC 60900. It ensures the highest safety and quality standards for devices designed for use at voltages up to 1000 V AC (alternating current) and 1500 V DC (direct current).
Large bevel
Thick, robust, resistant. Enables cutting of hard and very hard steel wires, cables or metal parts

Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 480
Complete Catalog 2023 - 2024

Product Family

Article image
Article description
Bevel
Max Ø soft
Max Ø hard
tested according to VDE standard
Max Ø medium
Price
Compare
K-7006.125 - Diagonal cutting pliers ISO 1000V 125 mm
K-7006.125
Diagonal cutting pliers ISO 1000V 125 mm
large bevel
3.0 mm
1.5 mm
yes

33.95 CHF
K-7006.140 - Diagonal cutting pliers ISO 1000V 140 mm
K-7006.140
Diagonal cutting pliers ISO 1000V 140 mm
large bevel
4.0
1.8
yes
2.5
34.20 CHF
K-7006.160 - Diagonal cutting pliers ISO 1000V 160 mm
K-7006.160
Diagonal cutting pliers ISO 1000V 160 mm
large bevel
4.0 mm
2.0 mm
yes
3.0 mm
36.90 CHF
K-7006.180 - Diagonal cutting pliers ISO 1000V 180 mm
K-7006.180
Diagonal cutting pliers ISO 1000V 180 mm
large bevel
4.0 mm
2.5 mm
yes
3.0 mm
39.50 CHF
K-7026.160 - Diagonal cutting pliers ISO 1000V 160 mm
K-7026.160
Diagonal cutting pliers ISO 1000V 160 mm
with bevel
4.0 mm

yes

37.05 CHF
