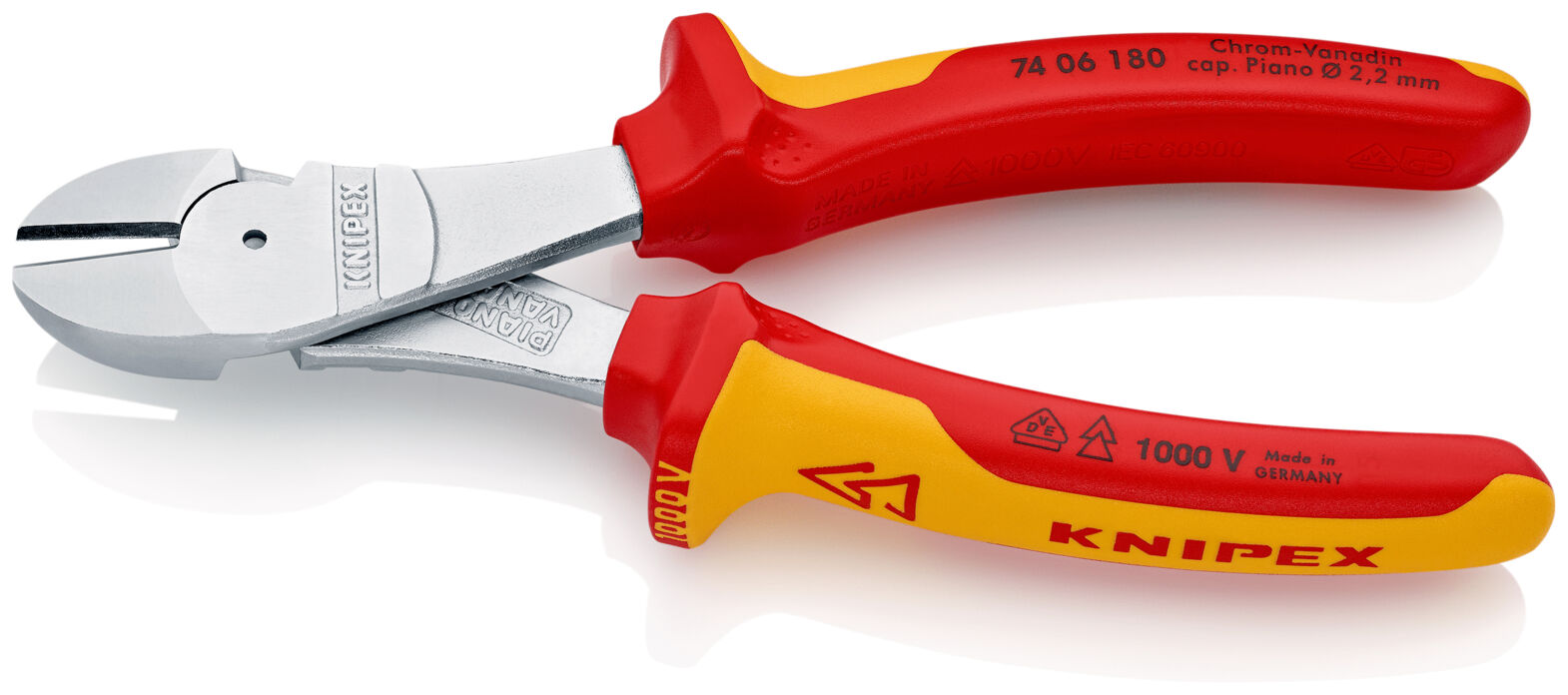

Preview: The image shows a pair of pliers with red and yellow handles. The pliers have a shiny, silver blade and a flat, wide tip. They are suitable for electrical work and insulated up to 1000 volts.

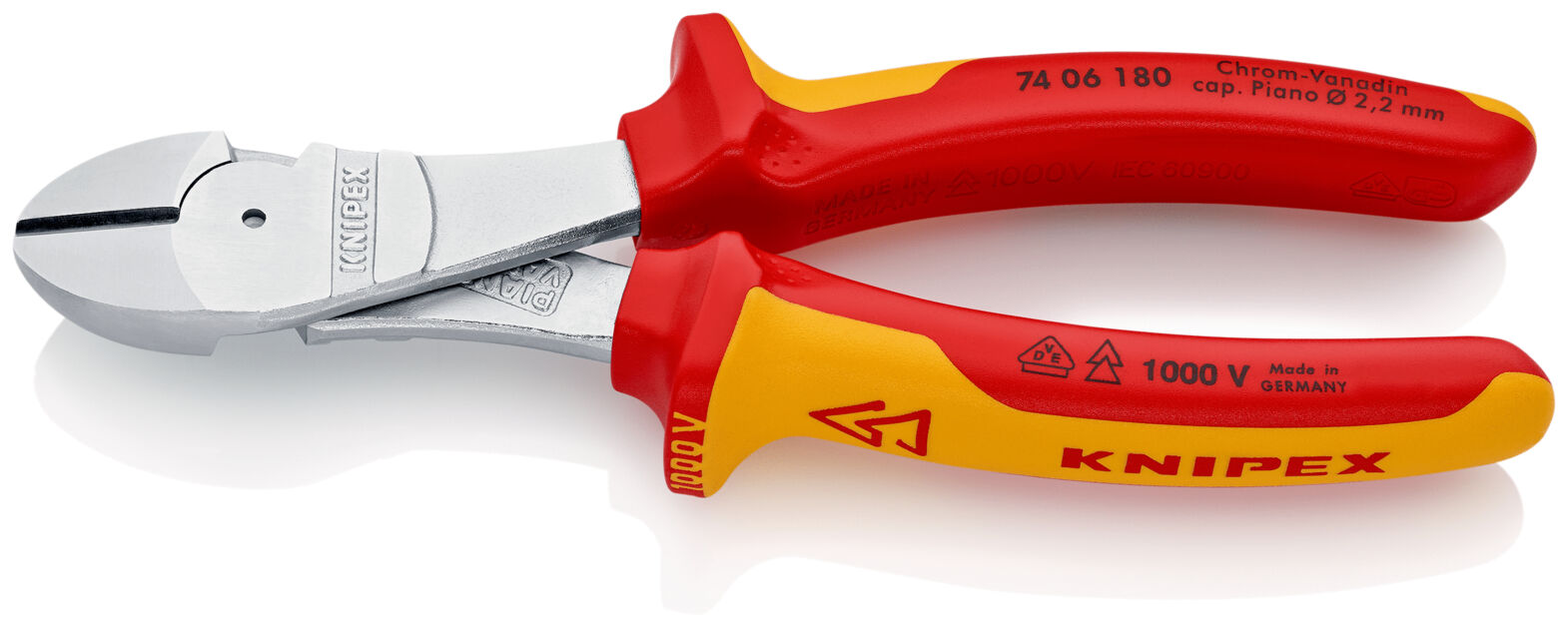

Preview: The image shows a pair of pliers with a shiny, metallic head and red, ergonomic handles with yellow elements. It is suitable for electrical work.

High-leverage diagonal cutting pliers ISO 1000V 180 mm

(Product No.: K-7406.180)

Mobile Preview: The image shows a pair of pliers with red and yellow handles. The pliers have a shiny, silver blade and a flat, wide tip. They are suitable for electrical work and insulated up to 1000 volts.

Mobile Preview: The image shows a pair of pliers with a shiny, metallic head and red, ergonomic handles with yellow elements. It is suitable for electrical work.

(Product No.: K-7406.180)

High-leverage diagonal cutting pliers ISO 1000V 180 mm

Name: High-leverage diagonal cutting pliers ISO 1000V 180 mm
SKU: K-7406.180
Price: 47.60 CHF
Availability: InStock

ArticleNo: K-7406.180

High-leverage diagonal cutting pliers ISO 1000V 180 mm

dpvlink:

8911

Tags:

Bevel:

large bevel

Max Ø medium:

3.8 mm

Max Ø hard:

2.7 mm

Max Ø Piano:

2.2 mm

tested according to VDE standard:

yes

Properties:

Further product information

47.60 CHF

excl. 8.1% tax

1 PCE

Compare

Notice

Product Info

High-leverage diagonal cutting pliers ISO 1000V 180 mm

The KNIPEX 180 mm ISO 1000V high-leverage diagonal cutter is designed for demanding and continuous use. This VDE-tested tool features a forged-on joint axle and high cutting performance, achieved through the optimal coordination of cutting angle and transmission ratio with minimal effort. The precision cutting edges are additionally induction hardened and achieve a hardness of approximately 64 HRC, making the diagonal cutter ideal for all types of wire, including piano wire.
The diagonal cutter is made of high-quality chrome-vanadium steel and has a chrome-plated surface that ensures durability and corrosion resistance. With a length of 180 mm and a straight head shape, the tool offers efficient handling. The maximum cutting capacity is 3.8 mm for medium-hard, 2.7 mm for hard, and 2.2 mm for piano wires. Despite its robust construction, the device is not ESD-safe, which should be considered when used in sensitive electronic environments.
This high-leverage diagonal cutter is an indispensable tool for professionals who value quality and efficiency.

Details

Bevel Bevel: large bevel
Max Ø medium Max Ø medium: 3.8 mm
Max Ø hard Max Ø hard: 2.7 mm
Max Ø Piano Max Ø Piano: 2.2 mm
tested according to VDE standard tested according to VDE standard: yes
Length [mm] Length: 180 mm
Material Material: chrome-vanadium steel
Surface Surface: chromed
ESD ESD: no
Head shape Head shape: straight
Type of pliers Type of pliers: High-leverage diagonal cutting pliers

Pictograms

VDE

The VDE mark indicates that electrical products comply with the requirements of IEC 60900. It ensures the highest safety and quality standards for devices designed for use at voltages up to 1000 V AC (alternating current) and 1500 V DC (direct current).

Large bevel

Thick, robust, resistant. Enables cutting of hard and very hard steel wires, cables or metal parts
