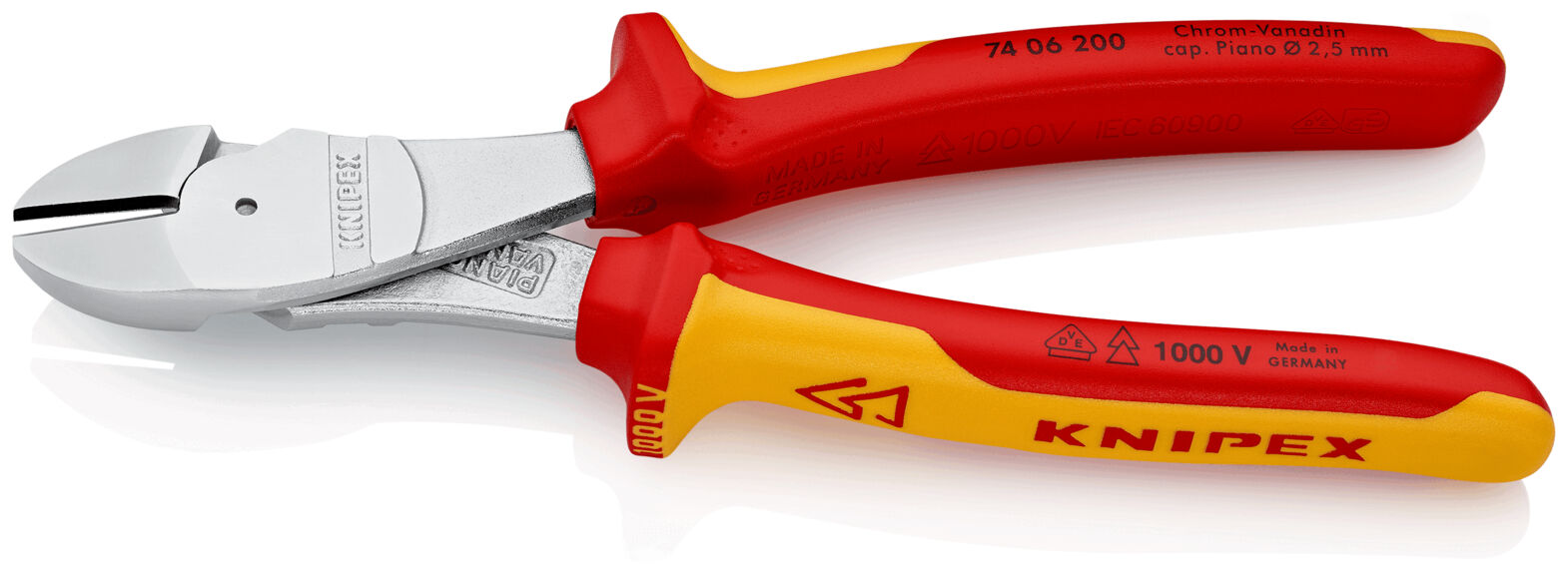

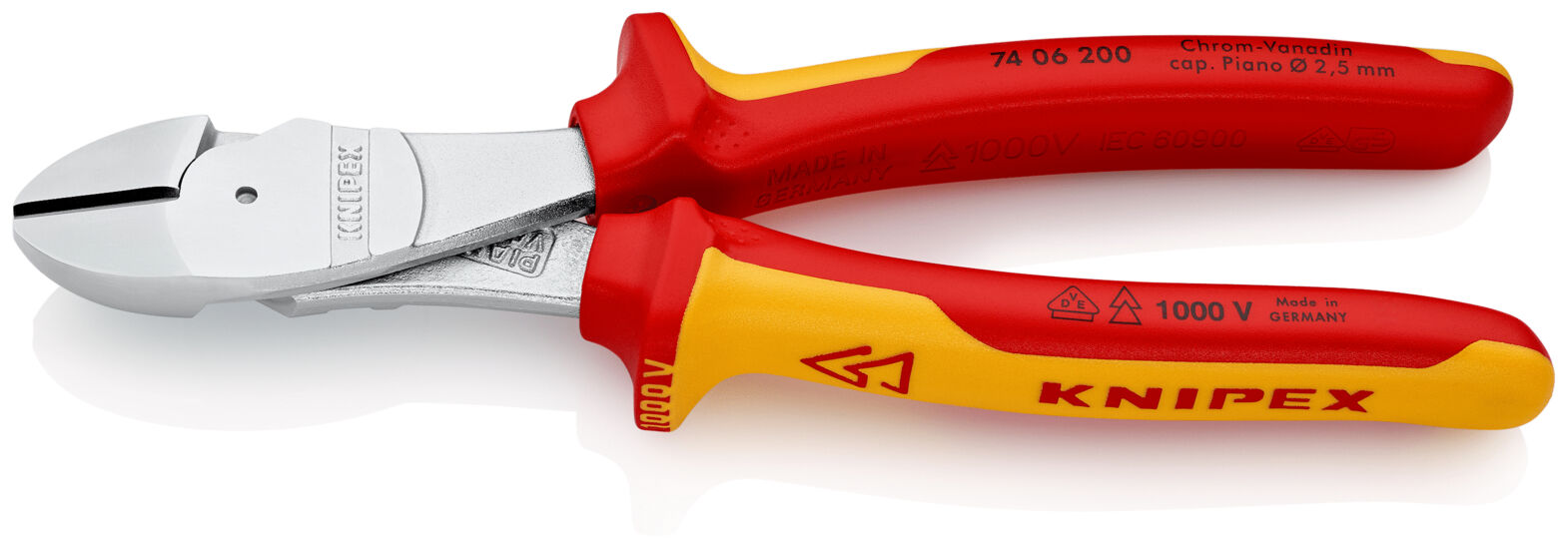

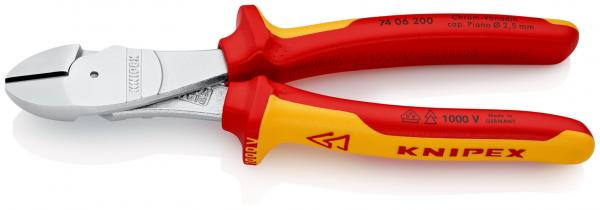

High-leverage diagonal cutting pliers ISO 1000V 200 mm
The KNIPEX 1000V 200 mm High Leverage Diagonal Cutter is specifically designed for professional use and offers exceptional performance. This high-quality tool is made from chrome vanadium electric steel and features a chrome-plated surface that ensures durability and corrosion resistance. The straight head shape and the precision-forged joint axle allow for high cutting performance with minimal effort, supported by the optimized gear ratio and cutting angle.The cutting edges are additionally induction-hardened, achieving a hardness of about 64 HRC and are ideal for cutting all types of wire, including piano wire. The diagonal cutter is VDE tested, thus meeting the highest safety standards. It can precisely cut wires up to a diameter of 4.2 mm (medium), 3.0 mm (hard), and 2.5 mm (piano). With a length of 200 mm, this tool enables efficient handling for sustained and toughest demands.
Although the high leverage diagonal cutter is not ESD safe, it represents an indispensable component for professionals who value quality and efficiency.
Details
- Bevel Bevel
- large bevel
- Max Ø medium Max Ø medium
- 4.2 mm
- Max Ø hard Max Ø hard
- 3.0 mm
- Max Ø Piano Max Ø Piano
- 2.5 mm
- tested according to VDE standard tested according to VDE standard
- yes
- Length Length
- 200 mm
- Material Material
- chrome-vanadium steel
- Surface Surface
- chromed
- ESD ESD
- no
- Head shape Head shape
- straight
- Type of pliers Type of pliers
- High-leverage diagonal cutting pliers
Downloads
- Please log in to download datasheets! :
- There are several datasheets for this product. Please log in!
Catalogues
Product Family
High-leverage diagonal cutting pliers ISO 1000V
Low weight, optimum ergonomics and geometry: 20 % power saving
Compared to conventional diagonal cutting pliers of the same size, Knipex power diagonal cutting pliers offer a significantly better ratio of power requirement to cutting performance. The geometry of the cutting edges, the joint and the handles is designed for efficiency.
The tools are the first choice for tough continuous use, e.g. on assembly sites or electrical installations, because their ergonomic design is particularly easy on the user's strength. The good reasons for these high-power diagonal cutting pliers are also obvious thanks to the hand-friendly design of the handle profile.
The insulating multi-component sleeves provide additional comfort. These power diagonal cutting pliers are extremely stable thanks to their particularly robust design with the forged joint axis.
Precise cuts of medium-hard and hard wire as well as piano wire
You can tell how good a pair of diagonal cutting pliers is by the cut. This is where Knipex power diagonal cutting pliers perform better. The most important quality criteria at Knipex include not only the high-quality forged parts made of chrome vanadium high-performance tool steel, but also their precise workmanship. The sharpness and angle of the cutting edges on Knipex diagonal cutting pliers are designed for maximum performance. The excellent workmanship of the power diagonal cutting pliers ensures that the material to be cut is always cut cleanly. The high quality of the tool steel manufactured in Germany, the hardness of the cutting edges and the forged joint axis ensure exceptional stability and a long service life.
