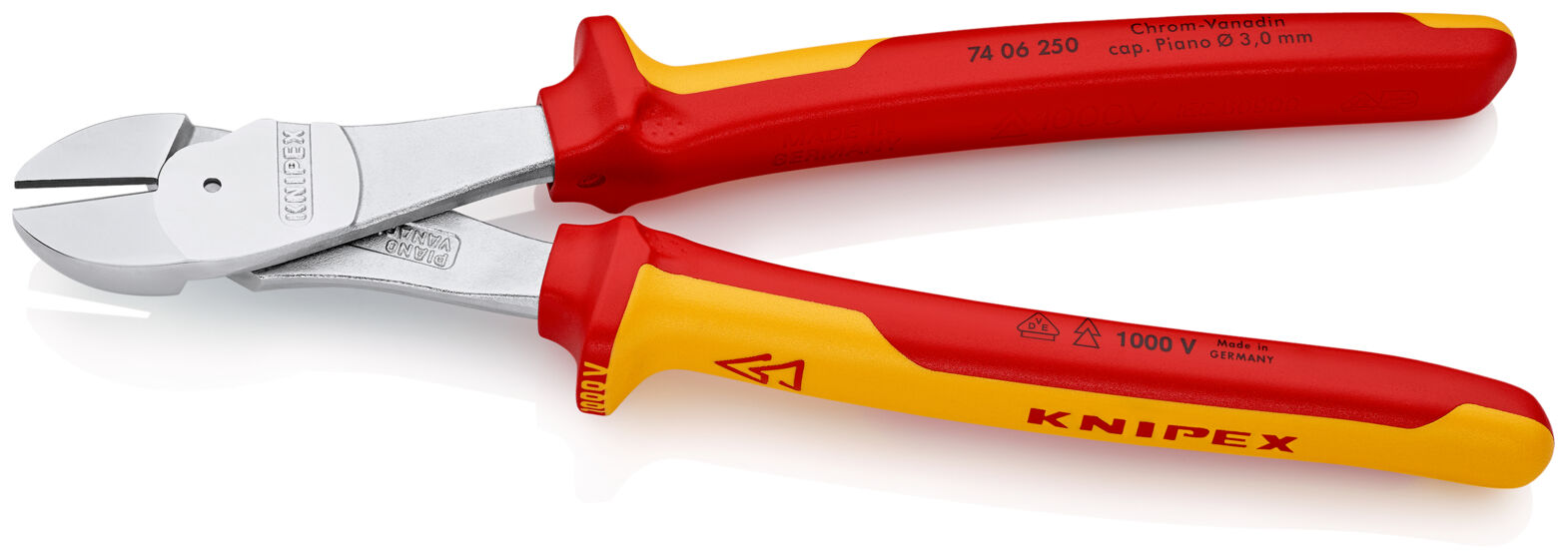

Preview: The image shows a pair of pliers with red and yellow insulated handles. The pliers have a pointed cutting edge and a shiny metallic surface. They are from KNIPEX.

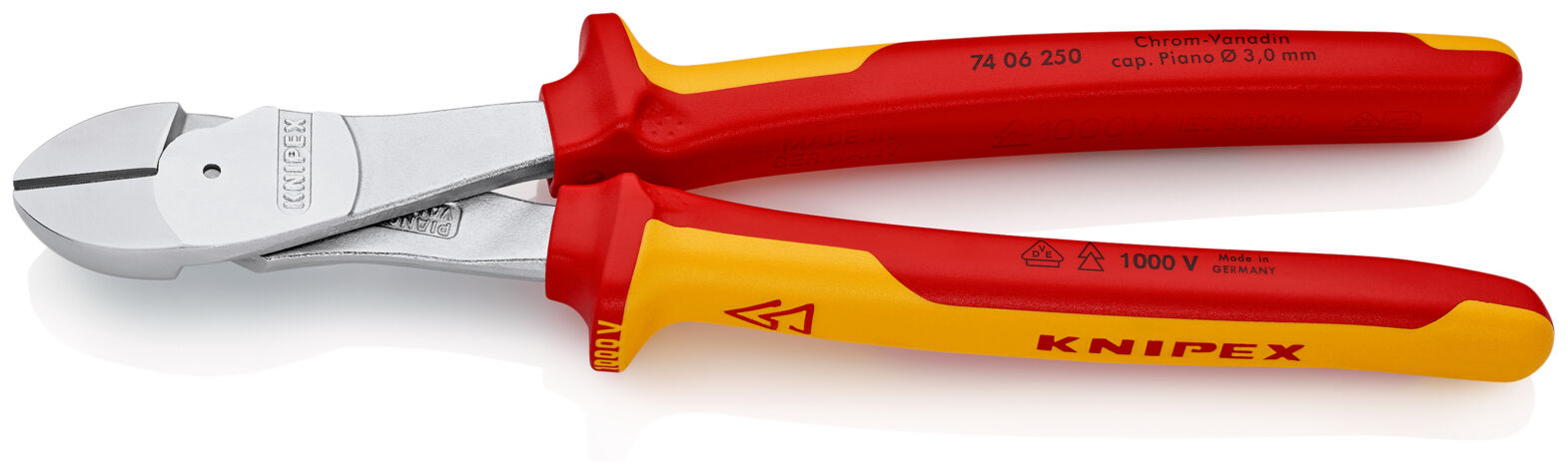

Preview: The image shows a red and yellow pliers with flat, sharp gripping surfaces. The handle is ergonomically designed and has an insulated surface. It is used for cutting wires.

High-leverage diagonal cutting pliers ISO 1000V 250 mm

(Product No.: K-7406.250)

Mobile Preview: The image shows a pair of pliers with red and yellow insulated handles. The pliers have a pointed cutting edge and a shiny metallic surface. They are from KNIPEX.

Mobile Preview: The image shows a red and yellow pliers with flat, sharp gripping surfaces. The handle is ergonomically designed and has an insulated surface. It is used for cutting wires.

(Product No.: K-7406.250)

High-leverage diagonal cutting pliers ISO 1000V 250 mm

Name: High-leverage diagonal cutting pliers ISO 1000V 250 mm
SKU: K-7406.250
Price: 64.50 CHF
Availability: InStock

ArticleNo: K-7406.250

High-leverage diagonal cutting pliers ISO 1000V 250 mm

dpvlink:

8911

Tags:

Bevel:

large bevel

Max Ø medium:

4.6 mm

Max Ø hard:

3.5 mm

Max Ø Piano:

3.0 mm

tested according to VDE standard:

yes

Properties:

Further product information

64.50 CHF

excl. 8.1% tax

1 PCE

Compare

Notice

Product Info

High-leverage diagonal cutting pliers ISO 1000V 250 mm

The KNIPEX-made High Leverage Diagonal Cutter ISO 1000V 250 mm is designed for professional applications where precision and durability are paramount. This high-quality tool is made of chrome-vanadium steel and features a straight head shape. With a length of 250 mm, the diagonal cutter provides excellent handling.
The cutting edges of the tool are induction-hardened and achieve a hardness of about 64 HRC, making them ideal for cutting various types of wire, including piano wire. The large cutting edge allows it to cut wire diameters up to 4.6 mm with medium hardness, 3.5 mm with hard texture, and up to 3.0 mm with piano wire.
Thanks to the optimal coordination of cutting angle and transmission ratio, the diagonal cutter achieves high cutting performance with minimal effort. It is VDE-tested, thus meeting the highest safety standards. The forged joint axle ensures durable, robust use and makes this tool a reliable choice for demanding applications.

Details

Bevel Bevel: large bevel
Max Ø medium Max Ø medium: 4.6 mm
Max Ø hard Max Ø hard: 3.5 mm
Max Ø Piano Max Ø Piano: 3.0 mm
tested according to VDE standard tested according to VDE standard: yes
Length [mm] Length: 250 mm
Material Material: chrome-vanadium steel
ESD ESD: no
Head shape Head shape: straight
Type of pliers Type of pliers: High-leverage diagonal cutting pliers

Pictograms

VDE

The VDE mark indicates that electrical products comply with the requirements of IEC 60900. It ensures the highest safety and quality standards for devices designed for use at voltages up to 1000 V AC (alternating current) and 1500 V DC (direct current).

Large bevel

Thick, robust, resistant. Enables cutting of hard and very hard steel wires, cables or metal parts
