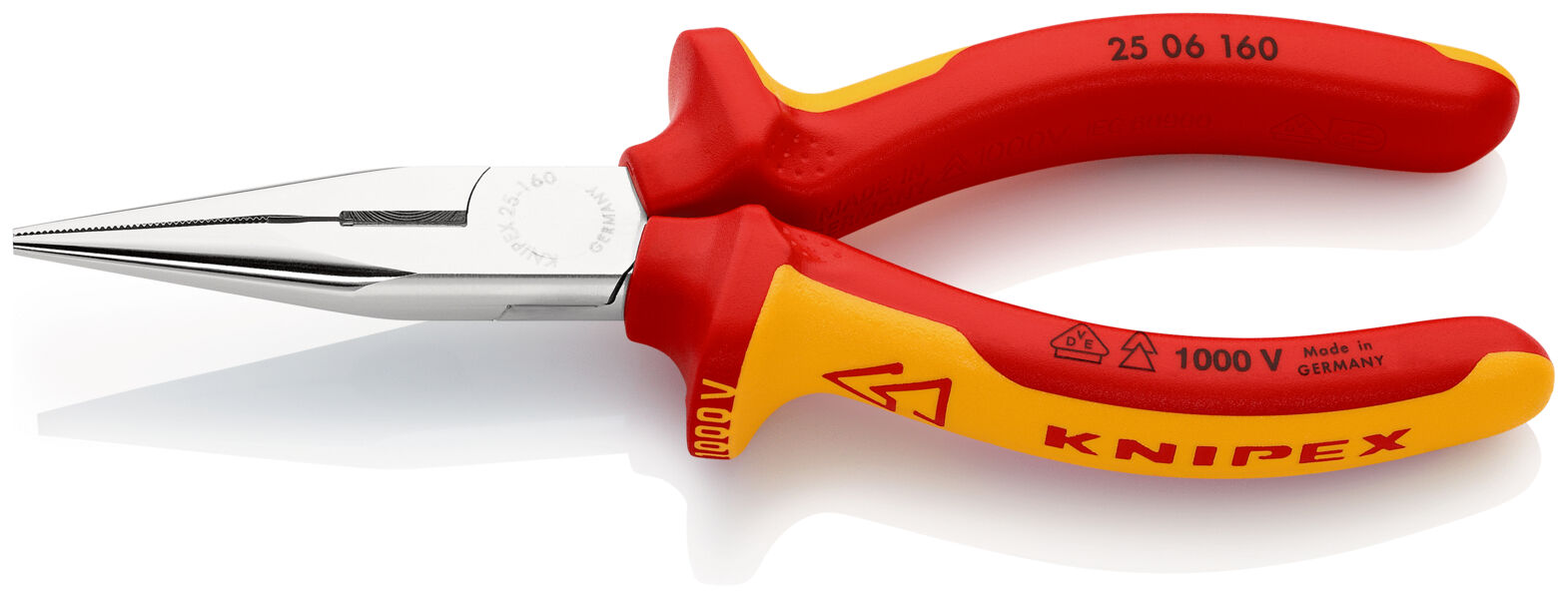

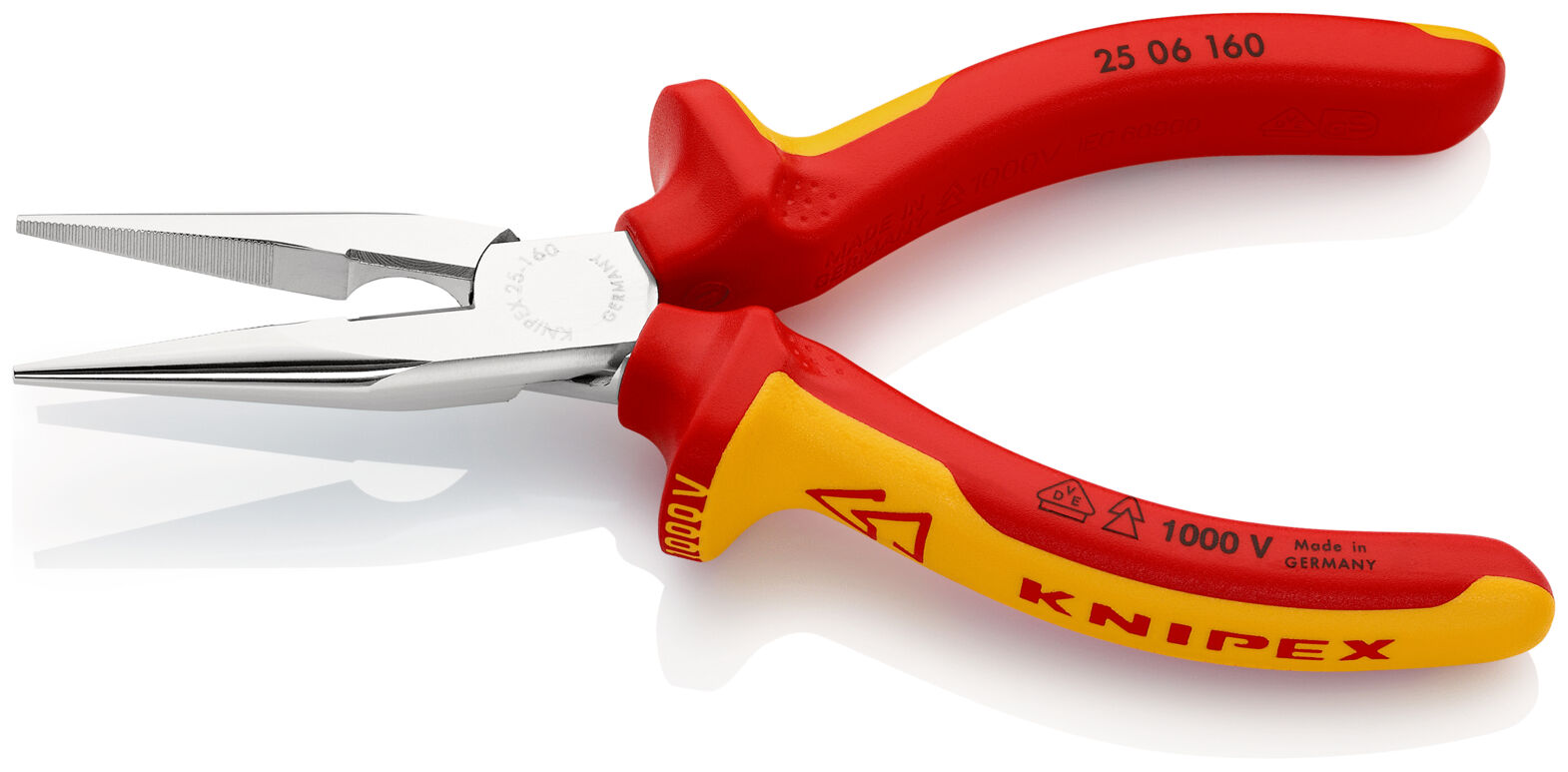

The pliers have an overall length of 160 mm, a jaw length of 50 mm, and a tip width of 3 mm. The head shape is flat and round, which, along with the large bevel, enables optimal handling. The head of the pliers is large, with a head width of 16.5 mm and a head thickness of 9 mm. The tool is made of high-quality tool steel and is chrome-plated, which guarantees a long service life and robustness. With a maximum diameter for medium-hard wires of 2.5 mm and for hard wires of 1.6 mm, this plier is an indispensable tool for precise work.
Details
- Head type/size Head type/size
- large
- Gripping surface Gripping surface
- serrated
- Jaw length Jaw length
- 50 mm
- Version Version
- with cutting edge
- Max Ø medium Max Ø medium
- 2.5 mm
- Max Ø hard Max Ø hard
- 1.6 mm
- Head thickness Head thickness
- 9 mm
- Length [mm] Length [mm]
- 160 mm
- Thickness/diameter Thickness/diameter
- 2.5 mm
- Tip width Tip width
- 3 mm
- Material Material
- Tool steel
- Surface Surface
- chromed
- ESD ESD
- no
- Bevel Bevel
- large bevel
- Head shape Head shape
- flat nose / round nose
- Head width Head width
- 16.5 mm
- Type of pliers Type of pliers
- needle-nosed pliers
Knipex insulated tools are made of high-quality materials according to the regulations of national and international standards. In compliance with the prescribed safety measures for working under voltage, e.g. DIN VDE 0105, EN 50110, IEC 60364, they offer maximum protection when working under voltage up to AC 1000V (alternating curring) and DC 1500V (direct current).
Knipex pliers with the two-colored multi-component handle insulation (red/yellow) meet the requirements of VDE 0682 part 201 and the corresponding international standards (e.g. EN 60900 or IEC 60900). The VDE / GS symbol shows that the requirement is confirmed by an inspecting authority committed to neutrality.
Knipex pliers comply with the highest requirements concerning performance, ergonomics, and service life.
Due to a special selection of the used steels and the careful and high-quality processing, the Knipex pliers achieve an optimal durability and service life. Innovative ideas always offer forward-looking solutions for an easy, effective and safe working.
The cutting shapes and cutting performance:
With mini bevel (facet)
Nearly flush cut. Fine cutting edges. Suitable for soft steel wire, copper wire and cable.
With small bevel (facet)
Normal cut. Suitable for cutting hard and soft steel wires as well as soft materials such as copper wire and cable.
With large bevel (facet)
Suitable for cutting hard and very hard steel wires. Long service life.
Without bevel (facet)
Flush cut. Extremely sharp cutting edges. Only suitable for soft steel wires, copper wire and cable.
Without bevel flush (facet)
Flush cut for soft materials.
