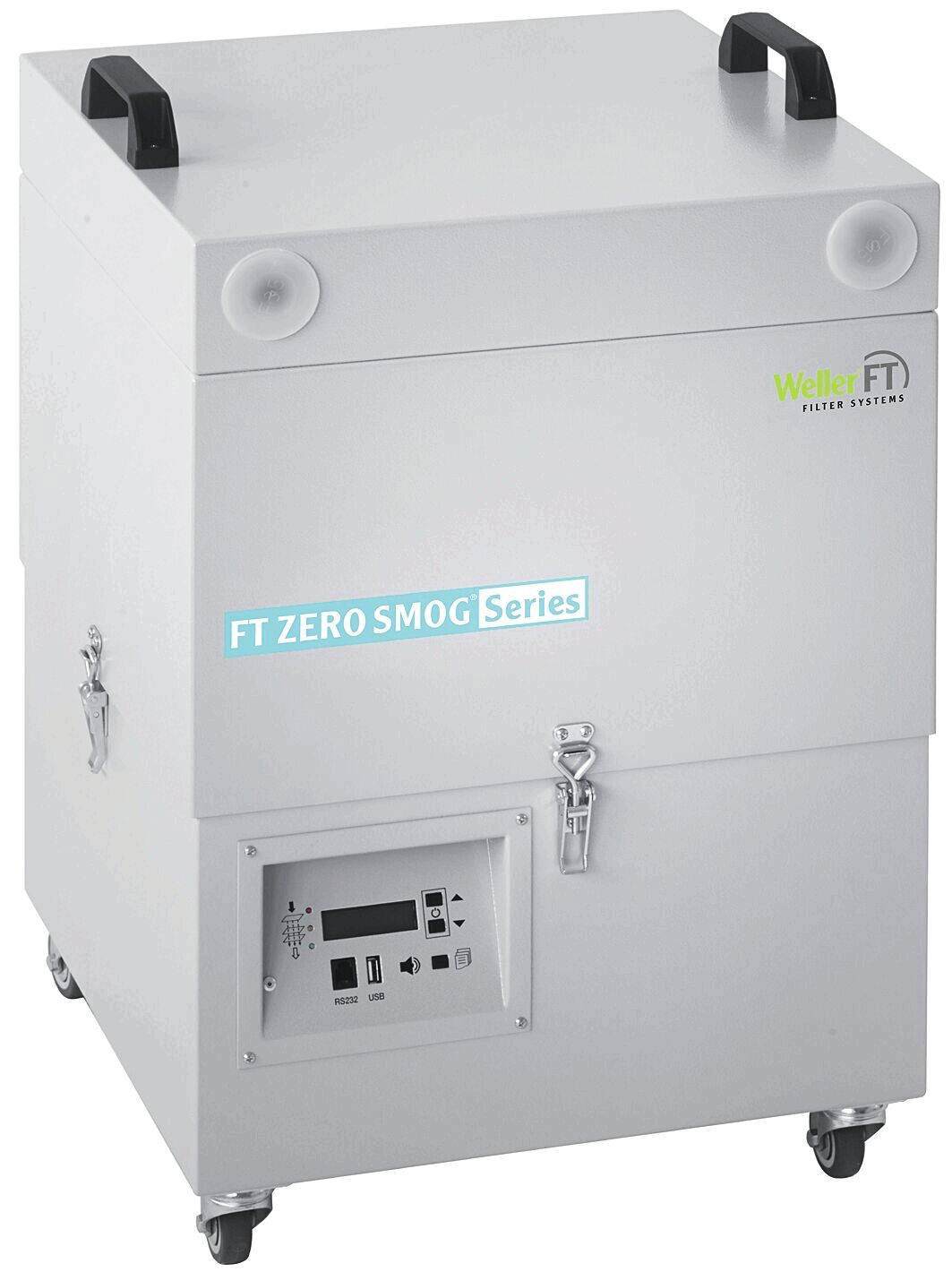

The image displays a rectangular, gray device with two handles on top and wheels. It features a control panel on the front with buttons and displays, and the logo "FT ZERO-SMOG" is visible.
Zero Smog 20T solder fume extraction unit
(Product No.: 536.706.99)
The image displays a rectangular, gray device with two handles on top and wheels. It features a control panel on the front with buttons and displays, and the logo "FT ZERO-SMOG" is visible.
Notice

Zero Smog 20T solder fume extraction unit

Zero Smog 20T solder fume extraction unit

dpvlink:
17678
Further product information

5,011.60 CHF

excl. 8.1% tax

1 PCE
Compare Compare
Notice
Product Info

Zero Smog 20T solder fume extraction unit

Zero Smog 20T Solder Smoke Extraction Unit
The Zero Smog 20T solder smoke extraction unit is an efficient solution for cleaning the air at workplaces where soldering is performed. It is specifically designed for use with an extraction tube on the soldering iron, ensuring direct and effective extraction of solder smoke right at the source.

Technical Specifications:
  • Voltage: 230 V / 50 Hz
  • Electronically controlled, maintenance-free turbine
  • Two operating modes selectable
  • Electronic filter monitoring with LED display
  • RS 232 and USB interface for remote monitoring, updates, and data logging
  • Dimensions: 450 x 450 x 695 mm (LxWxH)
  • Weight: 45 kg
  • Power consumption: 530 VA
  • Noise level: 51 dB (A) at 1 m distance
  • Max. vacuum: 10,000 Pa
  • Airflow: 100 m³/h
  • Max. capacity: 20 FE soldering irons

    Scope of Delivery:
    Solder smoke extraction unit 230 V / 50 Hz
    Compact filter, consisting of HEPA filter H13
    and broad-spectrum gas filter (50% activated carbon, 50% Chemisorb)
    Fine dust filter F 7
    This combination ensures a high degree of air purification from harmful particles and gases.

    • Noise level
    Noise level
    51 dB
    Power consumption
    Power consumption
    530 VA
    Voltage
    Voltage
    230 V
    Height [mm]
    Height
    695 mm
    Length [mm]
    Length
    450 mm
    Width [mm]
    Width
    450 mm
    Air flow/hour
    Air flow/hour
    100 m³
    Max. vacuum
    Max. vacuum
    10,000 Pa
    Weight
    Weight
    45 kg
