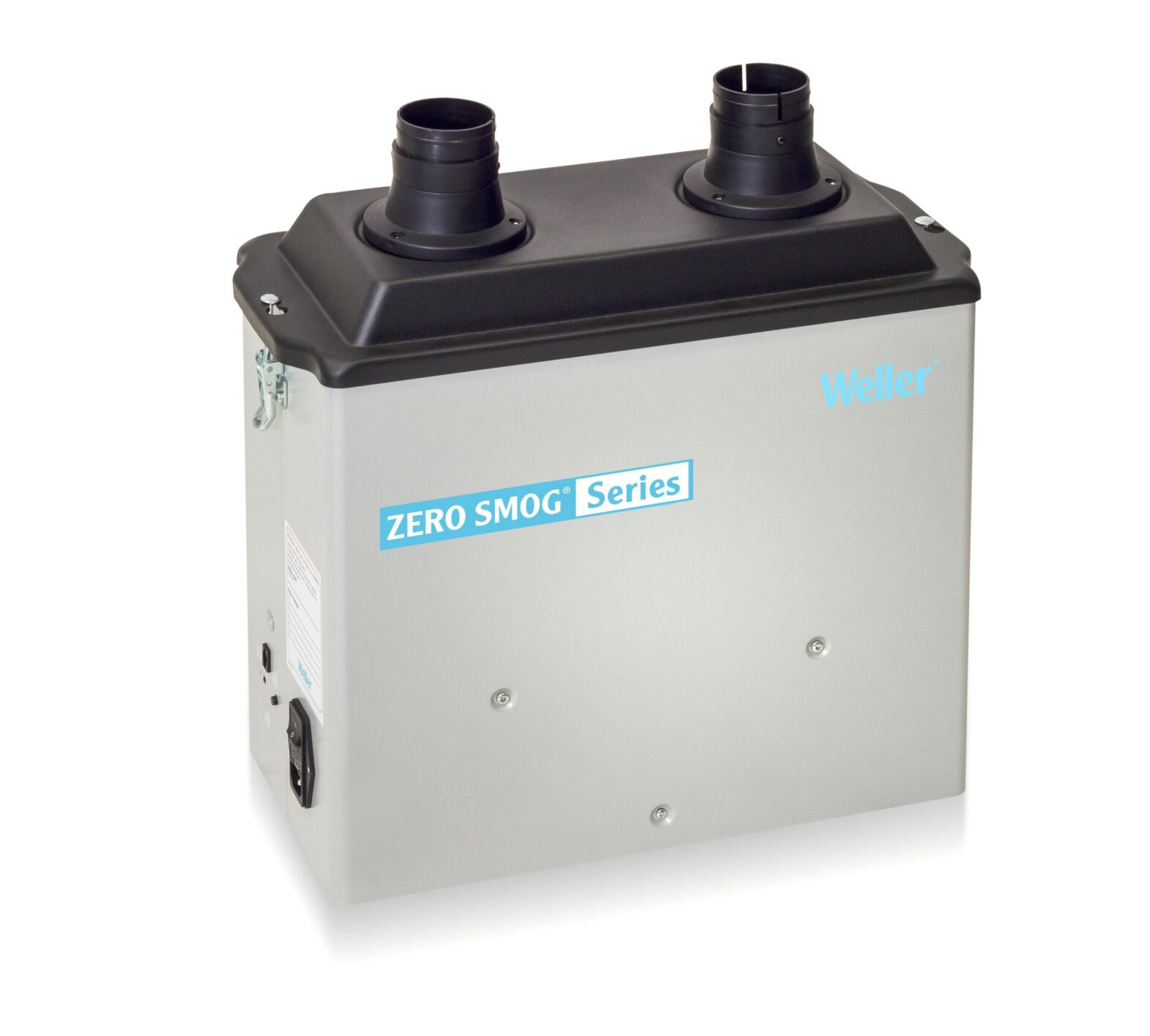

The image shows a rectangular, silver-colored device with two black outputs on top. It has a smooth surface and bears the inscription "ZERO SMDC Series" on the front.

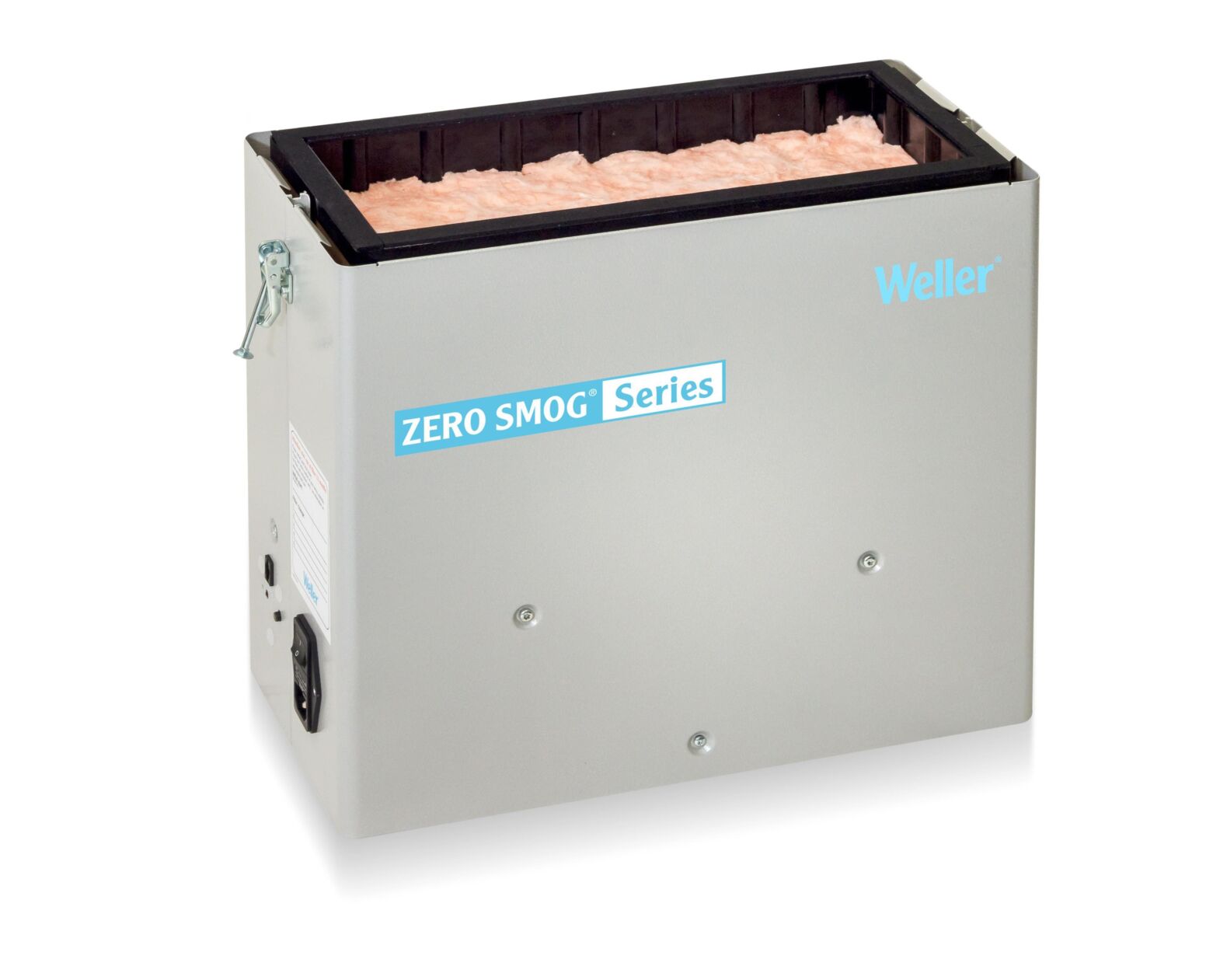

The image shows a rectangular, silver casing with a black lid. On the front is the inscription "ZERO SHOCK Series". The top has a padded surface visible.

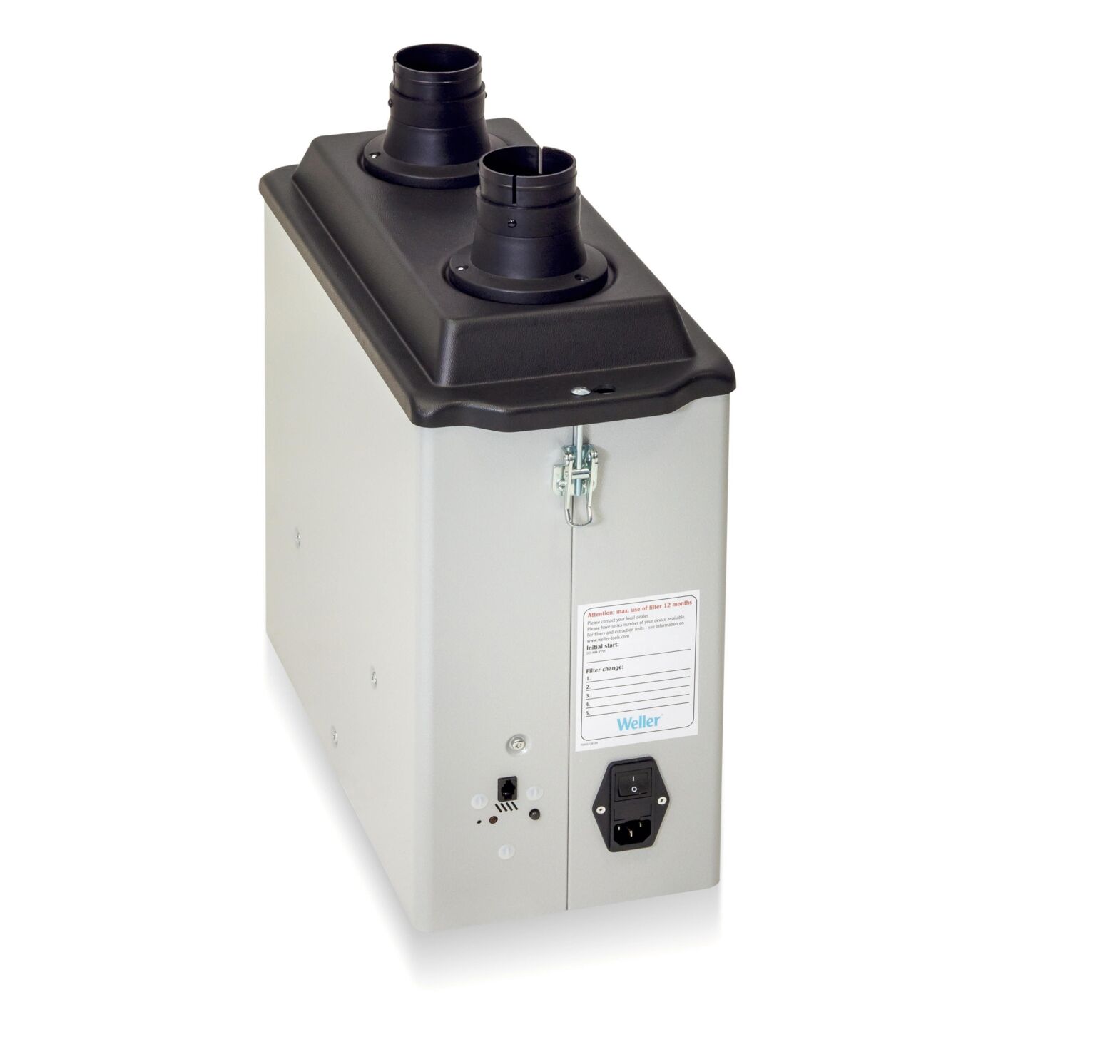

The image shows a compact, rectangular device in gray with a black lid. On top, there are two round outlets. On the side, there is a control and a connection socket.
Preview: The image shows a rectangular, silver-colored device with two black outputs on top. It has a smooth surface and bears the inscription "ZERO SMDC Series" on the front.
Preview: The image shows a rectangular, silver casing with a black lid. On the front is the inscription "ZERO SHOCK Series". The top has a padded surface visible.
Preview: The image shows a compact, rectangular device in gray with a black lid. On top, there are two round outlets. On the side, there is a control and a connection socket.
Fume extraction unit MG 130
(Product No.: 130-1000)
The image shows a rectangular, silver-colored device with two black outputs on top. It has a smooth surface and bears the inscription "ZERO SMDC Series" on the front.
The image shows a rectangular, silver casing with a black lid. On the front is the inscription "ZERO SHOCK Series". The top has a padded surface visible.
The image shows a compact, rectangular device in gray with a black lid. On top, there are two round outlets. On the side, there is a control and a connection socket.
Mobile Preview: The image shows a rectangular, silver-colored device with two black outputs on top. It has a smooth surface and bears the inscription "ZERO SMDC Series" on the front.
Mobile Preview: The image shows a rectangular, silver casing with a black lid. On the front is the inscription "ZERO SHOCK Series". The top has a padded surface visible.
Mobile Preview: The image shows a compact, rectangular device in gray with a black lid. On top, there are two round outlets. On the side, there is a control and a connection socket.
Notice / Inquire

Fume extraction unit MG 130

Fume extraction unit MG 130

dpvlink:
19149
Properties:
Further product information

1,241.65 CHF

excl. 8.1% tax

1 PCE
Compare Compare
Notice / Inquire
Product Info

Fume extraction unit MG 130

The Weller MG 130 solder fume extraction unit offers an efficient solution for air purification at 1-2 workstations. It is characterized by its simple installation and ease of use. With a width of 210 mm, a height of 500 mm, and a length of 460 mm, the compact device fits perfectly into small work areas. Despite its small footprint, it provides a high air throughput of 140 m³ per hour and a maximum vacuum of 2,300 Pa.
The device features a compact filter that combines a H13 particle filter and a broadband gas filter, as well as an F7 fine dust pre-filter. These filters ensure effective extraction and purification of air from solder fumes. With a noise level of only 52 dB, the MG 130 operates particularly quietly. The power of 100 W and the voltage supply of 100-240 V make it usable worldwide. Additional features such as the filter alarm and the 3-stage volume flow setting enhance the functionality and safety of the device.
Noise level
Noise level
52 dB
Power
Power
100 W
Voltage
Voltage
100 - 240 V
Height
Height
500 mm
Length
Length
460 mm
Width
Width
210 mm
Air flow/hour
Air flow/hour
140 m³
Max. vacuum
Max. vacuum
2,300 Pa
Weight
Weight
11 kg
Show accessories
Pictograms
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.

Accessories

Accessories

The image displays a digital control unit with a blue screen. It shows values such as power (99%), time (01497 h), and features operable buttons below the screen.
Remote control for MG units
Remote control for MG units
dpvlink
13656

390.60 CHF
Show product

Spares

The image shows a rectangular waste bin made of brown material. It has a black lid with two round openings. The bin stands stable on a flat base.
Compact filter for MG 130
Compact filter MG130
Particle filter H13 wide band gas filter
(50% activated carbon, 50% Chemisorb)
dpvlink
19156

264.30 CHF
Show product
The image shows a long, rectangular mat in soft pink. The surface is soft and slightly textured, with a fluffy appearance reminiscent of cotton.
Fine dust filter F7 for MG 130
Fine dust filter F7 MG 130
prefilter MG 130 (5 pieces)
dpvlink
19156

42.15 CHF
Show product
Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 632
Complete Catalog 2023 - 2024

Product Family

Fume extraction kit MG 130

Article image
Article description
Noise level
Power
Voltage
Height
Length
Width
Air flow/hour
Max. vacuum
Weight
Price
Compare
130-1000 - Fume extraction unit MG 130
130-1000
Fume extraction unit MG 130
52 dB
100 W
100 - 240 V
500 mm
460 mm
210 mm
140 m³
2,300 Pa
11 kg
1,241.65 CHF
