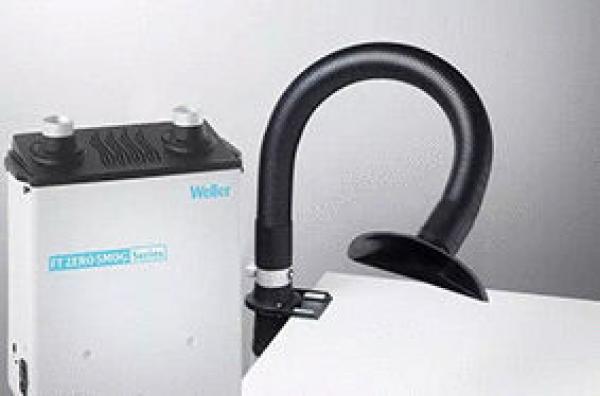

The image shows a white device with two tubes on top, used for air purification. It has a straight rectangular shape and the inscription "FT ZERO SMOG Series" on the front.
MG 100S Kit 2 with funnel
(Product No.: 100-1055-ESD)

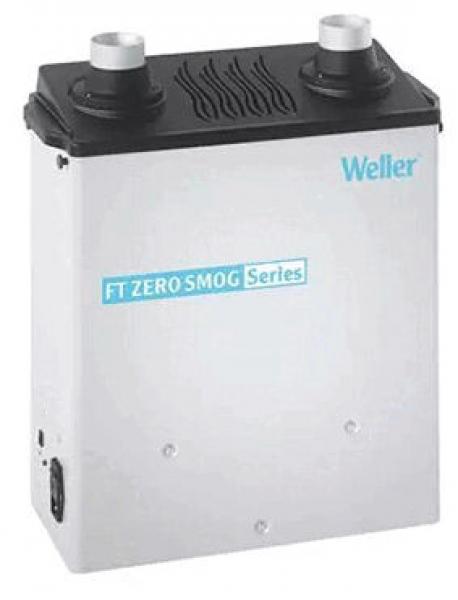

The image shows a white device with two tubes on top, used for air purification. It has a straight rectangular shape and the inscription "FT ZERO SMOG Series" on the front.
Notice / Inquire

MG 100S Kit 2 with funnel

MG 100S Kit 2 with funnel

dpvlink:
19165
Further product information

2,275.25 CHF

excl. 8.1% tax

1 PCE
Compare Compare
Notice / Inquire
Product Info

MG 100S Kit 2 with funnel

The MG 100S Kit 2 with funnel, manufactured by Weller, is a high-performance extraction device specifically designed for use at up to two workstations. The kit includes the MG 100S extraction unit (100-1000-ESD) as well as two 1.5 meter long extraction arms (0F15) and two funnel nozzles (750.ALFA-ESD), which enable efficient capture of dust and other particles.
The device measures 210 mm in width, 610 mm in height, and 460 mm in length. Despite its robust construction, it weighs only 15 kg, making it easy to position. With a noise level of just 52 dB, the MG 100S Kit 2 operates extremely quietly. The technical specifications include a power of 100 W and a voltage supply of 100 to 240 V, allowing for flexible use in various power networks. The airflow rate is an impressive 140 m³ per hour, and the maximum vacuum reaches 2,300 Pa, ensuring effective extraction.
Noise level
Noise level
52 dB
Power
Power
100 W
Voltage
Voltage
100 - 240 V
Height
Height
610 mm
Length
Length
460 mm
Width
Width
210 mm
Air flow/hour
Air flow/hour
140 m³
Max. vacuum
Max. vacuum
2,300 Pa
Weight
Weight
15 kg
Show accessories
Accessories

Spares

It shows a square, brown cardboard box with a black lid. On top are two round openings, and on the side there is a label with text and numbers.
Preview: Compact filter standard for MG 100S
Preview: The image shows a rectangular, black plastic surface with two round openings on the sides. In the center, there is a small, round button. The surface is smooth and solid-colored.
Preview: The image shows a rectangular, brown box with a black lid. There are two round openings on top and a label with information on the side. The box appears sturdy and functional.
Compact filter standard for MG 100S
Micro/gas filter ESD standard
for MG80 / MG100 (replacement filter)
dpvlink
19156

520.15 CHF
Show product
The image shows a square, brown cardboard box with two round openings on the top. On the front, there is a label with the name "Weller" and additional information.
Preview: Compact filter MEK for MG 100S
Preview: The image shows a rectangular, brown cardboard box with a black top. There are two round openings on top and a sticker with information on the side.
Compact filter MEK for MG 100S
Micro/gas filter ESD, MEK
for MG80S / MG100S (replacement filter)
dpvlink
19156

672.75 CHF
Show product
The image shows a rectangular container with a mesh surface and two side handles. The container is likely intended for storing or filtering materials.
Compact filter solvents for MG 100S
Micro/gas filter, ESD, SOLVENTS / VOC
for MG80S / MG100S (replacement filter)
dpvlink
19156

609.60 CHF
Show product
Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 633
Complete Catalog 2023 - 2024

Product Family

MG 100S Extraction unit kits

The Weller MG 100S kits offer a powerful and space-saving solution for solder fume extraction at up to 2 workstations. They effectively remove harmful fumes and particles produced during soldering and ensure a clean and safe working environment. Depending on the version, they are supplied with 1 or 2 funnel nozzles and other accessories in addition to the extraction unit.

  • Extraction unit for use at up to 2 workstations
  • Large gas filter volume
  • Electronic filter control with alarm function
  • Variable volume flow setting
  • Extra small footprint
  • Switch-mode power supply 100-240 V (suitable for worldwide use)
  • Optimized filter service life
  • Suitable for applications with a high volume of harmful gases


Article image
Article description
Noise level
Power
Voltage
Height
Length
Width
Air flow/hour
Max. vacuum
Weight
Price
Compare
100-1056-ESD - MG 100S Kit 1 with funnel
100-1056-ESD
MG 100S Kit 1 with funnel
52 dB
100 W
100 - 240 V
610 mm
460 mm
210 mm
140 m³
2,300 Pa
15 kg
2,082.60 CHF
100-1055-ESD - MG 100S Kit 2 with funnel
100-1055-ESD
MG 100S Kit 2 with funnel
52 dB
100 W
100 - 240 V
610 mm
460 mm
210 mm
140 m³
2,300 Pa
15 kg
2,275.25 CHF
