MG 130 Kit nozzle
MG 130 Kit nozzle

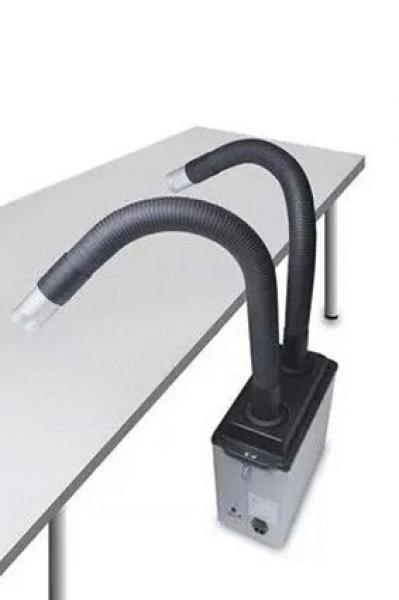

The MG 130 Kit Nozzle from Weller is an efficient extraction device specifically designed for use at up to two workstations. It includes an MG 130 extraction unit, two 1.0 meter long extraction arms, and two beveled extraction nozzles, making it an optimal solution for the removal of particles and gases at workplaces.The device is equipped with a compact filter that includes a class H13 particle filter and a broadband gas filter, supplemented by a fine dust pre-filter F7. This combination of filters ensures high cleaning performance and safety in handling air contaminants.
The technical specifications include a width of 210 mm, a height of 500 mm, and a length of 460 mm. The device operates with a power of 100 W at a voltage of 100 to 240 V and achieves an air flow rate of 140 m³ per hour. With a weight of 11 kg and a noise level of only 52 dB, it is both easy to handle and quiet in operation. The maximum vacuum is 2,300 Pa, highlighting the efficiency of the device.
Details
- Noise level Noise level
- 52 dB
- Power Power
- 100 W
- Voltage Voltage
- 100 - 240 V
- Height [mm] Height
- 500
- Length [mm] Length
- 460
- Width [mm] Width
- 210
- Air flow/hour Air flow/hour
- 140 m³
- Max. vacuum Max. vacuum
- 2,300 Pa
- Weight Weight
- 11 kg
