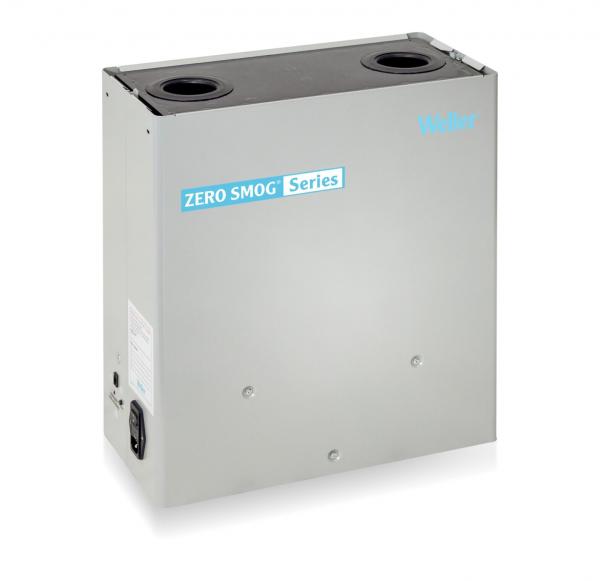

The image shows a rectangular, silver-colored device with two round outlet openings on top. It has a black top with the inscription "ZERO SMOG Series". The front includes a socket.

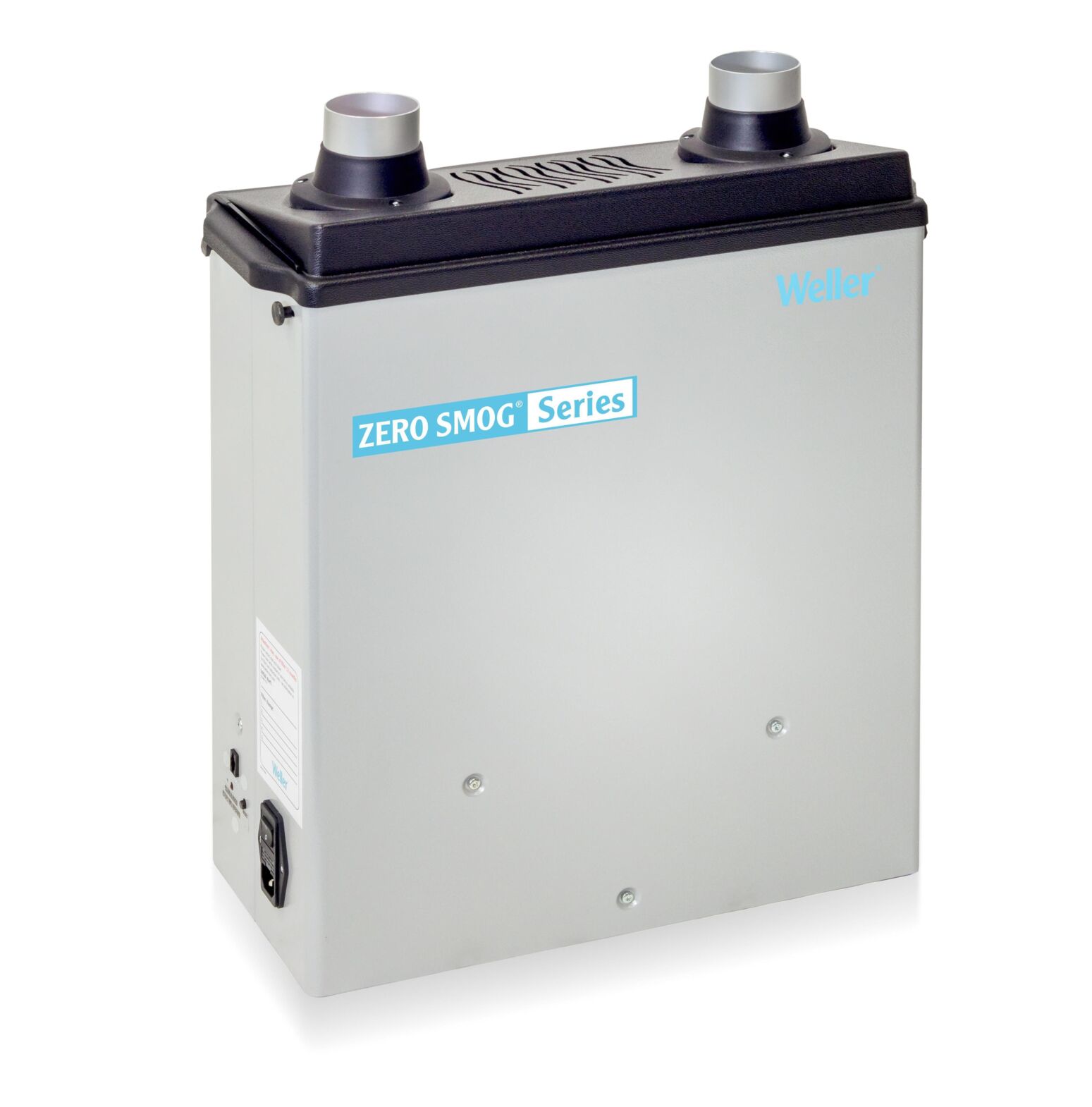

The image shows a compact, square device in silver with a smooth surface. There are two round openings on the top. The front features the inscription "ZERO SMOG Series".
Preview: The image shows a rectangular, silver-colored device with two round outlet openings on top. It has a black top with the inscription "ZERO SMOG Series". The front includes a socket.
Preview: The image shows a compact, square device in silver with a smooth surface. There are two round openings on the top. The front features the inscription "ZERO SMOG Series".
MG100S Extraction unit
(Product No.: 100-1000-ESD)
The image shows a rectangular, silver-colored device with two round outlet openings on top. It has a black top with the inscription "ZERO SMOG Series". The front includes a socket.
The image shows a compact, square device in silver with a smooth surface. There are two round openings on the top. The front features the inscription "ZERO SMOG Series".
Mobile Preview: The image shows a rectangular, silver-colored device with two round outlet openings on top. It has a black top with the inscription "ZERO SMOG Series". The front includes a socket.
Mobile Preview: The image shows a compact, square device in silver with a smooth surface. There are two round openings on the top. The front features the inscription "ZERO SMOG Series".
Notice / Inquire

MG100S Extraction unit

MG100S Extraction unit

dpvlink:
3727
Properties:
Further product information

1,908.85 CHF

excl. 8.1% tax

1 PCE
Compare Compare
Notice / Inquire
Product Info

MG100S Extraction unit

The MG100S from Weller is a powerful solder fume extraction unit, designed for use at up to two workstations. Thanks to its compact design with a width of 210 mm, a height of 610 mm, and a length of 460 mm, the device requires only minimal floor space. It is equipped with a compact filter that includes both a particle filter H13 and a wideband gas filter, ideal for applications with a high volume of harmful gases.
The electronic filter control with alarm function ensures the safety and efficiency of operation, while the variable flow rate adjustment allows for customization of the extraction performance. The device is characterized by a relatively low noise level of 52 dB and offers an air throughput of 140 m³ per hour with a maximum vacuum of 2,300 Pa. The power consumption is 100 W at a voltage of 100 - 240 V, facilitating global use of the device.
For easier operation, the MG100S can be controlled via a remote control, which allows setting various speeds and activating the filter alarm. The extraction unit can also be mounted directly on the worktable to simplify installation.
Noise level
Noise level
52 dB
Power
Power
100 W
Voltage
Voltage
100 - 240 V
Height
Height
610 mm
Length
Length
460 mm
Width
Width
210 mm
Air flow/hour
Air flow/hour
140 m³
Max. vacuum
Max. vacuum
2,300 Pa
Weight
Weight
15 kg
Show accessories
Pictograms
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.

Accessories

Accessories

The image displays a digital control unit with a blue screen. It shows values such as power (99%), time (01497 h), and features operable buttons below the screen.
Remote control for MG units
Remote control for MG units
dpvlink
13656

390.60 CHF
Show product

Spares

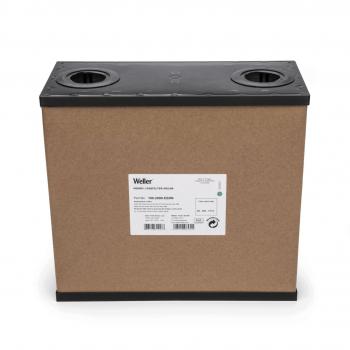

It shows a square, brown cardboard box with a black lid. On top are two round openings, and on the side there is a label with text and numbers.
Preview: Compact filter standard for MG 100S
Preview: The image shows a rectangular, black plastic surface with two round openings on the sides. In the center, there is a small, round button. The surface is smooth and solid-colored.
Preview: The image shows a rectangular, brown box with a black lid. There are two round openings on top and a label with information on the side. The box appears sturdy and functional.
Compact filter standard for MG 100S
Micro/gas filter ESD standard
for MG80 / MG100 (replacement filter)
dpvlink
19156

520.15 CHF
Show product

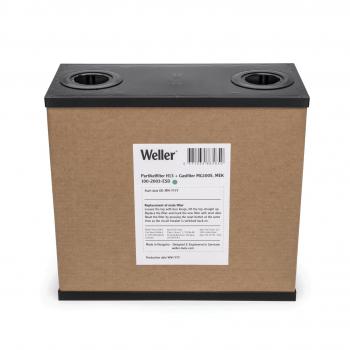

The image shows a square, brown cardboard box with two round openings on the top. On the front, there is a label with the name "Weller" and additional information.
Preview: Compact filter MEK for MG 100S
Preview: The image shows a rectangular, brown cardboard box with a black top. There are two round openings on top and a sticker with information on the side.
Compact filter MEK for MG 100S
Micro/gas filter ESD, MEK
for MG80S / MG100S (replacement filter)
dpvlink
19156

672.75 CHF
Show product

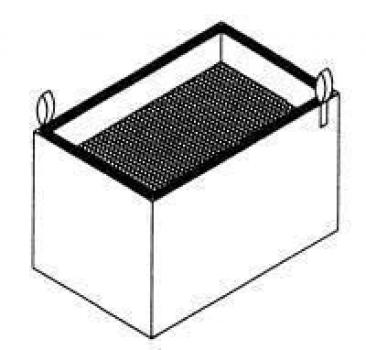

The image shows a rectangular container with a mesh surface and two side handles. The container is likely intended for storing or filtering materials.
Compact filter solvents for MG 100S
Micro/gas filter, ESD, SOLVENTS / VOC
for MG80S / MG100S (replacement filter)
dpvlink
19156

609.60 CHF
Show product
Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 632
Complete Catalog 2023 - 2024

Product Family

MG100S Extraction unit

Article image
Article description
Noise level
Power
Voltage
Height
Length
Width
Air flow/hour
Max. vacuum
Weight
Price
Compare
100-1000-ESD - MG100S Extraction unit
100-1000-ESD
MG100S Extraction unit
52 dB
100 W
100 - 240 V
610 mm
460 mm
210 mm
140 m³
2,300 Pa
15 kg
1,908.85 CHF
Show Compare List (0)

This product is compatible with (for example):

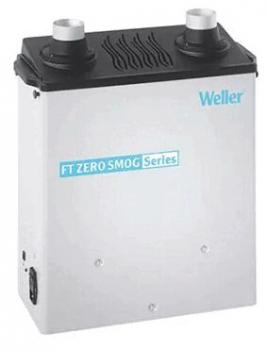

The image shows a white device with two tubes on top, used for air purification. It has a straight rectangular shape and the inscription "FT ZERO SMOG Series" on the front.
MG 100S Kit 2 with funnel
MG100 solder fume extraction unit ESD, 230 V
with 2 flexible extraction arms (diameter 55 mm)
model 3035-OF-15 incl. suction nozzles ALFA-ESD
suitable for the connection of 2 extraction arms
dpvlink
19165

2,275.25 CHF
Show product
The image displays a smoke extraction device with a silver casing and a flexible, black hose aimed at a work surface.
MG 100S Kit 1 with funnel
MG100 solder fume extraction unit ESD, 230 V
incl. Kit 1 WF funnel (536.571.99)


suitable for the connection of 2 extraction arms
dpvlink
19165

2,082.60 CHF
Show product
