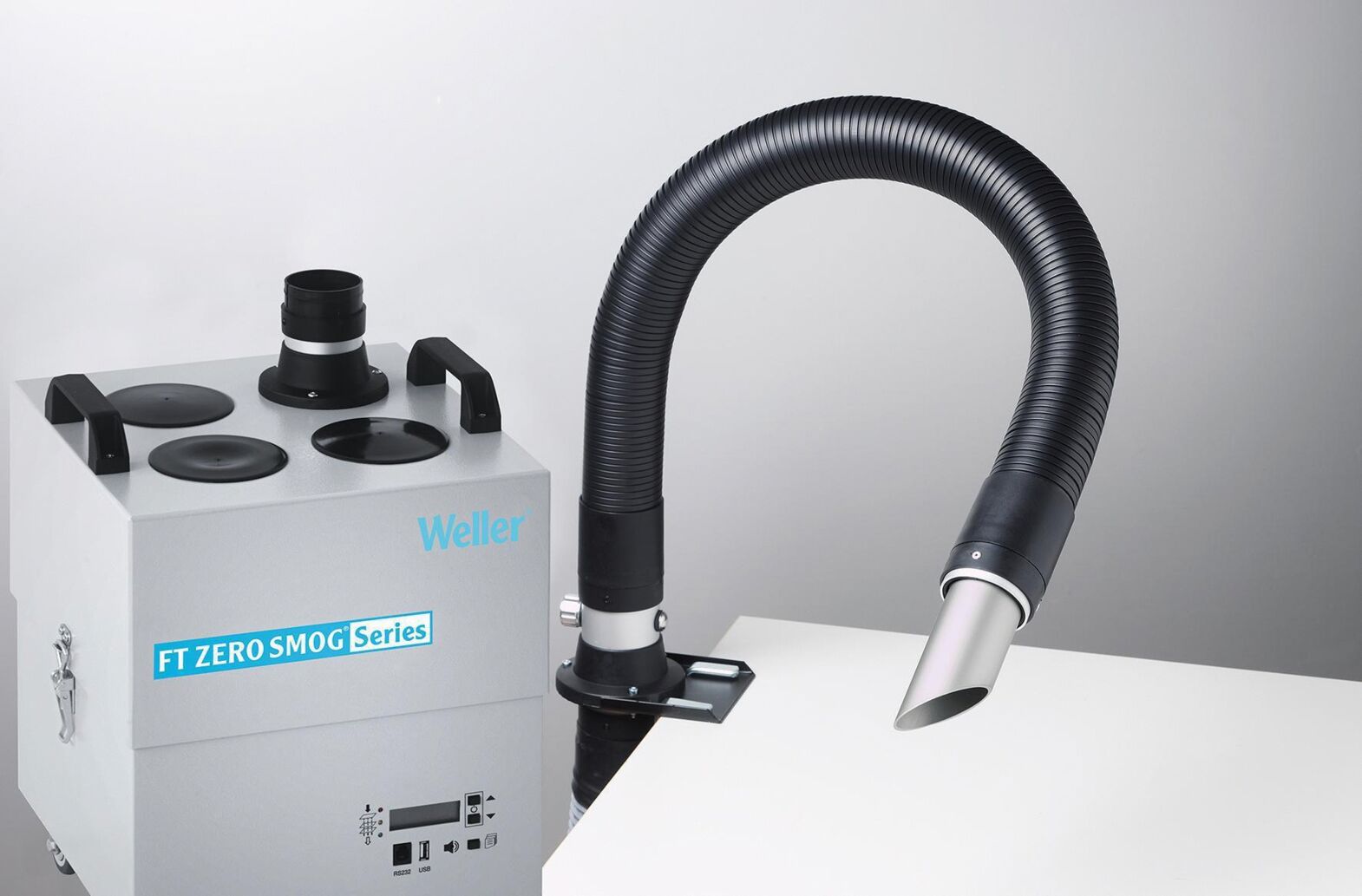

Zero Smog 4V Kit1 nozzle
(Product No.: 536.636.99)
The image displays a device for extracting vapors. It features a rectangular, silver-colored body with four openings on top and a flexible, hose-like outlet pointing to the right.
Notice

Zero Smog 4V Kit1 nozzle

Zero Smog 4V Kit1 nozzle

dpvlink:
16611
Further product information

2,393.15 CHF

excl. 8.1% tax

1 PCE
Compare Compare
Notice
Product Info

Zero Smog 4V Kit1 nozzle

The Zero Smog 4V Kit1 Nozzle from Weller is an advanced, energy-efficient extraction system specifically designed to significantly improve air quality at up to four workstations. This system is equipped with a funnel nozzle that can cover a larger area and is ideal for use directly on the workbench.
The unit features a HEPA H13 particle filter and a fine dust pre-filter F7, which together ensure a high degree of air purification. The Constant Flow Control (CFC) technology ensures even and efficient extraction performance at each workstation, regardless of the total number of connected stations.
The integrated electronic filter control alerts visually and acoustically when a filter change is necessary. Thanks to its low noise level, the device is also suitable for quiet work environments. It also offers a remote control option via RS232 port and can be checked through an efficiency test via USB connection.
The dimensions of the device are 325 mm in width, 505 mm in height, and 345 mm in length with a maximum vacuum of 3,800 Pa. Mobility is facilitated by four wheels. An additional WT-Hub 587.687.67 is required for connection to a WX/WT station.
Height
Height
505 mm
Length
Length
345 mm
Width
Width
325 mm
Max. vacuum
Max. vacuum
3,800 Pa
Show accessories
Accessories

Accessories

The image shows a gray cable with two connectors. Both ends are specially shaped, one has a rounded side with several small holes, the other is rectangular with a blue edge.
Connecting cable for remote control WCB2
Connecting cable RS232 for WCB2
dpvlink
13656

19.25 CHF

Spares

The image shows a flexible, black hose with a silver end. The hose is slightly curved and has a holder at the base, which is used for attachment.
Extraction arm KIT 1 WF nozzle
WFE Kit 1 nozzle 60 Easy-Clic-60 extraction arm
with sloped nozzle, stop valve, kit flexible
consisting of:

- stop valve with table clamp kit 536.574.99
- extraction hose 3 m 700-3051-ESD
- sloped nozzle 536.577.99
- extraction arm 0F10
dpvlink
13577

286.40 CHF
The image shows a silver air purifier with three black openings on top. It has a control area with buttons and a display on the front and is mounted on wheels.
Zero Smog 4V
Zero Smog 4 V
volume extraction with built-in turbine
with particle filter H13
and wide band gas filter
(50% activated carbon/50% Chemisorb)
fine dust filter F7
max. capacity 4 workstations
dpvlink
16607

2,068.90 CHF
The image displays a square, brown cardboard box with a black plastic frame. At the top, a white, textured surface is visible. On the front, there is a label with technical information.
Compact filters for Zero Smog 4V
Compact filter
for WFE 2S, WFE 2Kit1, WFE 2Kit2
consisting of EPA particle filter H13
Particle sizes < 0.5 µm
and wide band gas filter
(50% activated carbon, 50% Chemisorb)
according to DIN EN 1822
dpvlink
19148

300.10 CHF
The image displays a square, flat object in white. The surface is even and soft, possibly a cushion or a mat. It has no discernible patterns or textures.
Fine dust filter F5 for Zero Smog 4V
Fine dust filter M5
Particle size to 100 µm
(Pu = 10 pcs)
according to DIN EN 779
dpvlink
19148

53.70 CHF
The image displays a square, soft material in a light, peach tone. The surface is slightly textured and appears to be fluffy. There is a caption in the center.
Fine dust filter F7 for Zero Smog 4V
Fine dust filter F7
Particle size to 10 µm
(Pu = 10 pcs)
according to DIN EN 779
dpvlink
19148

75.80 CHF
Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 630
Complete Catalog 2023 - 2024

Product Family

Zero Smog 4V solder fume extraction kit1 nozzle

Article image
Article description
Height
Length
Width
Max. vacuum
Price
Compare
536.636.99 - Zero Smog 4V Kit1 nozzle
536.636.99
Zero Smog 4V Kit1 nozzle
505 mm
345 mm
325 mm
3,800 Pa
2,393.15 CHF
Show Compare List (0)

This product is compatible with (for example):

The image shows a flexible, black hose with a curved shape. It is attached to a base and ends in a wide, flat opening.
Extraction arm KIT 1WF funnel
WFE Kit 1 funnel 60, Easy-Clic-60 extraction arm
with funnel 230 x 100 mm, stop valve, kit flexible
total length 1 m, consisting:

- stop valve with table clamp kit 536.574.99
- extraction hose 3 m 700-3051-ESD
- funnel nozzle 536.573.99
- extraction arm 0F10
dpvlink
13577

286.40 CHF
The image shows a curved pipe section made of black and white materials. It has a flat base with holes for mounting. There is a connector at one end.
Easy-Click 60 extraction hose 90° bent
Hose connection WFE Easy Click, bent
Ø 60 mm
dpvlink
15097

71.60 CHF
The image shows a flexible hose with a black, spiral surface, attached to a solid holder. The hose curves and ends in an open, round opening.
Extraction arm KIT 1 WF 32 nozzle
Kit 1 WF 32 nozzle
Easy-Click-60 extraction arm
for WFE S volume extraction

Set comprising:
- 536.574.99 stop valve with table clamp set
- 536.576.99 flexible extraction hose 3 m
- 536.580.99 extraction arm Dm 32 mm
dpvlink
13577

361.15 CHF
The image displays a flexible, corrugated hose in black. It features smooth openings at both ends and is shaped in an arc. Ideal for connecting to devices or apparatuses.
Extraction arm flexible, 0.7 m
Extraction arm, flexible, 60 mm diameter
for sloped and funnel-shaped nozzles
Length 0.7m
dpvlink
15097

103.20 CHF
The image shows a flexible, gray arm with a hose attached to a table. At the end of the hose, there is a round opening. The arm can be moved into various positions.
Extraction arm KIT 1S WF 2-joint arm with...
Kit 1S WF nozzle
Easy-Click-60 double-joint aluminium arm with
sloped nozzle, total length 1.5 m
consisting of:

- 536.598.99 table clamp set
- 536.576.99 flexibel extraction hose 3m
- extraction hose Ø60 mm
- 536.577.99 sloped nozzle
dpvlink
13577

528.55 CHF
The image displays a metallic telescope tube mounted at an angle on a holder. It features a shiny silver surface, a black lens rim, and an adjustable mount.
Double extraction arm 1 joint
Easy-click-60 articulated extraction arm ESD-safe
with shut-off valve and table clamp set
(without accessories)
dpvlink
13577

272.70 CHF
The image shows an accessory optical part, usually black and silver in color. It has a cylindrical shape with a coarser, rubberized grip and a chrome-plated adjustment knob.
Easy Click 60 WFV stop valve
WFE valve for extraction arm
for regulating the airflow in
articulated extraction arm 536 598.99
dpvlink
15097

115.85 CHF
The image shows a flexible, corrugated hose in a U-shape. It has black transitions at both ends and a gray striped surface.
Easy-Click 60 extraction hose
Extraction hose 60, diameter 60
Length 3 m, grey/black, flexible
Quick coupling
dpvlink
15097

105.25 CHF
The image shows a silver, metallic part with two tubes connected at an angle. It has black rubber grips and a black adjustment knob in the center.
Extension rotating joint
Easy-click-60 Pivoting extension joint

(without accessories)
dpvlink
13577

202.15 CHF
The image shows a telescope. It has a silver, cylindrical body with black ends. There is an adjustable mount on the bottom that stabilizes it.
Extraction arm with ball joint
Easy-click-60 articulated extraction arm
with stop valve and ball joint clamp
(without accessories)
dpvlink
13577

285.35 CHF
The image displays a silver device resembling a telescope. It features a cylindrical body, a black mounting element, and a round, tapered opening at one end.
Extraction arm 1 joint for wall mounting
Easy-click-60 extraction arm wall mount
with stop valve and table clamp set
(without accessories)
dpvlink
13577

458.00 CHF
The image shows a telescopic extension with two elongated tubes made of silver metal. The tubes are attached at a joint and have black eyelets at the ends. There is a mount at the bottom.
Double extraction arm 1 joint
Easy-click-60 articulated double extraction arm
ESD-safe with shut-off valve and table clamp set
(without accessories)
dpvlink
13577

528.55 CHF
The image shows a silver, cylindrical object with a wide, open end and a black, round connector at one end. It appears metallic and smooth.
Easy-Click 60 sloped nozzle
Suction nozzle ESD metal diameter 50 mm
Length 130 mm, suitable for extraction arms
with flexible hose
dpvlink
15097

47.35 CHF
The image displays a silver exhaust with a black edge. At the front, there is a round, metallic grille insert visible that protects the opening.
Easy-Click 60 sloped nozzle with grill insert...
Suction nozzle ESD metal D = 50 mm, with mesh
Length 130 mm, suitable for extraction arms
with flexible hose
dpvlink
15097

85.30 CHF
The image shows a triangular, black object with a round opening in the middle. It has a smooth surface and a slightly curved shape that resembles a funnel.
Easy-Click 60 nozzle
Suction nozzle ESD 190 x 100 mm, black
with quick adapter diameter 60 mm, for the
connection to extraction arms with flexible hose
dpvlink
15097

65.30 CHF
The ring is made of metallic material, has a matte surface, and is cylindrical. It is hollow inside and has a uniform, smooth structure. The edges are clean and even.
Adapter
Z Adapter ESD
for mounting suction nozzles with
quick adapter 60 mm on fixed extraction arms
dpvlink
15097

65.30 CHF
The image displays a flexible, corrugated hose in black. It features smooth openings at both ends and is shaped in an arc. Ideal for connecting to devices or apparatuses.
Extraction arm, flexible 1m
Extraction arm, flexible, 60 mm diameter
for sloped and funnel-shaped nozzles
Length max. 1 m, ESD safe
dpvlink
15097

96.85 CHF
The image shows a black component with a round base and a conical body. In the middle, there is a white ring. It appears to be a part possibly intended for pipe or hose connections.
Easy-Click 60 extraction hose straight
Hose connection WFE Easy Click, straight
Ø 60 mm
dpvlink
15097

24.10 CHF
The image displays a T-shaped object in silver and black, with three round, solid sections. It has screws visible on the surface. The structure appears sturdy.
Easy-Click 60 T-piece
T-piece WFE Easy Click 60
dpvlink
15097

122.15 CHF
The image shows a flexible vacuum cleaner arm. It has a metallic body that transitions into a long, black hose. The hose ends in a wide, open nozzle.
Extraction arm KIT 1S WF joint arm with funnel...
Kit 1S WF funnel, Easy-Click-60 1 joint
aluminium arm with funnel nozzle 230 x 100 mm,
Shut-off valve, full length 1.20 m
consisting of:
- 587.627.47 1 joint arm with valve and table clamp set
- 536.576.99 flexible suction hose 3 m
- extraction arm dm 60 mm, length 0.7 m
- 536.573.99 funnel nozzle
dpvlink
13577

413.75 CHF
The image shows a flexible, black hose with a silver end. The hose is slightly curved and has a holder at the base, which is used for attachment.
Extraction arm KIT 1 WF nozzle
WFE Kit 1 nozzle 60 Easy-Clic-60 extraction arm
with sloped nozzle, stop valve, kit flexible
consisting of:

- stop valve with table clamp kit 536.574.99
- extraction hose 3 m 700-3051-ESD
- sloped nozzle 536.577.99
- extraction arm 0F10
dpvlink
13577

286.40 CHF
The image shows a black light modifier shaped like a funnel. It has a wide, flat rim and a narrower opening at the top, with an attachment option.
Easy-Click 60 ESD funnel-shaped nozzle
ALFA Funnel Nozzle
Easy-Click 60 Funnel Nozzle
for flexible and articulated extraction arms
Width 230 mm, height 100 mm.
For attachment to an aluminium extraction arm without a flexible suction hose, the adapter Z is required.
dpvlink
15097

48.45 CHF
The image displays a telescope accessory: a black and white sight with a circular end, alongside two metallic C-shaped brackets. All parts provide stability.
Easy Click 60 stop valve
WFV 60 stop valve
incl.2 table clamps
dpvlink
15097

149.50 CHF
The image displays two silver metal clips. Each has a C-shape with a long, straight shaft and a small, triangular end. They are arranged next to each other.
Table clamp set
Table clamp set (2 metal clamps 100 mm)
dpvlink
15097

28.55 CHF
The image shows a round, silver exhaust pipe with a black bracket. It has a smooth surface and a slightly tapered opening on one side.
WF 60 sloped nozzle
WF 60 sloped nozzle for flexible and
joint extraction arm
dpvlink
15097

42.15 CHF
A flexible, black hose with a wide opening on one side and a narrower one on the other. It has a ribbed surface and an arched shape.
ESD sloped aluminium nozzle WF 32
WF32 microscope extraction arm
Ø 32 mm with high flexibility,
incl. beveled nozzle
ESD compliant
dpvlink
15097

147.40 CHF
The image displays a flexible, silver arm of a swivel or projection device. It has distinct joints and a mount that is attached to a table.
Double extraction arm 2 joints
WF aluminium tripod extraction arm
dpvlink
13577

323.25 CHF
The image shows a smoke extraction device. It has a large, gray body with several openings on top. A flexible hose leads to an open, black exit area.
Zero Smog 4V Kit1 funnel
Zero Smog 4V Kit 1 funnel
Portable volume extraction unit
for 1 workstation, with filter H13 and
wide band gas filter (50% activated carbon/50%
Chemisorb)
fine dust filter F7
max capacity 4 workstations
comprising: 536.606.99 Zero Smog 4V
536.571.99 KIT 1 WF funnel for volume extraction, incl set for table mounting
dpvlink
16615

2,393.15 CHF
The image displays a device for extracting vapors. It features a rectangular, silver-colored body with four openings on top and a flexible, hose-like outlet pointing to the right.
Zero Smog 4V Kit1 nozzle
Zero Smog 4V Kit 1 nozzle
Portable volume extraction unit
for 1 workstation with filter H13 and wide band
gas filter (50% activated carbon/50% Chemisorb)
fine dust filter F7
max. capacity 4 workstations:
536.606.99 Zero Smog 4V
536.572.99 2x KIT 1 WF beveled nozzle for volume extraction
536.574.99 throttle
536.575.99 table mounting set
536.576.99 extraction hose
dpvlink
16611

2,393.15 CHF
The image shows a smoke extraction device with a rectangular, gray casing and two black, flexible hoses that are bent upwards providing exhaust air.
Zero Smog 4V Kit1 funnel
Zero Smog 4V Kit 1 funnel
Portable volume extraction unit
for 2 workstations with filter H13 and wide band
gas filter (50% activated carbon/50% Chemisorb)
fine dust filter F7
max. capacity 4 workstations:
536.606.99 Zero Smog 4V
536.571.99 2x KIT 1 WF funnel for volume extraction, incl. set for table mounting
dpvlink
16617

2,647.90 CHF
The image displays a gray device labeled "FT ZERO SMOG Series" with two flexible hoses. The hoses are black, and one ends in a flat nozzle.
Zero Smog 4V Kit2
Zero Smog 4V Kit 1 nozzle
Portable volume extraction unit
for 2 workstations with filter H13 and wide band
gas filter (50% activated carbon/50% Chemisorb)
fine dust filter F7
max. capacity 4 workstations:
536.606.99 Zero Smog 4V
536.572.99 2x KIT 1 WF beveled nozzle for volume extraction
including table mounting set
dpvlink
16613

2,647.90 CHF
The image displays a rectangular black frame holding several stacked, folded filters in soft red and pink hues. The filters are soft and lightweight.
Bag filter F7 for Zero Smog 4V and 6V
Bag filter F7 for large amounts of dust
dpvlink
19148

88.45 CHF
The image displays a trapezoidal waste bin. It features a sturdy, silver frame at the top and is covered with green, soft material that tapers to a point at the bottom.
Non-woven filter for Zero Smog 4V and 6V
Bag filter for sticky residues
(e.g. large amounts of flux)
dpvlink
19148

111.60 CHF
The image shows a black, cylindrical object with a thick, round end and a narrower, straight end. A white seal is visible, marking the transition between the parts.
Adapter 40/60
Adapter 40 / 60 mm for WFE
dpvlink
15097

68.40 CHF
The image shows a black, cylindrical adapter with a divided surface. Next to it are two oval rubber rings that serve as seals.
50/60 Hose connection adapter
Adapter 50 / 60 mm for WFE
dpvlink
15097

9.10 CHF
The image shows a cylindrical object with black ends and a white middle section. It has a smooth, solid handle and a small button on the side.
Easy-Click 60 double plug-in connection
Extraction hose adapter diameter 60
for hose extension
dpvlink
15097

38.95 CHF
The image shows a flexible, corrugated hose in a U-shape. It has black transitions at both ends and a gray striped surface.
Easy-Click 60 extraction hose
Connecting hose with quick connector (ESD)
(Diameter 65 mm) length: 2 m
dpvlink
15097

86.35 CHF

This product is similar to:

The image displays a square, brown cardboard box with a black plastic frame. At the top, a white, textured surface is visible. On the front, there is a label with technical information.
Compact filters for Zero Smog 4V
Compact filter
for WFE 2S, WFE 2Kit1, WFE 2Kit2
consisting of EPA particle filter H13
Particle sizes < 0.5 µm
and wide band gas filter
(50% activated carbon, 50% Chemisorb)
according to DIN EN 1822
dpvlink
19148

300.10 CHF
The image displays a gray device labeled "FT ZERO SMOG Series" with two flexible hoses. The hoses are black, and one ends in a flat nozzle.
Zero Smog 4V Kit2
Zero Smog 4V Kit 1 nozzle
Portable volume extraction unit
for 2 workstations with filter H13 and wide band
gas filter (50% activated carbon/50% Chemisorb)
fine dust filter F7
max. capacity 4 workstations:
536.606.99 Zero Smog 4V
536.572.99 2x KIT 1 WF beveled nozzle for volume extraction
including table mounting set
dpvlink
16613

2,647.90 CHF
The image displays a square, flat object in white. The surface is even and soft, possibly a cushion or a mat. It has no discernible patterns or textures.
Fine dust filter F5 for Zero Smog 4V
Fine dust filter M5
Particle size to 100 µm
(Pu = 10 pcs)
according to DIN EN 779
dpvlink
19148

53.70 CHF
The image shows a square, silver device with three round openings on top. There is a digital control panel with buttons and displays at the front. It has two side handles and wheels.
Zero Smog 6V for adhesive vapors
Zero Smog 6V, mobile extraction unit 230V / 50 Hz
for volume extraction with built-in turbine
compact filter for adhesive fumes consisting of:
wide band gas filter
(50% activated carbon/50% Puratex)
fine dust filter F7
max. capacity 8 workstations
dpvlink
17100

4,338.85 CHF
