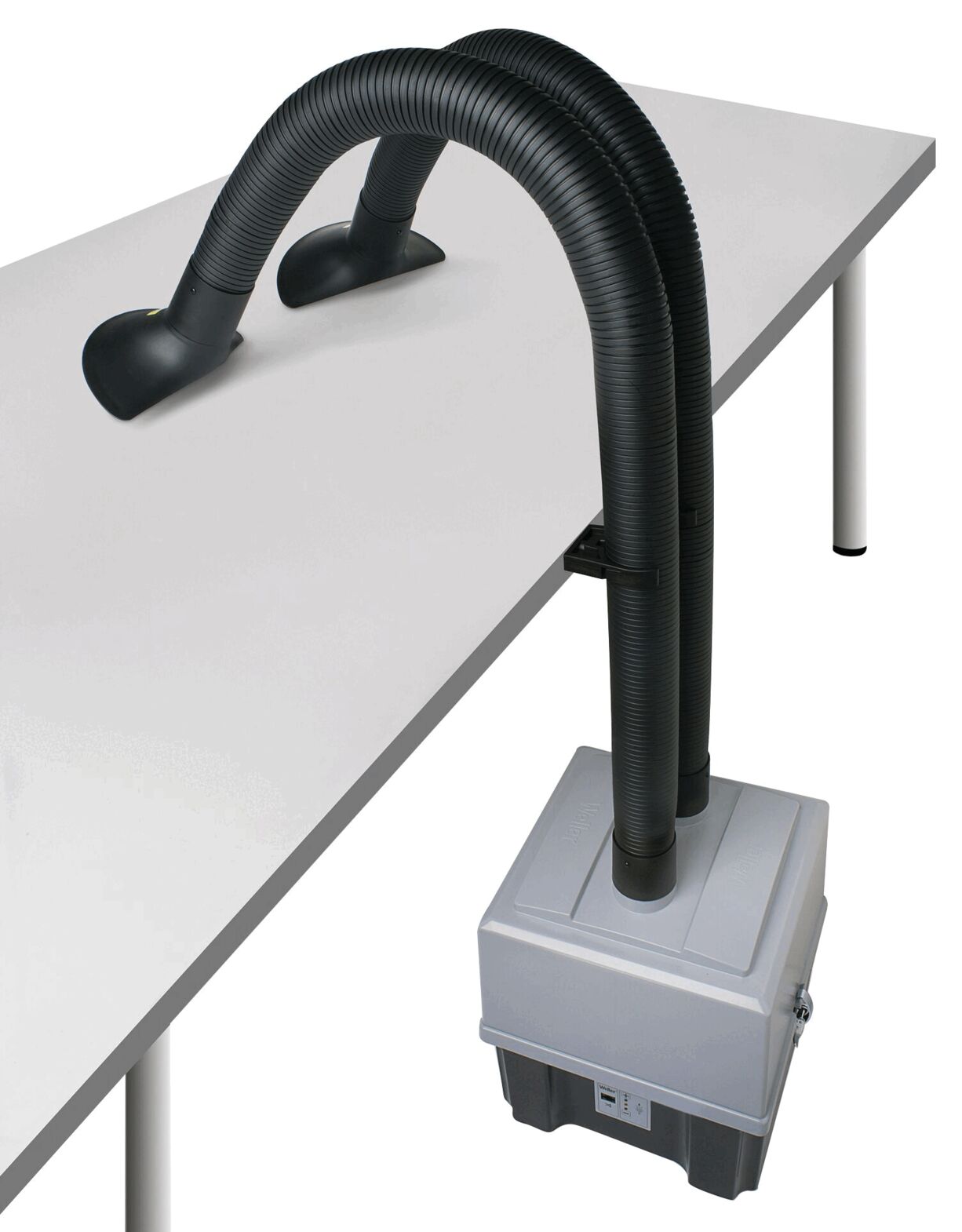

The image shows a device with two long, flexible hose arms extending from a rectangular casing on a table. The hoses are black and curved.
The image displays a glossy black device with a button on the front and a cable extending to the right. It is a remote control named "ZSRS Zero Smog Remote".
Preview: The image shows a device with two long, flexible hose arms extending from a rectangular casing on a table. The hoses are black and curved.
Preview: The image displays a glossy black device with a button on the front and a cable extending to the right. It is a remote control named "ZSRS Zero Smog Remote".
Zero Smog TL Kit 2 FN
(Product No.: FT91017699)
The image shows a device with two long, flexible hose arms extending from a rectangular casing on a table. The hoses are black and curved.
The image displays a glossy black device with a button on the front and a cable extending to the right. It is a remote control named "ZSRS Zero Smog Remote".
Mobile Preview: The image shows a device with two long, flexible hose arms extending from a rectangular casing on a table. The hoses are black and curved.
Mobile Preview: The image displays a glossy black device with a button on the front and a cable extending to the right. It is a remote control named "ZSRS Zero Smog Remote".
Notice / Inquire

Zero Smog TL Kit 2 FN

Zero Smog TL Kit 2 FN

dpvlink:
20604
Further product information

1,298.15 CHF

excl. 8.1% tax

1 PCE
Compare Compare
Notice / Inquire
Product Info

Zero Smog TL Kit 2 FN

The Zero Smog TL Kit 2 FN from Weller is a high-performance, portable solder fume extraction unit designed for effective pollutant capture right at the source. With a width of 355 mm, height of 455 mm, and length of 330 mm, this device combines compact dimensions with a strong suction power of 120 W and operates remarkably quietly at just 50 dB. The device weighs 9 kg and is powered by a voltage of 220 - 240 V.
The kit includes the FT91013699 Zero Smog TL extraction unit, the FT91000033 ZSRS Zero Smog Remote with a range of 2 meters, a flexible extraction arm, two ALFA funnel nozzles, and two mounting clamps with a diameter of 63 mm. Thanks to the Easy-Click System, the device can be quickly and easily assembled, and the separately replaceable pre-filter guarantees a particularly long filter life. An optical and acoustic indicator informs about the necessary filter change.
Thanks to the angled metal nozzle and the additional ALFA funnel nozzles, the device can be used effectively both for pinpoint accuracy and over larger areas. Ideal for technical work environments where precision and cleanliness are crucial.
Noise level
Noise level
50 dB
Power
Power
120 W
Voltage
Voltage
220 - 240 V
Height
Height
455 mm
Length
Length
330 mm
Width
Width
355 mm
Weight
Weight
9 kg
Show accessories
Accessories

Accessories

The image shows a square box made of brown cardboard with a white, diamond-shaped grid pattern on the top. Label on the side reads "Weller".
Particulate filter F7 for Zero Smog TL
Particulate filter F7 for Zero Smog TL
PU = 10 pieces
dpvlink
19148

86.35 CHF
Show product
The image shows a rectangular, flat plate in a bright, orange color. The surface appears somewhat uneven and fibrous, with no discernible patterns or details.
Filter set for Zero Smog TL
Prefilter for WFE 2ES
10 pieces / PU
dpvlink
19148

245.30 CHF
Show product

Spares

The image shows a compact, square device with a white upper part and a black lower part. At the top, there is a round outlet and a lid. On the front, there are buttons and a display.
Zero Smog TL
Zero Smog TL solder fume extraction unit
with filter level display
120 W , 220-240V - 50/60 Hz.
dpvlink
20593

1,059.20 CHF
Show product
Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 630
Complete Catalog 2023 - 2024

Product Family

Zero Smog TL solder fume extraction kits

The Weller Zero Smog TL kits are complete solutions for solder fume extraction that have been specially put together for various workplace requirements. These kits contain all the necessary components to ensure efficient extraction of soldering and adhesive fumes and improve the air quality in the workplace. The kits contain the Zero Smog TL extraction unit and, depending on the version, 1 or 2 extraction arms and various nozzles (funnel nozzle or beveled nozzle).

  • Economical extraction for cleaning the air at 1 - 2 workstations
  • Fine dust pre-filter F7 and extra-large HEPA H13 filter surface with 2.4 m² for particularly long filter service life
  • Variable power control to adapt the extraction power to specific requirements
  • Low noise emission level for quiet working areas (< 50 dB)
  • Automatic filter change notification system (visual and audible)
  • Easy to operate and simple filter change
  • 1 or 2 flexible extraction arms
  • with funnel nozzle(s) or beveled nozzles
  • Shut-off valve with table mounting or mounting clamps

Article image
Article description
Noise level
Power
Voltage
Height
Length
Width
Weight
Price
Compare
FT91015699 - Zero Smog TL Kit 1 FN
FT91015699
Zero Smog TL Kit 1 FN
50 dB
120 W
220 - 240 V
455 mm
330 mm
355 mm
9 kg
1,286.60 CHF
FT91017699 - Zero Smog TL Kit 2 FN
FT91017699
Zero Smog TL Kit 2 FN
50 dB
120 W
220 - 240 V
455 mm
330 mm
355 mm
9 kg
1,298.15 CHF
FT91016699 - Zero Smog TL Kit 2 SN
FT91016699
Zero Smog TL Kit 2 SN
50 dB
120 W
220 - 240 V
455 mm
330 mm
355 mm
9 kg
1,284.45 CHF
