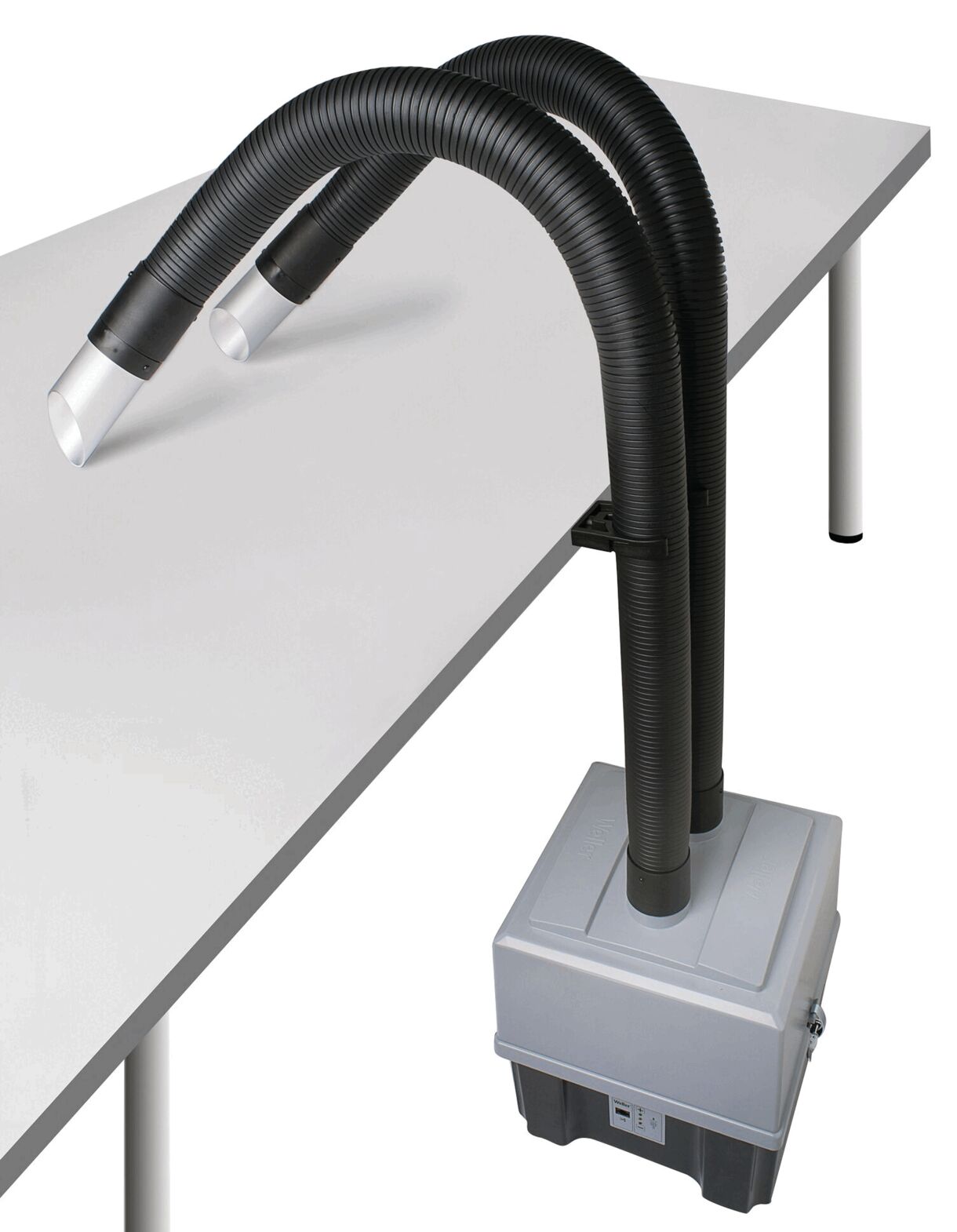

The image shows a device with two flexible hose arms extending from a square casing on a table. The hoses are black and round at the ends.

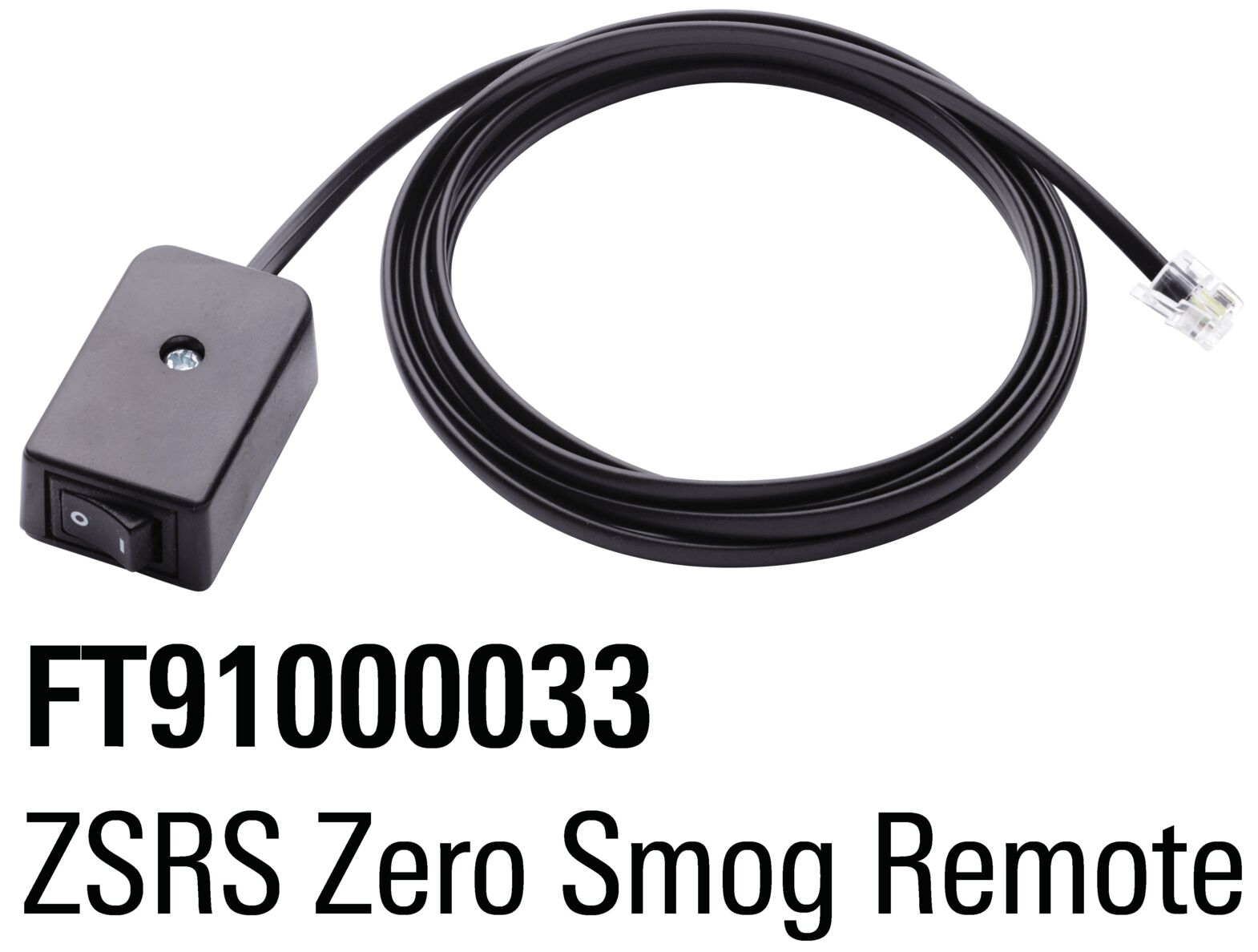

The image displays a glossy black device with a button on the front and a cable extending to the right. It is a remote control named "ZSRS Zero Smog Remote".
Preview: The image shows a device with two flexible hose arms extending from a square casing on a table. The hoses are black and round at the ends.
Preview: The image displays a glossy black device with a button on the front and a cable extending to the right. It is a remote control named "ZSRS Zero Smog Remote".
Zero Smog TL Kit 2 SN
(Product No.: FT91016699)
The image shows a device with two flexible hose arms extending from a square casing on a table. The hoses are black and round at the ends.
The image displays a glossy black device with a button on the front and a cable extending to the right. It is a remote control named "ZSRS Zero Smog Remote".
Mobile Preview: The image shows a device with two flexible hose arms extending from a square casing on a table. The hoses are black and round at the ends.
Mobile Preview: The image displays a glossy black device with a button on the front and a cable extending to the right. It is a remote control named "ZSRS Zero Smog Remote".
Notice / Inquire

Zero Smog TL Kit 2 SN

Zero Smog TL Kit 2 SN

dpvlink:
20604
Further product information

1,284.45 CHF

excl. 8.1% tax

1 PCE
Compare Compare
Notice / Inquire
Product Info

Zero Smog TL Kit 2 SN

The Weller Zero Smog TL Kit 2 SN is a high-performance, portable solder fume extraction unit that can be quickly and easily set up thanks to its Easy-Click System. The angled metal nozzle allows for precise capture of pollutants right at the source. For larger areas, the Alfa funnel nozzle is ideal. This system is characterized by strong suction power and particularly long filter life. An innovative notification system alerts both visually and acoustically when a filter change is necessary, with the pre-filter being replaceable separately.
The dimensions of the device are 355 mm in width, 455 mm in height, and 330 mm in length. Weighing 9 kg and with a noise level of only 50 dB, the device is both quiet and easy to handle. The electrical power is 120 W with a voltage of 220 - 240 V. The package includes the extraction unit, a flexible extraction arm, two angled metal nozzles with a diameter of 60 mm, and two mounting clamps with a diameter of 63 mm.
Noise level
Noise level
50 dB
Power
Power
120 W
Voltage
Voltage
220 - 240 V
Height
Height
455 mm
Length
Length
330 mm
Width
Width
355 mm
Weight
Weight
9 kg
Show accessories
Accessories

Accessories

The image shows a square box made of brown cardboard with a white, diamond-shaped grid pattern on the top. Label on the side reads "Weller".
Particulate filter F7 for Zero Smog TL
Particulate filter F7 for Zero Smog TL
PU = 10 pieces
dpvlink
19148

86.35 CHF
Show product
The image shows a rectangular, flat plate in a bright, orange color. The surface appears somewhat uneven and fibrous, with no discernible patterns or details.
Filter set for Zero Smog TL
Prefilter for WFE 2ES
10 pieces / PU
dpvlink
19148

245.30 CHF
Show product

Spares

The image shows a compact, square device with a white upper part and a black lower part. At the top, there is a round outlet and a lid. On the front, there are buttons and a display.
Zero Smog TL
Zero Smog TL solder fume extraction unit
with filter level display
120 W , 220-240V - 50/60 Hz.
dpvlink
20593

1,059.20 CHF
Show product
Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 630
Complete Catalog 2023 - 2024

Product Family

Zero Smog TL solder fume extraction kits

The Weller Zero Smog TL kits are complete solutions for solder fume extraction that have been specially put together for various workplace requirements. These kits contain all the necessary components to ensure efficient extraction of soldering and adhesive fumes and improve the air quality in the workplace. The kits contain the Zero Smog TL extraction unit and, depending on the version, 1 or 2 extraction arms and various nozzles (funnel nozzle or beveled nozzle).

  • Economical extraction for cleaning the air at 1 - 2 workstations
  • Fine dust pre-filter F7 and extra-large HEPA H13 filter surface with 2.4 m² for particularly long filter service life
  • Variable power control to adapt the extraction power to specific requirements
  • Low noise emission level for quiet working areas (< 50 dB)
  • Automatic filter change notification system (visual and audible)
  • Easy to operate and simple filter change
  • 1 or 2 flexible extraction arms
  • with funnel nozzle(s) or beveled nozzles
  • Shut-off valve with table mounting or mounting clamps

Article image
Article description
Noise level
Power
Voltage
Height
Length
Width
Weight
Price
Compare
FT91015699 - Zero Smog TL Kit 1 FN
FT91015699
Zero Smog TL Kit 1 FN
50 dB
120 W
220 - 240 V
455 mm
330 mm
355 mm
9 kg
1,286.60 CHF
FT91017699 - Zero Smog TL Kit 2 FN
FT91017699
Zero Smog TL Kit 2 FN
50 dB
120 W
220 - 240 V
455 mm
330 mm
355 mm
9 kg
1,298.15 CHF
FT91016699 - Zero Smog TL Kit 2 SN
FT91016699
Zero Smog TL Kit 2 SN
50 dB
120 W
220 - 240 V
455 mm
330 mm
355 mm
9 kg
1,284.45 CHF
Show Compare List (0)

This product is compatible with (for example):

The image shows a compact, square device with a white upper part and a black lower part. At the top, there is a round outlet and a lid. On the front, there are buttons and a display.
Zero Smog TL with gas filter
Zero Smog TL solder fume extraction unit
with gas filter art. 587.359.38
power 120 W , 220-240V - 50/60 Hz.
dpvlink
20593

1,146.60 CHF
Show product

This product is similar to:

The image shows a soldering iron with a gray handle and a pointed soldering tip. Next to it is a soldering iron stand with a metal cleaning spiral and a sponge area.
WXP 200 Soldering iron set
WXP 200 soldering iron set 200 W
with soldering tip XHT D
and safety rest WDH 31
dpvlink
15694

322.20 CHF
Show product
The image shows a soldering iron with a black handle and a metallic tip. The iron has a power cord attached to the handle.
WP 200 soldering iron 200 W
WP 200 soldering iron 200W
with soldering tip XHT 5 x 1.2 mm
dpvlink
8307

306.40 CHF
Show product

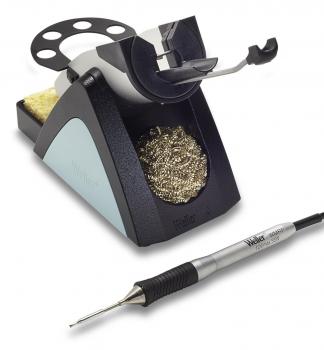

The image shows a soldering iron with a slim, silver body and a black grip area. There is an opening at the tip, and the cable is attached at one end.
