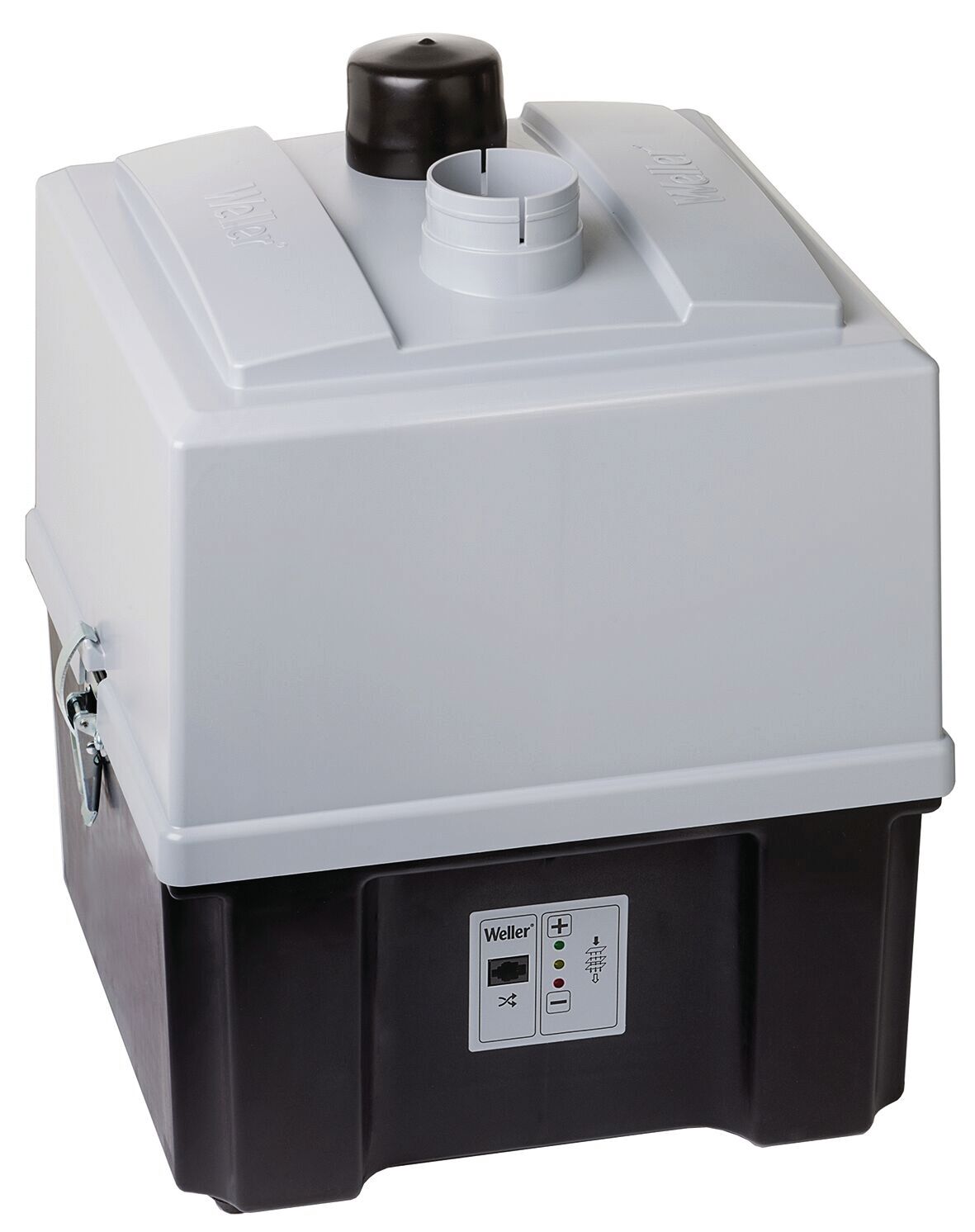

The image shows a compact, square device with a white upper part and a black lower part. At the top, there is a round outlet and a lid. On the front, there are buttons and a display.
Zero Smog TL
(Product No.: FT91013699)
The image shows a compact, square device with a white upper part and a black lower part. At the top, there is a round outlet and a lid. On the front, there are buttons and a display.
Notice / Inquire

Zero Smog TL

Zero Smog TL

dpvlink:
20593
Further product information

1,059.20 CHF

excl. 8.1% tax

1 PCE
Compare Compare
Notice / Inquire
Product Info

Zero Smog TL

The Weller Zero Smog TL is an advanced solder fume extraction unit, ideally suited for use in industrial or electronic repair environments due to its compact shape. With a width of 355 mm, a height of 455 mm, and a length of 330 mm, as well as a weight of 9 kg, this device can easily be positioned under or next to workstations.
Equipped with an efficient H13 particle filter and a pre-filter F7, the device offers a filter surface area of 2.4 m², which contributes to particularly long filter life. The variable power control allows for adjustment of the extraction performance to specific needs, while the noise level of 50 dB ensures a quiet working environment.
For optimal functionality and flexibility, the device is compatible with the Easy Click 60 system and requires the WT Hub T0058768767 for connection with a WX or WT station. An automatic notification system for filter changes increases user-friendliness and efficiency. With a power of 120 W and a voltage of 220 - 240 V, the Zero Smog TL is an economical solution to significantly improve air quality at up to two workstations.
Noise level
Noise level
50 dB
Power
Power
120 W
Voltage
Voltage
220 - 240 V
Height
Height
455 mm
Length
Length
330 mm
Width
Width
355 mm
Weight
Weight
9 kg
Show accessories
Accessories

Accessories

The image shows a square box made of brown cardboard with a white, diamond-shaped grid pattern on the top. Label on the side reads "Weller".
Particulate filter F7 for Zero Smog TL
Particulate filter F7 for Zero Smog TL
PU = 10 pieces
dpvlink
19148

86.35 CHF
Show product
The image shows a rectangular, flat plate in a bright, orange color. The surface appears somewhat uneven and fibrous, with no discernible patterns or details.
Filter set for Zero Smog TL
Prefilter for WFE 2ES
10 pieces / PU
dpvlink
19148

245.30 CHF
Show product
Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Product Family

Zero Smog TL solder fume extraction

The Weller Zero Smog TL is a compact and efficient solder fume extractor that ensures clean air in workspaces. It has a combination of H13 and F7 filters that effectively capture harmful particles and gases. The system operates at a low noise level and offers a variable speed setting, making it suitable for up to two workstations.

The Zero Smog TL is available in two different versions with a compact filter or fine dust filter.

  • Economical extraction for cleaning the air at 1 - 2 workstations
  • Variable power control to adapt the extraction power to specific requirements
  • Low noise emission level for quiet working areas (< 50 dB)
  • Automatic filter change notification system (visual and audible)
  • Easy to operate and simple filter change
  • Compact filter (HEPA + activated carbon granulate or fine-dust filter

Article image
Article description
Noise level
Power
Voltage
Height
Length
Width
Weight
Price
Compare
FT91013699 - Zero Smog TL
FT91013699
Zero Smog TL
50 dB
120 W
220 - 240 V
455 mm
330 mm
355 mm
9 kg
1,059.20 CHF
FT91014699 - Zero Smog TL with gas filter
FT91014699
Zero Smog TL with gas filter
50 dB
120 W
220 - 240 V
455 mm
330 mm
355 mm
9 kg
1,146.60 CHF
Show Compare List (0)

This product is compatible with (for example):

The image displays a gray device with a rounded lid and a hose that curves upward in an arch-like shape. The hose features a wide, open nozzle.
Zero Smog TL Kit 1 FN
Zero Smog TL Kit 1 FN solder fume extraction unit
with filter level display
power 120 W , 220-240V - 50/60 Hz.
consisting of:
- FT91013699 solder fume extraction unit Zero-Smog TL
- FT91000033 ZSRS Zero Smog Remote Switch
- 0F10 Flexible extraction arm
- ALFA ALFA funnel nozzle
- shut-off valve with table clamp
- 700-3051-ESD suction hose 3 m
dpvlink
20604

1,286.60 CHF
Show product
The image shows a device with two flexible hose arms extending from a square casing on a table. The hoses are black and round at the ends.
Preview: Zero Smog TL Kit 2 SN
Preview: The image displays a glossy black device with a button on the front and a cable extending to the right. It is a remote control named
Zero Smog TL Kit 2 SN
Zero Smog TL Kit 2 SN solder fume extraction unit
with filter level display
power 120 W , 220-240V - 50/60 Hz.
consisting of:
- 1x FT91013699 solder fume extraction unit Zero-Smog TL
- 1x FT91000033 ZSRS Zero Smog Remote Switch
- 2x 0F15 Flexible extraction arm
- 2x FT-NL metal nozzle sloped diameter 60 mm
- 2 x 587.628.46 mounting clamp diameter 63 mm
dpvlink
20604

1,284.45 CHF
Show product
The image shows a device with two long, flexible hose arms extending from a rectangular casing on a table. The hoses are black and curved.
Preview: Zero Smog TL Kit 2 FN
Preview: The image displays a glossy black device with a button on the front and a cable extending to the right. It is a remote control named
Zero Smog TL Kit 2 FN
Zero Smog TL Kit 2 FN solder fume extraction unit
with filter level display
power 120 W , 220-240V - 50/60 Hz.
consisting of:
- 1x FT91013699 solder fume extraction unit Zero-Smog TL
- 1x FT91000033 ZSRS Zero Smog Remote Switch
- 2x 0F15 Flexible extraction arm
- 2x ALFA ALFA funnel nozzle
- 2 x 587.628.46 mounting clamp diameter 63 mm
dpvlink
20604

1,298.15 CHF
Show product

This product is similar to:

The image shows a square box made of brown cardboard with a white, diamond-shaped grid pattern on the top. Label on the side reads "Weller".
Particulate filter F7 for Zero Smog TL
Particulate filter F7 for Zero Smog TL
PU = 10 pieces
dpvlink
19148

86.35 CHF
Show product
The image displays a black digital temperature control device with a blue display. It has buttons for temperature adjustment and currently shows 350 °C. The brand "Weller" is clearly visible.
Preview: WT 1M Supply unit
Preview: The image displays a compact device in mint green and black. It features a flat side with a grid-like pattern and a rounded shape. A vent is visible on the side.
Preview: The image shows a device in a combination of light blue and black. It has a rectangular shape with a textured upper area and a round dial on the side.
Preview: The image displays a compact device with a turquoise top and a black bottom. It features a continuously ridged back and a connector on the right side.
WT 1M Supply unit
WT1M 1-channel supply unit
95W, 230V
dpvlink
30397

367.45 CHF
Show product
The image displays a tattoo machine with a metal grip and a cable connected to a colored base. The base features a round cutout and a dark color.
WXDP 120 Solderin iron set
WXDP 120 desoldering set 120 W with WDH 70 rest
dpvlink
16463

411.70 CHF
Show product
The image shows a soldering iron set: A soldering iron with a black handle and metal tip, connected by a cable. Next to it is a stand with a sponge and a small metal brush for cleaning.
DSX 80 desoldering iron set
DSX 80 desoldering iron Kit, 80 W / 24 V
with desoldering iron DSX80, safety rest WDH 30,
suction nozzle DX 112 + DX 113, cleaning kit and
seal for glass container
dpvlink
3856

407.45 CHF
Show product
