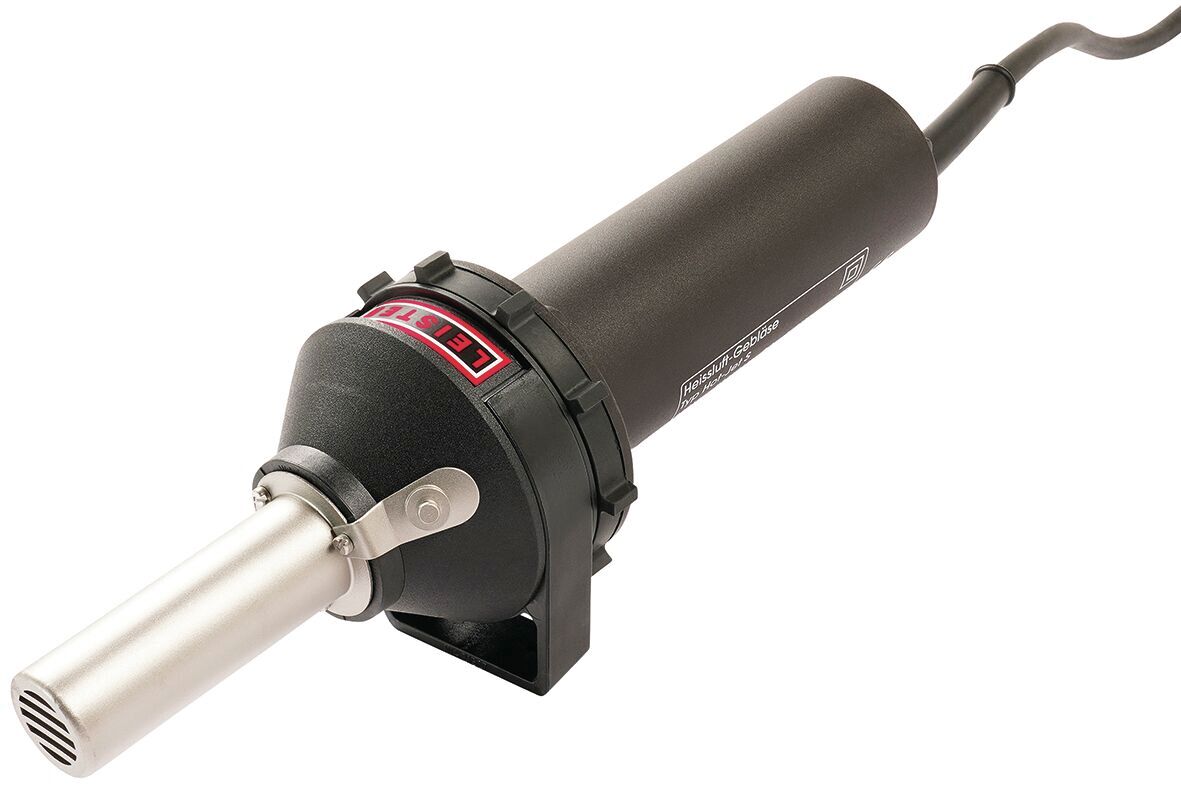

The image shows a hot air gun. It is slim, with a black casing and a long, silver air outlet. On the side, there are controls for temperature regulation.
Preview: The image shows a hot air gun. It is slim, with a black casing and a long, silver air outlet. On the side, there are controls for temperature regulation.
Preview: Image
HOT-JET-S hot air soldering device (without nozzles)
(Product No.: 300.100)
The image shows a hot air gun. It is slim, with a black casing and a long, silver air outlet. On the side, there are controls for temperature regulation.
Mobile Preview: The image shows a hot air gun. It is slim, with a black casing and a long, silver air outlet. On the side, there are controls for temperature regulation.
Mobile Preview: Image
Notice

HOT-JET-S hot air soldering device (without nozzles)

HOT-JET-S hot air soldering device (without nozzles)

dpvlink:
3884
Properties:
Further product information

693.80 CHF

excl. 8.1% tax

1 PCE
Compare Compare
Notice
Product Info

HOT-JET-S hot air soldering device (without nozzles)

The HOT-JET-S hot air soldering device from Leister is characterized by its compact and lightweight design, making it one of the most handy devices on the market with a weight of only 580g. It is specifically designed for precise and professional applications, offering a continuous temperature control from 20°C to 600°C and an equally precise adjustable air volume from 20 to 80 l/min.
The ergonomic design and balanced handle ensure comfortable handling and increased precision during work. A powerful 460 W heater allows for quick and effective heating of materials, while the integrated electronics ensure consistent performance and temperature, enhancing the quality and reliability of the welds.
Additional safety is provided by the overheating protection, which extends the life of the device. With a noise level of only 56 dB(A), working with the HOT-JET-S is pleasantly quiet. The device is compatible with various nozzles and accessories and can be grounded via a push button, making it safe for ESD-sensitive components.
The dimensions of the device are 230 mm in length and 40 mm in diameter of the handle, and it comes with a 3.0 m long power cable.
Connector
Connector
connector plug
Noise level
Noise level
56
Power
Power
460 W
Power cable length
Power cable length
3.0 m
Voltage
Voltage
230 V
Length [mm]
Length
230 mm
Width [mm]
Width
40 mm
Hot air max. per minute
Hot air max. per minute
20 - 80 l
Temperature range
Temperature range
20 - 600 °C
Weight [g]
Weight
580
Show accessories
Pictograms
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.

Accessories

Accessories

Sieve reflector 20 x 35 mm
Sieve reflector 20 x 35 mm (shrink)
dpvlink
14182

111.40 CHF
Sieve reflector 34 x 50 mm
Sieve reflector 34 x 50 mm (shrink)
dpvlink
14182

137.15 CHF
Spoon reflector 25 x 30 mm
Spoon reflector 25 x 30 mm (shrink)
dpvlink
14185

61.00 CHF
Tubular nozzle 5 mm (standard) for HOT-JET-S...
31 Normal nozzle d = 5 mm
Type 107.144
dpvlink
3888

61.00 CHF
Soldering nozzle Ø 2 mm, round for HOT-JET-S...
31A2 soldering nozzle d = 2 mm
Type 107.146
dpvlink
3888

81.90 CHF
Soldering nozzle 3 x 1.5 mm, oval for HOT-JET-S...
31A4 soldering nozzle 3 x 1.5 mm oval
dpvlink
3888

61.00 CHF
Soldering nozzle Ø 4 mm, round for HOT-JET-S...
31C1 soldering nozzle d = 4 mm
dpvlink
3888

61.00 CHF
Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 619
Complete Catalog 2023 - 2024

Product Family

Article image
Article description
Connector
Noise level
Power
Power cable length
Voltage
Length [mm]
Width [mm]
Price
Compare
300.100 - HOT-JET-S hot air soldering device (without nozzles)
300.100
HOT-JET-S hot air soldering device (without nozzles)
connector plug
56
460 W
3.0 m
230 V
230 mm
40 mm
693.80 CHF
