The picture shows a soldering station with a blue device, digital display, and temperature control. It includes a soldering iron, a holder for the iron, and a smoke-free rest.
WAD 101 Hot air station (compressed air operation)
(Product No.: 532.666.99)
The picture shows a soldering station with a blue device, digital display, and temperature control. It includes a soldering iron, a holder for the iron, and a smoke-free rest.
Notice

WAD 101 Hot air station (compressed air operation)

WAD 101 Hot air station (compressed air operation)

dpvlink:
3876
Properties:
Further product information

1,090.75 CHF

excl. 8.1% tax

1 PCE
Compare Compare
Notice
Product Info

WAD 101 Hot air station (compressed air operation)

The WAD 101 hot air station with compressed air operation from Weller is a professional tool for precise soldering and desoldering tasks. This station features a digital circuit for exact temperature control and includes a microprocessor circuit that automatically recognizes all Weller soldering irons and determines the optimal control parameters. The ergonomic design, along with rapid heating time and safety features like overheating protection and automatic shutdown, makes it ideal for precise electronics work. The station comes with a supply unit, a hot air iron with a suitable hot air nozzle, and a holder. Additional suitable hot air nozzles can be found here


Contents of delivery:
Supply unit
HAP 1 Hot air iron + Hot air nozzle R06 527.115.99
Holder KH 27 515.027.99
R04 Hot air nozzle ø 1.2 mm 587.278.21


Channels
Channels
1
Power
Power
105 W
Voltage
Voltage
230 V
Height
Height
102 mm
Length
Length
175 mm
Width
Width
135 mm
ESD
ESD
yes
Flow rate max. per minute
Flow rate max. per minute
10 l
Hot air max. per minute
Hot air max. per minute
10 l
Temperature accuracy +/-
Temperature accuracy +/-
9 °C
Temperature range
Temperature range
50 - 550 °C
Temperature stability +/-
Temperature stability +/-
2 °C
Show accessories
Pictograms
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.

Accessories

Accessories

The image shows a rectangular, black rubber base with a textured surface. In the center, there is a square, recessed field.
Foot switch 1-step for WR 3000M
Foot switch 1-step
dpvlink
29280

124.25 CHF
The image shows a silver, compact device with rounded edges. The top features a flat surface, while the bottom has a cable for power supply. The surface includes ventilation slots.
WHP 80 Preheating plate 80 W
WHP 80 - preheating plate 24 V / 80 W
heated surface 80 x 50 mm
temperature range 50 ° C - 200 ° C
dpvlink
3816

568.55 CHF
The image displays a technical drawing of an object. On the left, there is a side view featuring a pointed shape with a narrow end. On the right, there is a top view showing a circular design.
F06 flat nozzle for HAP 1, WXHAP 200
FO 6 flat nozzle 12.0 x 1.5 mm
dpvlink
4255

45.25 CHF
The image displays a technical drawing of a small metal body with a sharp, conical shape and two prismatic connectors, one of which is threaded. Adjacent to it is a top view.
F04 flat nozzle for HAP 1, WXHAP 200
FO 4 flat nozzle 10.0 x 1.5 mm
dpvlink
4255

43.20 CHF
The image shows a schematic representation of a component, likely a nozzle or a fitting. There is a side view and a top view of the object.
F02 flat nozzle for HAP 1, WXHAP 200
FO 2 flat nozzle 8.0 x 1.5 mm
dpvlink
4255

43.20 CHF
The image displays a technical drawing of an object from two perspectives: from the side with a conical shape and from above in an oval shape. It is rendered in neutral gray tones.
FD4 dual nozzle for HAP 1, WXHAP 200
FD 4 dual nozzle D 1.5 x 10.0 mm
dpvlink
4255

53.70 CHF
The image shows a technical component in two views: a top view and a side view. It has a conical shape with two threaded connections in the middle.
FD2 dual nozzle for HAP 1, WXHAP 200
FD 2 dual nozzle D 1.5 x 8.0 mm
dpvlink
4255

45.25 CHF
The image shows a silver metal bolt with a ridged screw thread structure on one side and a flat surface on the other side.
Q02 Hot air nozzle for HAP 1, WXHAP 200
Q02 hot gas nozzle 6.0 x 6.5 mm
dpvlink
4255

43.20 CHF
The image shows a metallic part with a narrow, thread-like base and a flat top. It has a smooth, shiny surface and is quite compact.
Q04 Hot air nozzle for HAP 1, WXHAP 200
Q04 hot gas nozzle 6.0 x 9.0 mm
dpvlink
4255

43.20 CHF
The image displays a technical drawing of a component. On the left side, the side view is visible, on the right a top view, next to it is labeled "D04".
D04 hot air nozzle for HAP 1, WXHAP 200
D04 hot gas nozzle 10.5 x 10.5 mm
dpvlink
4255

103.20 CHF
The image shows a metallic object with a twisted thread and a flat, wide top. It has a sturdy, industrial shape and is shiny silver.
Q06 Hot air nozzle 4-fold for HAP 1, WXHAP...
Q06 hot gas nozzle 15.0 x 10.0 mm, 4-fold
dpvlink
4255

103.20 CHF
The image displays a technical drawing of a component in two views: from the side and from above. It shows a rectangular body with a continuous opening. Next to it is "D08".
D08 Hot air nozzle 2-fold for HAP 1, WXHAP...
D08 hot gas nozzle 15.0 x 10.0 mm 2-fold
dpvlink
4255

103.20 CHF
The image displays a technical drawing of an object. On the left, there is a side view featuring a narrow, rectangular body with a threaded eyelet. On the right, the top view is shown, which is square with a central hole. To the right of the object, the label "D06" is indicated.
D06 Hot air nozzle for HAP 1, WXHAP 200
D06 hot gas nozzle 10.0 x 13.0 mm
dpvlink
4255

103.20 CHF
The image shows a metallic component with a square shape. It has a smooth, shiny surface and a threaded connection on one side. The other side is flat and features a small, round indentation.
Q08 hot air nozzle for HAP 1, WXHAP 200
Q08 hot gas nozzle 12.5 x 15.0 mm
dpvlink
4255

103.20 CHF
The image displays a technical drawing of a cylindrical component with a screw thread. One view shows the side, the other the top labeled "D10".
D10 Hot air nozzle for HAP 1, WXHAP 200
D10 hot gas nozzle 10.0 x 18.0 mm
dpvlink
4255

103.20 CHF
The image depicts a silver-colored lamp socket with a threaded connector on top. The base has a rounded shape and a small hole in the center.
Q10 hot air nozzle for HAP 1, WXHAP 200
Q10 hot gas nozzle 18.0 x 18.0 mm
dpvlink
4255

115.85 CHF
The image shows a simple technical component: a hose with a connection. On the right is a schematic representation of a connection labeled "R08".
R08 round nozzle, bent for HAP 1, WXHAP 200...
R08 hot gas nozzle bent, D 2.5 mm
dpvlink
4255

58.95 CHF
The image shows a technical drawing of a component: a cylindrical pin with a nut on one side and a hexagonal base marked "R10".
R10 round nozzle for HAP 1, WXHAP 200
R10 hot gas nozzle straight, D 2.5 mm
dpvlink
4255

43.20 CHF
The image shows a cylindrical metal object that is threaded at one end. It has a smooth surface and a uniform diameter.
R01 measuring nozzle for HAP 1, WXHAP 200...
R01 measuring nozzle for device calibration
dpvlink
4255

101.10 CHF
The image displays a technical drawing of a component that resembles a conical screw pin. Additionally, a hexagonal view labeled "R02" is shown.
R02 round nozzle for HAP 1, WXHAP 200
R 02 hot gas nozzle
dpvlink
4255

7.90 CHF

Spares

The image shows a soldering iron with a black cable and a soldering station. The station has a gray and black color scheme, a sponge, and a metal brush for cleaning the soldering iron.
HAP 1 - hot air iron set
HAP 1 hot air iron 100 W / 24 V
with hot air nozzle R06, round, d = 3.0 mm
WDH 30, R04 hot air nozzle 1.2 mm
dpvlink
3854

368.50 CHF
The image shows a technical drawing of a component. On the left is a pointed element with a hexagonal head. On the right is the label "R04".
R04 round nozzle for HAP 1, WXHAP 200
R 04 hot gas nozzle D1,2
dpvlink
4255

5.90 CHF
The image displays a technical illustration of a component. On the left, there is a conical element with threading, and on the right, a hexagon labeled "R06".
R06 round nozzle for HAP 1, WXHAP 200
R 06 hot gas nozzle D3.0
dpvlink
4255

5.90 CHF
Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 600
Complete Catalog 2023 - 2024

Product Family

WAD 101 Hot-air station

Article image
Article description
Channels
Power
Voltage
Height
Length
Width
ESD
Flow rate max. per minute
Hot air max. per minute
Temperature accuracy +/-
Temperature range
Temperature stability +/-
Price
Compare
532.666.99 - WAD 101 Hot air station (compressed air operation)
532.666.99
WAD 101 Hot air station (compressed air operation)
1
105 W
230 V
102 mm
175 mm
135 mm
yes
10 l
10 l
9 °C
50 - 550 °C
2 °C
1,090.75 CHF
Show Compare List (0)

This product is compatible with (for example):

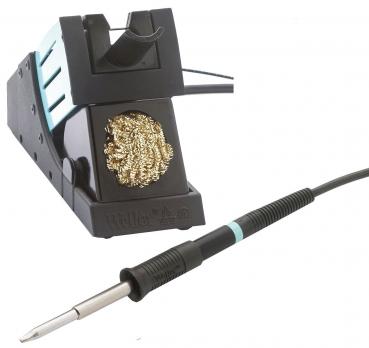

The image shows a soldering station with a semi-circular stand for a soldering iron. It is placed next to a cleaning spiral and a sponge for cleaning the soldering tip.
