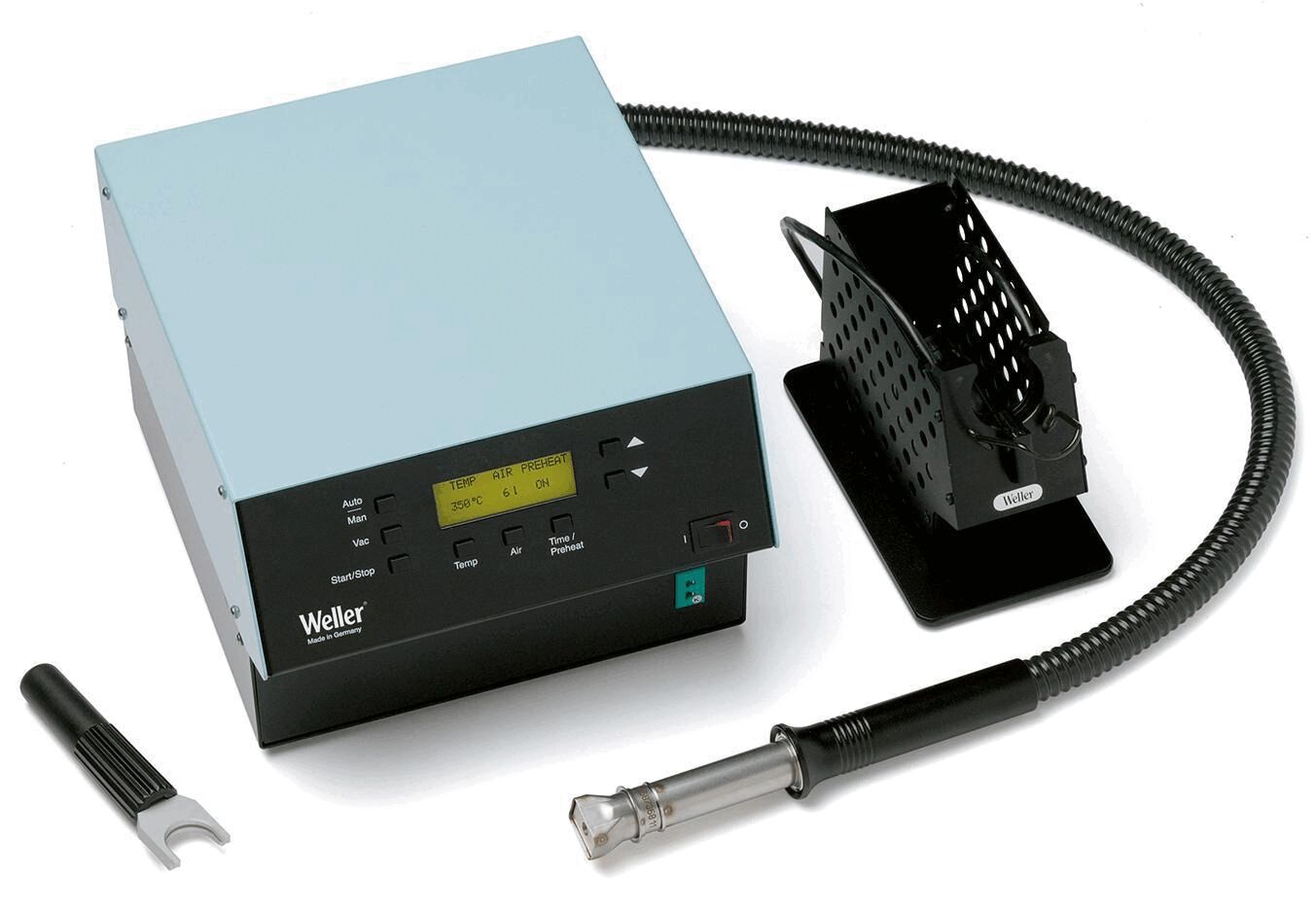

The image shows a soldering station with a rectangular base, a display, and controls. A flexible hose leads to a soldering iron, next to which is a wire mesh holder. A tool is lying beside it.
WHA 3000P Hot air station
(Product No.: 533.346.99)
The image shows a soldering station with a rectangular base, a display, and controls. A flexible hose leads to a soldering iron, next to which is a wire mesh holder. A tool is lying beside it.
Notice

WHA 3000P Hot air station

WHA 3000P Hot air station

dpvlink:
6816
Properties:
Further product information

3,632.35 CHF

excl. 8.1% tax

1 PCE
Compare Compare
Notice
Product Info

WHA 3000P Hot air station

WHA 3000P - Hot Air Station
The WHA 3000P from Weller is an advanced hot air rework station, distinguished by its precise temperature and airflow control. Equipped with an integrated vacuum pump and advanced programmable features, it is ideally suited for demanding tasks in electronics manufacturing, SMD repairs, and other applications. The ergonomic design supports efficient work, while extensive safety features such as overheating protection and an automatic cooling function ensure a long lifespan of the device. With its RS 232 interface, the station also enables PC-controlled operation, providing additional flexibility in technical use.

Technical Specifications:
  • Dimensions: 270 x 170 x 240 mm (W x H x L)
  • Temperature range: 50°C to 550°C
  • Airflow: variable
  • Power: 700 W
  • Supply voltage: 230 V
  • Maximum flow rate per minute: 50 l
  • Vacuum (negative pressure): -0.6 bar
  • Temperature accuracy: ±30 °C

    Scope of Delivery:
    Power unit (230 V) with handpiece
    NQ 30 nozzle
    AKT 30, safety holder with Stop+Go function

    Item number: 533.346.99
    • Power
    Power
    700 W
    Voltage
    Voltage
    230 V
    Height [mm]
    Height
    170 mm
    Length [mm]
    Length
    240 mm
    Width [mm]
    Width
    270 mm
    ESD
    ESD
    yes
    Flow rate max. per minute
    Flow rate max. per minute
    50 l
    Control
    Control
    digital
    Temperature accuracy +/-
    Temperature accuracy +/-
    30 °C
    Temperature range
    Temperature range
    50 - 550 °C
    Vacuum
    Vacuum
    0.6 bar
    Show accessories
    Pictograms
    ESD protective
    Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.

    Accessories

    Accessories

    The image shows a rectangular, black rubber base with a textured surface. In the center, there is a square, recessed field.
    Foot switch 1-step for WR 3000M
    Foot switch 1-step
    dpvlink
    29280

    124.25 CHF
    The image shows a black, sturdy stand with four silver coils arranged in two rows. Each coil has a small opening in the center.
    Nozzle rest 6-fold for hot-air nozzles
    Nozzle holder for 6 WHA nozzles
    dpvlink
    4513

    152.70 CHF
    The image shows an electrical device with a rectangular casing. At the top is a grid, beneath which lie three uniform objects. On the front, there is a digital display.
    Infrared heating plate WHP 3000 - 600W
    WHP 3000 infrared preheating plate Weller
    Temperature range 50 ° C – 400 ° C
    heated surface 120 x 190 mm, 600W / 230V
    dpvlink
    9624

    1,675.10 CHF
    The image displays a square heating device with a metal grid on top and a digital display. It features a triangular warning sign and controls at the bottom.
    Infrared heating plate WHP 3000 - 1200W
    WHP 3000 infrared heating plate Weller
    Temperature range 50 ° C – 400 ° C
    heated surface 190 x 245 mm, 1200 W / 230V
    dpvlink
    9624

    2,179.45 CHF
    The image shows a rectangular, flat heating plate with a gray surface. Below are control knobs and a display that shows the temperature. The corners are rounded.
    Preheating plate WHP 1000
    WHP 1000 preheating plate Weller
    heated area 220 x 150 mm, ESD-safe
    Temperature range 50 ° C - 300 ° C
    1000W / 230V
    dpvlink
    13775

    2,059.35 CHF
    The image shows two technical components: on the left a conical unit and on the right a square one with a central hole. Next to it is the label "ND40".
    Hot air nozzle NQ 40 for WHA3000
    NQ 40 hot gas nozzle 26.0 x 26.0
    (4 -sided heated)
    dpvlink
    4547

    104.25 CHF
    The image shows a technical drawing of a smaller object, possibly a sensor or a camera. There are views from the side and from above, labeled "NQ35".
    Hot air nozzle NQ 35 for WHA3000
    NQ 35 hot gas nozzle 20.5 x 20.5
    (4 -sided heated)
    dpvlink
    4547

    104.25 CHF
    The image displays a technical drawing of a component. It is visible from the side and from above. The component has a square opening in the center and the label "N025" next to it.
    Hot air nozzle NQ 25 for WHA3000
    NQ 25 hot gas nozzle 18.0 x 18.0
    (4 -sided heated)
    dpvlink
    4547

    104.25 CHF
    The image displays a technical drawing of an object, likely a tool or machine component, with side and top views. On the right it states "NQ10".
    Hot air nozzle NQ 10 for WHA3000
    NQ 10 hot gas nozzle 14.8 x 14.8
    (4 -sided heated)
    dpvlink
    4547

    104.25 CHF
    The image shows a technical drawing of an object, from the side and from above. It has a round and a square shape, with a small opening in the middle.
    Hot air nozzle NQ 45 for WHA3000
    NQ 45 hot gas nozzle 32.0 x 32.0
    (4 -sided heated)
    dpvlink
    4547

    139.00 CHF
    The image shows a technical component, from the side and from above. It has a cylindrical shape with a square opening. Next to the component is the designation "NQ20".
    Hot air nozzle NQ 20 for WHA3000
    NQ 20 hot gas nozzle 15.5 x 13.0
    (4 -sided heated)
    dpvlink
    4547

    104.25 CHF
    The image shows a technical drawing of a part. On the left is the profile with a narrow opening, and on the right is a round view with a square shape in the center.
    Hot air nozzle NQ 15 for WHA3000
    NQ 15 hot gas nozzle 14.0 x 10.0
    (4 -sided heated)
    dpvlink
    4547

    114.80 CHF
    The image displays a technical component consisting of a cylindrical part with a rectangular attachment. Adjacent to it is a round surface featuring a square indentation.
    Hot air nozzle NQ 05 for WHA3000
    NQ 05 hot gas nozzle 11.0 x 11.0
    (4 -sided heated)
    dpvlink
    4547

    104.25 CHF
    The image shows a technical drawing of a component. On the left is the side view, on the right the top view with the inscription "ND20". It is simple and schematic.
    Hot air nozzle ND 20 for WHA3000
    ND 20 hot gas nozzle 21.5 x 14.8
    (2 -sided heated)
    dpvlink
    4541

    104.25 CHF
    The image displays a technical connection with two views: a side view and a top view. To the right, "ND15" is positioned next to the top view. The connection has a simple, cylindrical shape.
    Hot air nozzle ND 15 for WHA3000
    ND 15 hot gas nozzle 19.0 x 12.0
    (2 -sided heated)
    dpvlink
    4541

    104.25 CHF
    The image displays a technical drawing. On the left is a cylindrical object with an opening. On the right, a circular area marked "ND10". Both elements are simple and depicted in shades of gray.
    Hot air nozzle ND 10 for WHA3000
    ND 10 hot gas nozzle 14.0 x 10.0
    (2 -sided heated)
    dpvlink
    4541

    151.65 CHF
    The image displays a technical drawing of a component. On the left is a side view, and on the right a top view with the label "ND05" in the center.
    Hot air nozzle ND 05 for WHA3000
    ND 05 hot gas nozzle 10.7 x 10.7
    (2 -sided heated)
    dpvlink
    4541

    151.65 CHF
    The image shows a simple technical component. From the side, it has a conical shape with a flat base, and from the top, it is round with a central hole.
    Round nozzle NR 05 for WHA3000
    NR 05 round nozzle 4 mm
    (without vacuum)
    dpvlink
    4513

    103.20 CHF
    The image shows a technical drawing of a cylindrical object with a rounded top and a flat base. It has a lateral extension and a central opening.
    Round nozzle NR 10 for WHA3000
    NR 10 round nozzle 7 mm
    (without vacuum)
    dpvlink
    4513

    103.20 CHF
    The image shows a technical component, likely a connector or a joint. It has a cylindrical shape with a flat end and a lateral shaft. The other end is round.
    Round nozzle NR 04 for WHA3000
    NR 04 round nozzle 2.5 mm
    (without vacuum)
    dpvlink
    4513

    104.25 CHF
    The image shows a schematic connection with a round casing and a hose leading out to the side. Side view and top view are depicted.
    Round nozzle NR 02 for WHA3000
    NR 02 round nozzle 1.7 mm
    45 ° bent (without vacuum)
    dpvlink
    4513

    104.25 CHF
    The image shows an electrical plug from the side and a round view. The plug has two pins and a centering feature that provides stability.
    Round nozzle DR 05 for WHA3000
    DR 05 round nozzle 2 x 2.5 x 9.5 mm
    (without vacuum)
    dpvlink
    4513

    104.25 CHF
    The image shows a technical drawing of a square object with a round center. It has a flat surface and an apparently round attachment part on the side.
    Hot air nozzle NQ 55 for WHA3000
    NQ 55 hot gas nozzle 43.0 x 43.0
    (4- sided heated)
    dpvlink
    4547

    433.80 CHF
    The image displays a technical drawing of a square object with a central opening. There is a side view and a label "N050". The lines are simple and clear.
    Hot air nozzle NQ 50 for WHA3000
    Compressed air converter with magnetic valve
    WSA 1V
    dpvlink
    4547

    380.10 CHF
    The image displays technical drawings of an object from two perspectives: from the side and from above. There are clear, simply drawn lines that represent a connection or a part.
    Hot air nozzle NQ 30 for WHA3000
    NQ 30 hot gas nozzle 17.5 x 23.5
    (4-sided heated)
    dpvlink
    4547

    112.65 CHF
    The image displays a technical drawing of a round socket element with a lateral connection. The upper part is flat and features a small plug. The lower part illustrates the round shape with a central hole.
    Round nozzle NRV 07 for WHA3000
    NRV07 hot gas nozzle diameter 7.0 mm
    with vacuum for small components
    dpvlink
    4513

    142.10 CHF
    The image displays a technical component in two views: a side view with a rectangular end and a top view showing the round shape of the component.
    Round nozzle NRV 10 for WHA3000
    NRV10 hot air nozzle diameter 10.0 mm
    with vacuum for small components
    dpvlink
    4513

    147.40 CHF
    The image shows a technical drawing of a cylindrical object with a wide base and a round top. On the side, there is a small handle or a recess.
    Round nozzle NRV 12 for WHA3000
    NRV12 hot air nozzle diameter 12.0 mm
    with vacuum for small components
    dpvlink
    4513

    147.40 CHF

    Spares

    The image shows a black, lattice-like container with an open top, standing on a flat, rectangular base. It has a cable connection.
    Safety rest AKT 30
    AKT 30 safety rest with stop + go function
    dpvlink
    26220

    227.45 CHF
    Documents

    Downloads

    Please log in to download datasheets! :
    There are several datasheets for this product. Please log in!

    Catalogues

    Page: 601
    Complete Catalog 2023 - 2024

    Product Family

    Article image
    Article description
    Power
    Voltage
    Height [mm]
    Length [mm]
    Width [mm]
    ESD
    Flow rate max. per minute
    Price
    Compare
    533.346.99 - WHA 3000P Hot air station
    533.346.99
    WHA 3000P Hot air station
    700 W
    230 V
    170 mm
    240 mm
    270 mm
    yes
    50 l
    3,632.35 CHF
