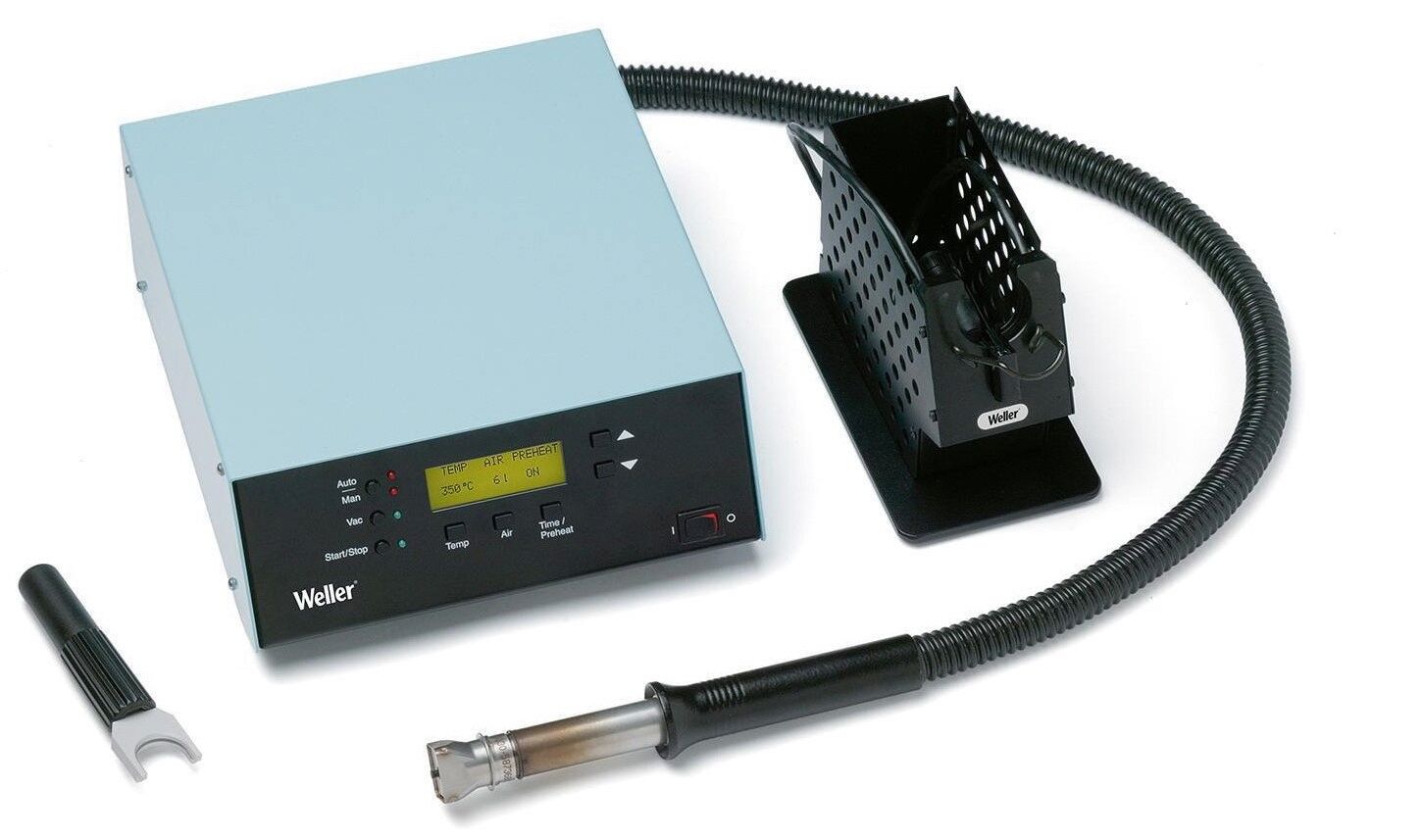

The image shows a soldering station with a blue casing, a digital display, and controls. Next to the station is a soldering tool with a flexible cable and a storage station made of black wire mesh.
WHA 3000V Hot air station (compressed air operation)
(Product No.: 533.366.99)
The image shows a soldering station with a blue casing, a digital display, and controls. Next to the station is a soldering tool with a flexible cable and a storage station made of black wire mesh.
Notice

WHA 3000V Hot air station (compressed air operation)

WHA 3000V Hot air station (compressed air operation)

dpvlink:
6815
Properties:
Further product information

3,632.35 CHF

excl. 8.1% tax

1 PCE
Compare Compare
Notice
Product Info

WHA 3000V Hot air station (compressed air operation)

The Weller WHA 3000V Hot Air Rework Station (700W) offers precise temperature and airflow control, an integrated vacuum pickup system, and programmable memory functions. With its ergonomic design and the ability to handle complex rework tasks, it is ideal for SMD repairs, electronics manufacturing, prototyping, tube shrinking, and drying processes.

  • Precise, digital temperature control allows for accurate setting of hot air temperature from 50°C to 550°C
  • Variable airflow strength for precise work on various components
  • Automatic cooling function after use to prevent overheating and damage
  • Integrated vacuum pickup system for secure picking and placing of especially small SMD components during the rework process
  • 4-6 bar compressed air or inert gas required
  • RS 232 interface for control via PC
  • Manual or automatic operation
  • Connection for external sensor
  • Max. nozzle vacuum -0.6 bar
  • Safety holder with Stop+Go function
  • Suitable hot air nozzles NR-, ND-, and NQ-series



Included items:
Power unit (230 V) with handpiece
NQ 30 nozzle
AKT 30, safety holder with Stop+Go function


Channels
Channels
1
Power
Power
700 W
Voltage
Voltage
230 V
Working pressure
Working pressure
4 - 6 bar
Height
Height
101 mm
Length
Length
240 mm
Width
Width
270 mm
ESD
ESD
yes
Flow rate max. per minute
Flow rate max. per minute
50 l
Hot air max. per minute
Hot air max. per minute
5 - 10 l
Control
Control
digital
Temperature accuracy +/-
Temperature accuracy +/-
30 °C
Temperature range
Temperature range
50 - 550 °C
Vacuum
Vacuum
0.6 bar
Show accessories
Pictograms
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.

Accessories

Accessories

The image shows a rectangular, black rubber base with a textured surface. In the center, there is a square, recessed field.
Foot switch 1-step for WR 3000M
Foot switch 1-step
dpvlink
29280

124.25 CHF
The image shows a black, sturdy stand with four silver coils arranged in two rows. Each coil has a small opening in the center.
Nozzle rest 6-fold for hot-air nozzles
Nozzle holder for 6 WHA nozzles
dpvlink
4513

152.70 CHF
The image shows an electrical device with a rectangular casing. At the top is a grid, beneath which lie three uniform objects. On the front, there is a digital display.
Infrared heating plate WHP 3000 - 600W
WHP 3000 infrared preheating plate Weller
Temperature range 50 ° C – 400 ° C
heated surface 120 x 190 mm, 600W / 230V
dpvlink
9624

1,675.10 CHF
The image displays a square heating device with a metal grid on top and a digital display. It features a triangular warning sign and controls at the bottom.
Infrared heating plate WHP 3000 - 1200W
WHP 3000 infrared heating plate Weller
Temperature range 50 ° C – 400 ° C
heated surface 190 x 245 mm, 1200 W / 230V
dpvlink
9624

2,179.45 CHF
The image shows a rectangular, flat heating plate with a gray surface. Below are control knobs and a display that shows the temperature. The corners are rounded.
Preheating plate WHP 1000
WHP 1000 preheating plate Weller
heated area 220 x 150 mm, ESD-safe
Temperature range 50 ° C - 300 ° C
1000W / 230V
dpvlink
13775

2,059.35 CHF
The image shows two technical components: on the left a conical unit and on the right a square one with a central hole. Next to it is the label "ND40".
Hot air nozzle NQ 40 for WHA3000
NQ 40 hot gas nozzle 26.0 x 26.0
(4 -sided heated)
dpvlink
4547

104.25 CHF
The image shows a technical drawing of a smaller object, possibly a sensor or a camera. There are views from the side and from above, labeled "NQ35".

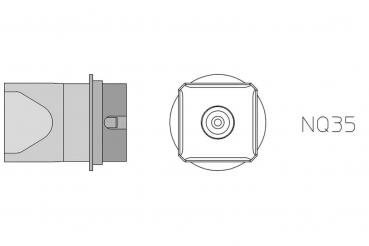

Hot air nozzle NQ 35 for WHA3000
NQ 35 hot gas nozzle 20.5 x 20.5
(4 -sided heated)
dpvlink
4547

104.25 CHF
The image displays a technical drawing of a component. It is visible from the side and from above. The component has a square opening in the center and the label "N025" next to it.
Hot air nozzle NQ 25 for WHA3000
NQ 25 hot gas nozzle 18.0 x 18.0
(4 -sided heated)
dpvlink
4547

104.25 CHF

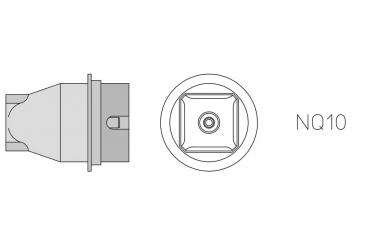

The image displays a technical drawing of an object, likely a tool or machine component, with side and top views. On the right it states "NQ10".
Hot air nozzle NQ 10 for WHA3000
NQ 10 hot gas nozzle 14.8 x 14.8
(4 -sided heated)
dpvlink
4547

104.25 CHF
The image shows a technical drawing of an object, from the side and from above. It has a round and a square shape, with a small opening in the middle.

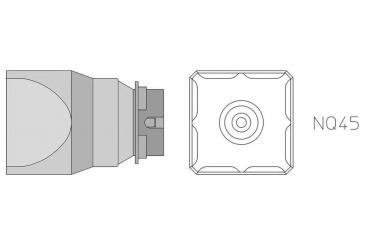

Hot air nozzle NQ 45 for WHA3000
NQ 45 hot gas nozzle 32.0 x 32.0
(4 -sided heated)
dpvlink
4547

139.00 CHF
The image shows a technical component, from the side and from above. It has a cylindrical shape with a square opening. Next to the component is the designation "NQ20".
Hot air nozzle NQ 20 for WHA3000
NQ 20 hot gas nozzle 15.5 x 13.0
(4 -sided heated)
dpvlink
4547

104.25 CHF
The image shows a technical drawing of a part. On the left is the profile with a narrow opening, and on the right is a round view with a square shape in the center.

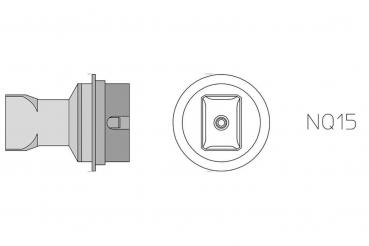

Hot air nozzle NQ 15 for WHA3000
NQ 15 hot gas nozzle 14.0 x 10.0
(4 -sided heated)
dpvlink
4547

114.80 CHF
The image displays a technical component consisting of a cylindrical part with a rectangular attachment. Adjacent to it is a round surface featuring a square indentation.

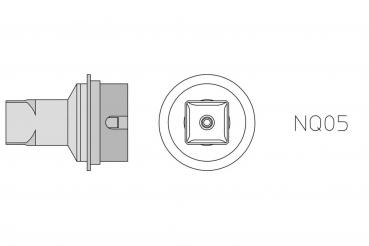

Hot air nozzle NQ 05 for WHA3000
NQ 05 hot gas nozzle 11.0 x 11.0
(4 -sided heated)
dpvlink
4547

104.25 CHF
The image shows a technical drawing of a component. On the left is the side view, on the right the top view with the inscription "ND20". It is simple and schematic.
Hot air nozzle ND 20 for WHA3000
ND 20 hot gas nozzle 21.5 x 14.8
(2 -sided heated)
dpvlink
4541

104.25 CHF
The image displays a technical connection with two views: a side view and a top view. To the right, "ND15" is positioned next to the top view. The connection has a simple, cylindrical shape.
Hot air nozzle ND 15 for WHA3000
ND 15 hot gas nozzle 19.0 x 12.0
(2 -sided heated)
dpvlink
4541

104.25 CHF
The image displays a technical drawing. On the left is a cylindrical object with an opening. On the right, a circular area marked "ND10". Both elements are simple and depicted in shades of gray.
Hot air nozzle ND 10 for WHA3000
ND 10 hot gas nozzle 14.0 x 10.0
(2 -sided heated)
dpvlink
4541

151.65 CHF
The image displays a technical drawing of a component. On the left is a side view, and on the right a top view with the label "ND05" in the center.
Hot air nozzle ND 05 for WHA3000
ND 05 hot gas nozzle 10.7 x 10.7
(2 -sided heated)
dpvlink
4541

151.65 CHF
The image shows a simple technical component. From the side, it has a conical shape with a flat base, and from the top, it is round with a central hole.
Round nozzle NR 05 for WHA3000
NR 05 round nozzle 4 mm
(without vacuum)
dpvlink
4513

103.20 CHF

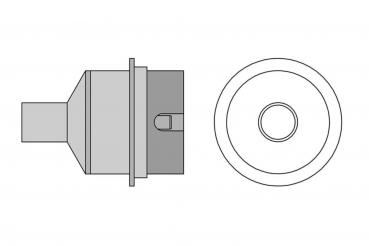

The image shows a technical drawing of a cylindrical object with a rounded top and a flat base. It has a lateral extension and a central opening.
Round nozzle NR 10 for WHA3000
NR 10 round nozzle 7 mm
(without vacuum)
dpvlink
4513

103.20 CHF

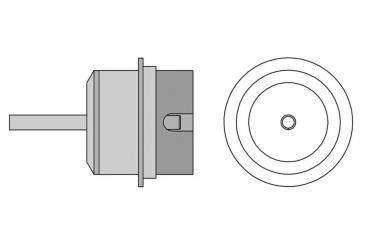

The image shows a technical component, likely a connector or a joint. It has a cylindrical shape with a flat end and a lateral shaft. The other end is round.
Round nozzle NR 04 for WHA3000
NR 04 round nozzle 2.5 mm
(without vacuum)
dpvlink
4513

104.25 CHF

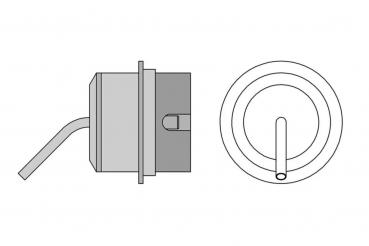

The image shows a schematic connection with a round casing and a hose leading out to the side. Side view and top view are depicted.
Round nozzle NR 02 for WHA3000
NR 02 round nozzle 1.7 mm
45 ° bent (without vacuum)
dpvlink
4513

104.25 CHF
The image shows an electrical plug from the side and a round view. The plug has two pins and a centering feature that provides stability.
Round nozzle DR 05 for WHA3000
DR 05 round nozzle 2 x 2.5 x 9.5 mm
(without vacuum)
dpvlink
4513

104.25 CHF
The image shows a technical drawing of a square object with a round center. It has a flat surface and an apparently round attachment part on the side.
Hot air nozzle NQ 55 for WHA3000
NQ 55 hot gas nozzle 43.0 x 43.0
(4- sided heated)
dpvlink
4547

433.80 CHF
The image displays a technical drawing of a square object with a central opening. There is a side view and a label "N050". The lines are simple and clear.
Hot air nozzle NQ 50 for WHA3000
Compressed air converter with magnetic valve
WSA 1V
dpvlink
4547

380.10 CHF
The image displays technical drawings of an object from two perspectives: from the side and from above. There are clear, simply drawn lines that represent a connection or a part.

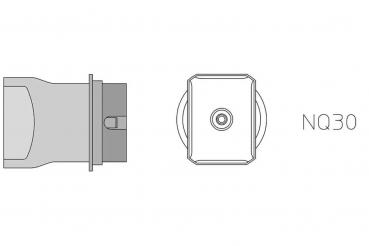

Hot air nozzle NQ 30 for WHA3000
NQ 30 hot gas nozzle 17.5 x 23.5
(4-sided heated)
dpvlink
4547

112.65 CHF
The image displays a technical drawing of a round socket element with a lateral connection. The upper part is flat and features a small plug. The lower part illustrates the round shape with a central hole.
Round nozzle NRV 07 for WHA3000
NRV07 hot gas nozzle diameter 7.0 mm
with vacuum for small components
dpvlink
4513

142.10 CHF
The image displays a technical component in two views: a side view with a rectangular end and a top view showing the round shape of the component.
Round nozzle NRV 10 for WHA3000
NRV10 hot air nozzle diameter 10.0 mm
with vacuum for small components
dpvlink
4513

147.40 CHF
The image shows a technical drawing of a cylindrical object with a wide base and a round top. On the side, there is a small handle or a recess.
Round nozzle NRV 12 for WHA3000
NRV12 hot air nozzle diameter 12.0 mm
with vacuum for small components
dpvlink
4513

147.40 CHF

Spares

The image shows a black, lattice-like container with an open top, standing on a flat, rectangular base. It has a cable connection.
Safety rest AKT 30
AKT 30 safety rest with stop + go function
dpvlink
26220

227.45 CHF
