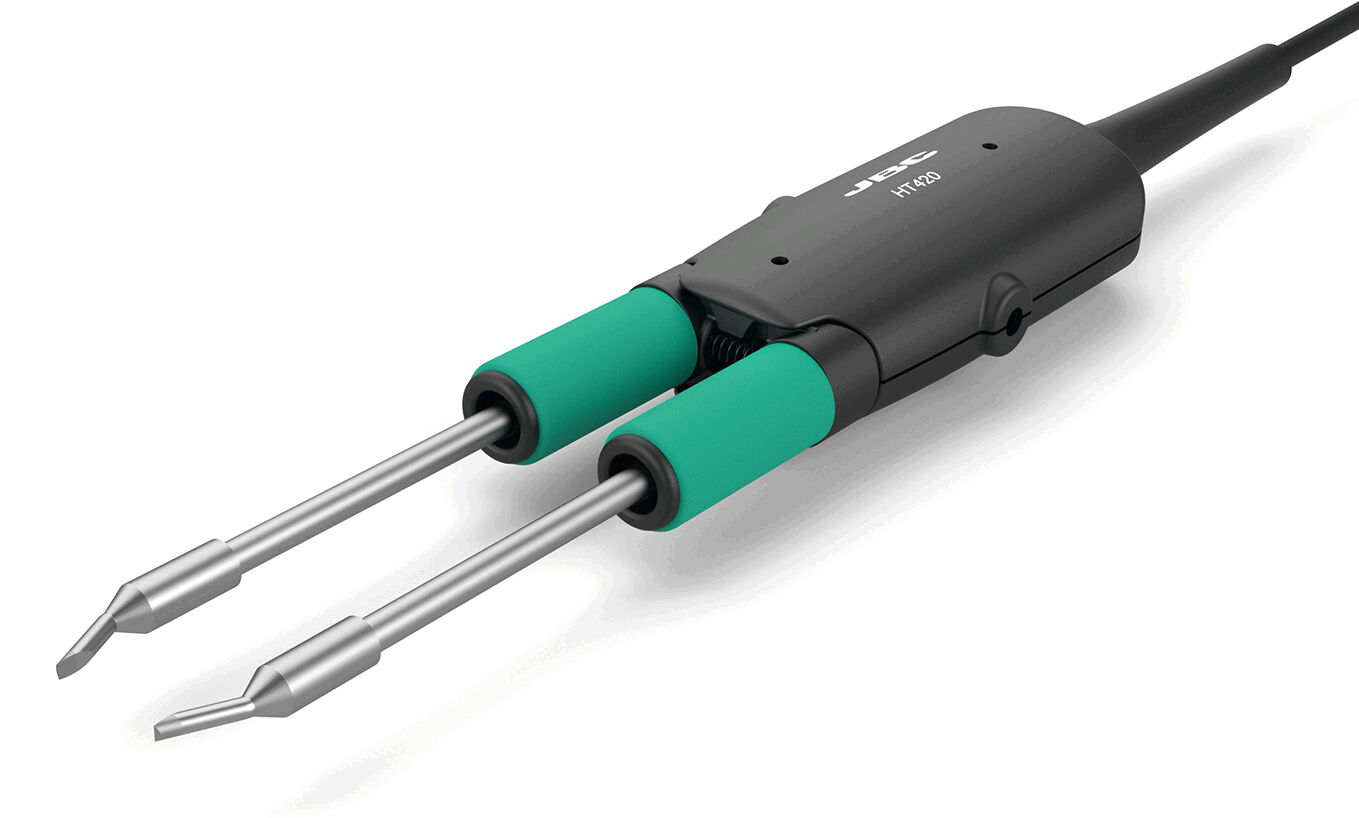

The image shows a soldering iron with two metallic tips and green rubber grips. The handle is black and has a connecting cable. It is used for soldering.
HT420-A Desoldering tweezers
(Product No.: JBC-HT420-A)
The image shows a soldering iron with two metallic tips and green rubber grips. The handle is black and has a connecting cable. It is used for soldering.
Notice

HT420-A Desoldering tweezers

HT420-A Desoldering tweezers

dpvlink:
29556
Further product information

193.75 CHF

excl. 8.1% tax

1 PCE
Compare Compare
Notice
Product Info

HT420-A Desoldering tweezers

The HT420-A desoldering tweezer from JBC is a highly specialized tool designed for precise and quick removal of components on circuit boards. This tweezer features two simultaneously heatable tips, which enable effective desoldering and is particularly suitable for fine soldering tasks where conventional methods reach their limits.
The product is characterized by precise control, rapid heating, and excellent heat transfer. The ergonomic design promotes easy handling, making it ideal for use in electronics manufacturing, repairs, and prototype development. The HT420-A is compatible with JBC Nano desoldering stations, which are designed for high-precision work.
Technical specifications include a power of 50 W per tip and a voltage of 24 V. Note that the desoldering tweezer is supplied without soldering tips, however, suitable soldering tips of type C420 are available.
Power
Power
50 / 50 W
Voltage
Voltage
24 V
Show accessories
Accessories

Accessories

The image displays technical drawings of chip components. There is a green board with several components and various wire ends in different shapes and sizes. Dimensions are provided.
Desoldering tip pair C420-271
JBC C420-271 desoldering tip pair for HT420
-A = 1.5 mm
-Tip use: for chip
dpvlink
29558

53.75 CHF
The image displays technical drawings of chip components with dimensions. It features two different soldering tips and a circuit board with multiple components.
Desoldering tip pair C420-272
JBC C420-272 desoldering tip pair for HT420
-A = 2.6 mm
-Tip use: for chip
dpvlink
29558

53.75 CHF
The image displays technical drawings of a sensor. The top part shows two views of the connector components, while the bottom part details the sensor with dimensions given in millimeters.
Desoldering tip pair C420-273
JBC C420-273 desoldering tip pair for HT420
-A = 4.0 mm
-Tip use: for Dual-in-Line-IC
dpvlink
29558

60.00 CHF
The image displays technical drawings of a component. It includes front views and dimensions of a flat connector, as well as a PCB with two vertical contacts. Dimensions are provided.
Desoldering tip pair C420-274
JBC C420-274 desoldering tip pair for HT420
-A = 6.0 mm
-Tip use: for Dual-in-Line-IC
dpvlink
29558

60.00 CHF
The image displays a technical drawing of an electronic component. There is a green PCB with two vertical connectors and a length specification with various dimensions.
Desoldering tip pair C420-275
JBC C420-275 desoldering tip pair for HT420
-A = 8.0 mm
-Tip use: for Dual-in-Line-IC
dpvlink
29558

60.00 CHF
The image displays a technical drawing of a connector plug. It features two cylindrical parts on a green circuit board, alongside dimensions in millimeters and inches.
Desoldering tip pair C420-276
JBC C420-276 desoldering tip pair for HT420
-A = 10.0 mm
-Tip use: for Dual-in-Line-IC
dpvlink
29558

60.00 CHF
The image displays technical drawings of a module with two vertical connectors on a green circuit board. Dimensions are provided to allow precise orientation.
Desoldering tip pair C420-277
JBC C420-277 desoldering tip pair for HT420
-A = 15.0 mm
-Tip use: for Dual-in-Line-IC
dpvlink
29558

60.00 CHF
The image displays a technical drawing of a test adapter. It consists of a housing with two connectors aligned with a green circuit board. Dimensions are provided.
Desoldering tip pair C420-278
JBC C420-278 desoldering tip pair for HT420
-A = 20.0 mm
-Tip use: for Dual-in-Line-IC
dpvlink
29558

85.00 CHF
The image displays a technical drawing of a cartridge for QFP and PLCC packages. It includes various views and dimensions, such as a top view and a side view.
Desoldering tip pair C420-279
JBC C420-279 desoldering tip pair for HT420
-A = 8.0 mm
-Tip use: for QFP/PLCC
- Tip orientation: angled
dpvlink
29558

60.00 CHF
The image displays a technical drawing of a cartridge for QFP and PLCC packages. It includes dimensions and detailed views of a special holder and connection cable.
Desoldering tip pair C420-280
JBC C420-280 desoldering tip pair for HT420
-A = 11.0 mm
-Tip use: for QFP/PLCC
- Tip orientation: angled
dpvlink
29558

60.00 CHF
The image displays a technical drawing of a component. At the top, there is a flat, rectangular chip with two terminals and an assembly consisting of many small pins. At one end, a detailed view of a pin is shown.
Desoldering tip pair C420-283
JBC C420-283 SMD desoldering tip for HT420
-SMD soldering / desoldering tip
-A = 50 mm
-Tip shape: blade-shaped
dpvlink
29558

193.75 CHF
The image shows a technical illustration of a component with two tubes and dimensions. It includes a front view and a cross-section, connected by a cable to a circuit board.
Desoldering tip pair C420-285
JBC C420-285 desoldering tip pair for HT420
-A = 22.0 mm
-Tip use: for Dual-in-Line-IC
dpvlink
29558

85.00 CHF
The image displays technical drawings of a device or tool. It shows various views and dimensions. The details include lengths and widths in millimeters.
Special desoldering tip pair C420-286
JBC C420-286 special desoldering tip pair
for HT420
- for "U" Shape 15.6 x 14.3 mm
- A= 12.0 mm ; B= 15.6 mm ; C= 14.3 mm
dpvlink
29558

181.25 CHF
The image displays a technical drawing of a component on a green circuit board. It features dimensions as well as two round metal protrusions with a central, square component.
Special desoldering tip pair C420-287
JBC C420-287 special desoldering tip pair
for HT420
- 2.0 mm
dpvlink
29558

53.75 CHF
