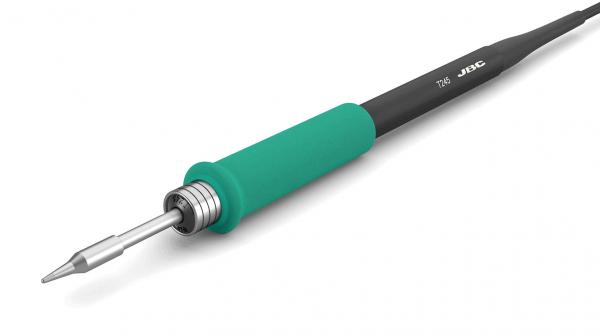

The image shows a soldering iron. It has a silver, pointed working area and a green handle. The handle is ergonomically shaped and has a black cable connection.
T245-A Soldering iron
(Product No.: JBC-T245-A)

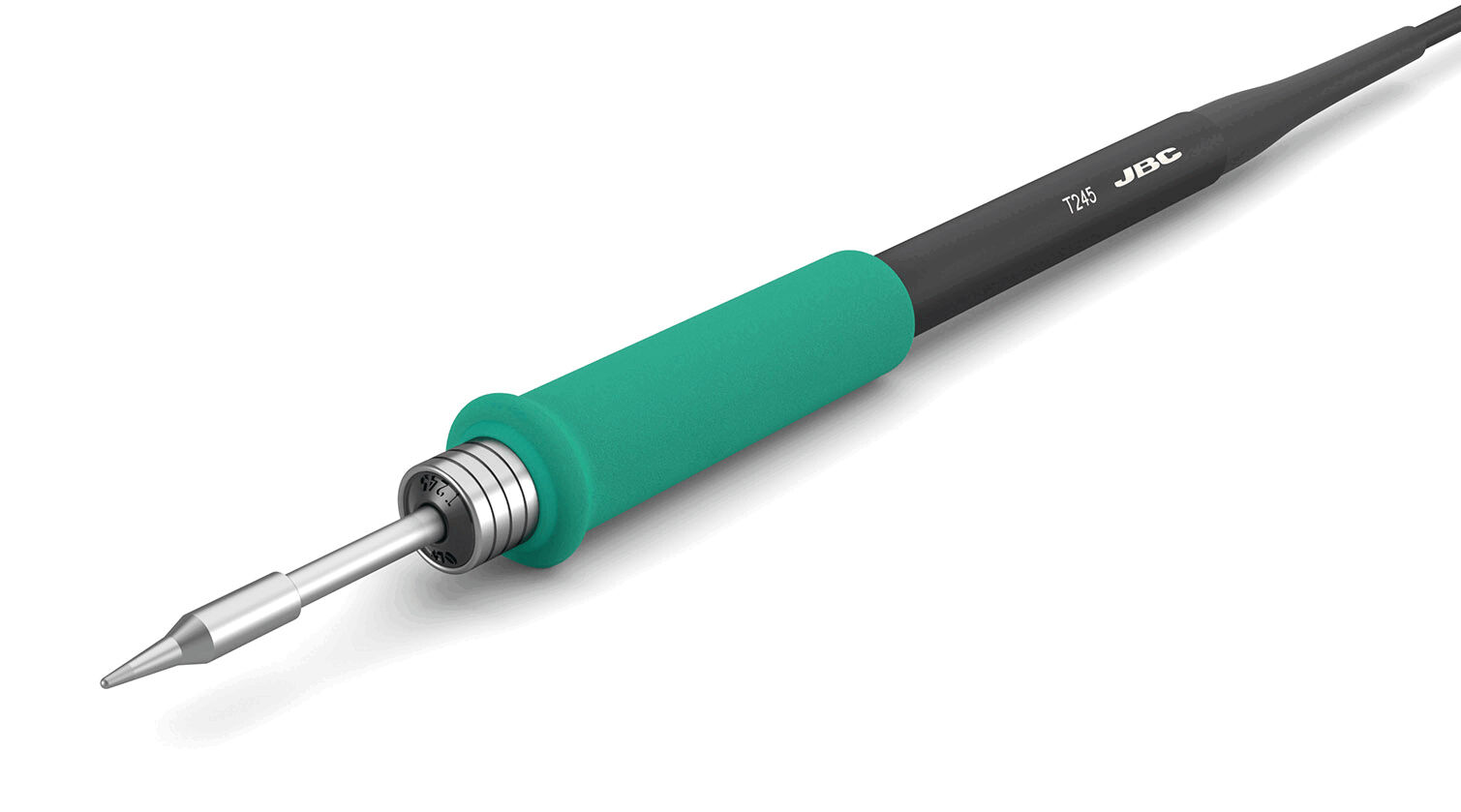

The image shows a soldering iron. It has a silver, pointed working area and a green handle. The handle is ergonomically shaped and has a black cable connection.
Notice

T245-A Soldering iron

T245-A Soldering iron

dpvlink:
26069
Further product information

86.25 CHF

excl. 8.1% tax

1 PCE
Compare Compare
Notice
Product Info

T245-A Soldering iron

The JBC T245-A soldering iron is distinguished by its high functionality and user-friendliness. This model offers precise temperature control, making it ideal for demanding soldering tasks, especially with SMDs and high power requirements. The ergonomically designed handle and the 1.5-meter-long cable provide additional comfort and flexibility during use.
With a power of 50 watts and an operating voltage of 24 volts, the soldering iron enables rapid heating and is characterized by long durability. The weight of only 115 grams highlights the device's portability. Compatibility with the C245 series of soldering tips, available in various shapes and sizes, makes the soldering iron extremely versatile and suitable for a wide range of soldering processes.
Manufactured by JBC, a leading provider in soldering technology, this soldering iron guarantees efficiency and reliability for professional repairs and prototype development.
Power
Power
50 W
Voltage
Voltage
24 V
suitable soldering tip series
suitable soldering tip series
C245
Weight
Weight
115 kg
Show accessories
Accessories

Accessories

The image displays a technical drawing of a tool attachment. It features a conical shape with a pointed, narrow opening and detailed dimensions in millimeters.
Soldering tip C245-741
JBC C245-741 soldering tip for soldering iron T245
-Tip shape: chisel-shaped
-Tip orientation: straight
- D: 2.4 x 0.6 mm
dpvlink
25937

35.00 CHF
The image displays technical drawings of a thin pen. It has a sharp, conical shape and a body that widens at one end. The dimensions are provided.
Soldering tip C245-903
JBC C245-903 soldering tip for soldering iron T245
-Tip shape: round
-Tip orientation: straight
-Ø 1.0 mm
dpvlink
25937

35.00 CHF
The image displays technical drawings of a pen. It features a sharp tip, a thick grip, and dimensions on one side. The drawings are shown in various views.
Soldering tip C245-906
JBC C245-906 soldering tip for soldering iron T245
-Tip shape: chisel-shaped
-Tip orientation: straight
- D: 1.2 x 0.7 mm
dpvlink
25937

35.00 CHF
The image displays a technical drawing of a pen or tip with a conical end. It includes measurements and a side view that depict the shape and dimensions.
Soldering tip C245-907
JBC C245-907 soldering tip for soldering iron T245
-Tip shape: chisel-shaped
-Tip orientation: straight
- D: 2.2 x 1.0 mm
dpvlink
25937

35.00 CHF
The image displays a technical drawing of an object, likely a tool. It includes multiple views: a side view, a top view, and a perspective with dimensions.
Soldering tip C245-944
JBC C245-944 soldering tip for soldering iron T245
-Tip shape: chisel-shaped
-Tip orientation: straight
- D: 1.8 x 0.8 mm
dpvlink
25937

35.00 CHF
The image displays a technical diagram of an object with a conical end. It includes side views and dimensions in millimeters. The lines are clear and schematic.
Soldering tip C245-001
JBC C245-001 soldering tip for soldering iron T245
- Tip shape: round
-Tip orientation: straight
-Ø 0.6 mm
dpvlink
25937

35.00 CHF
The image displays technical drawings of soldering tips from various perspectives. Dimensions are provided that describe the shape and size of the tips, intended for use with QFP packages.
Gullwing tip C245-009
JBC C245-009 Gullwing tip for soldering iron T245
- Gullwing tip for QFP 4.5 x 1.8 mm
- Gullwing tip for QFP/PLCC
- Tip usage: QFP/PLCC
dpvlink
25937

47.50 CHF
The image displays technical drawings of soldering cartridges for PLCC packages. Various views and dimensions are shown, explaining the shape and size of the component.
Gullwing tip C245-010
JBC C245-010 Gullwing tip for soldering iron T245
- Gullwing tip for PLCC 4.5 x 1.8 mm
- Tip usage: QFP/PLCC
dpvlink
25937

47.50 CHF
The image displays technical drawings of chip components. There is a side view of a component that is inserted into a circuit board, as well as dimensions in millimeters.
SMD desoldering tip C245-016
JBC C245-016 SMD desoldering tip for soldering
iron T245
-for chip; A = 1.9 mm
-Tip use: for chip
dpvlink
25937

47.50 CHF
The image displays technical drawings of chip components. Various shapes and sizes are depicted, including a cylindrical or rectangular element and a circuit board with components. Dimensions are provided.
SMD desoldering tip C245-017
JBC C245-017 SMD desoldering tip for soldering
iron T245
-for chip; A = 2.2 mm
-Tip use: for chip
dpvlink
25937

47.50 CHF
The image displays a technical drawing of chip components on a circuit board. It includes dimensions and a depiction of a connection, along with detailed views of the components.
SMD desoldering tip C245-018
JBC C245-018 SMD desoldering tip for soldering
iron T245
-for chip; A = 3.4 mm
-Tip use: for chip
dpvlink
25937

47.50 CHF
The image shows a technical drawing of components on a circuit board. There are several small components arranged on a green board piece, with dimensions in mm and inches.
SMD desoldering tip C245-019
JBC C245-019 SMD desoldering tip for soldering
iron T245
-for chip; A = 4.5 mm
-Tip use: for chip
dpvlink
25937

47.50 CHF
The image shows a technical drawing of a thin, pointed tool with a conical attachment. Dimensions for length and diameter are provided.
Soldering tip C245-029
JBC C245-029 soldering tip for soldering iron T245
- Tip shape: pointed
- Tip orientation: angled
-D: 0.4 mm, L: 100 mm
dpvlink
25937

35.00 CHF
The image shows a technical drawing of a sharp object, possibly a pen or tool. It includes dimensions and a detailed view of the tip.
Soldering tip C245-030
JBC C245-030 soldering tip for soldering iron T245
- Tip shape: pointed
- Tip orientation: straight
- Ø 0.3 mm
dpvlink
25937

35.00 CHF
The image displays a technical drawing of a sharp, cylindrical object with dimensions. It features a conical head and a narrow, elongated shape.
Soldering tip C245-032
JBC C245-032 soldering tip for soldering iron T245
- Tip shape: pointed
- Tip orientation: straight
- Ø 0.4 mm
dpvlink
25937

35.00 CHF
The image displays a technical drawing of a pen. The tip is shown at the top in various views. Dimensions and details are provided in millimeters.
Soldering tip C245-034
JBC C245-034 soldering tip for soldering iron T245
- Tip shape: pointed
- Tip orientation: angled
-D: 0.4 mm, L: 100 mm
dpvlink
25937

35.00 CHF
The image displays a sharp, cylindrical object with a narrow end. It has a thicker base and is likely a tool or a tip. Dimensions are shown in millimeters.
Soldering tip C245-036
JBC C245-036 soldering tip for soldering iron T245
- Tip shape: pointed
- Tip orientation: straight
- Ø 0.5 mm
dpvlink
25937

35.00 CHF
The image shows a technical drawing of a sharp tip with an additional tinned area. It is slender and has a rounded base. Dimensions are also provided.
Special soldering tip C245-041
JBC C245-041 special soldering tip for T245
-for special application
-Ø 1.0 mm
-Tip shape: round
-Tip orientation: straight
dpvlink
25937

35.00 CHF
The image displays technical drawings of cartridges for plastic rivets. Dimensions and volume are provided, with a focus on the design and structure of the cartridges.
Special soldering tip C245-052
JBC C245-052 special soldering tip for soldering
iron T245
-A = Ø 6.0 mm; B = Ø 4.9 mm
-chrome plated, for plastic rivets
- Tip shape: special shape
dpvlink
25937

48.75 CHF
The image displays technical drawings of cartridges with a chrome-plated surface, designed for plastic rivets. It includes dimensions and a representation of the rivet volume.
Special soldering tip C245-053
JBC C245-053 special soldering tip for soldering
iron T245
-A = Ø 5.0 mm; B = Ø 3.8 mm
-chrome plated, for plastic rivets
- Tip shape: special shape
dpvlink
25937

48.75 CHF
The image displays technical drawings with dimensions for cartridges with a chromatic surface, used in plastic engineering. There is a groove design and a green block.
Special soldering tip C245-054
JBC C245-054 special soldering tip for soldering
iron T245
-A = Ø 7.0 mm; B = Ø 6.5 mm
-chrome plated, for plastic rivets
- Tip shape: special shape
dpvlink
25937

48.75 CHF
The image shows a technical drawing of a sharp object with a diameter of 3.5 mm, a length of 10.5 mm, and a 60-degree angle at the tip.
Soldering tip C245-056
JBC C245-056 soldering tip for soldering iron T245
-Tip shape: round
-Tip orientation: sloped
-D: 3.4 mm, L: 100 mm
dpvlink
25937

35.00 CHF
The image shows a technical drawing of a tool with an elongated body and a pointed, angled edge. Dimensions are provided, including lengths and diameters in millimeters.
Soldering tip C245-061
JBC C245-061 soldering tip for soldering iron T245
-Tip shape: chisel-shaped
-D: 3.0 x 1.0 mm
dpvlink
25937

35.00 CHF
The image shows a technical drawing of a specialized tool with a pointed tip. It features a thin, nickel-plated area and specifications for diameter and length.
Gullwing tip C245-064
JBC C245-064 Gullwing tip for soldering iron T245
-for special application
-Ø 1.3 mm
-Tip shape: round
- Tip orientation: sloped
- only sloped surface tinned
dpvlink
25937

35.00 CHF
The image displays technical drawings of a component, likely a connector. There are various views and dimensions, the shape is slim and cylindrical with different ends.
Gullwing tip C245-067
JBC C245-067 Gullwing tip for soldering iron T245
-hollow flute: 2.3 mm, angled
- Gullwing tip for fine pitch
-Tip use: for fine pitch
dpvlink
25937

48.75 CHF
The image shows a technical drawing of a special iron-coated tip for robots. The tip has a wedge-shaped edge and is shown in two views: side and top.
Soldering tip C245-069
JBC C245-069 special soldering tip for soldering
iron T245
-Tip shape: chisel-shaped
-Tip orientation: straight
-D: 5.0 x 1.7 mm
-with reinforced iron layer
dpvlink
25937

35.00 CHF
The image displays technical drawings of a special pen with various tip shapes. The dimensions are provided in millimeters, highlighted by dimension lines.
Gullwing tip C245-102
JBC C245-102 Gullwing tip for soldering iron T245
-for special application
-D: Ø 2.0 mm
-Tip shape: round
- Tip orientation: sloped
- only sloped surface tinned
dpvlink
25937

35.00 CHF
The image displays a technical drawing draft of an object with a conical tip, a diameter of 3 mm, and varying lengths. Dimensions are specified precisely.
Soldering tip C245-107
JBC C245-107 soldering tip for soldering iron T245
-Tip shape: round
-Tip orientation: straight
-Ø 3.0 mm
dpvlink
25937

35.00 CHF
The image displays a technical drawing of a tool with a conical, chrome-plated head, suitable for processing plastics. Dimensions are provided.
Special soldering tip C245-109
JBC C245-109 special soldering tip for T245
-Special tip
-for special application
-4.3 x 0.1 mm, L: 100 mm
- Tip-shape: chisel-shape
- Tip orientation: straight
- not tinned for separating materials
dpvlink
25937

43.75 CHF
The image displays technical drawings of a fastener sketch with two views (A and B). It includes dimensions and details for soldering pins in a connector.
Special soldering tip C245-116
JBC C245-116 special soldering tip for T245
- A = 1.4 mm; B = 0.9 mm; C = 5.0 mm; D = 3.0 mm
- Gullwing tip
- Connector 3-pin
dpvlink
25937

61.25 CHF
The image displays technical drawings of a special soldering cartridge. It includes dimensions in millimeters and inches, as well as the shape of the cartridge with a round end and a wider middle.
Special soldering tip C245-117
JBC C245-117 special soldering tip for T245
- Connector 3-pin
- A= Ø 1.45 mm ; B= Ø 2.9 mm
dpvlink
25937

52.50 CHF
The image displays a technical drawing of a cable soldering tool. It includes various views and dimensions of the tip used for soldering cables.
SMD Special soldering tip C245-118
JBC C245-118 SMD special desoldering tip for T245
- Ø 8.8 mm ; slot: 0.4 mm
- for soldering cables
- tip shape: special shape
dpvlink
25937

52.50 CHF
The image displays technical drawings of a Teflon-coated pen. It includes views from the side, top, and bottom, with measurements. The pen has a pointed shape.
Special soldering tip C245-119
JBC C245-119 special desoldering tip for T245
-Ø 1.0 mm
- Tip shape: special shape
dpvlink
25937

78.75 CHF
The image shows technical drawings of a small tool, likely a needle or a probe. It includes dimensions and views from various perspectives.
Special soldering tip C245-121
JBC C245-121 special soldering tip for T245
-Special shape: B: 13 mm
dpvlink
25937

66.25 CHF
The image shows a technical drawing of an object that looks like a sharp nozzle. It has a cylindrical body with a narrow end and is dimensioned. Various views are depicted.
Special soldering tip C245-122
JBC C245-122 special soldering tip for T245
-1.5 x 0.5 mm
- Tip shade: special shape
dpvlink
25937

52.50 CHF
The image displays a technical drawing of cassettes with a chrome-plated surface, designed for the use of plastic rivets. Dimensions are visible.
Special soldering tip C245-123
JBC C245-123 special soldering tip for T245
- chrome-plated, for fuse wire
- tip shape: special shape
- 4.0 x 4.0 mm
dpvlink
25937

56.25 CHF
The image shows a technical drawing of a tool with rounded ends and precise measurements. It is intended for plastic riveting pliers and has a chrome-plated surface.
Special soldering tip C245-124
JBC C245-124 special soldering tip for T245
- chrome-plated, for fuse wire
- Tip shade: special shape
- A= 4.25 x 2 mm ; B= 0.7 mm
dpvlink
25937

52.50 CHF
The image shows a technical drawing of a tool with a pointed end, a cylindrical handle, and measurements. Various views of the tool are depicted.
Soldering tip C245-126
JBC C245-126 soldering tip for soldering iron T245
- Tip shape: pointed
- Tip orientation: angled
-D: 0.4 mm, L: 100 mm
dpvlink
25937

35.00 CHF
The image shows a technical drawing of a micro tactile switch from Panasonic. It includes different views of the switch and dimensions in millimeters.
SMD soldering tip C245-136
JBC C245-136 SMD soldering tip for T245
-L: 100 mm
-A = 7.1; B = 6.5 mm
dpvlink
25937

67.50 CHF
The image displays a technical drawing of a cutting cartridge for rubber and plastic. It includes dimensions and a schematic representation that clarifies the shape and application of the cartridge.
SMD Special soldering tip C245-138
JBC C245-138 SMD special tip soldering for T245
-SMD soldering tip, B: 12 mm, L: 100 mm
dpvlink
25937

66.25 CHF
The image displays a technical drawing of a connector. At the top is the plug with dimensions, followed by a circuit board with components below. Measurements are provided in both mm and inches.
SMD Special desoldering tip C245-150
JBC C245-150 SMD special desoldering tip for T245
-A = 2.2 mm; B = 3.5 mm
-for chip 2.2 mm
-Tip use: for chip
dpvlink
25937

48.75 CHF
The image shows a technical drawing of a pen. It has a pointed tip and a cylindrical casing. Dimensions in millimeters are indicated on the longitudinal side.
Soldering tip C245-201
JBC C245-201 soldering tip for soldering iron T245
- Tip shape: pointed
-Tip orientation: straight
-Ø 0.6 mm
dpvlink
25937

43.75 CHF
The image shows a technical drawing of a tool, consisting of a long, narrow handle and a pointed, conical tip. The dimensions are provided.
Soldering tip C245-234
JBC C245-234 soldering tip for soldering iron T245
- tip shape: pointed
- Tip orientation: angled
-D: 0.4 mm, L: 120 mm
dpvlink
25937

43.75 CHF
The image displays a technical drawing of a component with dimensions. It consists of a rectangular base with a long, narrow connector that is mounted on a circuit board.
SMD desoldering tip C245-215
JBC C245-215 SMD desoldering tip for soldering
iron T245
-for Dual-in-Line-IC A = 9.6; B = 18.0 mm
-Tip use: for Dual-in-Line-IC
dpvlink
25937

76.25 CHF
The image displays technical drawings of an electronic component with a cylindrical connector, a small green package, and precise measurements in millimeters.
SMD desoldering tip C245-220
JBC C245-220 SMD desoldering tip for soldering
iron T245
-for Dual-in-Line-IC A = 5.4; B = 6.0 mm
-Tip use: for Dual-in-Line-IC
dpvlink
25937

76.25 CHF
The image displays technical drawings of a DUAL IN LINE connector. Dimensions in mm are provided, showing the sizes of both the connector and the circuit board. The connector has a cylindrical shape and is attached to a circuit board.
SMD desoldering tip C245-221
JBC C245-221 SMD desoldering tip for soldering
iron T245
-for Dual-in-Line-IC A = 5.4; B = 10.0 mm
-Tip use: for Dual-in-Line-IC
dpvlink
25937

76.25 CHF
The image shows a technical drawing of a dual in-line component with dimensions. It includes a connector seated on a circuit board and is shown in two views.
SMD desoldering tip C245-222
JBC C245-222 SMD desoldering tip for soldering
iron T245
-for Dual-in-Line-IC A = 7.1; B = 13.0 mm
-Tip use: for Dual-in-Line-IC
dpvlink
25937

76.25 CHF
The image displays technical drawings of a cartridge for QFP and PLCC cases. Dimensions are provided in millimeters, as well as the shape of the cartridge and a green chip.
SMD desoldering tip C245-223
JBC C245-223 SMD desoldering tip for soldering
iron T245
-for QFP/PLCC, A= 8.5 ; B= 8.5 mm
-Tip use: for QFP/PLCC
dpvlink
25937

80.00 CHF
The image displays a technical drawing of a cartridge system for QFP and PLCC packages, with dimensions and a side view. A wire connects the cartridge to a control surface.
SMD desoldering tip C245-224
JBC C245-224 SMD desoldering tip for soldering
iron T245
-for QFP/PLCC, A= 12.0 ; B= 12.0 mm
-Tip use: for QFP/PLCC
dpvlink
25937

80.00 CHF
The image shows a technical drawing of a component with various dimensions. At the top, there is a casing visible, which sits on a green PCB, and below it, there is a tool connected by cables.
SMD desoldering tip C245-226
JBC C245-226 SMD desoldering tip for soldering
iron T245
-for Dual-in-Line-IC A= 15.2; B= 29 mm
-Tip use: for Dual-in-Line-IC
dpvlink
25937

76.25 CHF
The image displays a technical drawing of a cartridge for QFP and PLCC packages. It shows dimensions and the shape of the device. A detail indicates the connection and the dimensions.
SMD desoldering tip C245-227
JBC C245-227 SMD desoldering tip for soldering
iron T245
-for QFP/PLCC, A=17.5 ; B= 17.5 mm
-Tip use: for QFP/PLCC
dpvlink
25937

110.00 CHF
The image displays a technical drawing of a container for QFP and PLCC packages. It includes dimensions in millimeters and inches, as well as a schematic connection.
SMD desoldering tip C245-228
JBC C245-228 SMD desoldering tip for soldering
iron T245
-for QFP/PLCC, A= 12.4 ; B= 15.0 mm
-Tip use: for QFP/PLCC
dpvlink
25937

80.00 CHF
The image displays technical drawings of PLCC sockets. The top shows dimensions and a square component with 44 contact points. An additional cable is also illustrated.
SMD desoldering tip C245-247
JBC C245-247 SMD desoldering tip for soldering
iron T245
-for PLCC socket 32 A = 17.0 mm; B = 17.0 mm
-Tip use: for PLCC socket
dpvlink
25937

95.00 CHF
The image displays technical drawings of PLCC cartridges. At the top are two views of a square connector with 32 contact positions. Below there is a description with dimensions in mm and inches.
SMD desoldering tip C245-248
JBC C245-248 SMD desoldering tip for soldering
iron T245
-for PLCC socket 44 A = 11.9 mm; B = 14.5 mm
-Tip use: for PLCC socket
dpvlink
25937

81.25 CHF
The image displays technical drawings of a connector. At the top, dimensions and a 3D representation of the plug are visible. Below, there is a top view of the circuit board with connection.
SMD desoldering tip C245-250
JBC C245-250 SMD desoldering tip for soldering
iron T245
-for Dual-in-Line-IC A = 5.4 mm; B = 8.0 mm
-Tip use: for Dual-in-Line-IC
dpvlink
25937

76.25 CHF
The image displays a technical diagram of a pen with a conical tip. Dimensions are provided: diameter and length measurements in millimeters. The view is shown from both the front and the side.
Soldering tip C245-256
JBC C245-256 soldering tip for soldering iron T245
-Tip shape: round
- Tip orientation: sloped
-D: 3.4 mm, L: 120 mm
dpvlink
25937

43.75 CHF
The image shows a technical drawing of a precise tool with a long, narrow handle and a targeted, curved tip. Dimensions are indicated.
Soldering tip C245-259
JBC C245-259 soldering tip for soldering iron T245
-Tip shape: round
- Tip orientation: angled
-D: 1.5 mm, L: 120 mm
dpvlink
25937

43.75 CHF
The image displays a technical drawing of a device with a curved end and a straight body. The dimensions are provided, including diameter and length.
Soldering tip C245-260
JBC C245-260 soldering tip for soldering iron T245
-Tip shape: round
- Tip orientation: angled
-D: 2.0 mm, L: 120 mm
dpvlink
25937

43.75 CHF
The image displays technical drawings of a tool with a pointed end. There are front, side, and detailed views. Dimensions are provided. The shape is ergonomic.
Soldering tip C245-261
JBC C245-261 soldering tip for soldering iron T245
-Tip shape: chisel-shaped
- D: 3.0 x 1.0 mm
dpvlink
25937

43.75 CHF
The image displays technical drawings of a special soldering tip. It has a pointed, narrow shape and is used for quick soldering. Dimensions are provided in millimeters.
Special soldering tip C245-268
JBC C245-268 special soldering tip for T245
-for special application
-Forked, opening: 1.5 mm, B: 6 mm
-for optimal 2-side heating of the solder joint
- Tip shape: special shape
dpvlink
25937

78.75 CHF
The image displays technical drawings of soldering tips. One tip has a conical shape with a large contact area. The dimensions are provided, including a detailed sectional view and a top view.
Soldering tip C245-301
JBC C245-301 soldering tip for T245
-for large solder application (special application
-with reinforced iron layer
-Ø 8.8 mm
-Tip shape: round
- Tip orientation: sloped
dpvlink
25937

65.00 CHF
The image displays technical drawings of a component called "Dual In Line". It includes dimensions and views that depict a cylindrical plug with a plate-shaped base.
SMD desoldering tip C245-303
JBC C245-303 SMD desoldering tip for soldering
iron T245
- für Dual-in-Line-IC A= 6.5 ; B= 6.0 mm
-Tip use: for Dual-in-Line-IC
dpvlink
25937

76.25 CHF
The image displays technical drawings of a component with various views and dimensions. It features a dual-in-line package with a connector and a chip on a circuit board.
SMD desoldering tip C245-304
JBC C245-304 SMD desoldering tip for soldering
iron T245
- für Dual-in-Line-IC A= 9.6 ; B= 15.0 mm
-Tip use: for Dual-in-Line-IC
dpvlink
25937

76.25 CHF
The image displays a technical drawing of a dual in-line package with dimensions. It shows a marked component seated on a green circuit board, and a connecting wire.
SMD desoldering tip C245-305
JBC C245-305 SMD desoldering tip for soldering
iron T245
- für Dual-in-Line-IC A= 9.6 ; B= 12.0 mm
-Tip use: for Dual-in-Line-IC
dpvlink
25937

76.25 CHF
The image shows technical drawings of a "Dual In Line" component. It includes dimensions and representations of pins as well as a chip mounted on a green circuit board.
SMD desoldering tip C245-306
JBC C245-306 SMD desoldering tip for soldering
iron T245
- für Dual-in-Line-IC A= 9.6 ; B= 10.0 mm
-Tip use: for Dual-in-Line-IC
dpvlink
25937

76.25 CHF
The image displays technical drawings of cartridges with a chrome-plated surface, designed for plastic rivets. Dimensions and views from various perspectives are shown.
Special soldering tip C245-311
JBC C245-311 special soldering tip for T245
-for plastic rivets
-A = 20 mm; B = 6 mm
dpvlink
25937

71.25 CHF
The image displays technical drawings of chrome coatings for special tools. Various views of an attachment designed for plastic rivets are depicted.
Special soldering tip C245-312
JBC C245-312 special soldering tip for T245
-chrome-plated, for plastic rivets
- Tip shape: special shape
- Ø 3.2 mm
dpvlink
25937

52.50 CHF
The image displays technical drawings of two cartridges with a chrome-colored surface. They are designed for use with plastic rivets. Dimensions are provided.
Special soldering tip C245-313
JBC C245-313 special soldering tip for T245
-chrome-plated, for plastic rivets
- Tip shape: special shape
- Ø 4.1 mm
dpvlink
25937

52.50 CHF
The image displays technical drawings of a cartridge for QFP and PLCC packages. It includes dimensions and details of a square base with a structure mounted on it and a thin cable.
SMD desoldering tip C245-315
JBC C245-315 SMD desoldering tip for soldering
iron T245
-for QFP/PLCC, A = 15.0; B = 15.0 mm
-Tip use: for QFP/PLCC
dpvlink
25937

80.00 CHF
The image shows a pen with a conical tip. There is a side view, a top view, and a detailed view of the tip. The dimensions are given in millimeters.
Soldering tip C245-403
JBC C245-403 soldering tip for soldering iron T245
-Tip shape: round
-Tip orientation: straight
-Ø 1.0 mm
dpvlink
25937

35.00 CHF
The image shows a technical drawing of a pen. It has a conical shape with a pointed, white tip. Dimensions such as diameter and length are provided.
Soldering tip C245-405
JBC C245-405 soldering tip for soldering iron T245
-Tip shape: round
-Tip orientation: sloped
- D: 1.5 mm, L: 100 mm
dpvlink
25937

35.00 CHF
The image shows a pencil. It has a conical tip, a round shaft, and measures 12 x 0.7 mm. Side view and top view are also shown.
Soldering tip C245-406
JBC C245-406 soldering tip for soldering iron T245
-Tip shape: round
- D: 1.2 x 0.7 mm
dpvlink
25937

35.00 CHF
The image displays a technical drawing of a pen. It has a pointed, conical shape and a labeled area with dimensions that specify lengths and diameters.
Soldering tip C245-407
JBC C245-407 soldering tip for soldering iron T245
-Tip shape: chisel-shaped
-Tip orientation: straight
- D: 2.2 x 1.0 mm
dpvlink
25937

35.00 CHF
The image displays technical drawings of a curved instrument with a thin, pointed tip. There are measurements in millimeters that describe the size and shape of the object.
Soldering tip C245-627
JBC C245-627 soldering tip for soldering iron T245
-Tip shape: chisel-shaped
-Tip orientation: angled
-D: 3.0 mm
dpvlink
25937

43.75 CHF
The image shows a technical component with a curved end, which has a cylindrical shape. There are dimensions and a side view of the object. The structure appears smooth and symmetrical.
Soldering tip C245-628
JBC C245-628 soldering tip for soldering iron T245
-Tip shape: chisel-shaped
-Tip orientation: angled
-D 4.0 mm
dpvlink
25937

43.75 CHF
The image displays technical drawings of a component. On the left, dimensions are provided, and on the right, a schematic representation shows the connection to a circuit board. An arrow indicates the movement or position.
Special soldering tip C245-651
JBC C245-651 special soldering tip for T245
-A = 3.25 mm; B = 1.25 mm; C = 6.0 mm
D = 4.0 mm; E = 3.0 mm
-Special soldering tip for through-hole mounting
-Slot: 1.25 mm
dpvlink
25937

48.75 CHF
The image displays technical drawings of a component. At the top, dimensions and sketches of a head are shown. Below, a wire leads to a circuit board with contact points.
Special soldering tip C245-654
JBC C245-654 special soldering tip for T245
-A = 2.0 mm; B = 0.75 mm; C = 6.0 mm
D = 3.5 mm; E = 3.0 mm
-Tip shape: special shape
dpvlink
25937

48.75 CHF
The image displays technical drawings of a component with various views and dimensions. There are a top view, side views, and closer detailed views.
Special soldering tip C245-667
JBC C245-667 special soldering tip for T245
-A = 3.25 mm; B = 1.25 mm; C = 12 mm
D = 4.0 mm; E = 3.0 mm
-Special soldering tip for through-hole mounting
-Slot: 1.25 mm
dpvlink
25937

48.75 CHF
The image displays technical drawings of a component with various views and dimensions. Details such as diameter, lengths, and an assembly position on a circuit board are shown.
Special soldering tip C245-669
JBC C245-669 special soldering tip for T245
-A = 3.0 mm; B = 1.25 mm; C = 12.0 mm
D = 3.5 mm; E = 3.0 mm: F = 5.0 mm
-Special soldering tip for through-hole mounting
-Slot: 1.25 mm
dpvlink
25937

47.50 CHF
The image shows a technical drawing of a pen. It has a pointed tip, a round body, and is shown from various sides with dimensions.
Soldering tip C245-673
JBC C245-673 soldering tip for soldering iron T245
-Tip shape: chisel-shaped
-D: 0.8 x 0.3 mm, (reinforced iron layer)
dpvlink
25937

43.75 CHF
The image displays a technical drawing of a chisel attachment. It has a conical shape with a flat tip. Dimensions are provided: length 13.5 mm and width 4.8 mm.
Soldering tip C245-708
JBC C245-708 soldering tip for soldering iron T245
-Tip shape: chisel-shaped
-Tip orientation: straight
-D: 4.8 x 1.5 mm
-with reinforced iron layer
dpvlink
25937

35.00 CHF
The image shows a technical drawing of a pointed object, possibly a tool. There is a side view, a top view, and a connection that includes dimensions.
Soldering tip C245-710
JBC C245-710 soldering tip for soldering iron T245
- for special application
-Tip orientation: sloped
-with reinforced iron layer
- D: 1.2 mm, L: 100 mm
dpvlink
25937

35.00 CHF
The image displays a technical drawing of a pen with a pointed cap. Dimensions are provided in millimeters. The pen has a slim, elongated shape.
Soldering tip C245-729
JBC C245-729 soldering tip for soldering iron T245
-Tip shape: chisel-shaped
- D: 2.7 x 1.0 mm
dpvlink
25937

35.00 CHF
The image shows a technical drawing of a rework knife. It is a detailed representation with dimensions in mm and a marking on the handle. The blade head is flat and has a special shape.
SMD special soldering tip C245-730
JBC C245-730 SMD special soldering tip for T245
- SMD soldering tip
- special shape, B = 10.0 mm
dpvlink
25937

71.25 CHF
The image displays a technical drawing of a pen. It features a pointed tip, a slim body, and a cap. Dimensions are provided in millimeters.
Soldering tip C245-731
JBC C245-731 soldering tip for soldering iron T245
-Tip shape: chisel-shaped
- D: 0.6 x 0.3 mm
dpvlink
25937

35.00 CHF
The image displays technical drawings of a thin, diagonally cut tool with a cylindrical handle. Dimensions are provided to clarify the size and shape.
Soldering tip C245-732
JBC C245-732 soldering tip for soldering iron T245
-Tip shape: chisel-shaped
-Tip orientation: angled
-D: 3.2 x 1.5 mm
dpvlink
25937

35.00 CHF
The image displays a technical drawing of a pen. The view includes the tip, the shaft, and dimensions such as diameter and length. The pen has a conical shape and is rounded at the top.
Soldering tip C245-742
JBC C245-742 soldering tip for soldering iron T245
-Tip shape: chisel-shaped
-Tip orientation: straight
-D: 0.8 x 0.6 mm
dpvlink
25937

35.00 CHF
The image shows a technical drawing of a sharp object with a cylindrical body and a narrow tip. It includes dimensions and a top view.
Soldering tip C245-747
JBC C245-747 soldering tip for soldering iron T245
- for special application
-Tip orientation: sloped
-with reinforced iron layer
- D: 0.6 mm, L: 100 mm
dpvlink
25937

35.00 CHF
The image shows a technical drawing of a tool attachment with a pointed end, displayed in multiple perspectives. Dimensions are provided.
Special soldering tip C245-748
JBC C245-748 soldering tip for soldering iron T245
-Tip shape: special shape
-Tip orientation: angled
- D: 0.6 mm
dpvlink
25937

50.00 CHF
The image shows a technical drawing of a slender, conical tool with a long, thin handle and a pointed working surface. Dimensions are indicated.
Special soldering tip C245-749
JBC C245-749 soldering tip for soldering iron T245
-Tip shape: round, special shape
-Tip orientation: sloped
- 0.6 x 13 mm, L:100 mm
- only one corner wettable
-with reinforced iron layer
dpvlink
25937

50.00 CHF
The image displays technical drawings of connectors. In the top right, there is a plug that is inserted into a circuit board, with dimensions and various diameters.
Special soldering tip C245-751
JBC C245-751 special soldering tip for T245
-A = 3.25 mm; B = 1.25 mm; C = 6.0 mm
D = 4.0 mm; E = 3.0 mm
-Special soldering tip for through-hole mounting
-Slot: 1.25 mm
dpvlink
25937

48.75 CHF
The image displays a technical drawing of a tool blade. It includes various views, dimensions, and a description of the blade type, along with a detailed sketch.
Soldering tip C245-752
JBC C245-752 SMD soldering tip for soldering
iron T245
-SMD soldering tip
-B: 15 mm
-Tip shade: blade-shaped
- Tip orientation: angled
dpvlink
25937

61.25 CHF
The image shows a technical drawing of a connector. Dimensions are provided. On the right, the plug is depicted on a green circuit board, with various connections.
Special soldering tip C245-754
JBC C245-754 special soldering tip for T245
-A = 2.0 mm; B = 0.75 mm; C = 6.0 mm
D = 3.5 mm; E = 3.0 mm
-Tip shape: special shape
dpvlink
25937

48.75 CHF
The image displays technical drawings of a tool or tip. The top left shows dimensions. Below, the tip is seen with a tapered round connection.
Soldering tip C245-755
JBC C245-755 soldering tip for soldering iron T245
-Tip shape: chisel-shaped
-D: 4.0 x 0.8 mm
dpvlink
25937

35.00 CHF
The image shows a technical drawing of an object, likely a pen or tool. It includes side views and dimensions in millimeters, with a curved handle and a pointed tip.
Soldering tip C245-756
JBC C245-756 soldering tip for soldering iron T245
-Tip shape: chisel-shaped
-D: 4.0 x 1.0 mm
dpvlink
25937

35.00 CHF
The image displays technical drawings of a component that has a conical shape and features a narrow slot on one side. Dimensions and labels are provided.
Special soldering tip C245-757
JBC C245-757 special soldering tip for T245
-A = 3.2 mm; B = 1.5 mm; C = 1.25 mm
D = 1.4 mm; E = 13.5 mm
- Tip shape: special shape
dpvlink
25937

48.75 CHF
The image displays technical drawings of a component. It has a cylindrical shape with an elongated, slotted opening at one end. Dimensions are provided, including lengths and diameters.
Special soldering tip C245-758
JBC C245-758 special soldering tip for T245
-A = 4.3 mm; B = 2.5 mm; C = 2.0 mm
D = 2.5 mm; E = 14.5 mm
- Tip shape: special shape
dpvlink
25937

48.75 CHF
The image displays technical drawings of a tool with various views. It features a conical tip and an elongated shape, with dimensions in millimeters.
Soldering tip C245-759
JBC C245-759 soldering tip for soldering iron T245
-Tip shape: chisel-shaped
-D: 2.4 x 0.5 mm
dpvlink
25937

35.00 CHF
The image displays technical diagrams of a component with multiple views. Various dimensions are provided, and a part is highlighted in blue. It is a precise technical drawing.
Special soldering tip C245-760
JBC C245-760 special soldering tip for T245
- hollowed
-A = 5.0 mm; B = 3.5 mm; C = 1.0 mm
- Tip shape: special shape
dpvlink
25937

43.75 CHF
Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Product Family

T245-A Soldering iron

Article image
Article description
Power
Voltage
suitable soldering tip series
Weight
Price
Compare
JBC-T245-NA - T245-NA Nitrogen soldering iron
JBC-T245-NA
T245-NA Nitrogen soldering iron
50 W
220 V


215.00 CHF
JBC-T245-PA - T245-PA soldering iron
JBC-T245-PA
T245-PA soldering iron
50 W
24 V
C245

86.25 CHF
JBC-T245-A - T245-A Soldering iron
JBC-T245-A
T245-A Soldering iron
50 W
24 V
C245
115 kg
86.25 CHF
Show Compare List (0)

This product is compatible with (for example):

The image shows a sturdy, black holder with an adjustable metal clamp mounted on a base. It bears the brand "Weller" and is intended for precision work.
SD 1000 solder dispenser
Solder dispenser SD-1000
dpvlink
7479

67.40 CHF
The image shows a device consisting of three main components: a black box with a scale, a mount with three inserts, and a long, flexible cable with a handle at the end.
JBC KN-B Nitrogen measurement and control...
JBC KN-A nitrogen measurement and control system
-compatible with supply unit DI, DD and DM
-MN-A nitrogen flow controller
-DN-SE holder
-T245-NA nitrogen soldering iron nozzle 75 Watt
- C245-903 soldering tips
- B7243 & B7244 nozzle for nitrogen soldering iron
- CL6166 ESD soldering tip cleaner
- maximum pressure 6 bar, N2 air flow 0.5-3.5 l / min
dpvlink
29835

1,112.50 CHF
The image shows a tool station for winding wires. It consists of a sturdy base, a spool with silver wire, and a stand that holds two markers and a pair of pliers.
Solder tin dispenser ESD DS-2500-K incl....
Solder tin dispenser ESD DS-2500-K incl. tools
Diagonal cutting pliers TRE 03 NB
Flat-nosed pliers PN2005
desoldering pump PD03
Tweezers 0SA
Phillips Screwdriver PG2-1
dimensions: 190 x 150 x 255 mm, weight 1.4 kg
dpvlink
17637

81.90 CHF
The image shows a black metal bracket. It has a triangular shape with several holes and an adjustable pin to attach various devices.
Solder tin reel holder ESD for second reel...
Solder tin holder ESD DS-2500AB
(Additional holder for second solder wire reel)
dpvlink
17637

32.20 CHF
The image shows a sturdy, rectangular stand made of black metal. It features two vertical tubes that taper upwards, along with various mounts on the top.
Solder tin dispenser ESD DS-25002B for 2...
Solder tin dispenser ESD DS-2500B for 2 reels
dimensions.: 190 x 150 x 300 mm, weight 1.4 kg
dpvlink
17637

70.35 CHF
The image shows a sturdy holder made of black metal. It has a rectangular base, a vertical stand, and a horizontal arm designed for holding devices.
Solder tin dispenser ESD DS-2500
Solder tin dispenser ESD DS-2500 with tool holder
dimensions.: 190 x 150 x 155 mm, weight 1 kg
dpvlink
17637

40.15 CHF
The image shows a long, narrow wooden stick with a sharp, pointed edge. The surface is smooth and dark brown to black. The stick appears robust and stable.
Soldering tool type 35622
Soldering tool 35622 / SP-3010
fiber glass nylon reinforced plastic
dpvlink
20227

4.90 CHF
The image shows a gray wooden block in a rectangular shape. It has a rough surface and is flat with rounded edges. The dimensions are approximately twice as long as they are wide.
Polishing stone
Grinding stone to remove thick
oxide layers from soldering tips
Cleaning possible only in cold condition of the
soldering tip
dpvlink
13825

16.35 CHF
The image shows four tools: a black soldering station with a golden spiral, a round can with green contents, a gray grinding stone, and a wooden brush with metal bristles.
WDC 2 Cleaning set complete
WDC 2 - cleaning set consisting of:
WCD dry cleaner, tip activator,
stainless steel brush
dpvlink
13768

53.70 CHF
The picture shows a cleaning kit: a black box with golden contents, a green tube, a gray sponge, and a wooden brush with metal bristles. All parts are arranged on a white background.
WDC Cleaning set complete
WDC - cleaning set consisting of:
WCD dry cleaner, WPB1 grindstone, tip activator,
stainless steel brush
dpvlink
13768

62.10 CHF
The image shows a black, slanted block with a round opening. Inside, there is a silver metal grid. It could be a cleaning brush.
WDC 2 - Dry Cleaner
WDC Weller - Dry cleaner
for WDH safety rests
dpvlink
15047

21.40 CHF
The image shows a small, black pipe cleaner with a golden sponge on top. It has a semi-circular shape and a small shelf. The sponge is soft and textured.
WDC - Dry Cleaner
WDC Weller - Dry cleaner
dpvlink
7481

31.55 CHF
The image shows a gold-colored, spiral-shaped object made of thin wires. It has an irregular, foamy shape and looks somewhat like a curly ball.
WDC 2 cleaning wool brass
Spiral wool for WDC 2 replacement
brass-plated
PU = 2 pcs
dpvlink
30244

6.65 CHF
The image shows a brush with a long wooden handle. The bristles are gray and soft. The handle features the inscription "Weller". The brush appears sturdy and handy.
Stainless steel brush (3 pieces)
Stainless steel wire brush
(3) packed
dpvlink
13823

17.40 CHF
The image shows a gray, compact structure made up of many thin, spiral-shaped metal threads. It has an irregular, somewhat organized shape and looks like a small, metallic ball.
WDC 2 cleaning wool steel
Spiral wool for WDC 2 replacement (2 pcs)
dpvlink
30244

8.55 CHF
The image shows a gray, compact structure made up of many thin, spiral-shaped metal threads. It has an irregular, somewhat organized shape and looks like a small, metallic ball.
WDC cleaning wool stainless steel
Spiral wool for WDC replacement (2 pcs)
dpvlink
30244

8.10 CHF
The image displays a set of soldering tools: three digital control units, several soldering tips, a desoldering pump, and additional handheld devices. Everything is arranged on a table.
NEW
RMSE-2QG Soldering station
JBC RMSE-2QG Soldering station >> JBC Premium Line
- DDE-2C 150W and JTSE-2UA 700W power supply unit
- JTSE-2UA Hot air control unit 700W
- T245-A Soldering iron 130 Watt
soldering tips not included)
- DR560-A Desoldering iron 160 Watt
- JT-T2A Hot air iron set
- T260-A Pick & Place/Vacuum pipette
- MSE-B electronic vacuum pump
- ESHT-A Suction support
- SCH-A Soldering tip support
- ADS Stand for T210% T245
- DRS Stand for DR560 Desoldering iron
- JTS stand for JTT
- PH218 thermal probe
dpvlink
30498

5,531.25 CHF

This product is similar to:

The image displays technical drawings of a conical object with a tip. Dimensions are provided, including diameter and angle. There is a side view and a top view.
Soldering tip C245-766
JBC C245-766 soldering tip for soldering iron T245
-for special application
-Tip orientation: sloped
-D: 5.0 mm, L: 100 mm
dpvlink
25937

35.00 CHF
The image shows a fountain pen with a silver metal clip and a pointed nib. The grip is green and the body is black, creating a modern contrast.
Solder fume extraction kit F3435
JBC F3435 solder fume extraction kit
-for T245
-Suction tube ø 6 mm
-with silicone hose 2 m
dpvlink
29849

70.00 CHF
The image displays technical drawings of a connector. At the top, dimensions and a 3D representation of the plug are visible. Below, there is a top view of the circuit board with connection.
SMD desoldering tip C245-250
JBC C245-250 SMD desoldering tip for soldering
iron T245
-for Dual-in-Line-IC A = 5.4 mm; B = 8.0 mm
-Tip use: for Dual-in-Line-IC
dpvlink
25937

76.25 CHF
The image displays technical drawings of chip components. Various shapes and sizes are depicted, including a cylindrical or rectangular element and a circuit board with components. Dimensions are provided.
SMD desoldering tip C245-017
JBC C245-017 SMD desoldering tip for soldering
iron T245
-for chip; A = 2.2 mm
-Tip use: for chip
dpvlink
25937

47.50 CHF
