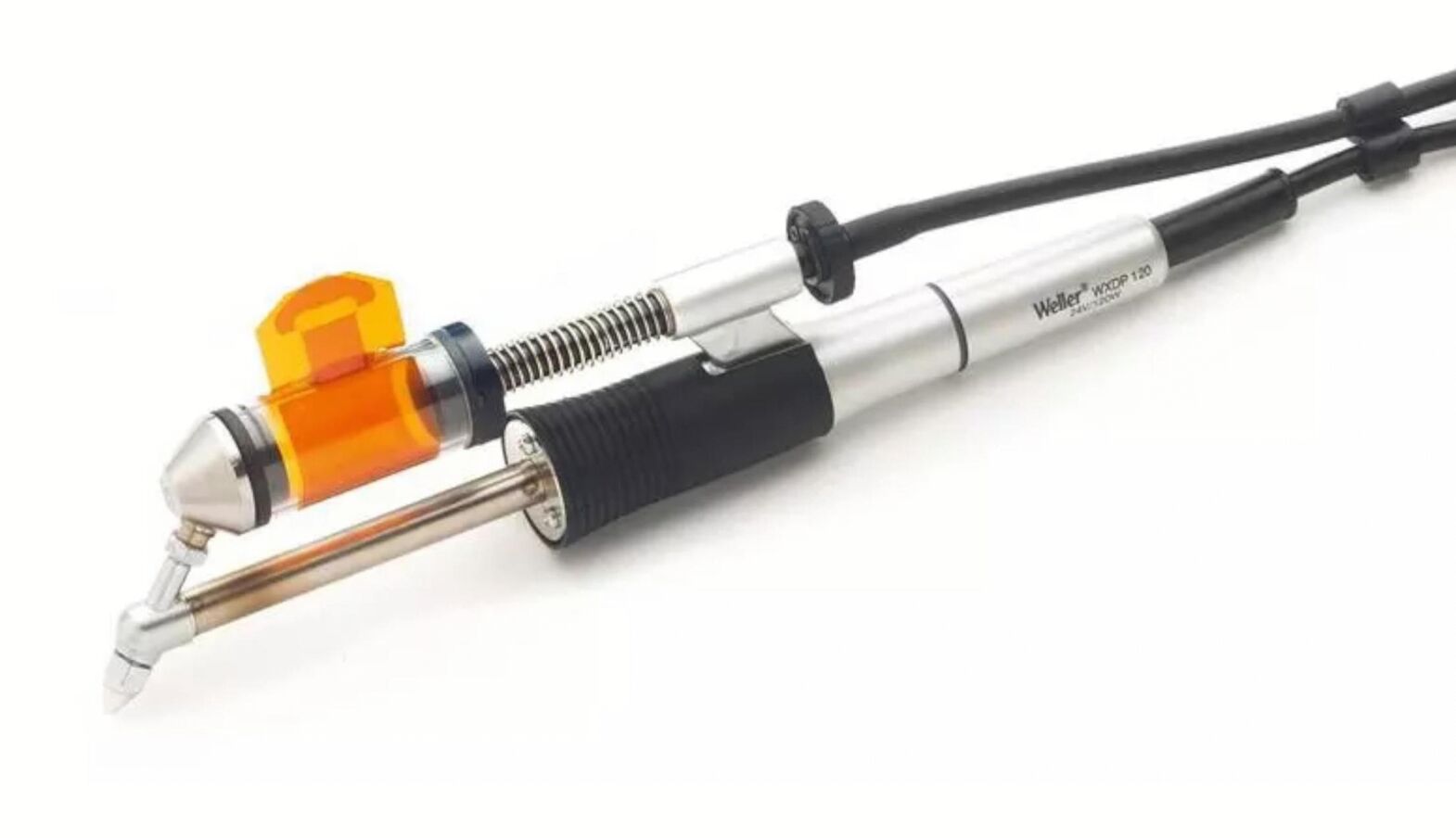

WXDP 120 desoldering iron 120 W
(Product No.: 513.201.99)
Notice

WXDP 120 desoldering iron 120 W

WXDP 120 desoldering iron 120 W

dpvlink:
16463
Properties:
Further product information

344.30 CHF

excl. 8.1% tax

1 PCE
Compare Compare
Notice
Product Info

WXDP 120 desoldering iron 120 W

WXDP 120 Desoldering Iron 120 W
The WXDP 120 desoldering iron with 120 W is a specialized tool for efficient and clean removal of solder connections, ideal for electronics repair, prototyping, and manufacturing. This device is compatible with WXD soldering stations and is distinguished by its high heating power, precise temperature control, and powerful vacuum suction. An ergonomic design and compatibility with various nozzles and tips make it particularly useful for removing defective components and teaching desoldering techniques.

Technical Specifications:
  • Power: 120 W
  • Compatible Tip Series: XDS
  • Heat-up Time: 35 s (20 s from standby)
  • Temperature Range: 100 - 450 °C
  • ESD-safe: yes
  • Finger switch for vacuum activation
  • Extended nozzle shaft prevents clogging of the suction tube
  • Quick tin cartridge exchange via bayonet lock
  • Sensor for detecting tool use (Stop + Go function)
  • Individual iron calibration and tool-specific parameter adjustment directly on the iron
  • Internal data storage
  • LED ring light for optical process control

    Ideal for professional rework applications of the latest electronic components, with the ability to store soldering and desoldering parameters directly on the iron.
    • Power
    Power
    120 W
    ESD
    ESD
    yes
    suitable soldering tip series
    suitable soldering tip series
    XDS
    Heating-up time
    Heating-up time
    35 s
    Temperature range
    Temperature range
    100 - 450 °C
    Pictograms
    ESD protective
    Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.

    Documents

    Downloads

    Please log in to download datasheets! :
    There are several datasheets for this product. Please log in!

    Catalogues

    Page: 605
    Complete Catalog 2023 - 2024

    Product Family

    Article image
    Article description
    Power
    ESD
    suitable soldering tip series
    Heating-up time
    Temperature range
    Price
    Compare
    513.201.99 - WXDP 120 desoldering iron 120 W
    513.201.99
    WXDP 120 desoldering iron 120 W
    120 W
    yes
    XDS
    35 s
    100 - 450 °C
    344.30 CHF
    513.202.99 - WXDP 120 Set
    513.202.99
    WXDP 120 Set
    120 W
    yes
    XDS
    35 s
    100 - 450 °C
    411.70 CHF
