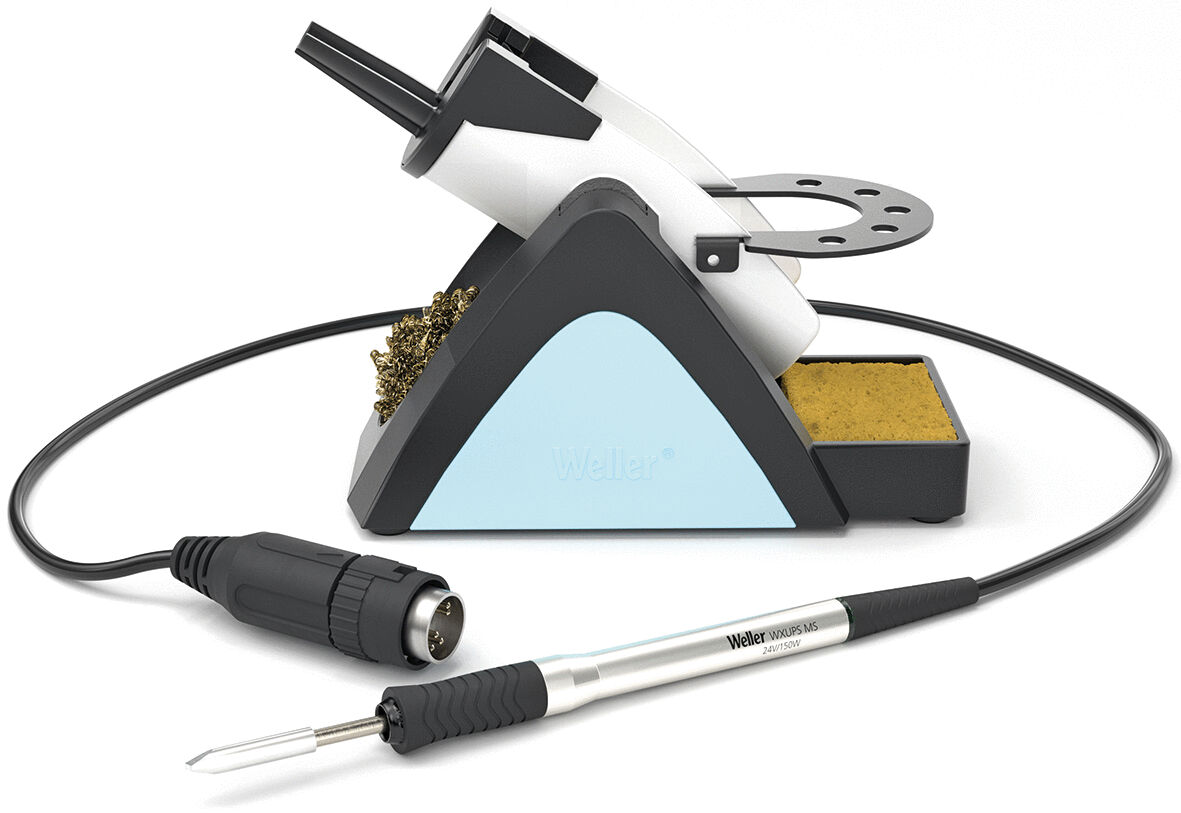

The image displays a soldering station with a silver soldering iron, a stand, and a yellow sponge. A cable connects the soldering iron to the station.
WXMPS MS Soldering iron set
(Product No.: 529.238.99)
The image displays a soldering station with a silver soldering iron, a stand, and a yellow sponge. A cable connects the soldering iron to the station.
Notice / Inquire

WXMPS MS Soldering iron set

WXMPS MS Soldering iron set

dpvlink:
26830
Power:
40 W
Voltage:
12 V
suitable soldering tip series:
RTPS MS / RTMS MS
Heating-up time:
3 s
Properties:
Further product information

368.50 CHF

excl. 8.1% tax

1 PCE
Compare Compare
Notice / Inquire
Product Info

WXMPS MS Soldering iron set

The WXsmart WXMPS MS PICO (NANO) / MICRO Soldering Iron Set by Weller is specifically designed for demanding soldering applications and offers optimized heat transfer thanks to Active-Tip heating technology. The soldering irons in this set are designed for a power of 40 W and achieve a heating time of only 3 seconds, allowing for fast and precise heat transfer.
The set includes the WXMPS MS Micro Soldering Iron and two special MS soldering tips for maximum precision. The WSR 208 safety holder is also included to ensure a safe workplace.
The soldering irons are equipped with an integrated RGB ring light for visual process control and a motion sensor that reduces energy consumption by activating standby mode. Compatibility with the WXsmart soldering station extends the possibilities of using this set.
Additionally, the soldering iron set offers MIL-SPEC compliance and additional insulation that prevents interference frequencies, making it ideal for use in sensitive electronic environments.



Scope of delivery:

529.236.99 WXMPS MS Micro Soldering Iron

501.091.99 RTPS 004 S MS Pico Soldering Tip, Chisel 0.4 x 0.2mm

501.023.99 RTMS 013 S MS Micro Soldering Tip, Chisel 1.3 x 0.4mm

515.182.99 WSR 208 Safety Holder



Power
Power
40 W
Voltage
Voltage
12 V
suitable soldering tip series
suitable soldering tip series
RTPS MS / RTMS MS
Heating-up time
Heating-up time
3 s
ESD
ESD
yes
included soldering iron
included soldering iron
WXMPS MS
Safety rest
Safety rest
WSR 208
Temperature range
Temperature range
100 - 450 °C
Show accessories
Pictograms
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.

Accessories

Spares

The image depicts a practical cleaning device with an upright housing, a round opening at the top, and a golden-colored metallic disc on the front.
Preview: Safety rest WSR 200
Preview: The image shows a soldering station sponge holder. It consists of a lower bracket with a yellow sponge and an upper area that accommodates a soldering tip cleaner.
Safety rest WSR 200
WSR 200 - 2-in-1 safety rest with brass
wool and cleaning sponge for WTP 90
dpvlink
26220

76.85 CHF
Show product
The image shows a handy tool handle. The handle is black with non-slip grooves, and at one end there is a metallic insert with a pointed shape, which is used for screwing.
Preview: Soldering tip chisel-shaped RTP 004 S MS
Preview: The image shows a technical drawing of a sharp object. It has a length of 16.3 mm and a diameter of 0.4 mm on one side. The sketch includes scale length specifications.
Preview: The image shows a silver 3.5 mm jack plug with a non-slip, black rubber coating. The plug has three contact strips and is slightly conical in shape.
Soldering tip chisel-shaped RTP 004 S MS
RTP 004 S MS chisel tip 0.4 x 0.2 mm
MIL-SPEC version , Weller soldering tip
(suitable for soldering iron WXPP MS)
dpvlink
25599

40.00 CHF
Show product
The image shows a soldering iron with a slim, silver body and a black, rubberized grip. The iron has a cable that leads to a power connection.
Preview: WXMPS MS Soldering iron
Preview: The image shows a soldering iron. It has a long, slender metal body with a rubberized grip. The tip is pointed and used for soldering. A cable leads away from it.
WXMPS MS Soldering iron
Soldering iron WXsmart series WXMPS MS 40 W
Handpiece without soldering tip
Matching soldering tips RTMS/RTPS MS
dpvlink
26830

241.10 CHF
Show product
The image shows a black tool with a non-slip surface and a pointed end. A thin, flexible metal head protrudes from the side, suitable for precise tasks.
Preview: Soldering tip chisel-shaped RTMS 013 S MS
Preview: The image displays a technical drawing of a long, narrow object with two diameters: 3.3 mm and 1.3 mm. On the left side, the length measurements are provided. On the right is a top view.
Preview: The image shows a pen with a rubberized, ridged grip in the middle. At one end there is a fine tip, at the other end a broader one.
Soldering tip chisel-shaped RTMS 013 S MS...
RTMS 013 S MS chisel-shaped tip 1.4 x 0.4 mm
Weller - Micro soldering tip
(suitable for soldering irons WXMPS MS
and WXsmart)
dpvlink
26980

44.20 CHF
Show product
Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Product Family

WXSmart Soldering iron series

The WXsmart soldering irons from Weller have been developed to meet the increasing demands of complex soldering applications. They are designed for Active-Tip heating element technology. Depending on the power (40 or 150 W), they are suitable for various soldering applications and component sizes. The soldering irons are available as individual items or as a set with matching soldering tips and safety rest.

  • Intelligent soldering irons with Active-Tip heating element technology for optimized heat transfer
  • Different power for different applications or component sizes (XS-L or XL-XXL)
  • Excellent heat transfer and recovery time during the soldering process for a powerful, continuous workflow
  • Maximum precision during soldering due to short distance between tip and handle
  • Precise and fast heat transfer and recovery time
  • Extremely fast heat-up times (3 or 7 sec.)
  • Simple tool identification with visual process control thanks to integrated RGB ring lights
  • Complete process control thanks to smart soldering tools and tips
  • Storage of individual soldering processes with integrated parameter storage
  • Quick, safe and easy tip change without additional tools despite hot temperatures
  • Reduced energy consumption thanks to integrated motion sensor (standby mode)
  • Compatible with the WXsmart soldering station
  • Maximum protection (IPC/MIL-SPEC) for components and circuit board

MS soldering irons are MIL-SPEC-compliant, i.e. they are used in accordance with MIL-STD-2000. In contrast to conventional soldering irons, they have additional insulation to ground, which prevents interference frequencies. MS soldering irons are not compatible with conventional soldering tips, but must always be used with MS soldering tips.


Article image
Article description
Power
Voltage
suitable soldering tip series
Heating-up time
Price
Compare
529.235.99 - WXUPS MS Soldering iron
529.235.99
WXUPS MS Soldering iron
150 W
24 V
RTUS MS
7 s
241.10 CHF
529.236.99 - WXMPS MS Soldering iron
529.236.99
WXMPS MS Soldering iron
40 W
12 V
RTPS MS / RTMS MS
3 s
241.10 CHF
529.237.99 - WXUPS MS Soldering iron set
529.237.99
WXUPS MS Soldering iron set
150 W

RTUS
7 s
336.95 CHF
529.238.99 - WXMPS MS Soldering iron set
529.238.99
WXMPS MS Soldering iron set
40 W
12 V
RTPS MS / RTMS MS
3 s
368.50 CHF
