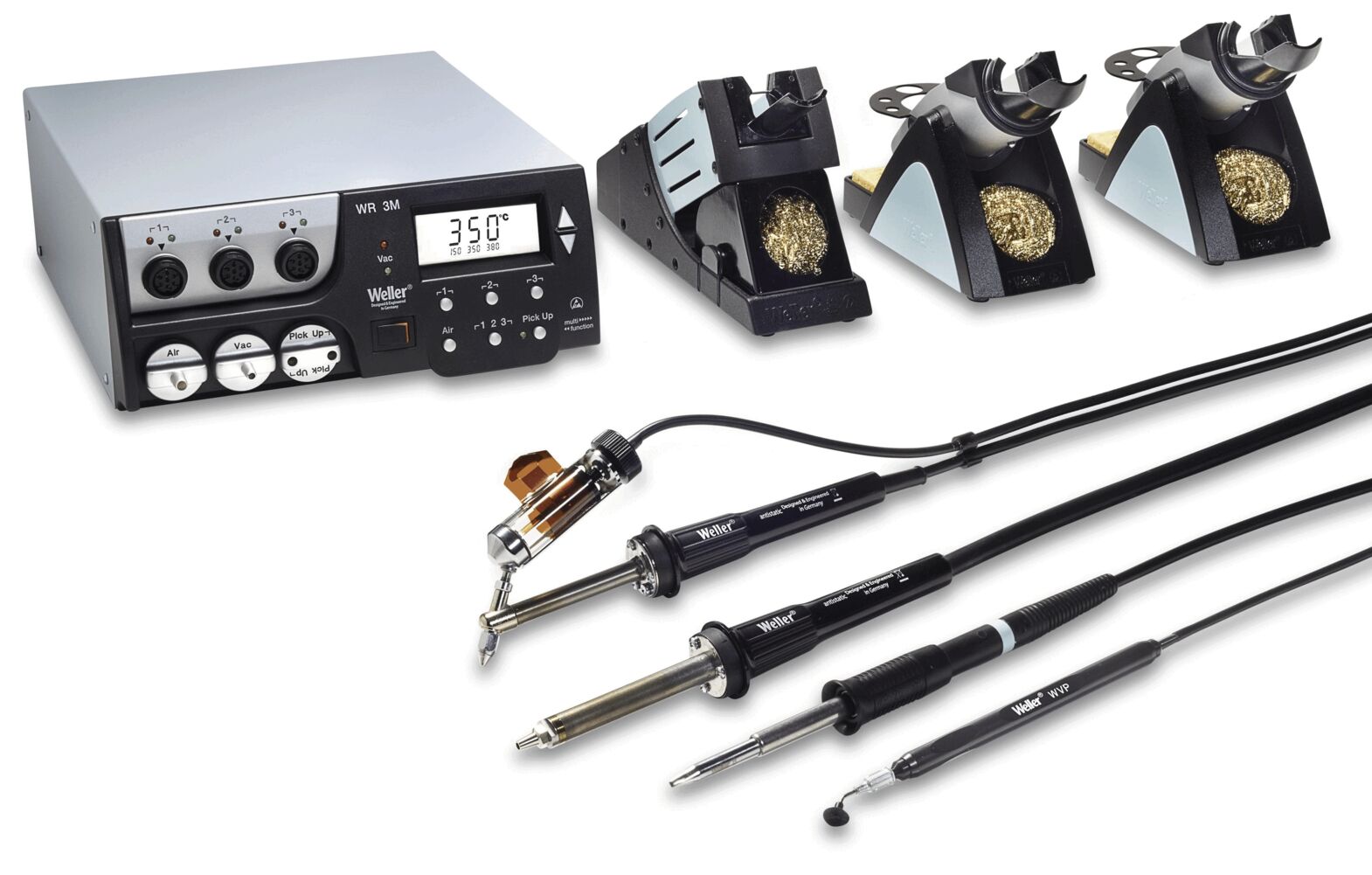

The image displays a soldering station with a digital display and multiple controls. Included are various soldering tools and holders with bronze-colored sponges for cleaning.
WR 3000M Rework station for horizontal working
(Product No.: 533.686.99)
The image displays a soldering station with a digital display and multiple controls. Included are various soldering tools and holders with bronze-colored sponges for cleaning.
Notice / Inquire

WR 3000M Rework station for horizontal working

WR 3000M Rework station for horizontal working

dpvlink:
9603
Width :
240 mm
Height :
103 mm
Length :
240 mm
Power:
360 / 400 W
Channels:
3
Temperature range:
50 - 550 °C
Properties:
Further product information

3,315.45 CHF

excl. 8.1% tax

1 PCE
Compare Compare
Notice / Inquire
Product Info

WR 3000M Rework station for horizontal working

The Weller WR 3000M is a rework set with the 3-channel supply unit WR 3M, developed for professional repair and rework applications on electronic components. The set includes, in addition to the supply unit with a total power of 360 W (maximum 400 W), several soldering irons, safety rests, and other accessories.



  • Large all-around set for all repair tasks
  • Supply unit with 3 independent channels for parallel operation of up to 3 soldering tools
  • Separate vacuum channel for pick-up
  • Simultaneous operation of hot air and desoldering possible
  • All high-speed micro-tools can be connected
  • Hot air iron, soldering iron, and desoldering iron included
  • Desoldering iron DSX 80: Same working posture as conventional soldering irons
  • Automatic tool recognition by the supply unit
  • Grounding through a 3.5 mm jack socket on the back of the device



Scope of delivery:
WR 3M Supply unit 533.666.99
HAP 200 Hot air iron 200 W 527.116.99
2x WSR 209 Safety rest 515.185.99
DSX 80 Inline desoldering iron 513.190.99
WP 80 Soldering iron with soldering tip LT B 529.180.99
WDH 10T Safety rest 515.161.99
Vacuum pipette 529.184.99

Item number: 533.686.99

Width
Width
240 mm
Height
Height
103 mm
Length
Length
240 mm
Power
Power
360 / 400 W
Channels
Channels
3
Temperature range
Temperature range
50 - 550 °C
Voltage
Voltage
230 V
ESD
ESD
yes
Flow rate max. per minute
Flow rate max. per minute
18 l
Hot air max. per minute
Hot air max. per minute
15 l
included soldering iron
included soldering iron
HAP 200 / DSX 80
Safety rest
Safety rest
WSR 209 / WDH 10T
suitable soldering tip series
suitable soldering tip series
LT
Temperature accuracy +/-
Temperature accuracy +/-
9 °C
Temperature stability +/-
Temperature stability +/-
2 °C
Vacuum
Vacuum
0.7 bar
Weight
Weight
6.7 kg
