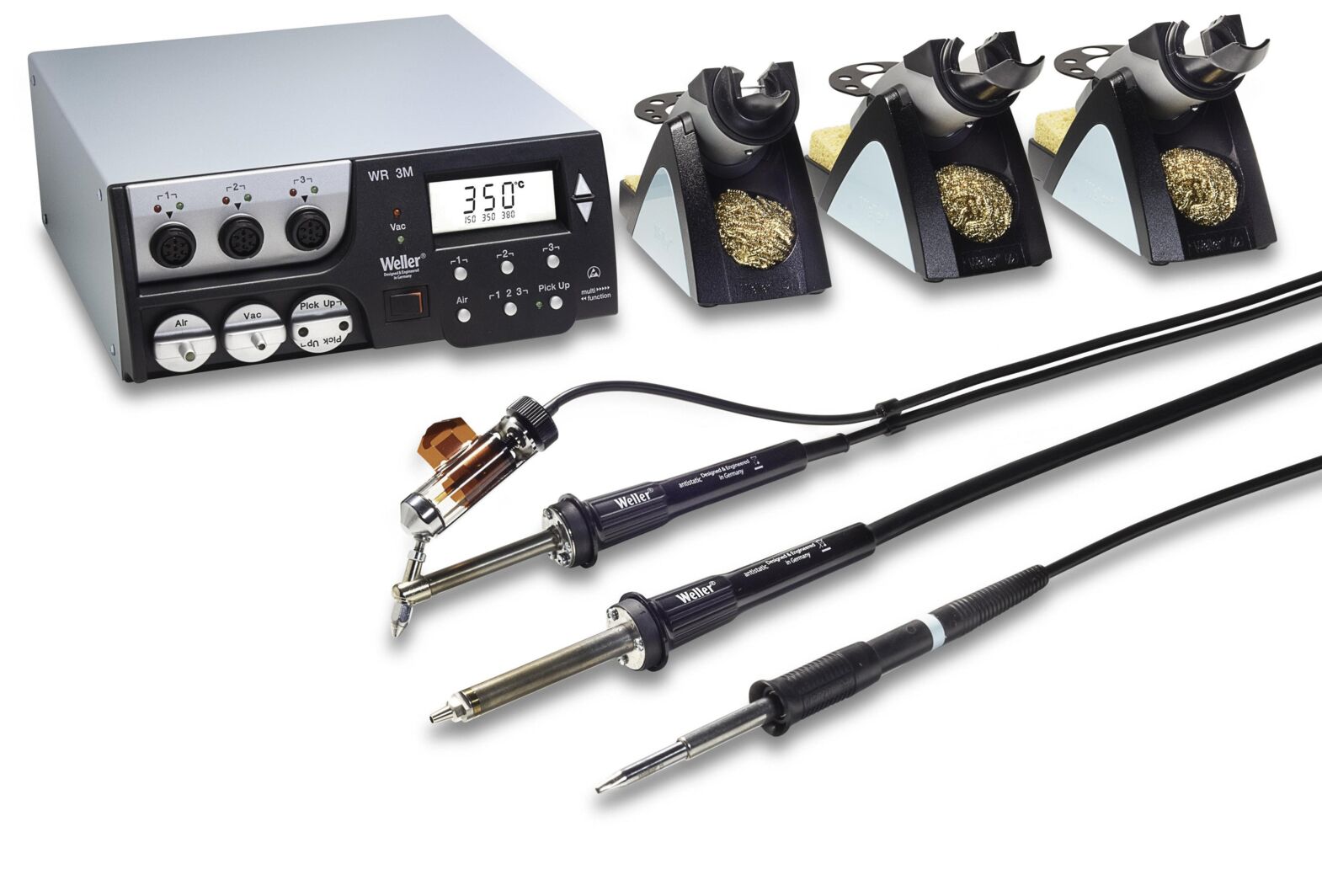

The image displays a soldering iron kit with a control unit and several soldering tips. The control unit features a digital display and multiple controls. Everything is arranged on a smooth surface.
WR 3000M ER Desoldering station
(Product No.: 533.688.70)
The image displays a soldering iron kit with a control unit and several soldering tips. The control unit features a digital display and multiple controls. Everything is arranged on a smooth surface.
Notice

WR 3000M ER Desoldering station

WR 3000M ER Desoldering station

dpvlink:
16570
Width :
240 mm
Height :
103 mm
Length :
280 mm
Power:
360 / 400 W
Channels:
3
Temperature range:
50 - 550 °C
Properties:
Further product information

3,273.35 CHF

excl. 8.1% tax

1 PCE
Compare Compare
Notice
Product Info

WR 3000M ER Desoldering station

The Weller WR 3000M ER is a rework set with the 3-channel supply unit WR 3M, developed for professional repair and rework applications on electronic components. The set includes the supply unit with a total power of up to 400 W, several soldering irons, safety rests, and additional accessories.

  • Large all-around set for all repair tasks
  • Supply unit with 3 independent channels for parallel operation of up to 3 soldering tools
  • Dedicated vacuum channel for pick-up
  • Simultaneous operation of hot air and desoldering possible
  • All high-speed micro-tools can be connected
  • Includes hot air iron, soldering iron, and desoldering iron
  • Automatic tool recognition by the supply unit
  • Grounding via 3.5 mm jack socket on the back of the device



Scope of delivery:

WR 3M Supply unit 533 666 99
HAP 200 Hot air iron 200 W 527 116 99
2 x WSR 209 Safety rest 515 183 99
DSX 120 Desoldering iron + Suction nozzle XDS 1 513 198 99
WP 120 Soldering iron 120 W 529 193 99
WSR 201 Safety rest 515 175 99

Item number: 533.688.70

Width
Width
240 mm
Height
Height
103 mm
Length
Length
280 mm
Power
Power
360 / 400 W
Channels
Channels
3
Temperature range
Temperature range
50 - 550 °C
Voltage
Voltage
230 V
ESD
ESD
yes
Flow rate max. per minute
Flow rate max. per minute
18 l
Hot air max. per minute
Hot air max. per minute
15 l
Temperature accuracy +/-
Temperature accuracy +/-
9 °C
Temperature stability +/-
Temperature stability +/-
2 °C
Vacuum
Vacuum
0.7 bar
Weight
Weight
6.7 kg
Show accessories
Pictograms
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.

Accessories

Accessories

The image shows a rectangular, black rubber base with a textured surface. In the center, there is a square, recessed field.
Foot switch 1-step for WR 3000M
Foot switch 1-step
dpvlink
29280

124.25 CHF

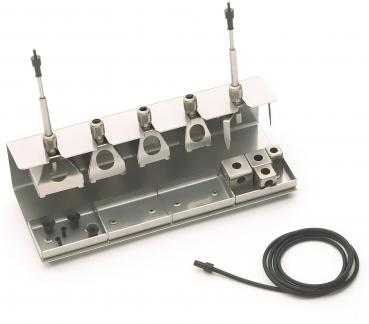

The image shows a metallic tool set with several holders and connections. There are three upright elements and a cable connection that runs sideways. The surface is flat.
WRK Reflow system complete
WRK - Reflowset for SMD components with external
Hot air, comprising:
Desoldering housing:
33x33 / 27x27 / 24x24 / 20x20 mm
15, 5 x 15, 5 / 12, 5 x 12, 5 / 10 x 10 mm,
Vacuum pick-up 4.5 + 10 mm, three-legged pick-up nozzle rest
dpvlink
9611

441.15 CHF
The image shows a silver, compact device with rounded edges. The top features a flat surface, while the bottom has a cable for power supply. The surface includes ventilation slots.
WHP 80 Preheating plate 80 W
WHP 80 - preheating plate 24 V / 80 W
heated surface 80 x 50 mm
temperature range 50 ° C - 200 ° C
dpvlink
3816

568.55 CHF
The image shows a black hand tool with a long handle and a smooth, round tip. A wire-like cable extends from the handle. Smaller parts are laid out next to it.
WVP vacuum pipette
WVP vacuum pipette for WR3M
dpvlink
9893

91.60 CHF

Spares

The image shows a soldering iron holder with a metal sponge for cleaning the soldering iron. The soldering iron features an open handle and a pointed tip.
WP 120 Set
WP 120 soldering kit with
rest WDH 10 T + soldering tip XTB
++ suitable soldering tip XT series ++
dpvlink
14807

283.20 CHF
Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 599
Complete Catalog 2023 - 2024

Product Family

WR 3000M ER Desoldering station

Article image
Article description
Width
Height
Length
Power
Channels
Temperature range
Price
Compare
533.688.70 - WR 3000M ER Desoldering station
533.688.70
WR 3000M ER Desoldering station
240 mm
103 mm
280 mm
360 / 400 W
3
50 - 550 °C
3,273.35 CHF
